Attention Please:

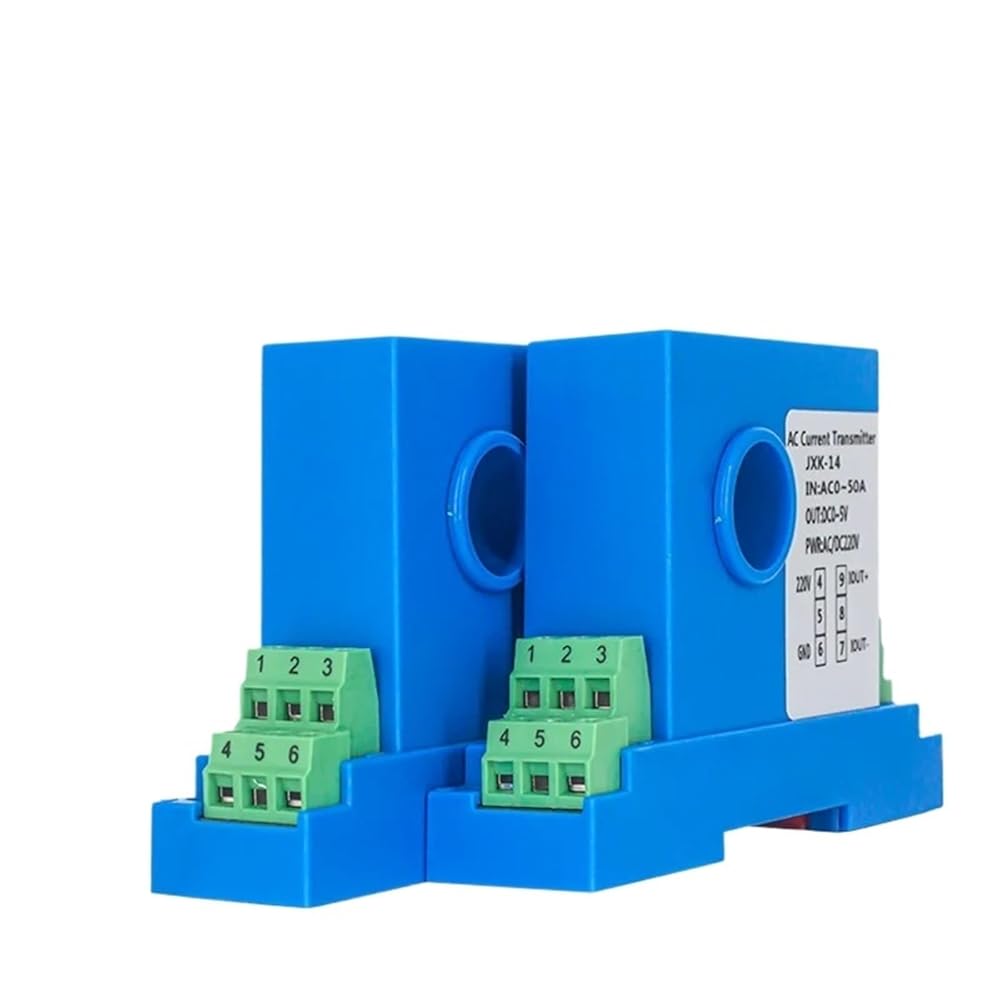

JXK-14 AC Current transmitter
The Link is for AC currnet input, 0-150A can be .
12mm /15mm hole diameter.
If you want to do other parameters, please contact me.
And let me know the input range , output signal , power supply request .
Product description and Specification:
. Working principle: open loop direct measurement.
. Usage: Used for measuring , AC, pulse current and other arbitrary waveform current.
. Advantages: Better cost performance, low power consumption, small volume, light weight,
easy installation, perforation input and no insertion loss.
. Application: Frequency conversion speed control system, electric welding machine, electrochemistry,
power supply monitoring, electric locomotive, low level starting protection.
. The input, output, power and outer shell are isolated, with strong anti-interference ability and high reliability.
. Full channel configuration,Parameter customizable.
Selection
==========
Dimensions : 99*65*24mm
Operating Temperature : -20-55C
Supply Voltage : DC24V DC12V AC220V
Accuracy Class : 0.5%
Model Number : JXK-14
Display Type : Analog Only
DIY Supplies : ELECTRICAL
Product name : AC Current sensor
Input current : AC0-150A
Output signal : 4-20mA,0-10V,0-5V
Power supply : DC24V DC12V AC220V
Hole diameter : 12mm , 15mm
