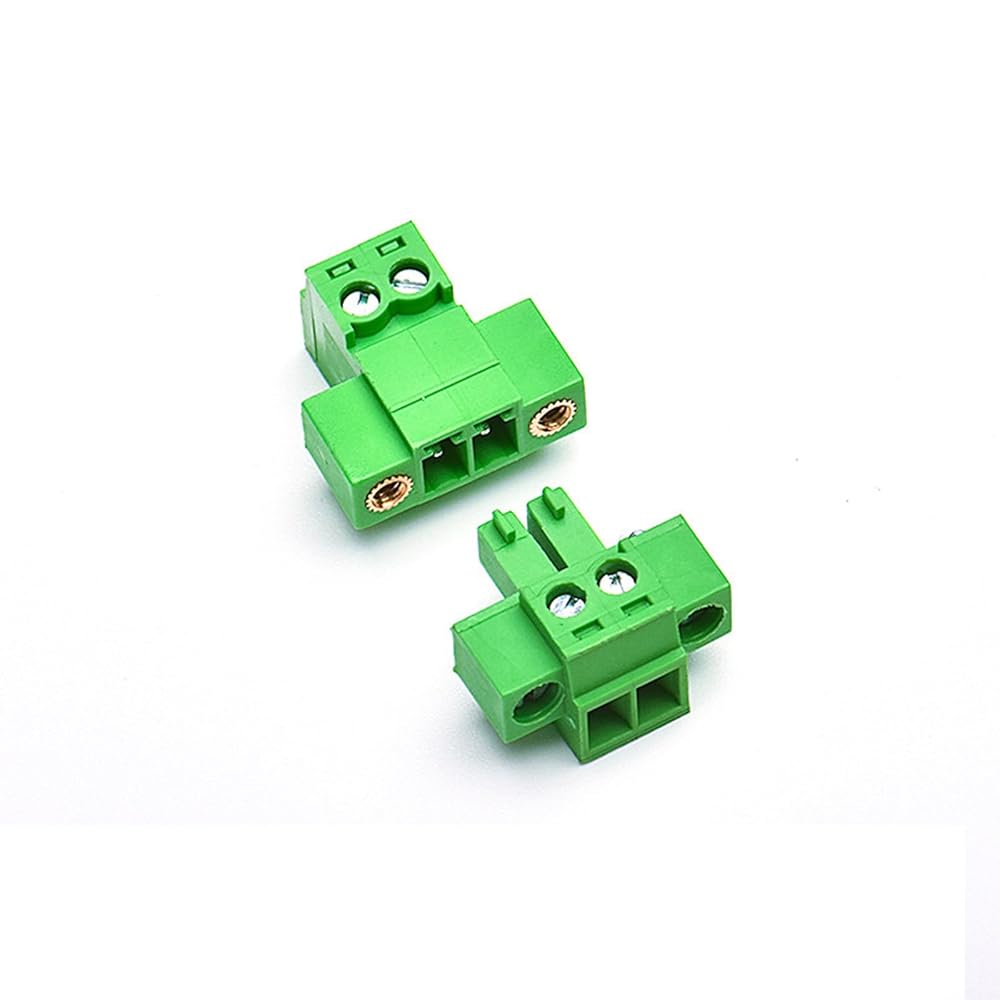

5 Set 6 Pin 3.81mm Pitch Pluggable Terminal Block with Screw Locking Flange, Male Plug and Female Socket Phoenix Type Connector - 8A, 300V, 16-28AWG in Saudi Arabia

5 Set 2 Pin 3.81mm Pitch Pluggable Terminal Block with Screw Locking Flange, Male Plug and Female Socket Phoenix Type Connector - 8A, 300V, 16-28AWG

SAR 47
Brand
XUGERIP
Size2 Pin-5Set
– 1 +

Special Features

  • Safe Wiring Connection: 6-pole screw terminal with Screw Locking Flange, rated 300V 8A. Provides stable and safe electrical connections for various devices.
  • Durable & Flame-Retardant: Made of PA66 high-temperature V0 flame-retardant material. No leakage, no short circuit, long service life.Anti-vibration structure with tin-plated brass and nickel-plated phosphor bronze contacts for reliable conductivity.
  • Easy to Use: Loosen the screws, insert the wires, and tighten. Quick disconnect design makes device replacement fast and simple.
  • Secure Screw Flanges: Rigid plug-header lock prevents vibration loosening. Ensures uninterrupted operation in harsh industrial environments.
  • Package: 5 Set 6 pin (Male Plug+ female socket) Pitch: 3.81mm. Wire: 28–16AWG. Strip length: 5–8mm.

Description

Feature
-Type: Pluggable Terminal Block with Screw Locking Flange
-Pin: 6 Pin
-Pitch: 3.81mm
-Gender: male & female
-Contact (Female Socket): Tin Plated Brass
-Contact (Male Plug): Nickel Plated Phosphor Bronze
-Plastic Components: PA66, Flame-Retardant
-Rated Value: 8A 300V
-Wire Range:16-28AWG
-Withstanding Voltage: AC1500V/1Min
-Torque:0.4Nm (3.5lb-In)
-Stripping length:7-8mm
-Temperature range:-113°F ~ + 221°F
-Screw and Push-in connection design
Package:
-5set x 6 Pin 3.81mm Pitch male plug & female socket with Screw Locking Flange
Notice:It's crucial to select terminal blocks that match the specifications of your project to ensure reliable connections and proper functionality within the circuit.
