Link
Inductive
M8
Metal only
1mm/2mm
Press
M12
2mm/4mm
Press
M18
5mm/8mm
Press
M30
10mm/15mm
Press
You can buy sensor body and plug-in cable wire seperately below:
M8
M12
M18
M30
3-pin cable
4-pin cable

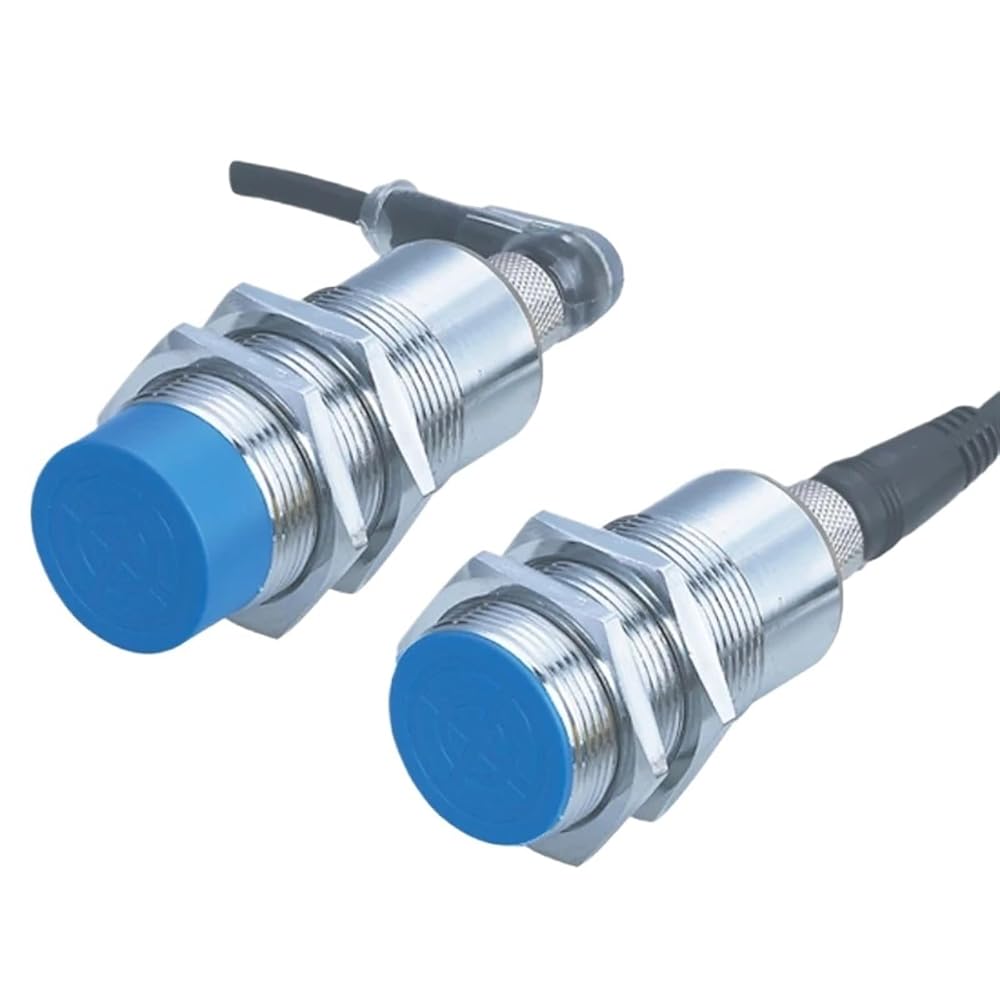

Inductive proximity switch is composed of three parts: oscillator, switch circuit and magnified output circuit. The oscillator will generate an alternating electric field. When the metal object approaches this electric field and reaches the induction distance, whirlpool will generate in metal object, resulting in attenuation of vibration and then stop. The change of vibration and stop of oscillator is treated by behind stage magnified circuit and converted to switching sign, triggering driving control for non-contact detection.
Features:
1) Compact volume, Diversified exterior
2) High precision of repeated location
3) Good performance of anti-interference
4) High on-off frequency, Wide voltage range
5) Dust proof, vibration proof, water proof and oil proof
6) With short-circuit protection and inverted connecting protection
