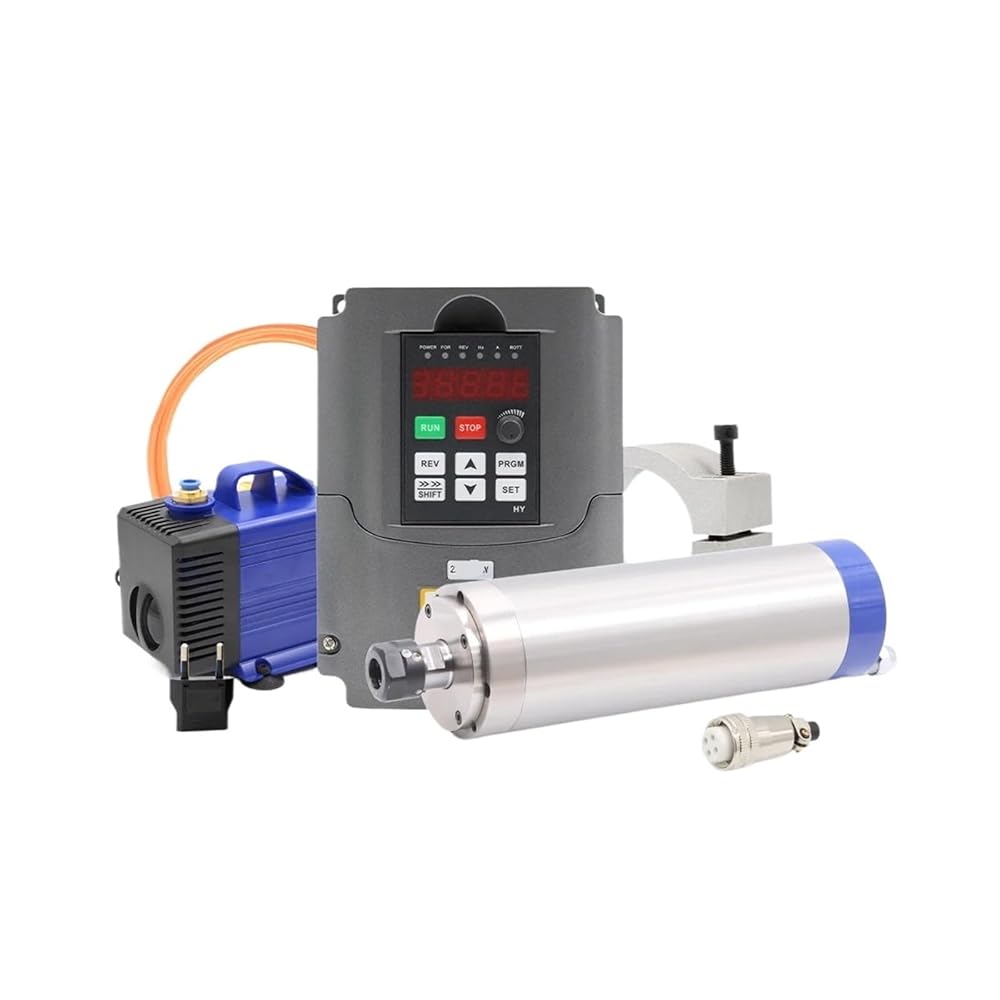

Rotary Shafts
Basic parameters:
Size: 65x210mm (mid-body diameter: 65mm; length: 210mm)
Speed regulation method: Through the three-phase inverter output, adjust the inverter frequency to change the spindle speed.
Cooling method: water cooling

Power: 1.5kw
Voltage: 220V/380V
Current: 7A/4A
Frequency: 0-400Hz
Speed: 0-24000rpm
Runout: less than 0.01mm
Diameter(mm): 65
Bearing type: 2 x 7004 P4 DT and 2 x 7000 P4 DT
4 fully sealed angular contact bearings
Chuck ER16
Clamping knife diameter: 1-10mm
Water-cooled ER16 chuck block
