2.2kw ER20 D80 المغزل المبرد بالماء 220 فولت (220 فولت VFD) in Saudi Arabia

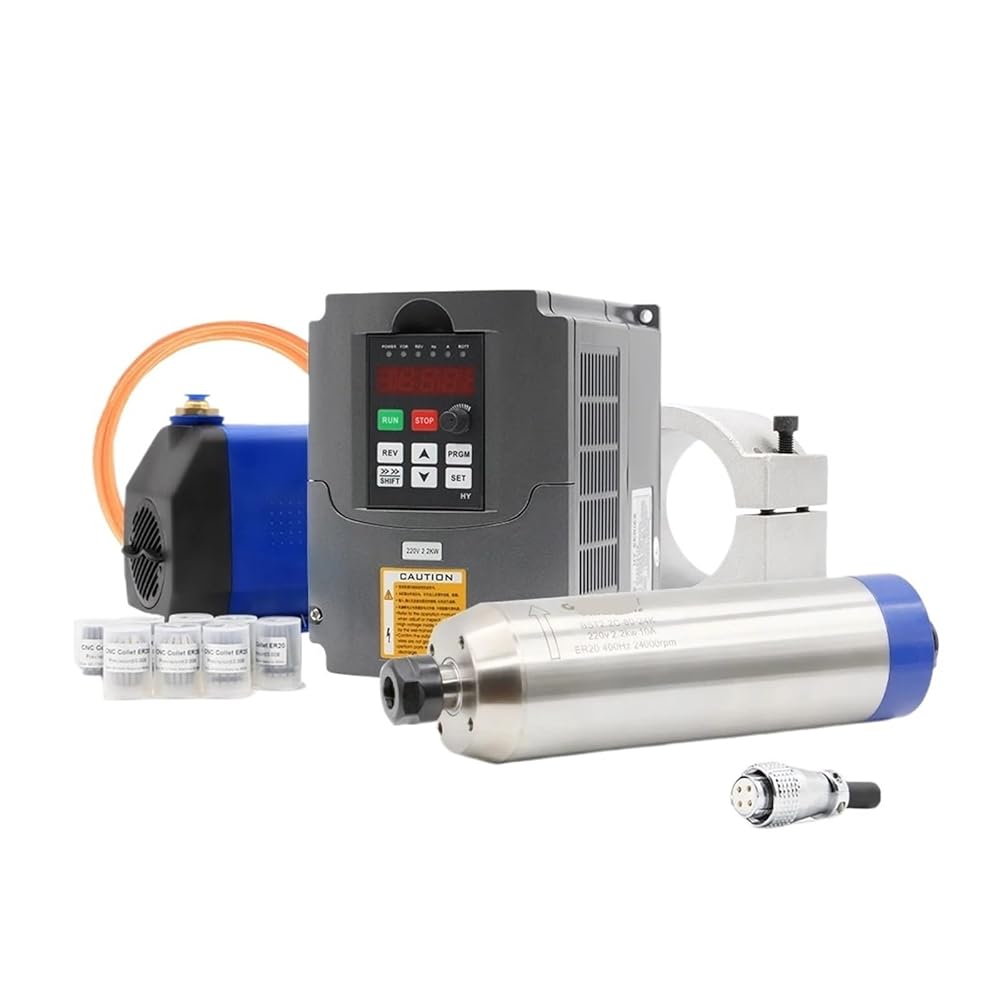

2.2kw ER20 D80 المغزل المبرد بالماء 220 فولت (220 فولت VFD)

SAR 4,435
ماركة
PHTJALIF
فئة
مهاوي
وزن
112 g
مقاس220V VFD
أسلوبمحامل السيراميك
– 1 +

مميزات خاصة

  • Rotary Shafts

وصف

Rotary Shafts
Size: 80x238mm (midbody diameter: 80mmx length: 230mm)
Speed regulation method: Through the three-phase inverter output, adjust the inverter frequency to change the spindle speed.
Cooling method: water cooling
Power: 2.2kw
Voltage: 220V
Current: 10A
Frequency: 0-400Hz
Speed: 0-24000rpm
Runout: less than 0.01mm
Diameter(mm):80
Bearing type: 2 x 7005 P4 DT and 2 x 7002 P4 DT
4 fully sealed angular contact bearings
Chuck ER20
Clamping tool diameter 13mm12mm127mm11mm10mm9mm8mm7mm 635mm6mm 5mm, 4mm, 3.175mm, 3mm, 2mm, 1mm (standard 6mm)
Water-cooled ER20 chuck block
