Notes:
We can make AC/DC0-5A-100A(Min 5A,Max 100A)
Power supply:±12VDC,±15VDC,24VDC,12V-28VDC
If you need other special parameters,please contact me,
and you can leave a massge when placing an order.
Please let me know the measuring range,input signal,
output signal,hole diameter and power supply when ordering.
Technical characteristics:
High measurement accuracy
Stable and structure
Strong anti-interference ability
Lightweight and easy to install
==========
Dimensions : See size chart
Operating Temperature : -10-70
Supply Voltage : 12V,24V,12V-28VDC
Accuracy Class : 0.2%F.S.,0.5%F.S.

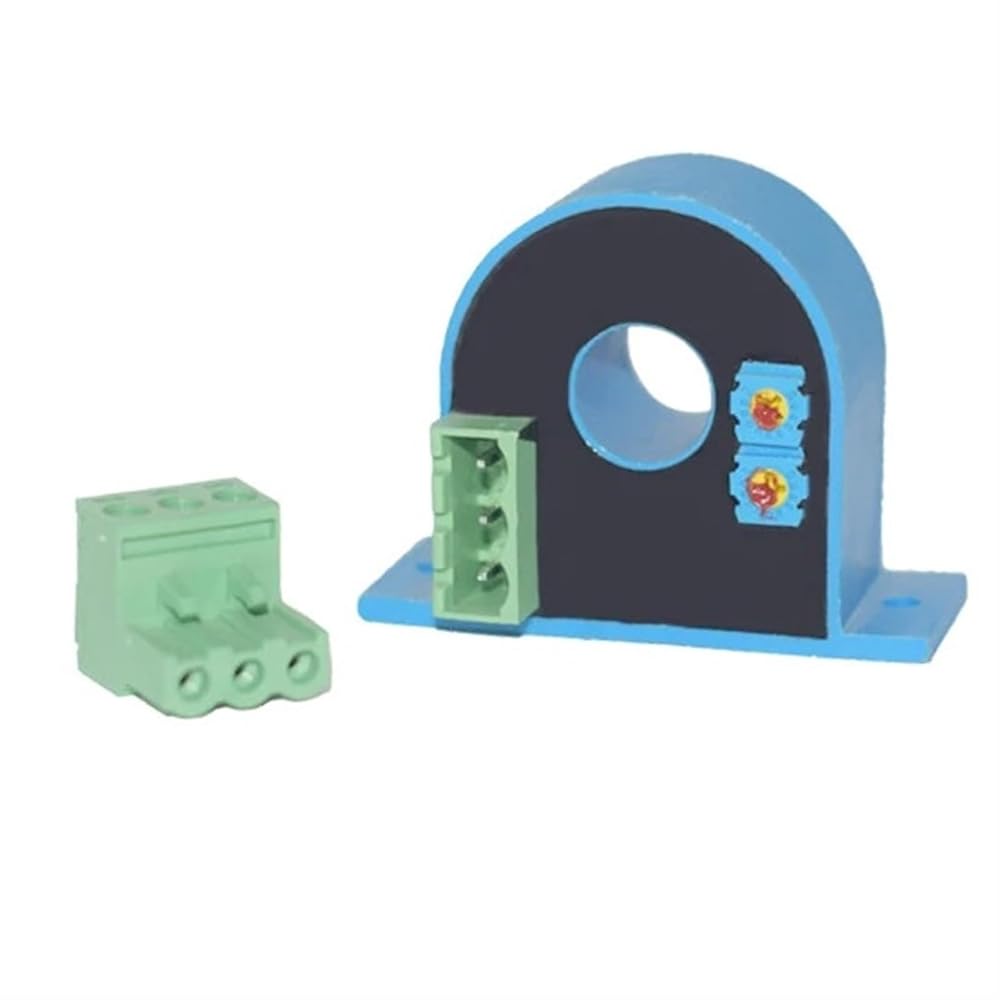

Model Number : SWK-B7
DIY Supplies : ELECTRICAL
Certification : ,FCC,
Measuring range : AC0-5A-300A
Output : 4-20mA,0-20mA,0-5V,0-10V
Power supply : ±12V,±15V,24VDC,12V-28VDC
Response time : AC:20-30ms,:10ms
Installation method : Screw fixation
Hole diameter : 20mm
