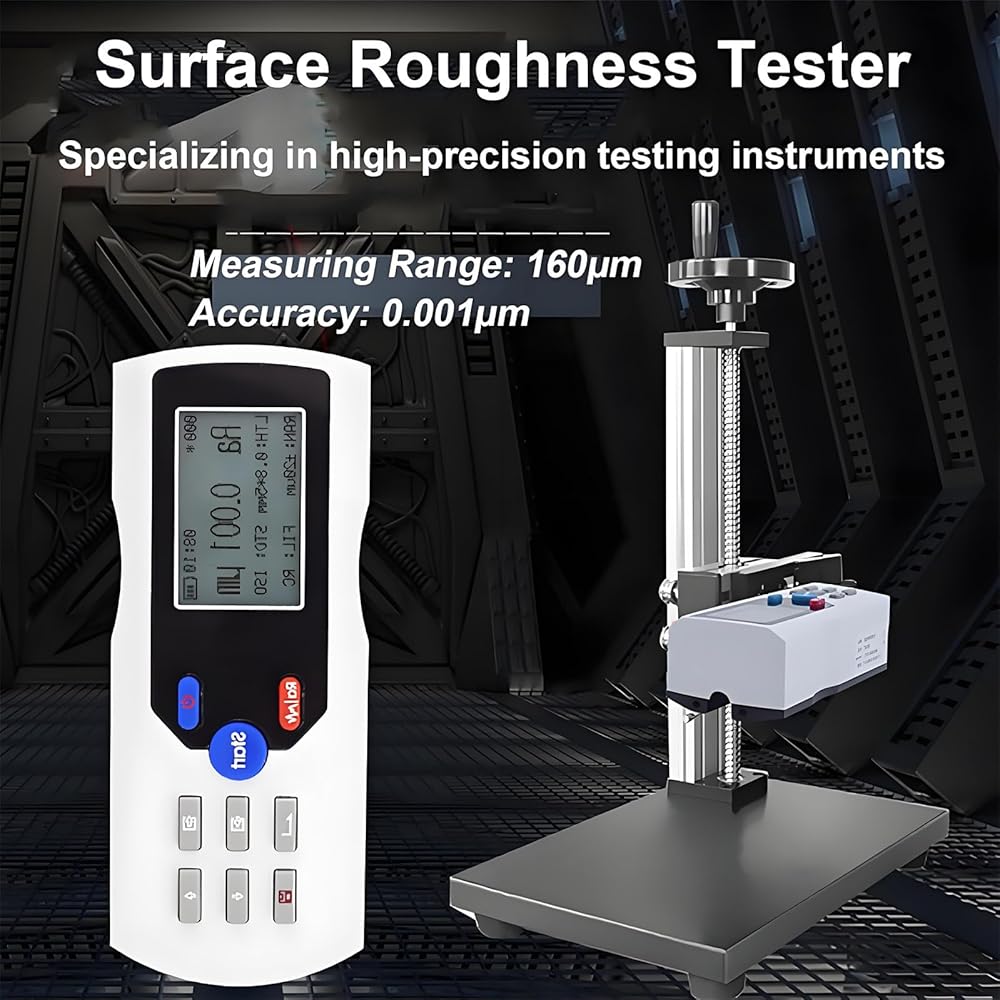

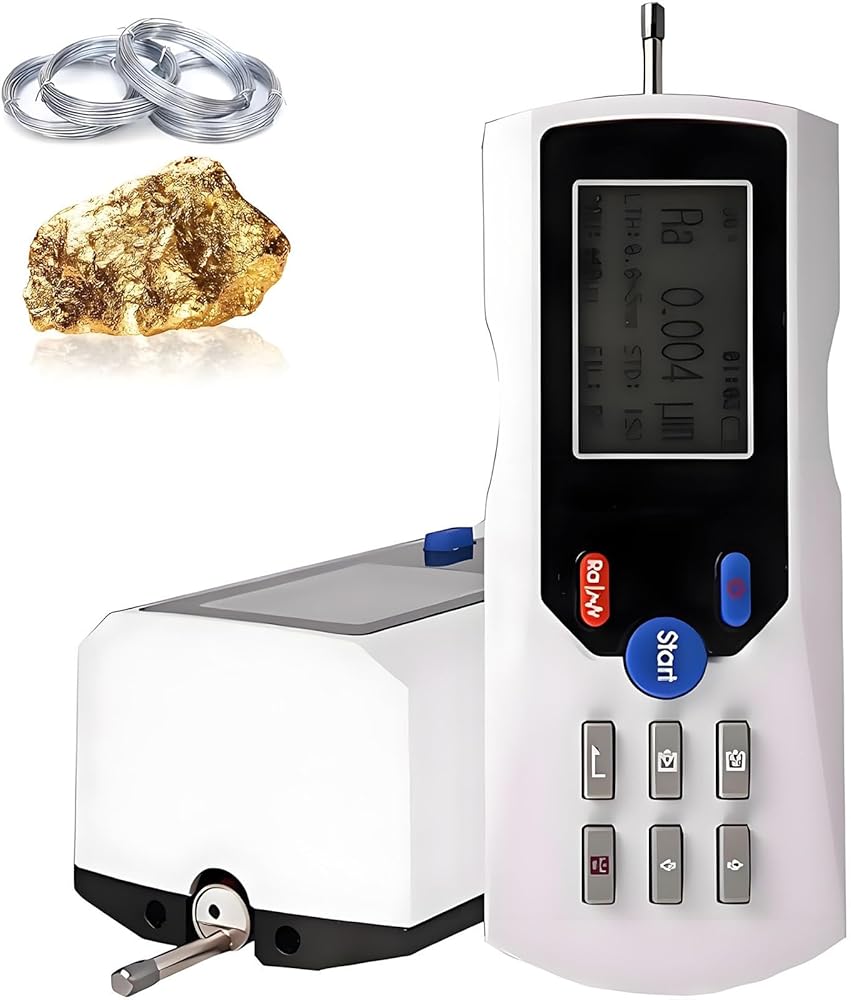

Handheld Digital Profilometer, 0.001um High Precision Surfaces Roughness Tester, Measuring Range 160μm, 100 Data Storage, for Roughness Measurement of Various Components

SAR 3,811
– 1 +

Special Features

  • 【SURFACES ROUGHNESS TESTER】Capable of measuring the surfaces roughness of machined components, this device calculates relevant parameters based on selected conditions and visually displays all measured data and graphics

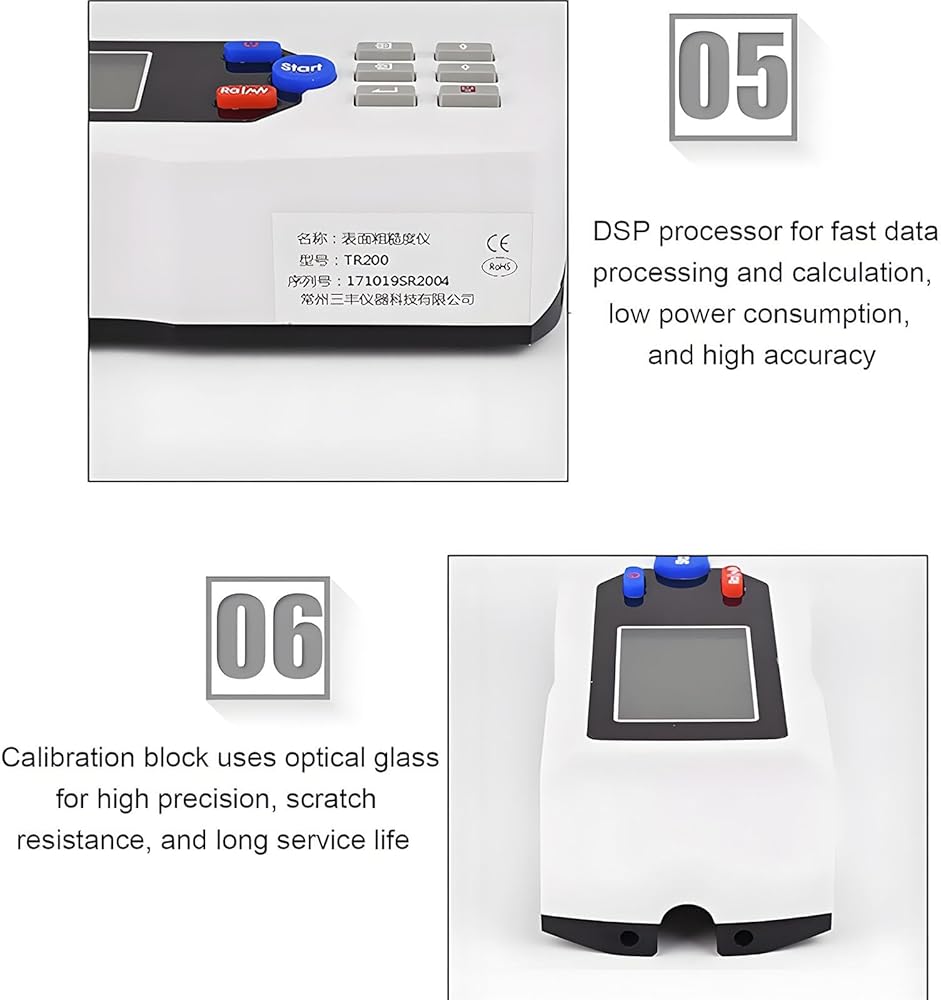

  • 【EFFICIENT CALCULATION】Utilizing a high-speed DSP processor, it rapidly processes and calculates various surfaces roughness parameters, including Ra, Rz, Ry, Rq, Rp, Rm, Rt, R3z, Rmax, Sk, S, Sm, and tp

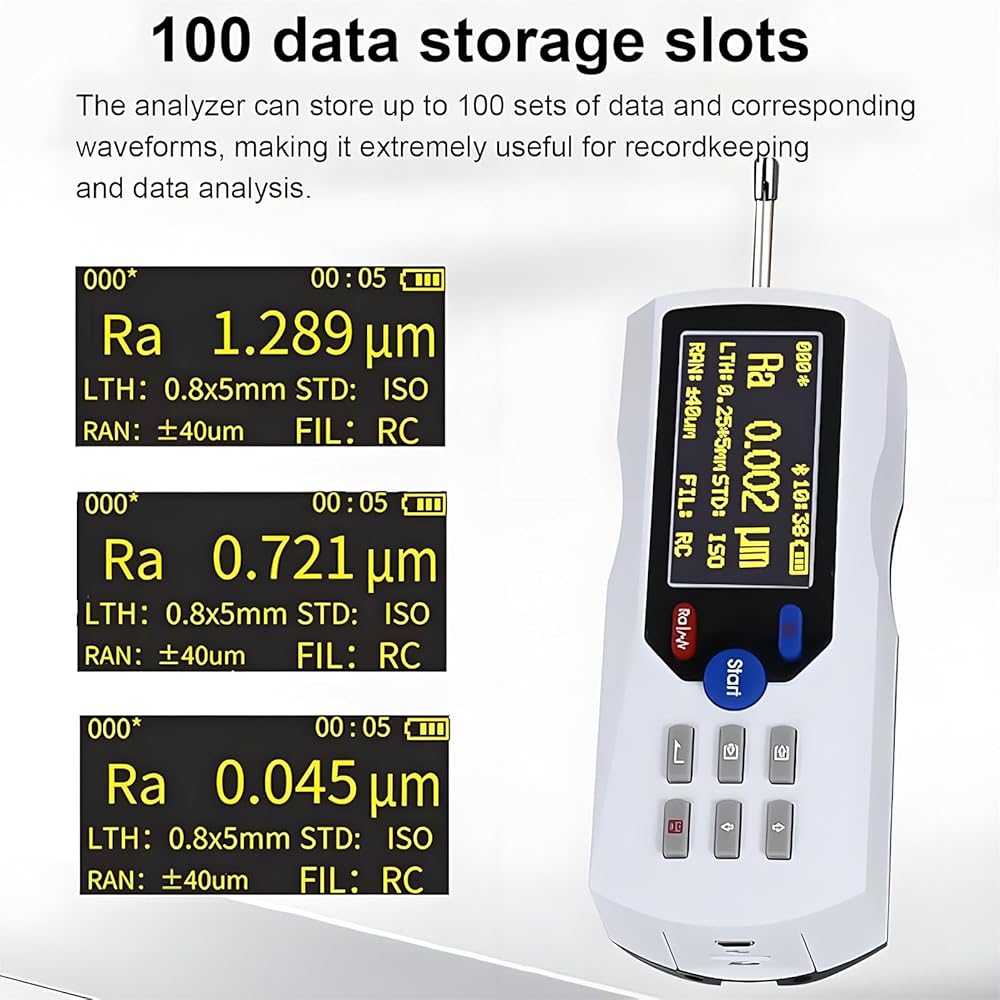

  • 【AMPLE DATA STORAGE】The profiler can store up to 100 sets of data and corresponding waveforms. Very useful for record keeping and data analysis. The USB interface allows external data transfer and connection
  • 【RECHARGEABLE】Built-in lithium-ion rechargeable battery and charging control circuit, large capacity, continuous working time greater than 20 hours. High precision, scratch resistant, long service life
  • 【APPLICATION】Suitable for roughness measurement in machining, manufacturing, testing, and product inspection, and can handle complex workpieces such as flat surfaces, curved surfaces, grooves, and small holes

Description

Measures surfaces roughness of machined parts with a range of 160μm and accuracy of 0.001μm, calculating parameters based on selected conditions and displaying results with graphs.

Specification
Name: Surfaces Roughness Tester
Measurement parameters: Ra, Rz, Ry, Rq, Rp, Rm, Rt, R3z, Rmax, Sk, S, Sm, tp
Measuring range: 160um
Measurement accuracy: 0.001um
Sensor type: inductive
Tip radius: 5um
Needle tip material: diamond
Measuring force: 0.4mN
Sampling length: 0.25/0.8/2.5mm
Sensor moving speed: 0.5mm/s, 1mm/s
Data storage capacity: more than 100 measurement results

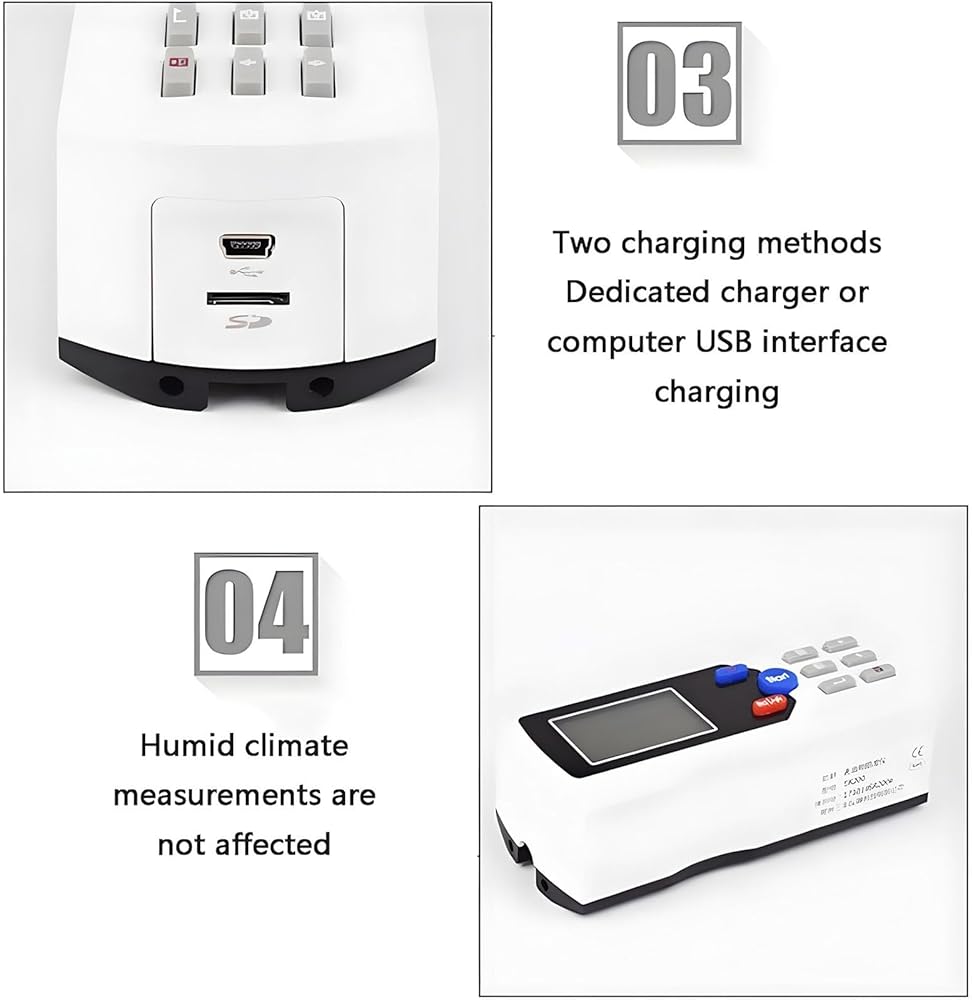

External input and output interface: USB
Power supply: built-in rechargeable lithium battery
Overall dimensions: 140*52* 48mm

Feature：

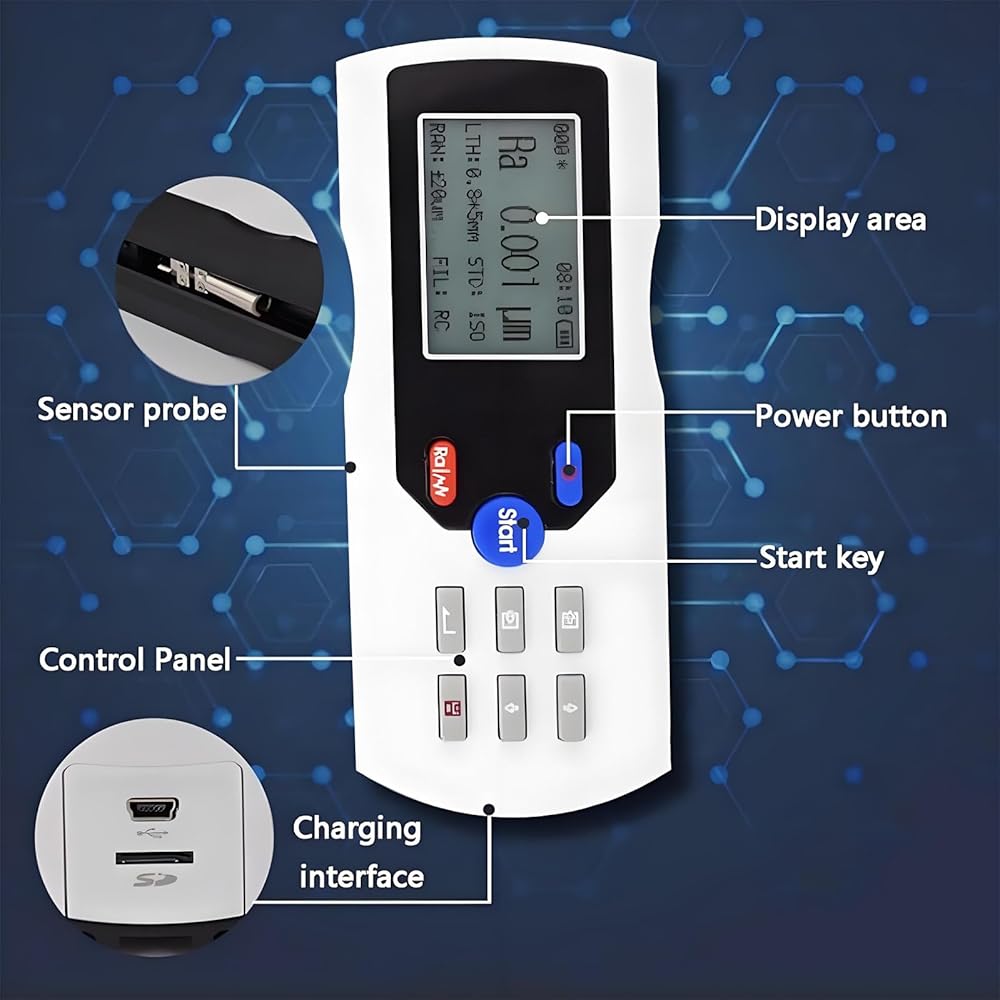

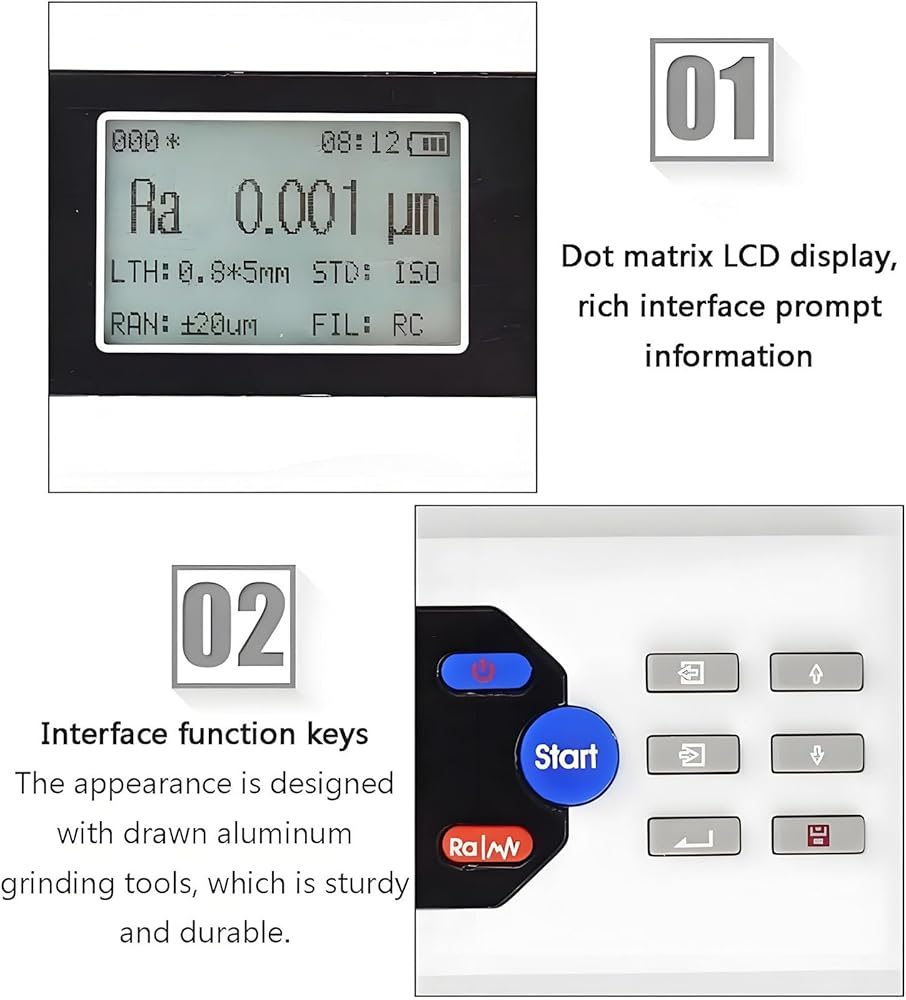

- Dot matrix LCD display, rich interface prompt information.
- There is remaining charge indicator, charging hint.
- Built-in lithium-ion rechargeable battery, provides impressive battery life of over 20 hours.

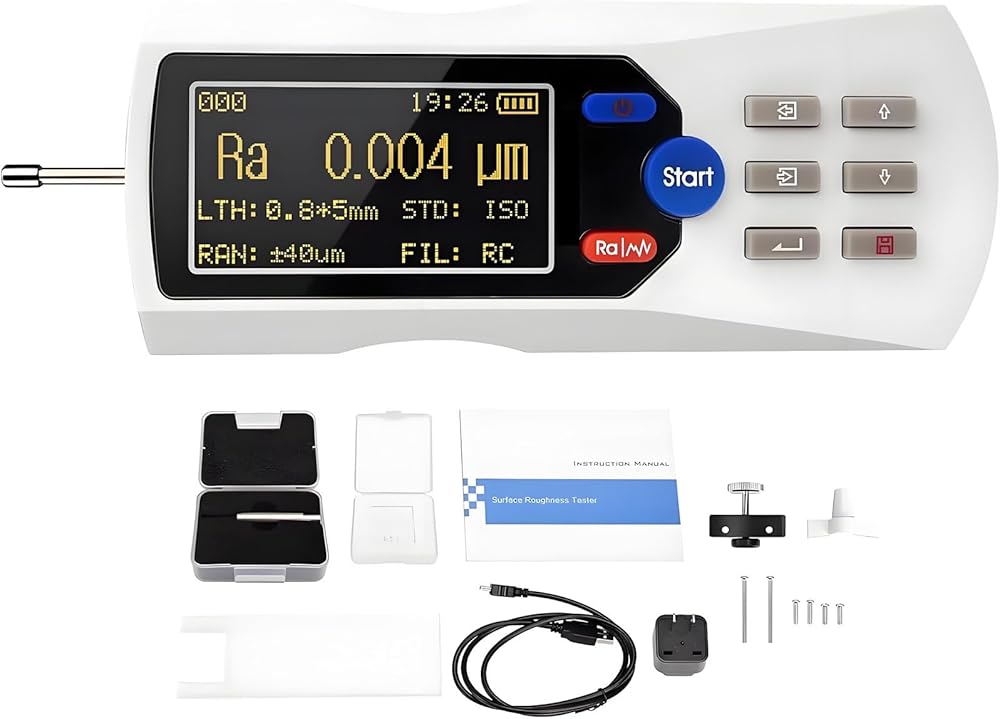

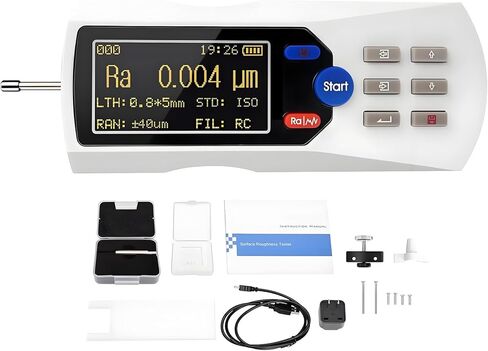

Products Include:
1 * Surfaces Roughness Tester
