IDC26 2x13 26Pin 0.1" FRC Connector Male Interface Module DIN Rail Mounting Terminal Block Breakout Board for PLC MCU Flat Ribbon Cable in Saudi Arabia IDC26 2x13 26Pin 0.1" FRC Connector Male Interface Module DIN Rail Mounting Terminal Block Breakout Board for PLC MCU Flat Ribbon Cable in Saudi Arabia

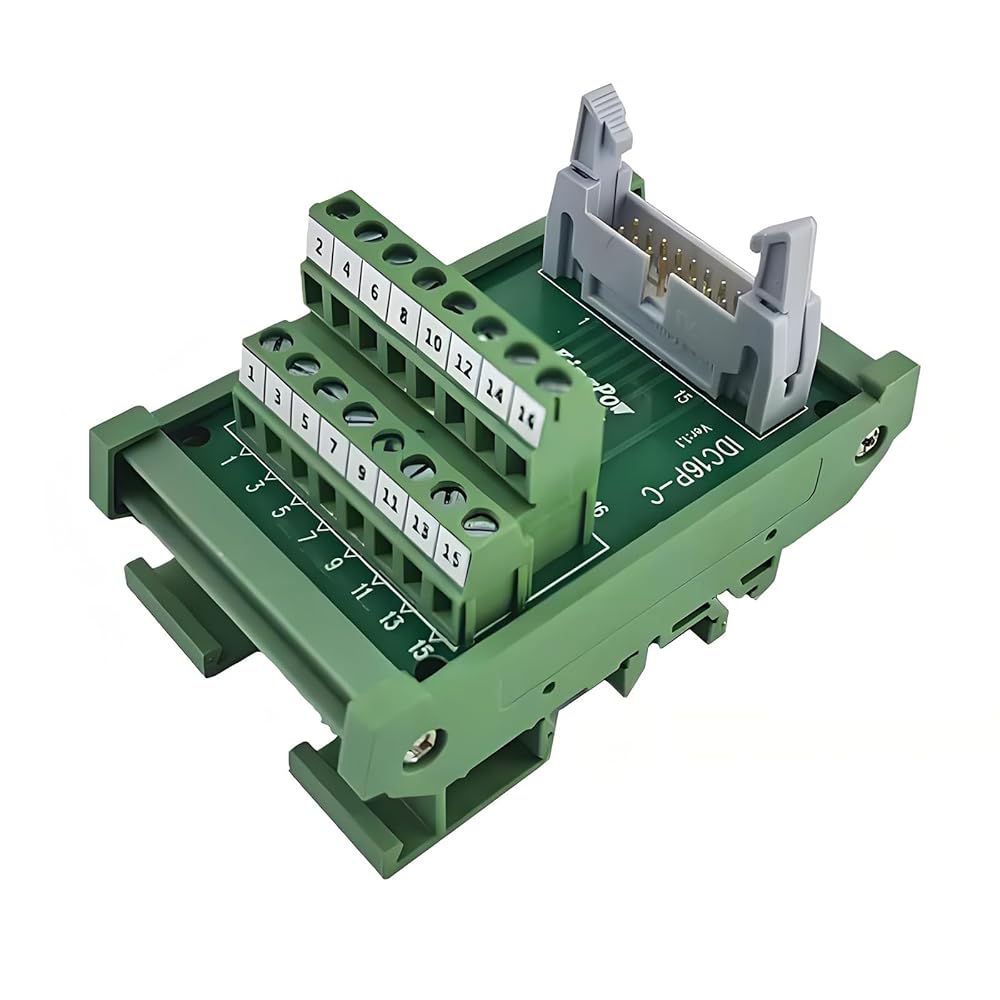

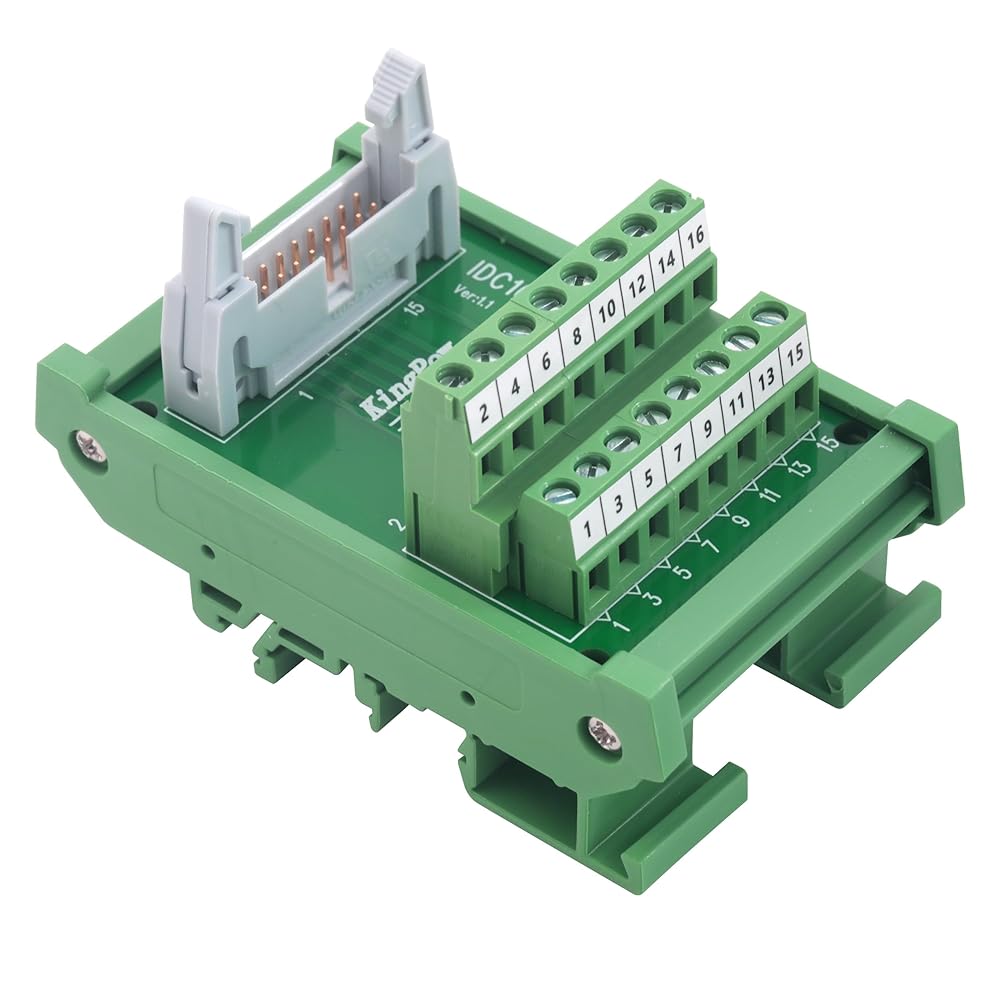

IDC16 2x8 16Pin 0.1" FRC Connector Male Interface Module DIN Rail Mounting Terminal Block Breakout Board for Small PLC MCU Flat Ribbon Cable

SAR 84
– 1 +

Special Features

  • IDC26 pitch 0.1" header, you can use 26pin FRC(flat ribbon cable) connector cable connect all Arduino Uno pins to peripheral equipment.
  • Wire range: 26-16AWG. Rated voltage: 60V. Rated current: 1A / per pin. Operating temperature: -20 to 70 Celsius.
  • The screw connectors make attaching and removing wires easily. Really helpful in your DIY prototyping project.
  • DIN Rail Mounting: Come with Din mount carrier and screws Compatible with 35mm, 32mm or 15mm DIN rail.
  • Widely used: It is suitable for other equipment interfaces using 2x13 26-pin plug connectors, including but not limited to I/O cards, DAQ devices, and DIY projects that help you.

Description

Technical Specifications:
Name: IDC26 2x13 Pins 0.1" Male Header Breakout Board
Pin pitch: 2.54mm
Rated voltage: 60V
Rated current: 1A/per pin
Wire range: 26-16AWG
Operating Temperature: -20ºC to 70ºC
DIN rail mountable: 15/32/35mm
PCB Dimensions: 113mm x 85mm x 53mm/4.45" x 3.35" x 2.09"(L x W x H)
Package includes:
1PCS IDC26 2x13 Pins 0.1" Male Header Breakout Board
