مميزات خاصة

Efficient Processing: Equipped with 550W industrial-grade motor, four canisters running independently (2×5L) for higher efficiency, grinding fineness up to nanometre level to meet the needs of high-precision research and development
Centrifugal Grinding: Horizontal drum design, through the dual role of centrifugal force and friction, the raw material will be lifted to the critical height of the free-fall impact, to ensure that the fineness of the powder material grinding uniformity, to avoid the dead-end residual problems of the traditional vertical equipment

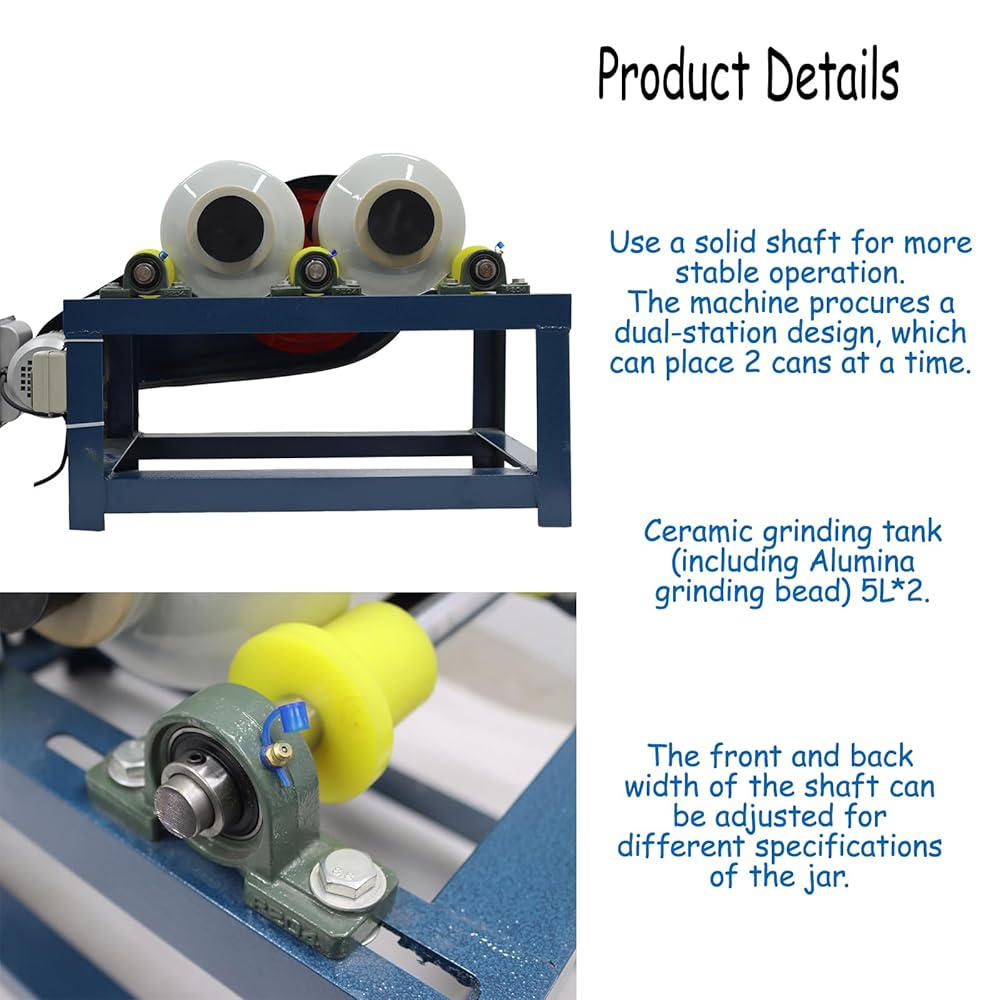

Adjustable Distance: Original adjustable distance rubber roller drive system, support the diameter of 7.9-19.7inch (20-50cm) ceramic/stainless steel grinding tanks flexible replacement, single processing capacity of 50L-200L, saving equipment investment costs
Wet & Dry Use: The fineness of dry grinding process can reach more than 600 mesh, and the fineness of wet grinding process can reach more than 1000 mesh. Simple operation and convenient maintenance
Widely Application: Suitable for laboratory grade mixing, ultra-fine grinding and sample preparation in vacuum environment to meet the needs of precision research and development in the fields of geology, mining, medicine and so on

وصف

▼Uses:
Ceramic ball mill is mainly used for ceramic production, glaze material grinding.
Used for ball grinding glaze or other raw materials, using dry or wet grinding.
Utilize the effects of friction and centrifugal force to grind clay or glaze and mix the raw materials evenly.
When the cylinder rotates around the horizontal axis at a certain speed, the medium and raw materials inside the cylinder, under the action of centrifugal force and friction, follow the cylinder to a certain height. When their own gravity is greater than the centrifugal force, they will detach from the inner wall of the cylinder and throw or roll down, breaking the ore due to the impact force.

▼Parameter:
Power: 220V 50Hz/60Hz
Power Input: 550W
Rev of the Rollers (RPM): 800

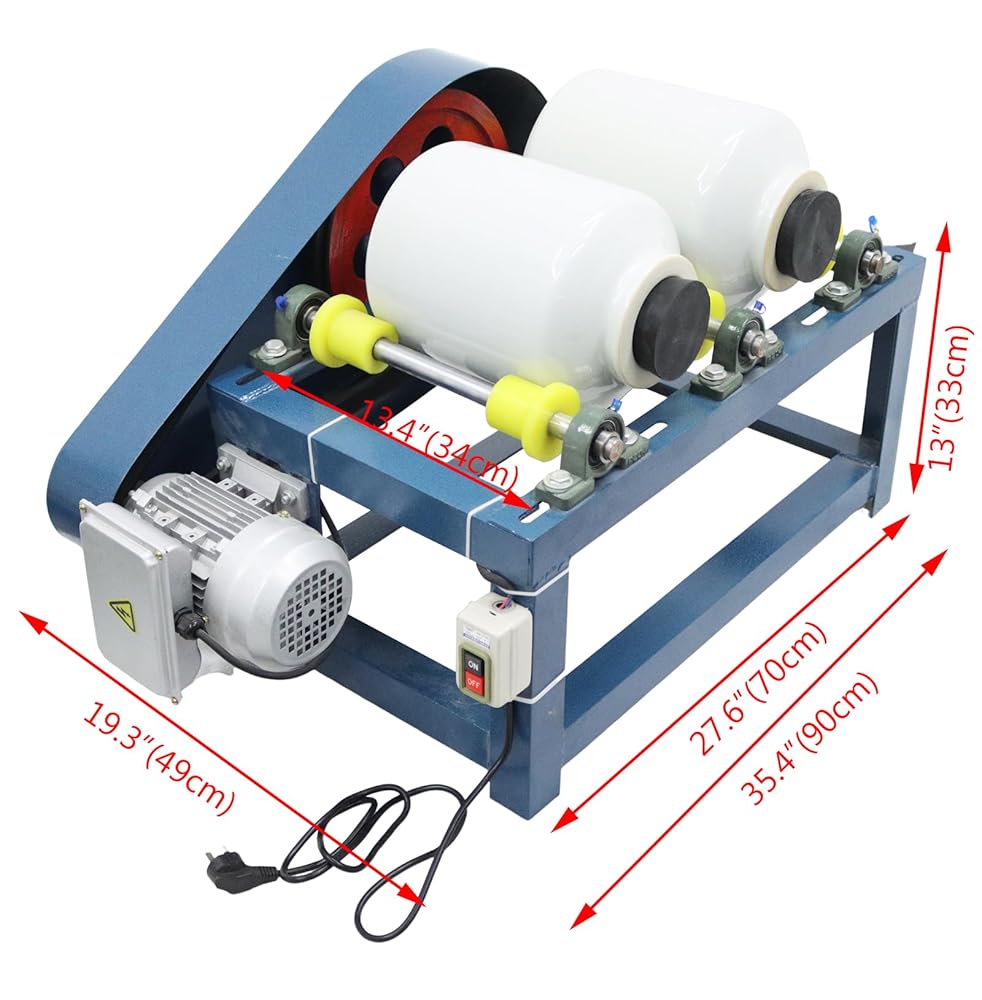

Size: 35.4"*19.3"*13"(90*49*33cm)
Weight: 56KG
Packing Weight: 82KG
Packing: Wooden Box
Note: The larger the diameter of the can, the slower the rotation.

▼Item Inclued: 134066
Ceramic ball mill grinding for inks glazes pyrotechnics lab mineral ceramics 220V*1
