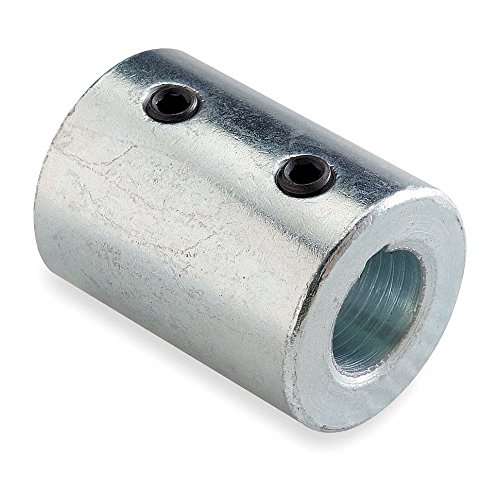

Designed for applications in which alignment is critical, this one-piece, set-screw type, rigid shaft coupling helps reduce the possibility of backlash. It locks onto the shaft by tightening alloy cup point socket set screws. It features zinc-plated steel construction to help resist corrosion in demanding industrial environments.
Specification:
Item - Rigid Shaft Couplings: Rigid Shaft Coupling
Shaft Locking Type - Couplings: 1 Piece Set Screw
System of Measurement: Inch
Bore Dia.: 1/4"
Material - Couplings: Steel
Finish: Zinc Plated
Outside Dia.: 1/2"
Overall Length: 3/4"
With Keyway / Without Keyway: Without Keyway
Screw Size: #10-32
Max. Torque: 70 in.-lb.
Max. RPM: 3500
