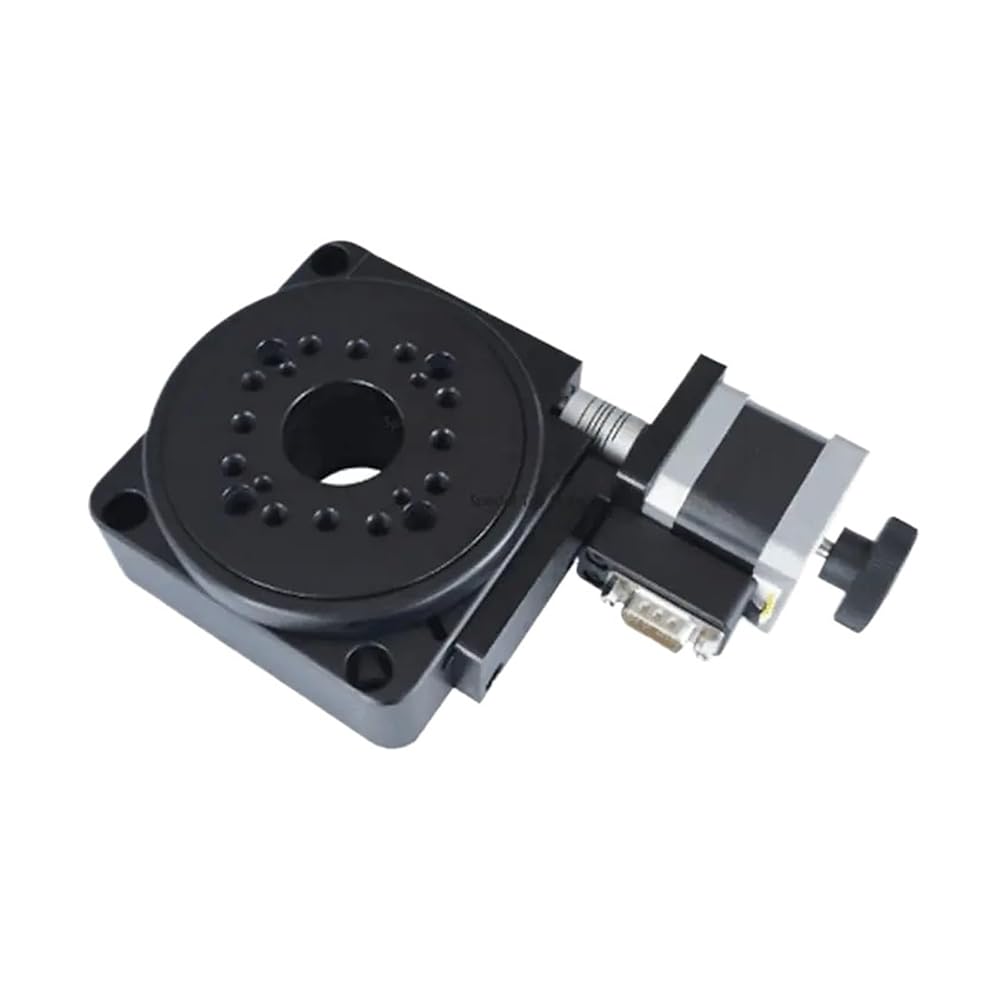

Electric Rotary Table PT-GD201, Angle Plate Indexing Plate, Size 100mm Bearing 45kg Transmission Ratio 180:1(Ratio 90 of 1) in Saudi Arabia

Ratio 180 of 1

SAR 2,892
Brand
MGMYVDDGVW
Weight
1 kg
SizeRatio 180 of 1
All electronics ship with US style plugs. You may need a voltage converter or a plug adapter.
– 1 +

Special Features

  • Stability: Can be used stably for a long time
  • electric rotating platform：using worm gear; outer ring With scale; interface
  • Applications：Widely used in industrial automation and scientific experiments; the scale ring is installed on the outer ring of the rotary table to facilitate initial positioning and reading
  • Used:The electronically controlled rotary table can be used flat; vertically; and inverted
  • After-sales service support: If you have any questions； I will answer them as soon as possible

Description

Product Model: PT-GD201
Structural Description
Angle range: 360°
Platform size: 100mm
Transmission ratio: 180:1
Guide track type: Bearing
Stepping motor (1.8°): 42BYG
Main material: Aluminium alloy
Center bearing: 45kg
Weight: 1.7kg
Precision Description
Resolution: 0.01° (without subdivision); 0.0005° (with 20 subdivisions, corresponding to 1.8° step angle)
Speed: 25°/sec
Terminal hop accuracy: 15
Empty return: 0.005° (= 18")
Eccentric: 5m
Lose step: 0.005° (= 18")
Parallelism: 80
