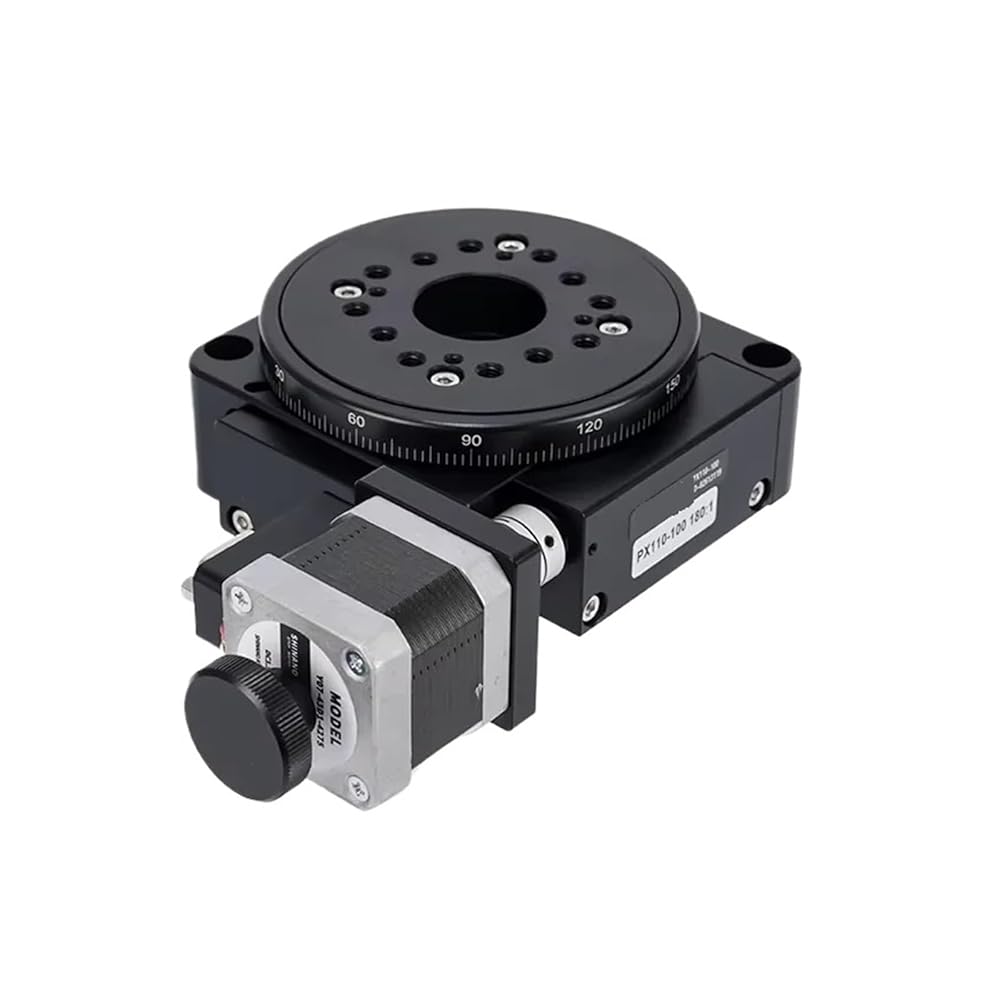

Worm Indexing Rotary Table PX110-100 Motorized Rotation Stages, Electric Rotating Platform, Linear Stage(Ratio 90 of1) in Saudi Arabia Worm Indexing Rotary Table PX110-100 Motorized Rotation Stages, Electric Rotating Platform, Linear Stage(Ratio 90 of1) in Saudi Arabia

Ratio 180 of 1

SAR 2,535
Brand
MGMYVDDGVW
Weight
10 kg
SizeRatio 180 of 1
All electronics ship with US style plugs. You may need a voltage converter or a plug adapter.
– 1 +

Special Features

  • Stability: Can be used stably for a long time
  • electric rotating platform：using worm gear; outer ring With scale; interface
  • Applications：Widely used in industrial automation and scientific experiments; the scale ring is installed on the outer ring of the rotary table to facilitate initial positioning and reading
  • Used:The electronically controlled rotary table can be used flat; vertically; and inverted
  • After-sales service support: If you have any questions； I will answer them as soon as possible

Description

Structure Specifications
1 Item Number: PX110-100T
2 Rotation Range: 360° of Continuous Rotation
3 Diameter of Platform: Ø100mm
4 Mechanism: Worm Gear
5 Worm Gear Ratio: 180 : 1
6 Stepper Motor (1.8°): 42BYG - Stepping Motor with 2-Phases & 18° of Step Angle
7 Load Capacity: 30Kgs
8 Weight: 1.7kgs
Product Accuracy Specifications
1 Design Resolution: 0.01°, Non-MS Driver;
2 0.0005°=1.8", 20MS Driver
3 Rotational Velocity (Max): 25°/sec
4 Repeatability: 0.005°=18"
5 Absolute On-Axis Accuracy: 0.1
6 Run-Out of Top Plate: 15m
7 Backlash: 0.005°=18"
8 Eccentricity: 5m
9 Lost Motion: 0.005°=18
10Parallelization: 80m
