Electric Rotating Machine PX110-100 Optical Rotating Platform Motorized Rotation Stage 100MM Bearing Scale(Ratio 90 of 1) in Saudi Arabia Electric Rotating Machine PX110-100 Optical Rotating Platform Motorized Rotation Stage 100MM Bearing Scale(Ratio 90 of 1) in Saudi Arabia

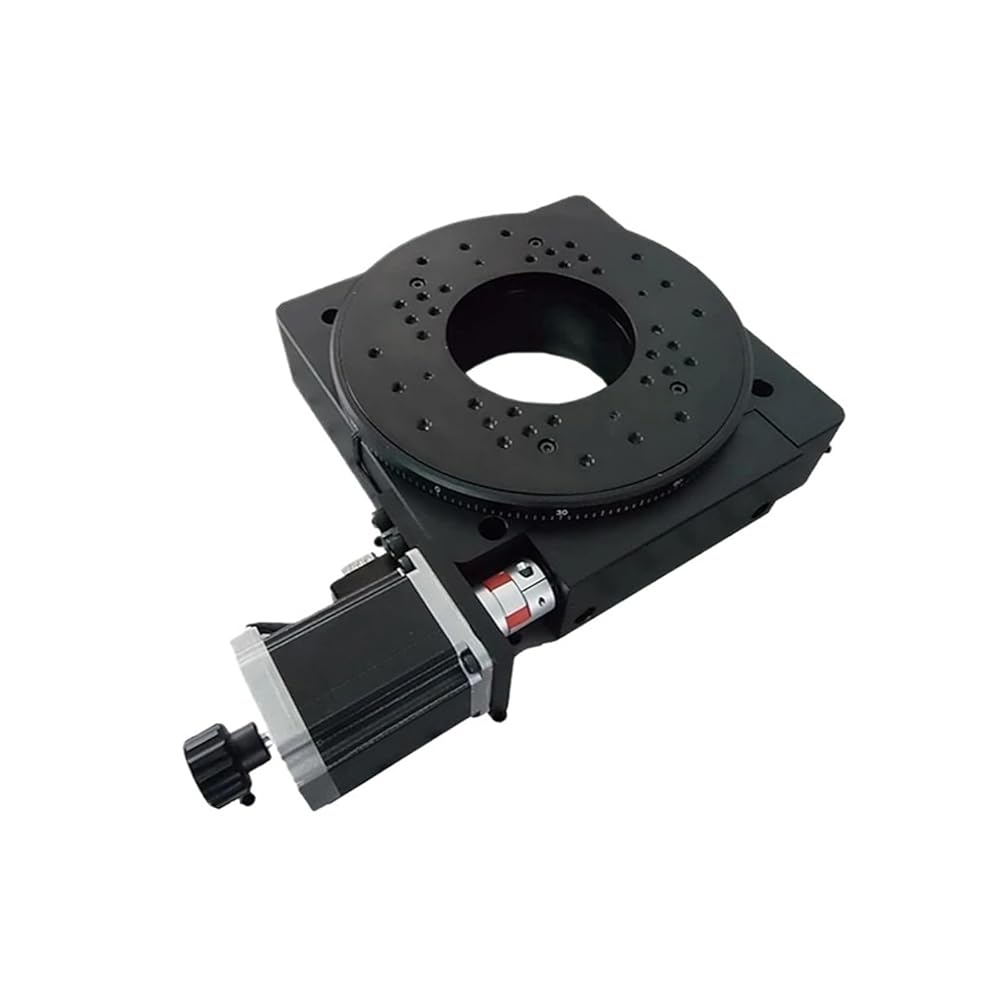

Electric Rotating Machine PX110-100 Optical Rotating Platform Motorized Rotation Stage 100MM Bearing Scale(Ratio 90 of 1)

SAR 3,132
Brand
MGMYVDDGVW
Weight
10 kg
SizeRatio 90 of 1
All electronics ship with US style plugs. You may need a voltage converter or a plug adapter.
– 1 +

Special Features

  • Stability: Can be used stably for a long time
  • electric rotating platform：using worm gear; outer ring With scale; interface
  • Applications：Widely used in industrial automation and scientific experiments; the scale ring is installed on the outer ring of the rotary table to facilitate initial positioning and reading
  • Used:The electronically controlled rotary table can be used flat; vertically; and inverted
  • After-sales service support: If you have any questions； I will answer them as soon as possible

Description

Structure Specifications:
Item Number: PX110-100
Rotation Range: 360° of Continuous Rotation
Diameter of Platform: Ø100mm
Mechanism: Worm Gear
Worm Gear Ratio: 180 : 1 or 90:1 (Choose one of the two)
Stepper Motor (1.8°): 42BYG - Stepping Motor with 2-Phases & 18 of Step Angle
Material Finish: Aluminum Alloy
Load Capacity: 45Kgs
Weight: 1.7kgs
Accuracy Specifications:
Design Resolution: 0.01°, Non-MS Driver;
0.0005°=1.8", 20MS Driver
Rotational Velocity (Max): 25°/sec
Repeatability: 0.005°=18"
Absolute On-Axis Accuracy: 0.01°=36"
Run-Out of Top Plate: 15m
Backlash: 0.005°=18"
Eccentricity: 5m
Lost Motion: 0.005°=18
Parallelization: 80m
