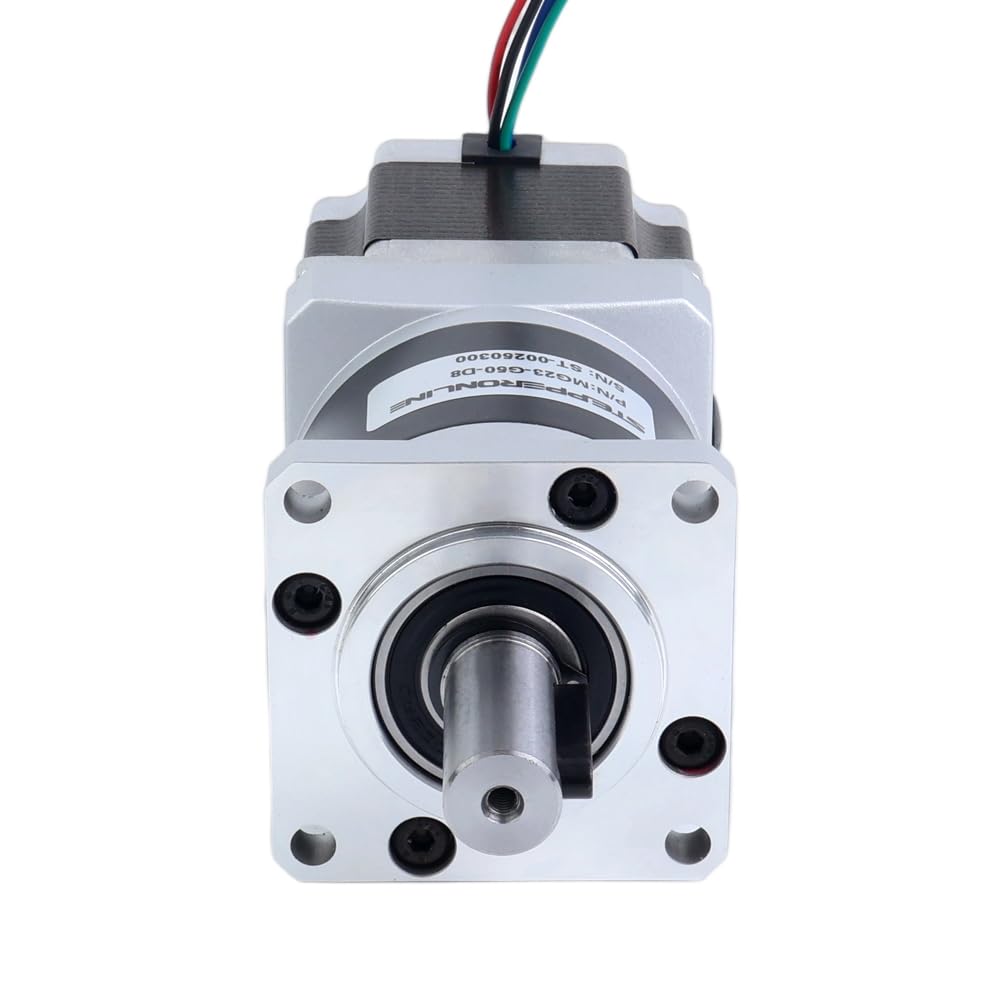

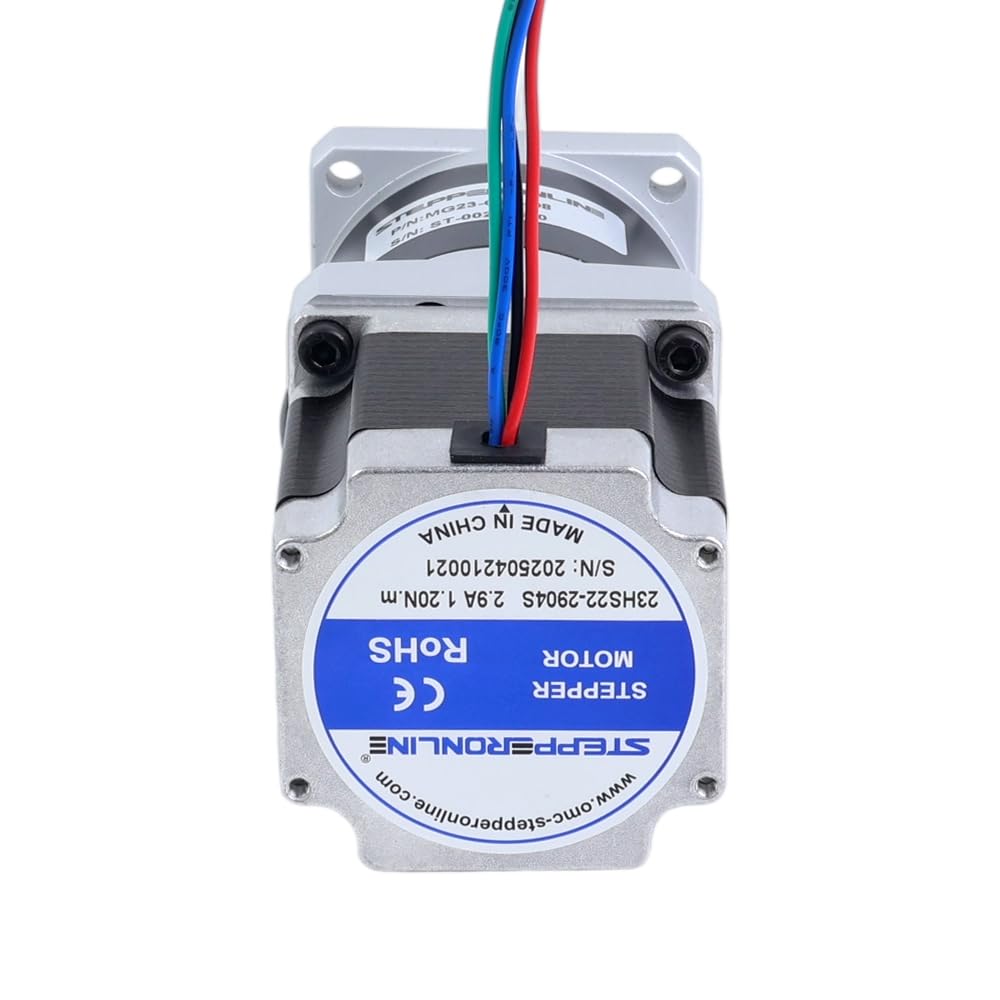

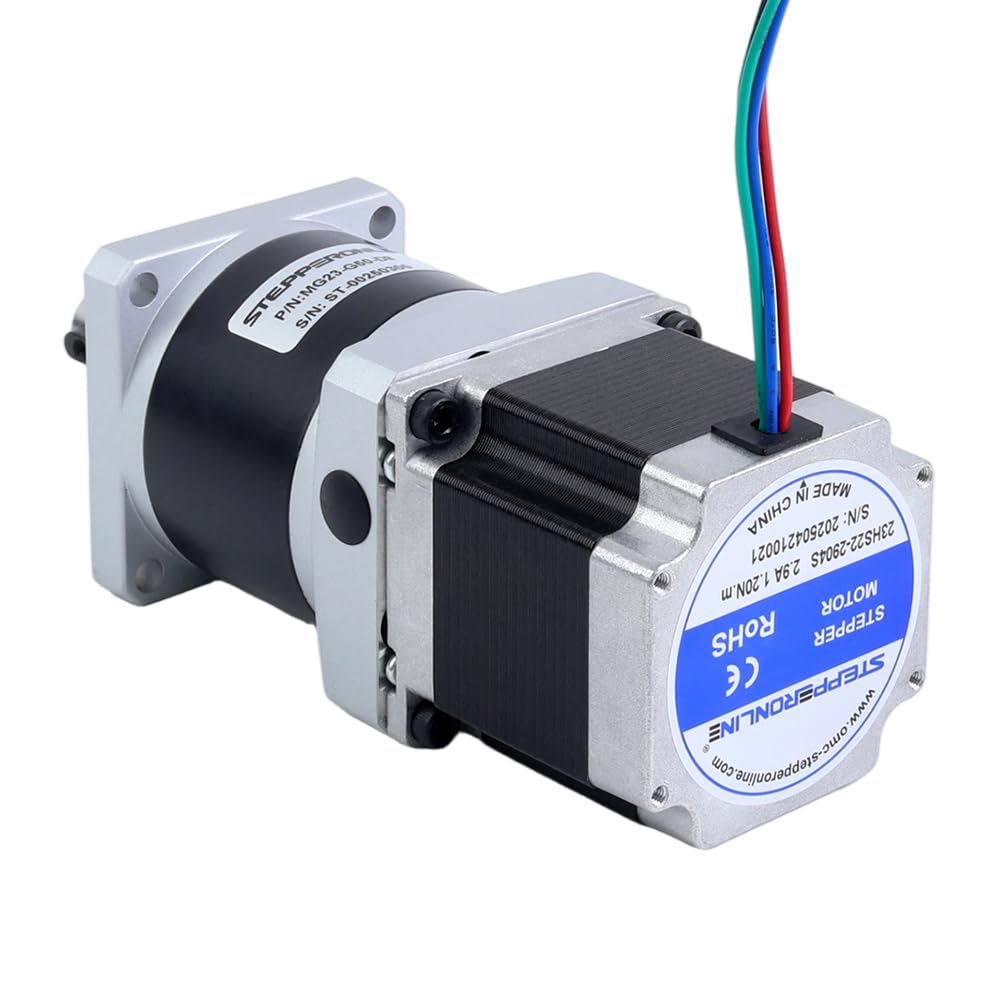

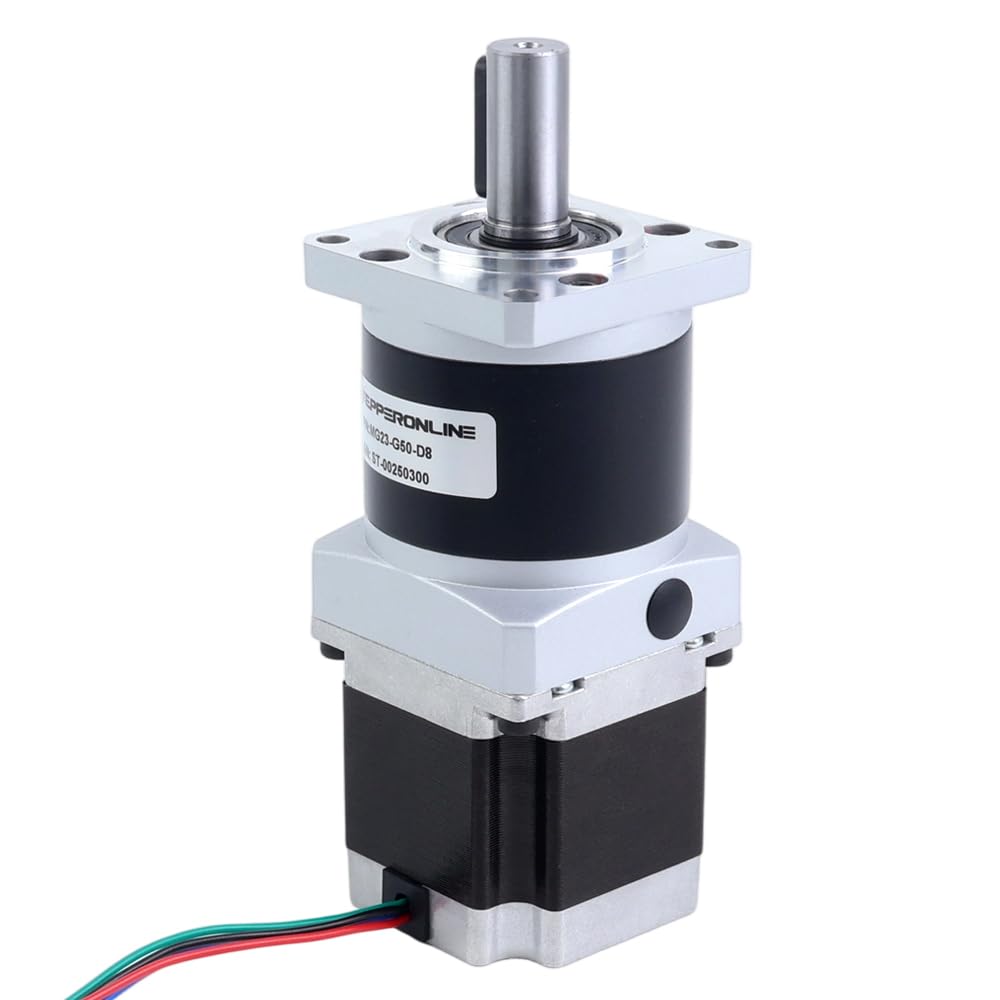

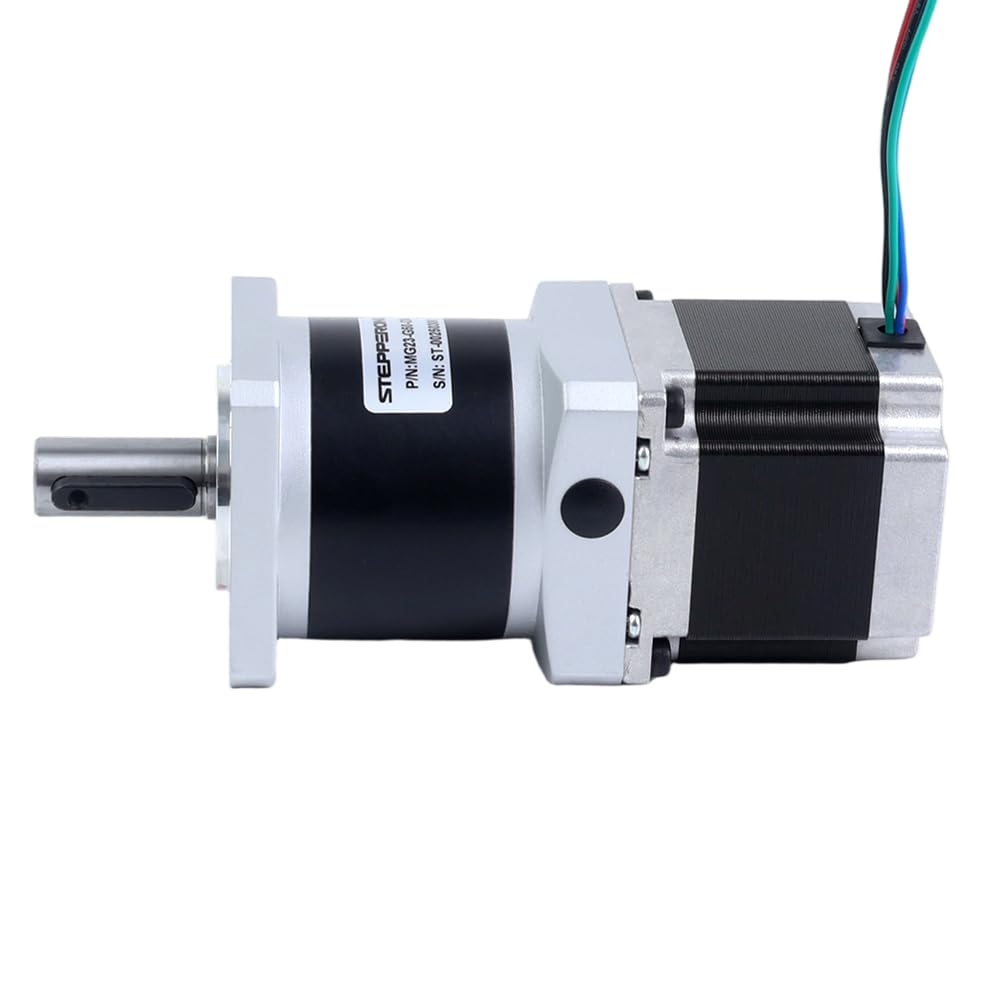

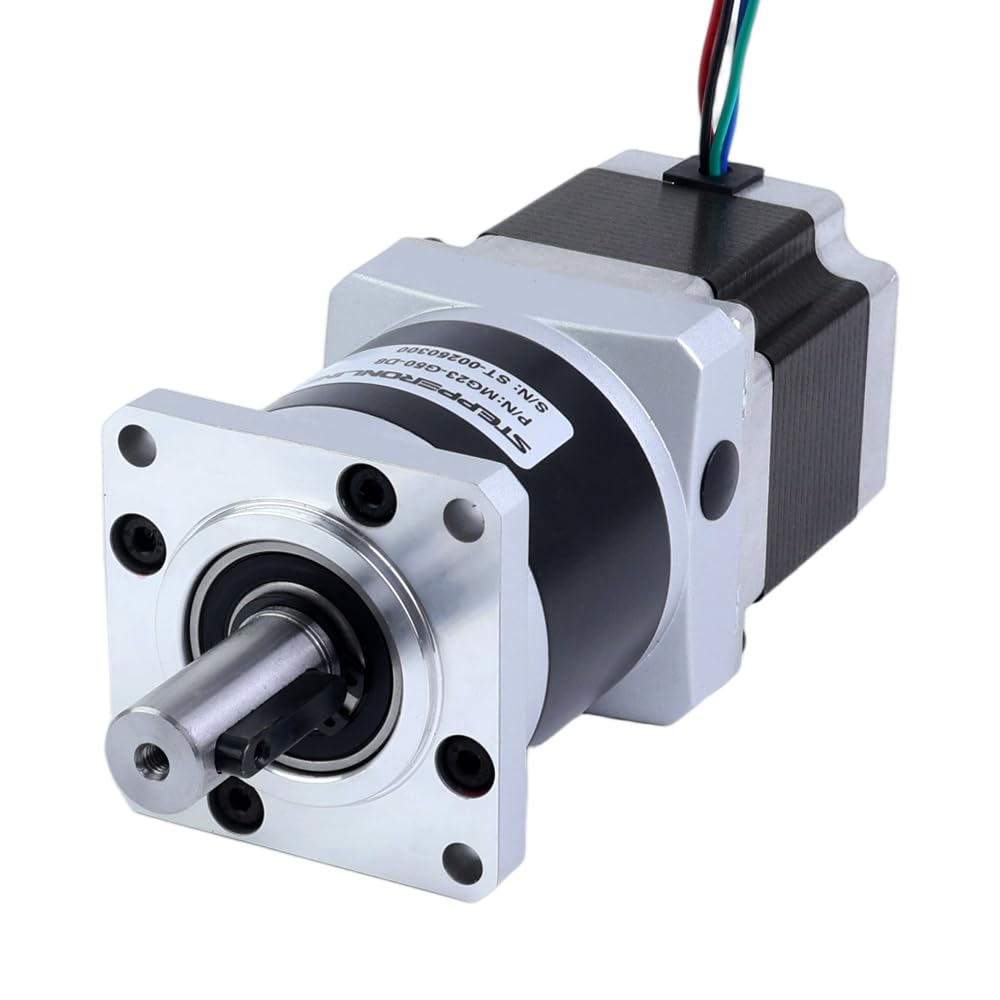

STEPPERONLINE Nema 23 Stepper Motor Bipolar L=54.5mm w/Gear Ratio 50:1 MG Series Planetary Gearbox

SAR 334
– 1 +

Special Features

  • High torque ,Long life, Low noise
  • The gear ratio is 50:1 and the Max. backlash is 45 arc minutes.
  • It's an excellent choice for applications that require good accuracy but low cost.
  • As MG series gearbox built-in shaft coupling, so you can change the motor or gearbox easily.

Description

This Nema 23 stepper motor delivers a holding torque of 1.20Nm(169.93oz.in) and features our high-precision MG series gearbox with a 50:1 gear ratio. Unlike the EG series' steel gears, the MG series utilizes durable powder metallurgy gears, offering an optimal balance of precision and cost-effectiveness for your applications.
The integrated shaft coupling design allows for easy motor or gearbox replacement, providing flexibility for your projects.

Electrical Specification

*Part Number: 23HS22-2904S-MG50
*Motor Type: Bipolar Stepper
*Holding Torque without Gearbox: 1.20Nm(169.93oz.in)
*Rated Current/phase: 2.90A
*Phase Resistance: 0.90ohms±10%
*Inductance: 2.60mH±20%(1KHz)
*Insulation Class: B 130°C[266°F]

Gearbox Specifications

*Gearbox Type: Spur Planetary
*Gear Material: Powder Metallurgy
*Gear Ratio: 50:1
*Efficiency: 80%
*Backlash at No-load: ≤45arcmin
*Maximum Permissible Torque: 20.00Nm(2832.23oz.in)
*Moment Permissible Torque: 40.00Nm(5664.47oz.in)

Physical Specification

*Frame Size: 57 x 57m
*Motor Length: 54.5mm
*Gearbox Length: 68mm
*Output Shaft Type: Keyway
*Output Shaft Diameter: Φ14mm
*Output Shaft Length: 34mm

Connection

A+: Black, A-: Green, B+: Red, B-: Blue
