Features:
The JGB37-520 DC motor with encoder is primarily used in speed measurement vehicles, two-wheeled self-balancing vehicles, racing vehicles, tracking vehicles, robots, maze-solving robots, and other related fields. The speed measurement encoder uses a Hall effect encoder for stable performance.
*Adjustable Speed Range: With a no-load speed range from 7RPM to 960RPM, this motor allows for fine speed adjustments, making it suitable for precise tasks that require specific operational speeds.
*High Torque Performance: Capable of delivering a maximum torque of 25kgcm, this gear reduction motor is designed to handle heavy loads efficiently, perfect for demanding applications like smart toilet seats.
*Compact Design: The motor features a compact diameter of 33mm and a body length of just 22.7mm, making it easy to integrate into tight spaces without sacrificing performance.
*Forward and Reverse Functionality: This motor supports both forward and reverse rotation, providing enhanced control over the application and expanding its usability for across different tasks.

Specifications:

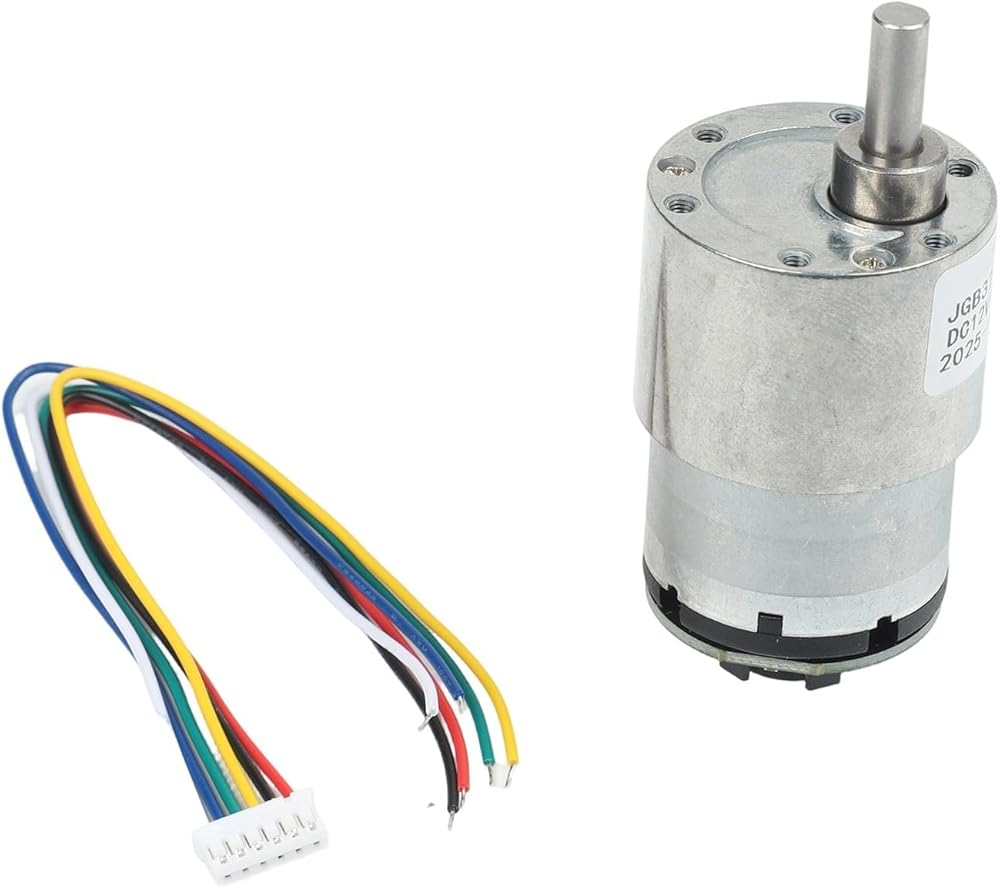

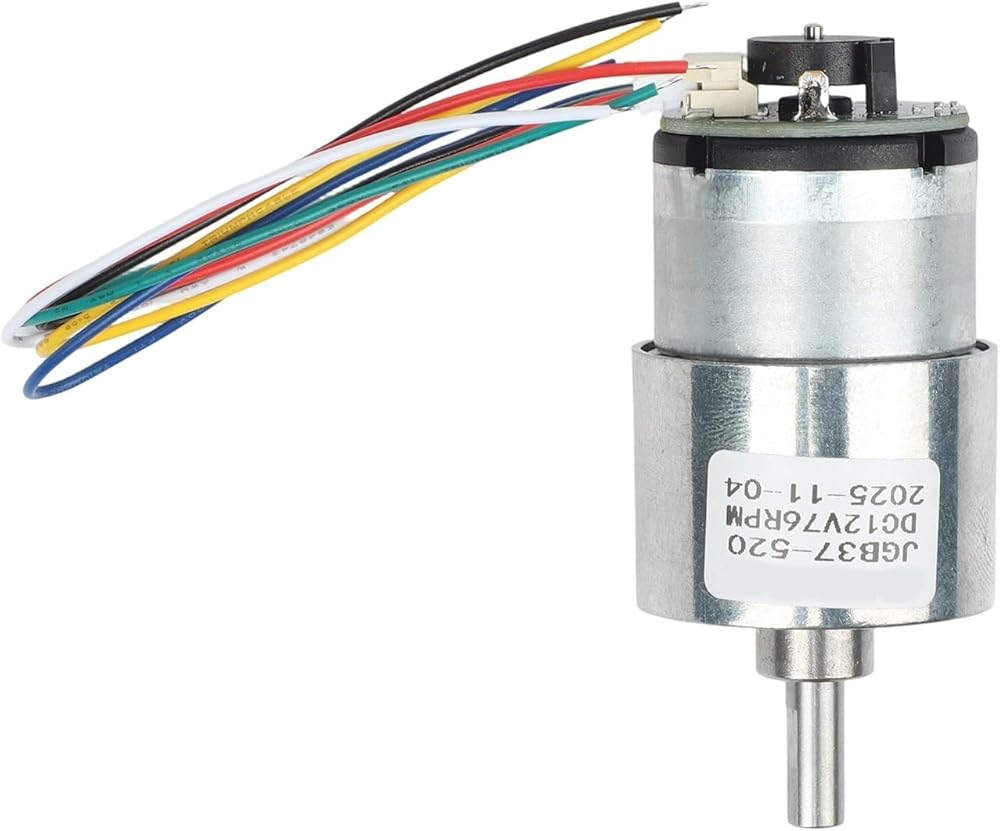

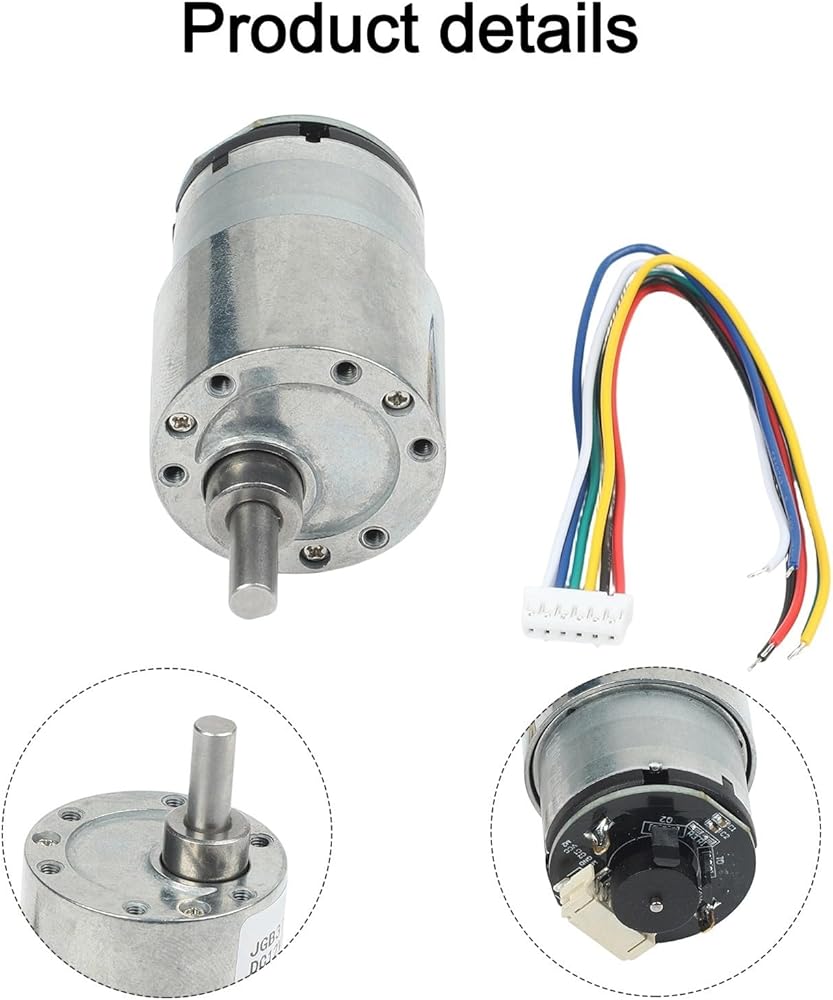

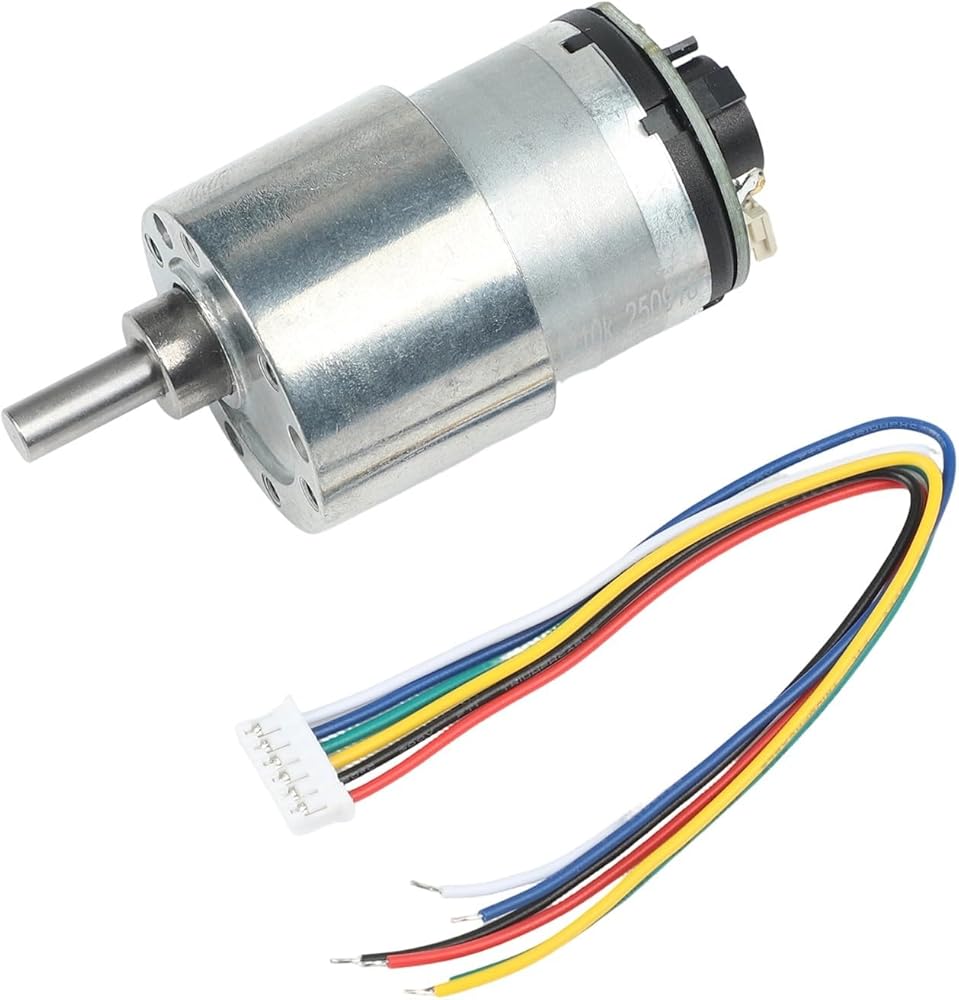

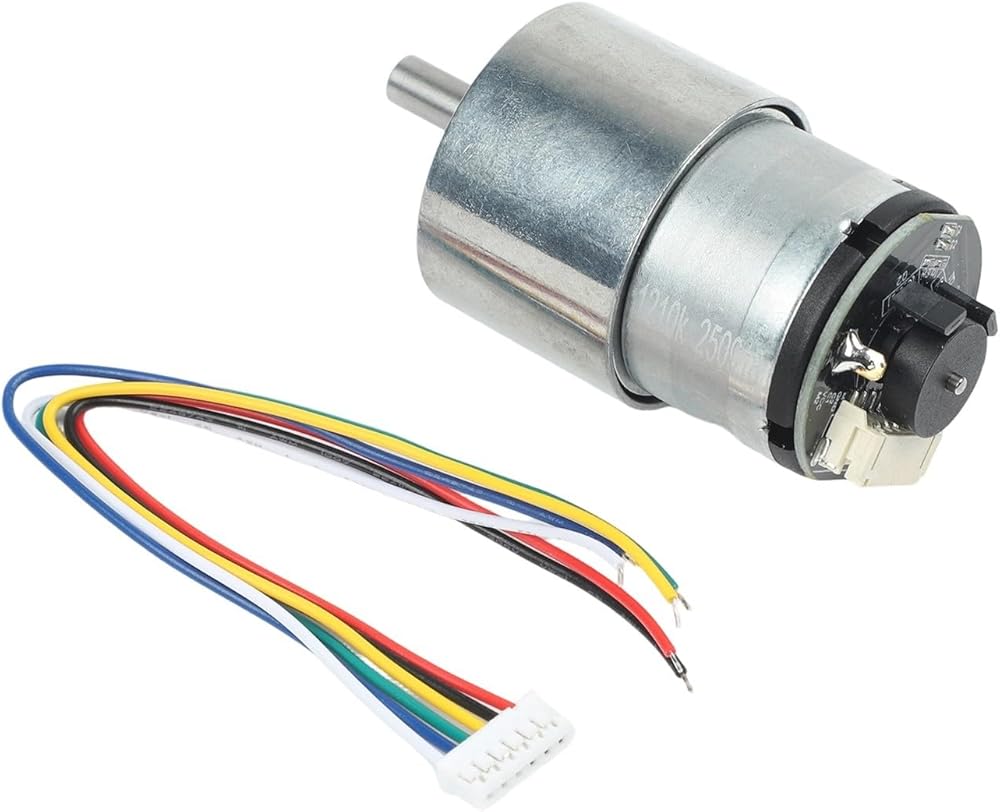

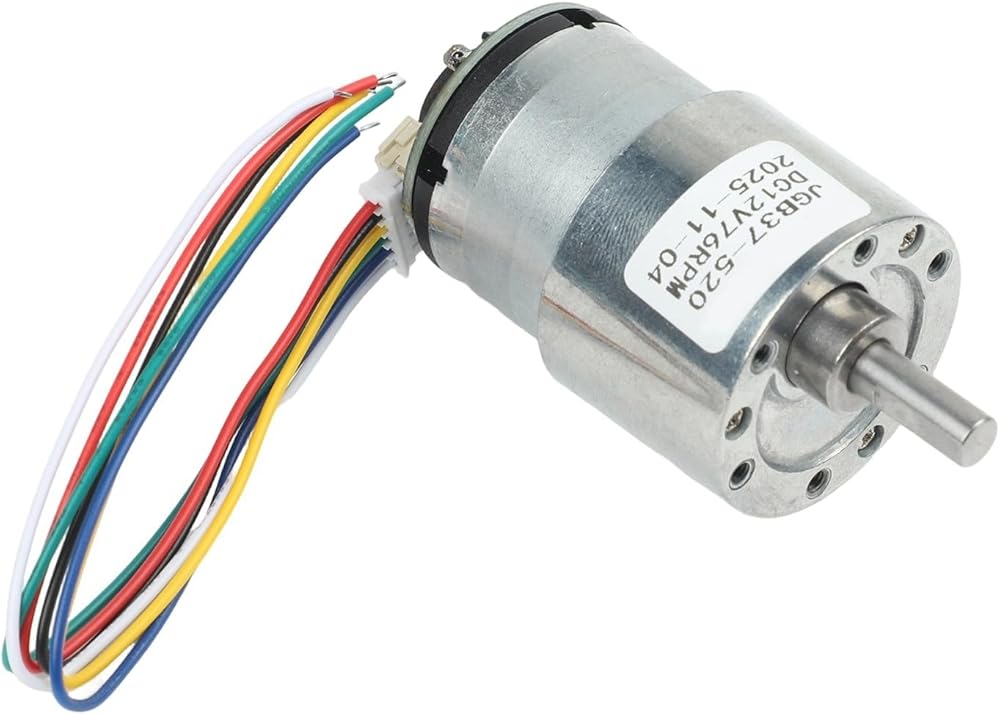

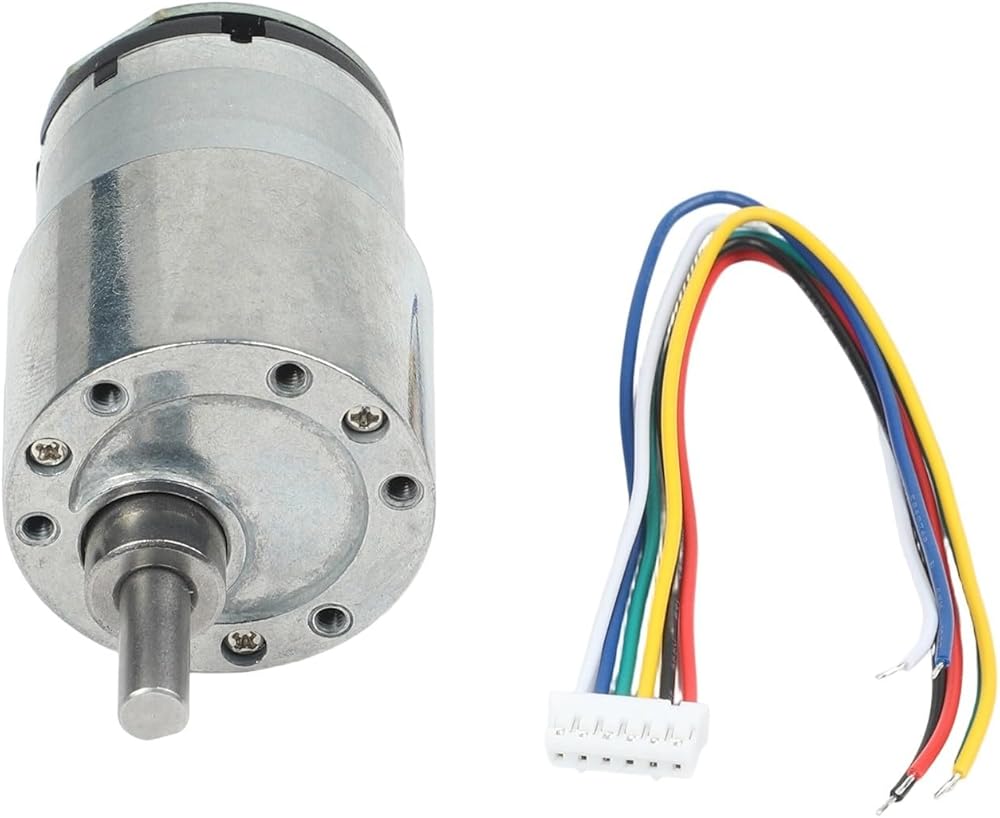

*Part Name:JGB37-520 DC reduction motor
*Material:aluminum

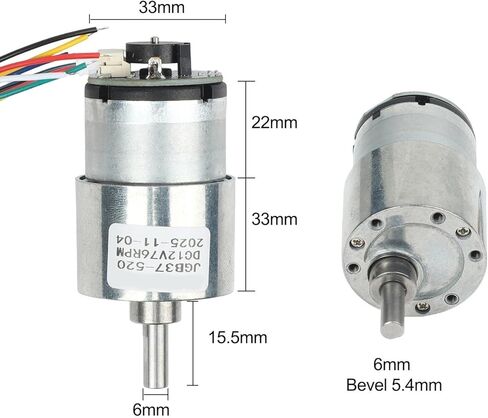

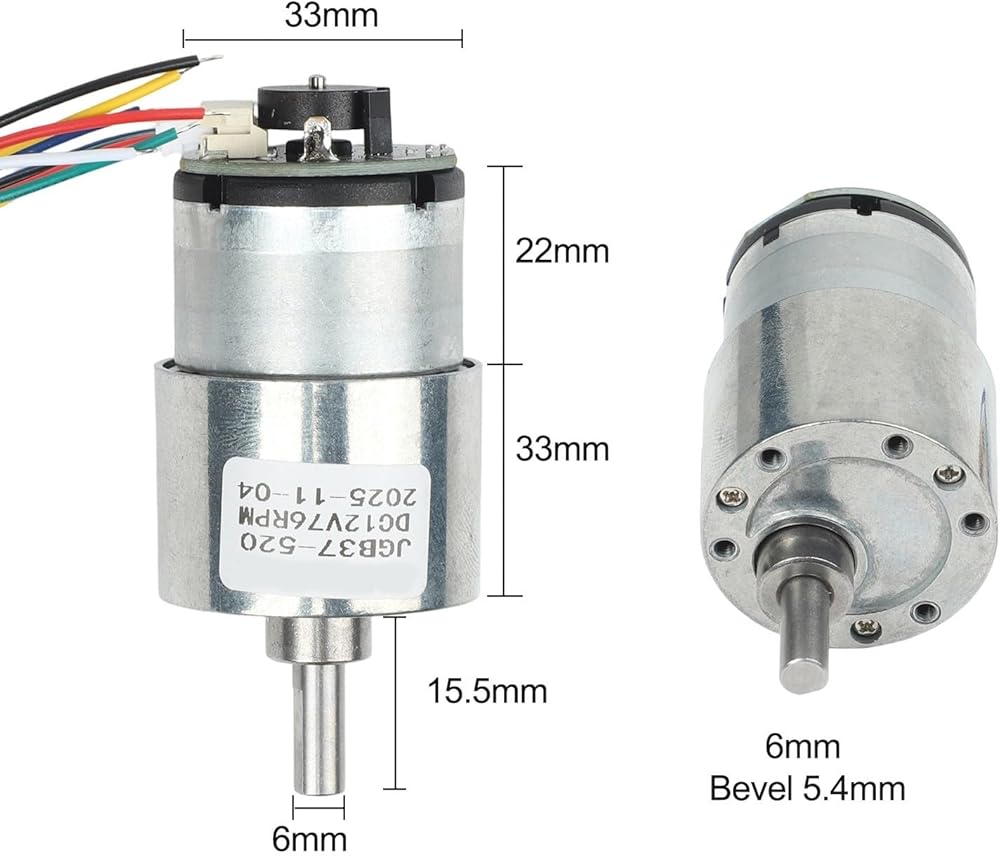

*Size:As shown
*Color:silver

Voltage: DC 12V
No-load speed: 7 rpm, 12 rpm, 22 rpm, 35 rpm, 45 rpm, 66 rpm, 107 rpm, 200 rpm, 320 rpm, 600 rpm, 960 rpm
Voltage: DC 24V
No-load speed: 7 rpm, 12 rpm, 22 rpm, 35 rpm, 45 rpm, 66 rpm, 107 rpm, 200 rpm, 320 rpm, 600 rpm, 960 rpm
Maximum power: 10W
Maximum torque: 25 kg/cm
Motor diameter: 33 mm
Motor body length: 22.7 mm
Output shaft diameter: 6 mm
Output shaft length: 15 mm
Gearbox diameter: 37 mm

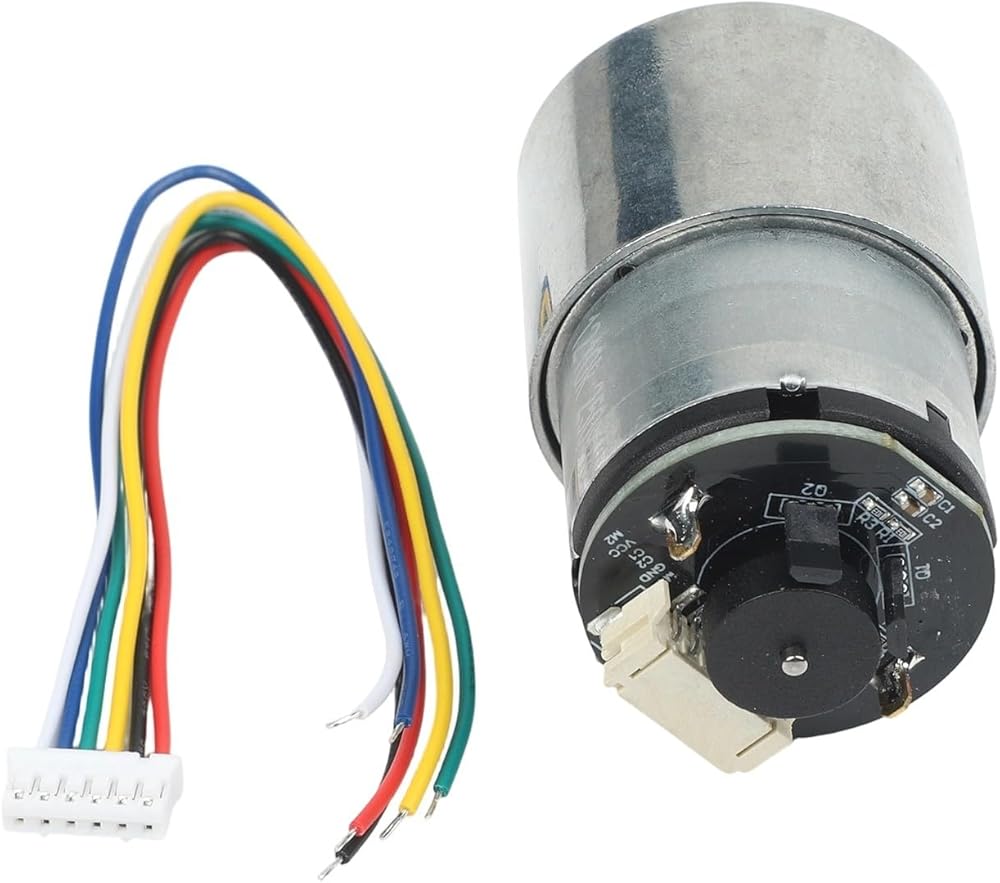

[Wiring way] - Also marked on the encoder disk
1. M1 Motor Power Connector
2. GND Encoder Power Negative Input
3. C1 Encoder Phase A Output
4. C2 Encoder Phase B Output
5. 3.3V Encoder Power Positive Input (Compatible with 3.3V and 5V)
6. M2 Motor Power Connector
[Recommended Motors]
1. 110RPM Motor Features: Slow speed, easy control; high torque and power; suitable for balancing carts, heavy carts, etc.
2. 320RPM Motor Features: Moderate speed; high torque; suitable for maze-climbing robots, fire-fighting robots, climbing robots, etc.

Package Content:
1*JGB37-520 DC reduction motor
