مميزات خاصة

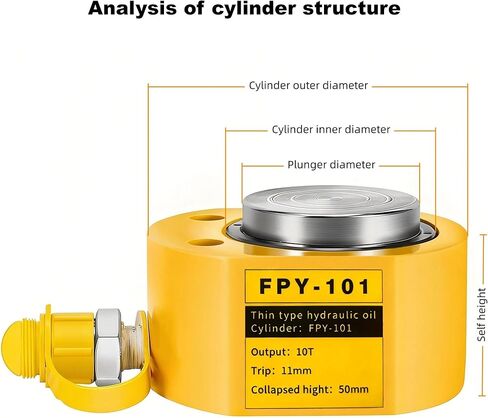

【Technical Parameters】: Tonnage: 10T,Stroke: 11mm/0.43',Self height: 1.97"/50mm,Outer diameter: 3.27x2.56 inches/83x65mm,Internal diameter: 2.48 inches/63mm,Effective area: 1.5 inches/38mm,Piston rod diameter: 1.81 inches/46mm,Fixed hole spacing x screw size: 0.315 inches/8 mm, Item weight: 3.3lbs/ 1.5kg,Used with Pump: CP-180(not included)
【Smooth paint surface and dust-resistant cover】: The hydraulic cylinder has a smooth paint surface,which not only makes its appearance smooth,but also has good rust resistance. This hydraulic cylinder jack is made of heavy-duty cast iron and is durable.In addition,it is equipped with a dust cover to ensure that the internal components remain clean and in optimal working condition for a long time

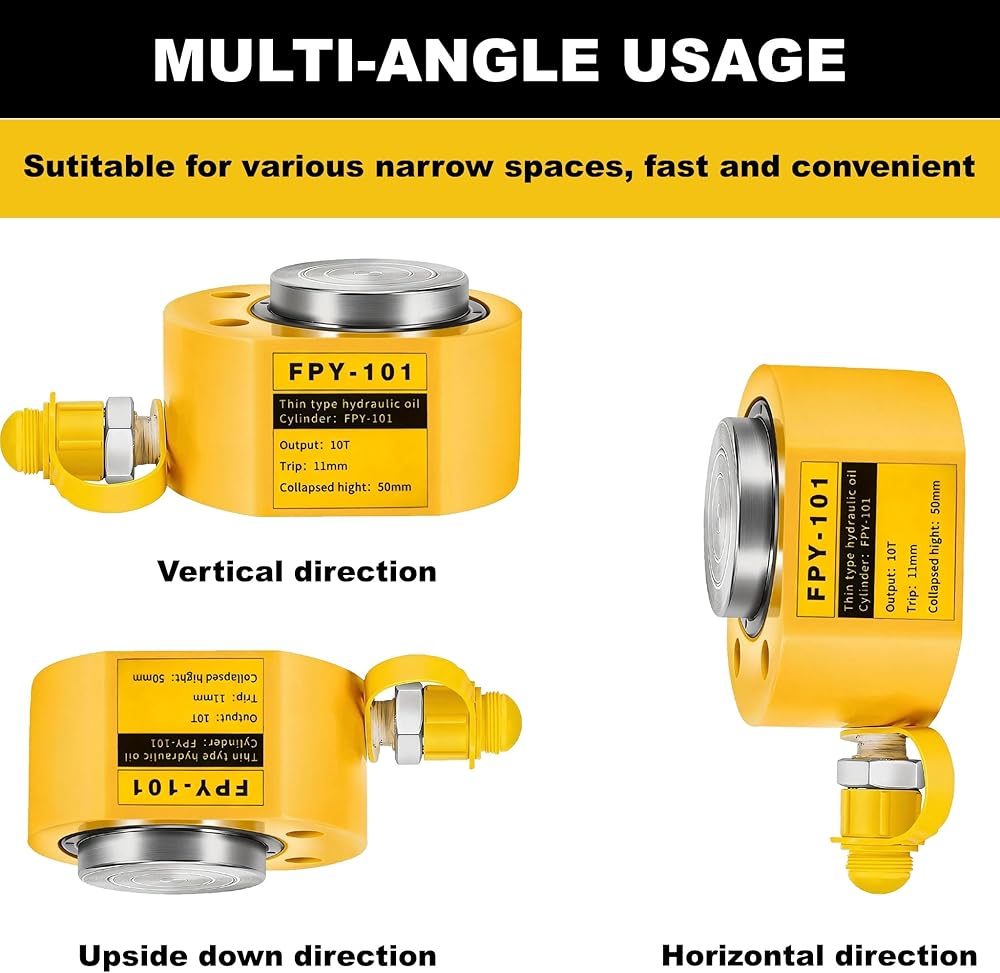

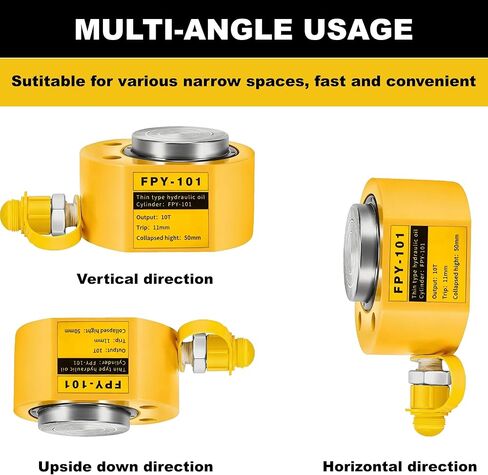

【Use Easily Safe】: This Hydraulic ram jack tonnage is sufficient,the stroke is sufficient,will not be stuck or burst cylinders.After the pressure is released,the jack can automatically retract.Vertical, horizontal and inverted orientations are available.Can be used in narrow spaces.All cylinders need to be used on firm and flat surfaces,not on soft or rough surfaces.Please note that incorrect use will likely damage the jack or cause serious safety accidents
【Various Functions】: Such as lifting,jacking,shoveling and splitting,and can be quickly installed by quick coupling,this 10T hydraulic cylinder jack is perfectly compatible with the CP-180 pump
【Wide Applicable】: Widely used in construction sites,petroleum,electric power,metallurgy,chemical industry,ships,bridges,steel and other industries for the installation and maintenance of large and medium-sized machinery and equipment.But not suitable for car using

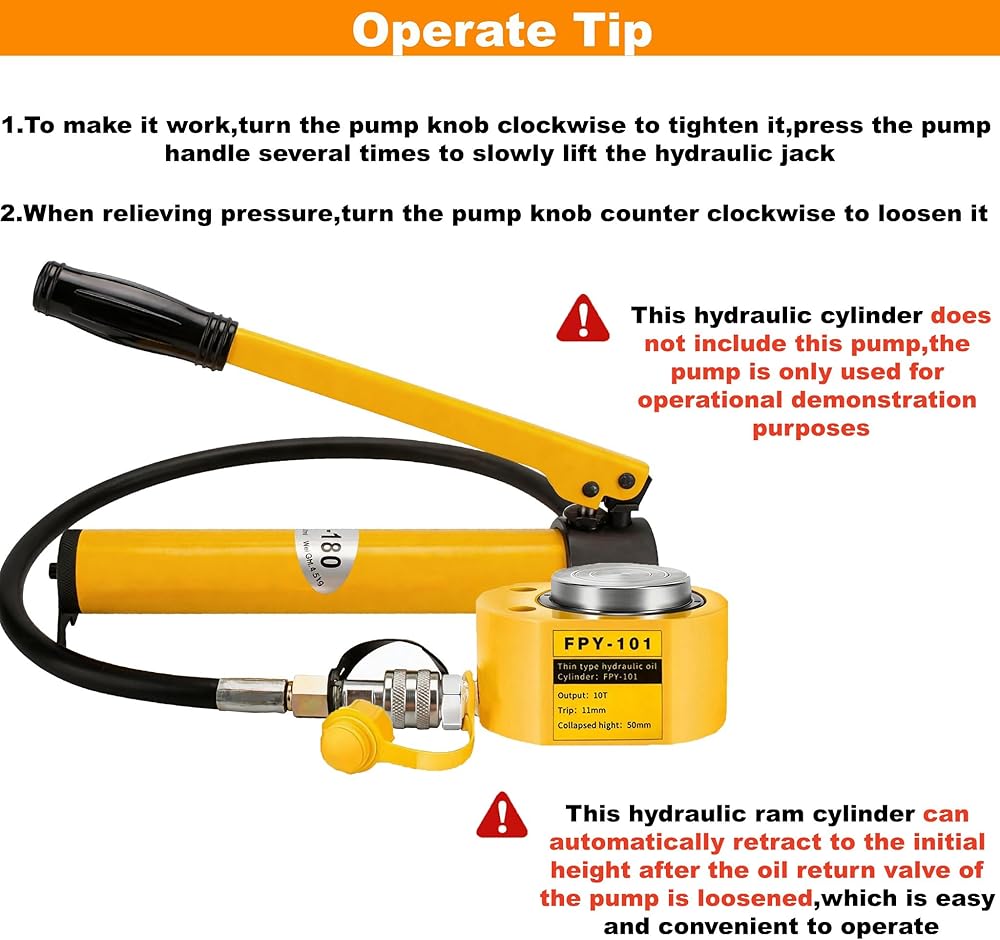

【Automatically Retract】: This hydraulic ram cylinder can automatically retract to the initial height after the oil return valve of the pump is loosened,which is easy and convenient to operate

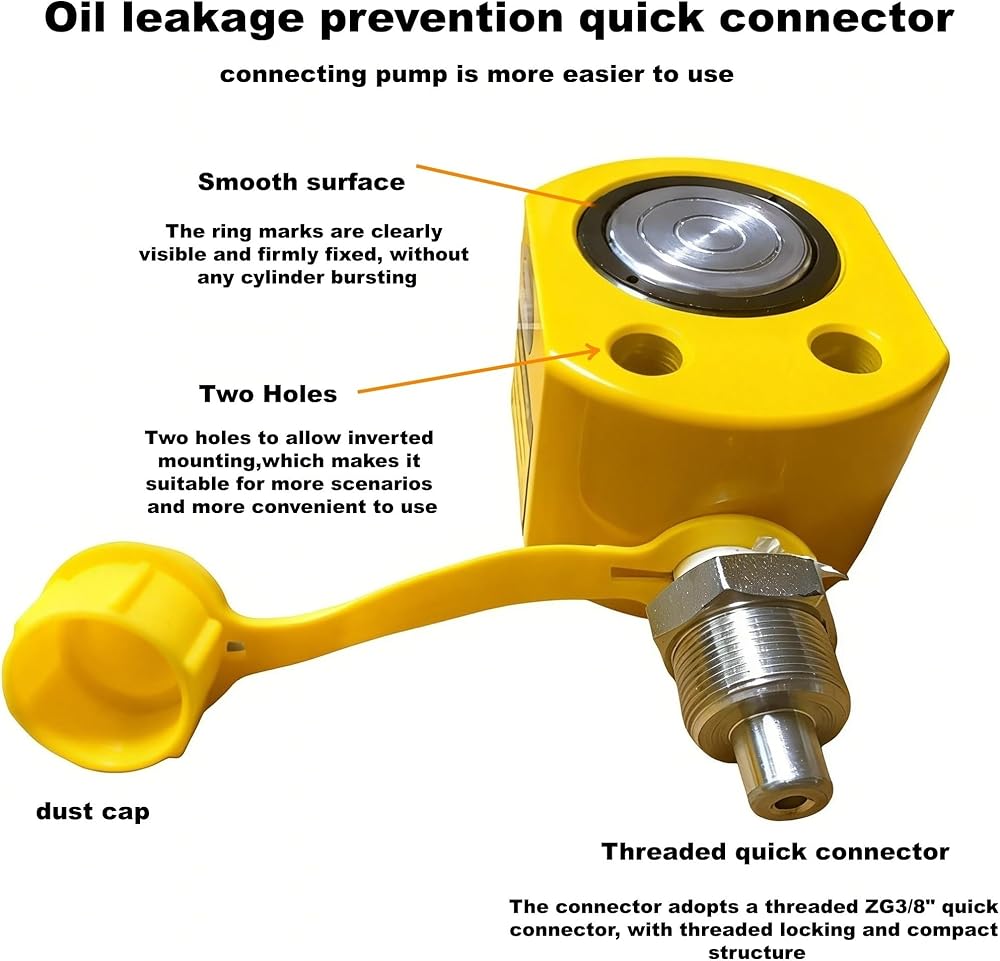

【Two Holes】: The cylinder has two holes to allow inverted mounting,which makes it suitable for more scenarios and more convenient to use
【Low Profile & Portable】: This mini hydraulic cylinder is ultra-thin,portable,but strong in load-bearing capacity,which is especially suitable for lifting and supporting work in narrow spaces

وصف

Introductions:

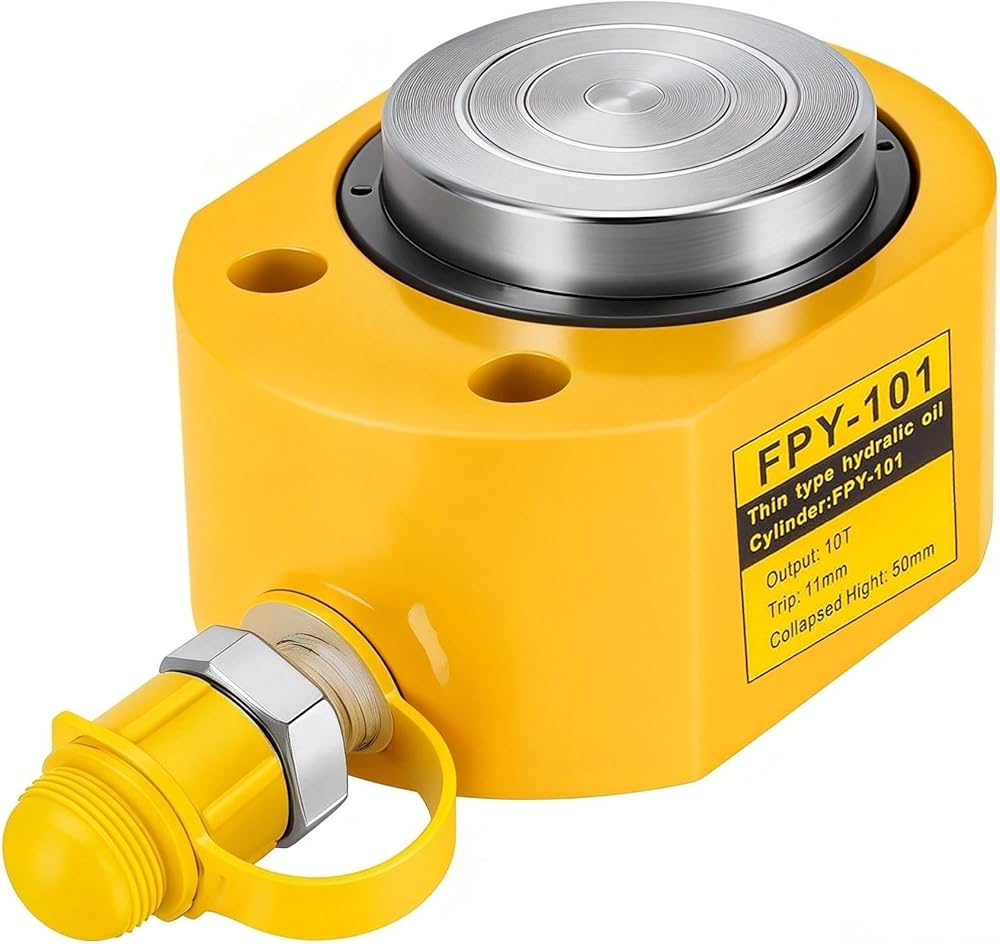

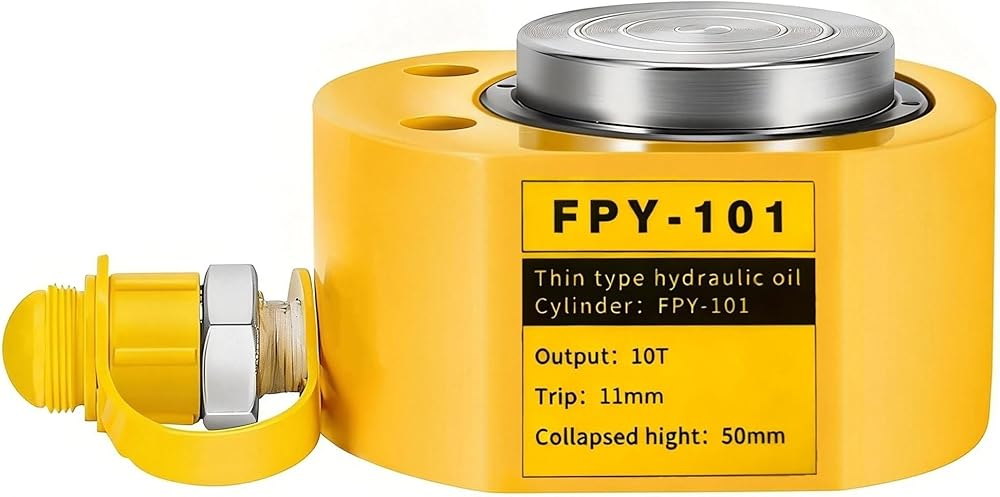

This low profile hydraulic ram is small in size,strong in load-bearing capacity.The load capacity is 10 ton,It is especially suitable for use in narrow spaces and has the characteristics of lightness and flexibility

Specifications:

1. Load Capacity (Tonnage) :10 ton
2. Material: Cast iron
3. Color: Yellow
4.Item weight: 3.3lbs/ 1.5kg
5.Package weight: 3.85lbs/ 1.75kg

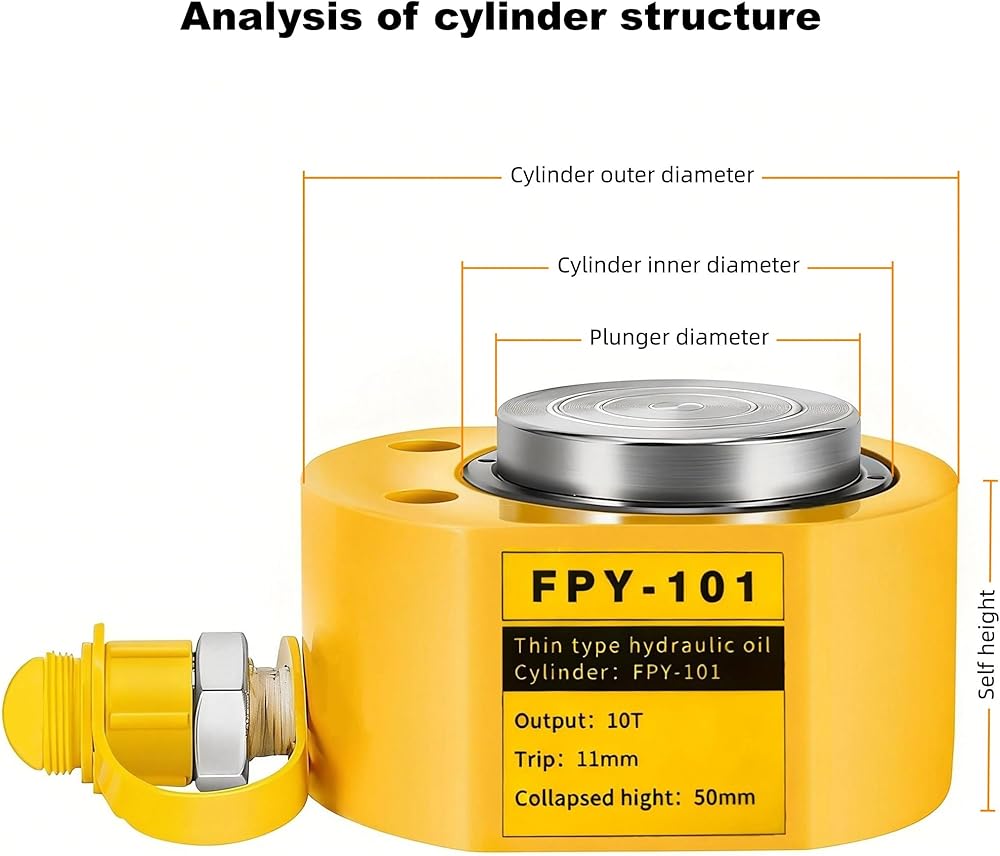

6.Outer diameter : 3.27x2.56 inches/83x65mm
6.Internal diameter: 2.48 inches/63mm
7.Effective area: 1.5 inches/38mm
8.Piston rod diameter: 1.81 inches/46mm
9.Fixed hole spacing x screw size : 0.315 inches/8 mm
10.Minimum Lift Height :10mm(0.394")
11.Maximum Lift Height:10mm(0.394")
12.Style: Ultra-thin
13.Jack Power Type: Hydraulic

14: Durable Material:Made of heavy duty cast iron,strong and sturdy,can be used for a long time
15: Effortless Operation and Automatic Retraction:The jack offers easy operation.Once the pressure is released,the piston retracts automatically,removing the need for external force

Attention: Please pay attention that this hydraulic ram can not be suitable for car using,thanks

Attention:

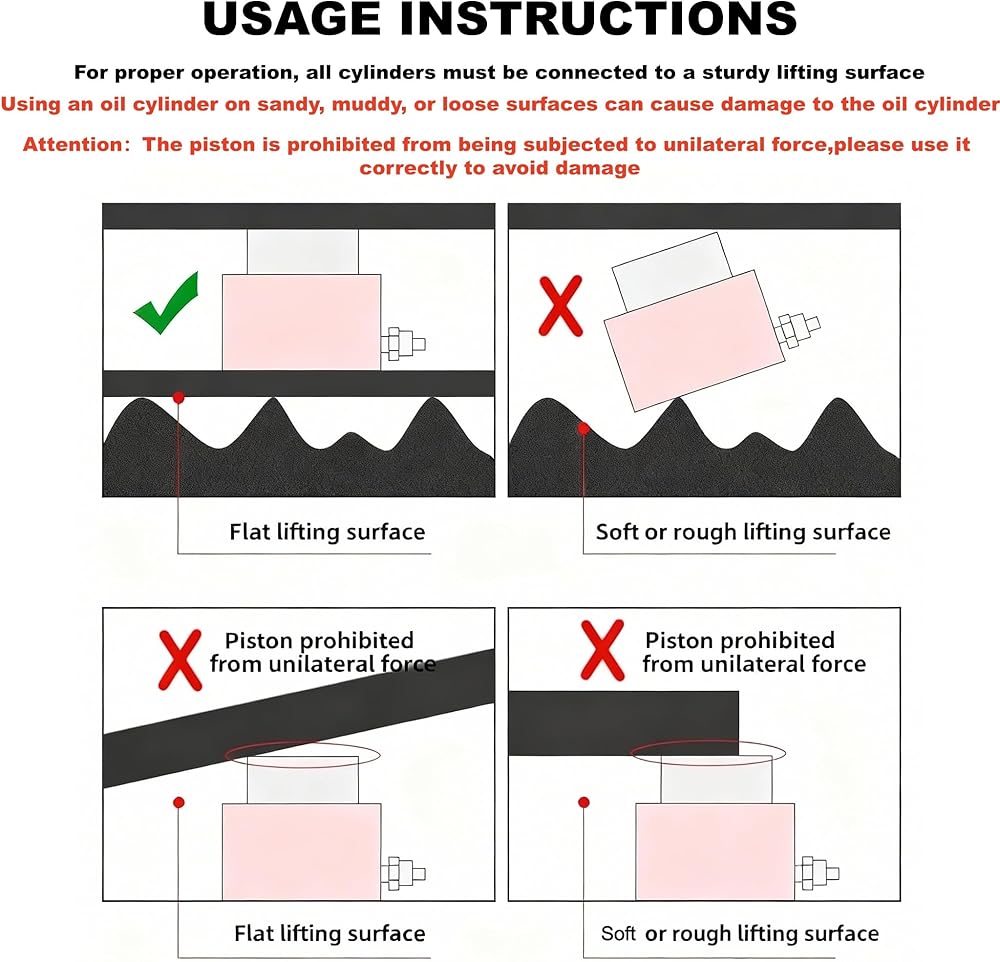

1. All cylinders need to be used on firm and flat surfaces,not on soft or rough surfaces.Please note that incorrect use will likely damage the jack or cause serious safety accidents
2. For safety in use,it is recommended to use oil-free wood,which can enlarge the pressure-bearing surface. In addition,in order to avoid sliding,iron plates CANNOT be used to lift things.

Package Includes:

1 x 10 Ton Hydraulic Ram Jack
