الاجهزه الالكترونيات الامريكية قد تحتاج الى محمول فولت من ١١٠ الى ٢٢٠.قد تحتاج إلى محول كهرباء
مميزات خاصة
Stability: Can be used stably for a long time

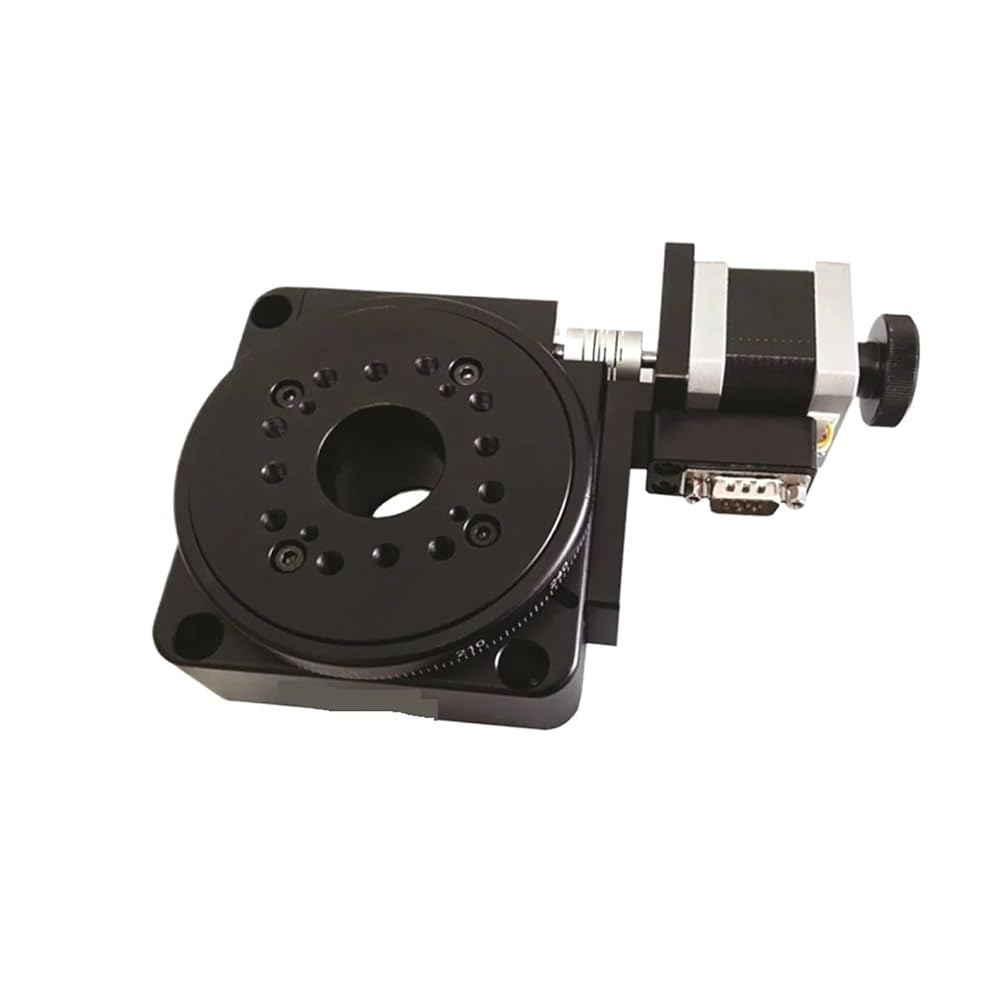

electric rotating platform：using worm gear; outer ring With scale; interface
Applications：Widely used in industrial automation and scientific experiments; the scale ring is installed on the outer ring of the rotary table to facilitate initial positioning and reading
Used:The electronically controlled rotary table can be used flat; vertically; and inverted
After-sales service support: If you have any questions； I will answer them as soon as possible
وصف
Product parameters:
Product number
PX110-100
Knot
Structure
Describe
Narrate
Angle range
360°
Table size
100mm
Transmission ratio
180:1 90:1
Rail form
Bearing
Stepper motor(1.8°)
42BYG
Body material
Aluminum alloy
Center bearing
45kg
weight
1.7kg
fine
degree
Describe
Narrate
Resolution
0.01°(no subdivision)
0.0005°=1.8(20subdivisions)
speed
25°/sec
Repeatability
0.005°=18
End jump accuracy
15
Empty back
0.005°=18
eccentric
5
Lose step
0.005°=18
Parallelism
80
==========
Model Number : PX110-100
Type : Power Tool Parts
