Package listing:

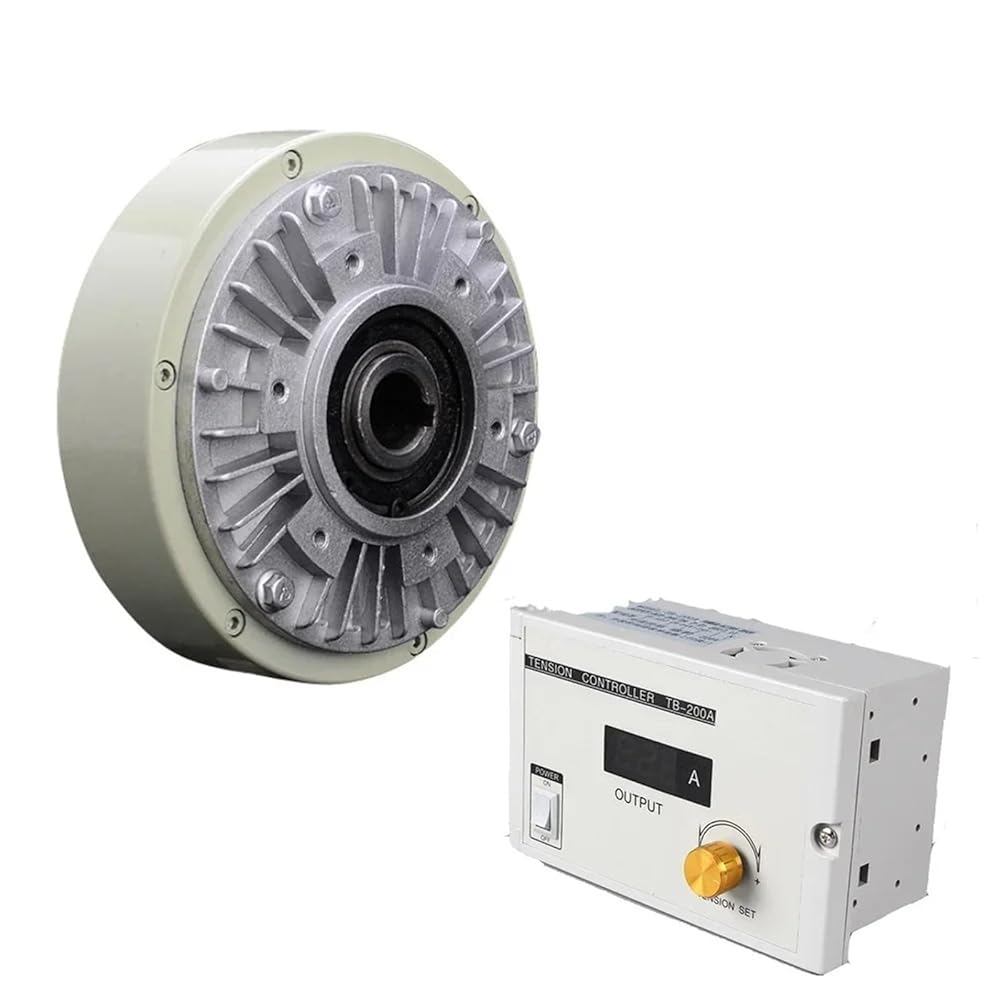

1X 25NmMagnetic Powder Brake
1X Manual Tension Controller

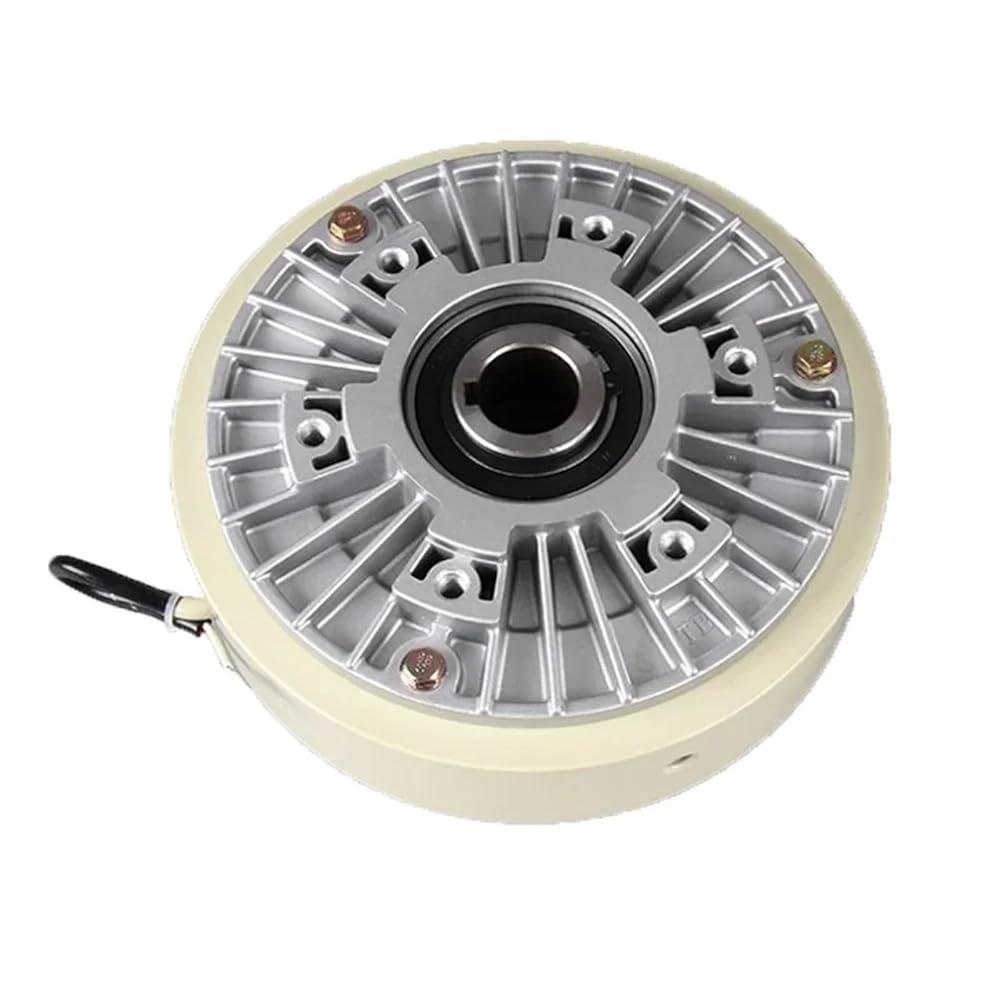

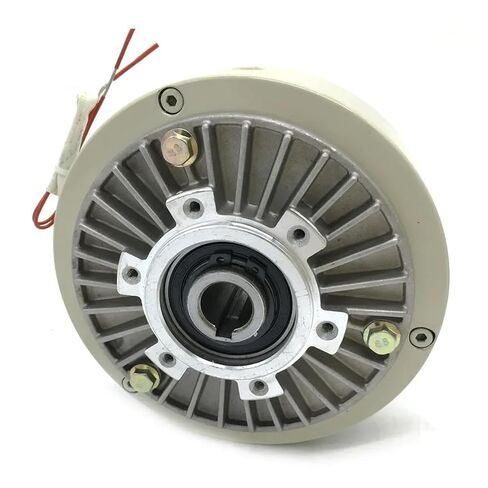

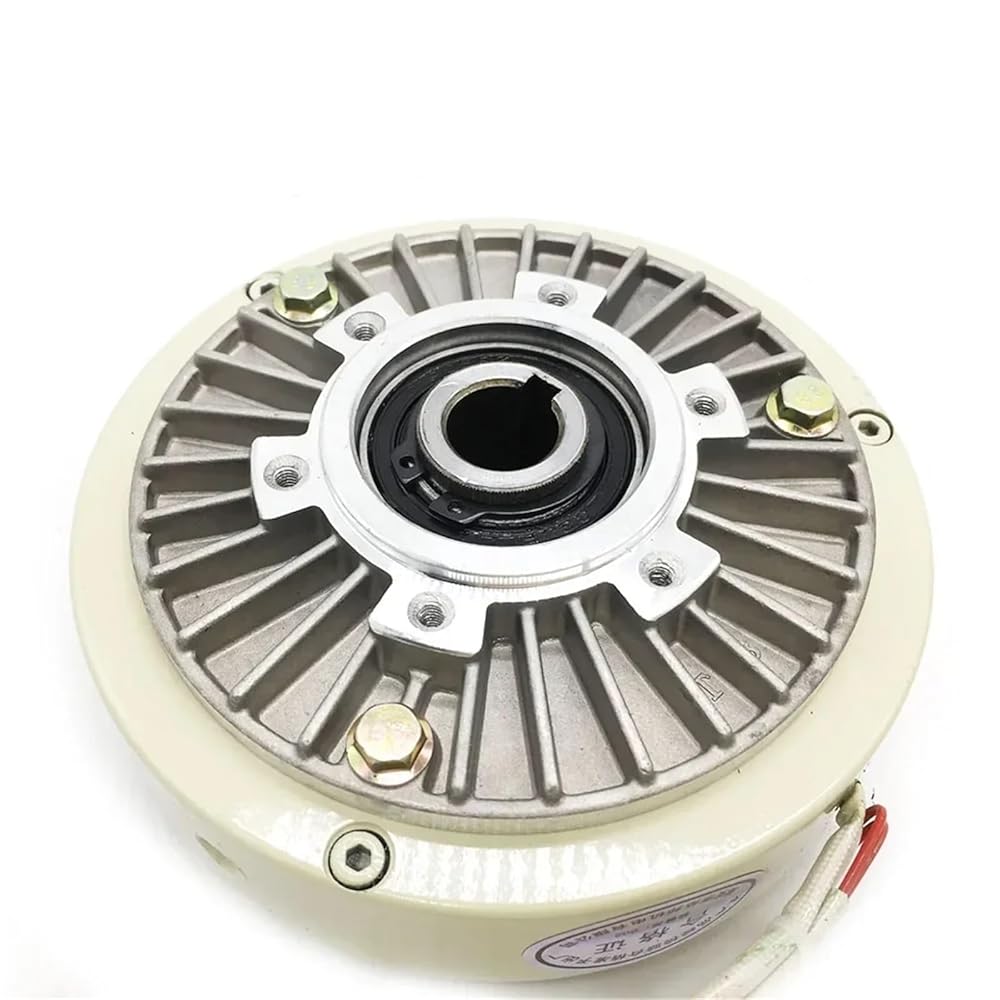

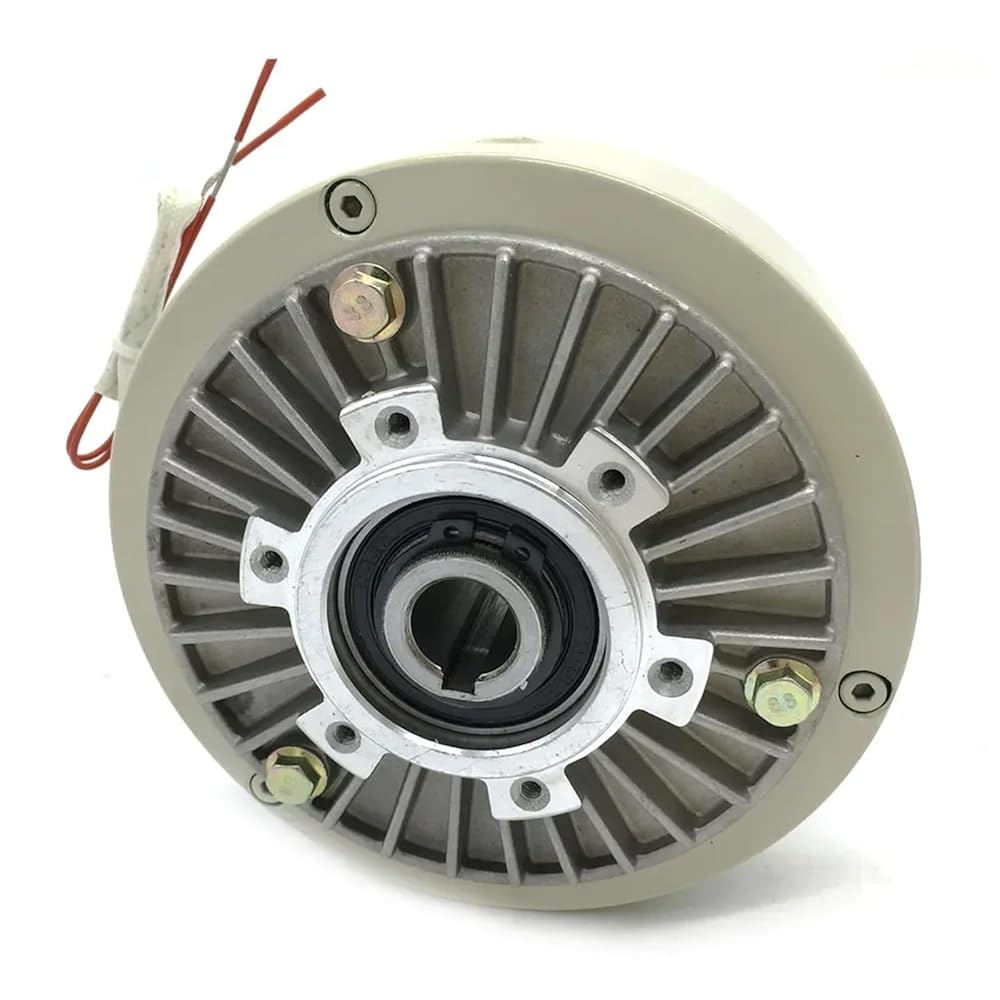

Magnetic Powder Brake Parameters:
Model: FZ-25-K
: 25Nm(2.5kg)
Voltage: DC24V
Rotating speed: 1000RPM
Current: 1.5A

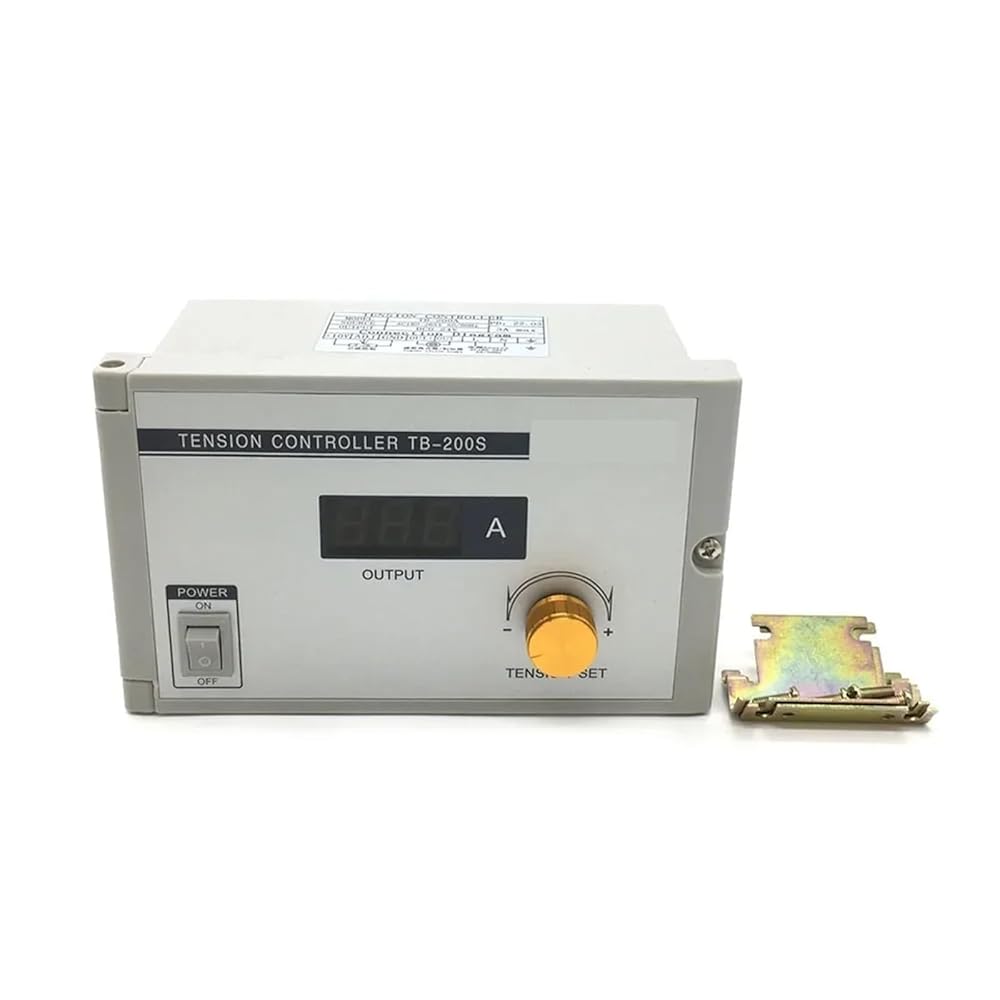

Manual Tension Controller Parameters:
Model: TB-200S
Power Supply: 185V-265VAC 50/60Hz
Out Voltage: 0~24VDC(0-3A)
External Signal control: 0~10VDC or 0~5VDC (Switchable)
Precision:0.01A
Type: Manual controller / / Potentiometer
Working Temperature: -10~40 degree centigrade
Overall size: 160X100X70MM(width X height X depth)
Mounting size: 163X103X70MM(width X height X depth)
Installation: wall-mounted, floor-mounted, embedded
Application range:
Magnetic powder brakes use magnetic powder to transmit . This is the most popular transmission component for material unwinding and control. It is widely used in printing machines, packaging machines, slitting machines, slitting machines, coating machines. Industrial machinery tension control systems such as peritoneal machines, plastic machines, rubber machines, textile machines, printing and dyeing machines, wire and cable equipment, etc., use tension control, continuous sliding, simulated load, buffer start, brake and so on. bearings and magnetic powders are used to improve their service life and performance.
==========
High-concerned chemical : None
Voltage : 24V
Material : Carbon Steel
Model Number : FZ-25-K+TB-200S
