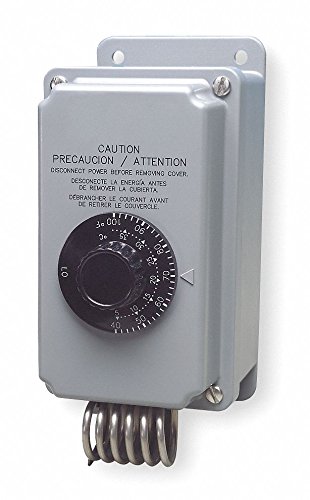

Designed for reliable performance and long life, this PECO line volt mechanical Tstat features a weather-resistant enclosure, can withstand harsh conditions, and it allows you to easily control your heating and cooling system. Unit is resistant to airborne contaminates, high humidity, moderately corrosive conditions, and water spray.

Item: Line Volt Mechanical Tstat
Thermostat Switch Type: SPDT
Thermostat Control Range: 40 Degrees to 100 Degrees F
Thermostat Voltage: 24, 120 to 277VAC
Full Load Amps @ 120VAC: 16A
Full Load Amps @ 240VAC: 12A
Thermostat Programmable: No
Remote Sensing Capability: No
Thermostat Heating/Cooling: Heating/Cooling
Thermostat Item: Line Voltage Mechanical Thermostat
Remote Sensing Bulb Included: No
Switch Action: Open/Close on Rise
Number of Switches: 2
Differential: 3 Degrees F
Height: 7-1/3"
Width: 3-1/2"
Depth: 4-7/8"
Temp. Sensitivity: +/- 3 Degrees F
Sensor Type: Stainless Steel, Fluid Filled Coil
Sensing Bulb Dia.: 1-1/4"
Color: Gray
Enclosure Type: Rain Tight NEMA 4X, (2) Piece Molded Plastic
Locked Rotor Amps @ 120V: 80A
Locked Rotor Amps @ 240V: 60A
Contact Rating Resistive @ 120V: 25A
Resistive Amps @ 208VAC: 25A
Contact Rating Resistive @ 240V: 25A
Contact Rating Resistive @ 277V: 20A
Pilot Duty Contacts (VA): 125VA
Mounting Type: Surface
Mounting Location: Indoor/Outdoor
Includes: Oversized Enclosures to Accommodate Internally Mounted Relays or Terminal Blocks
Standards: UL, CSA, NEC 547
