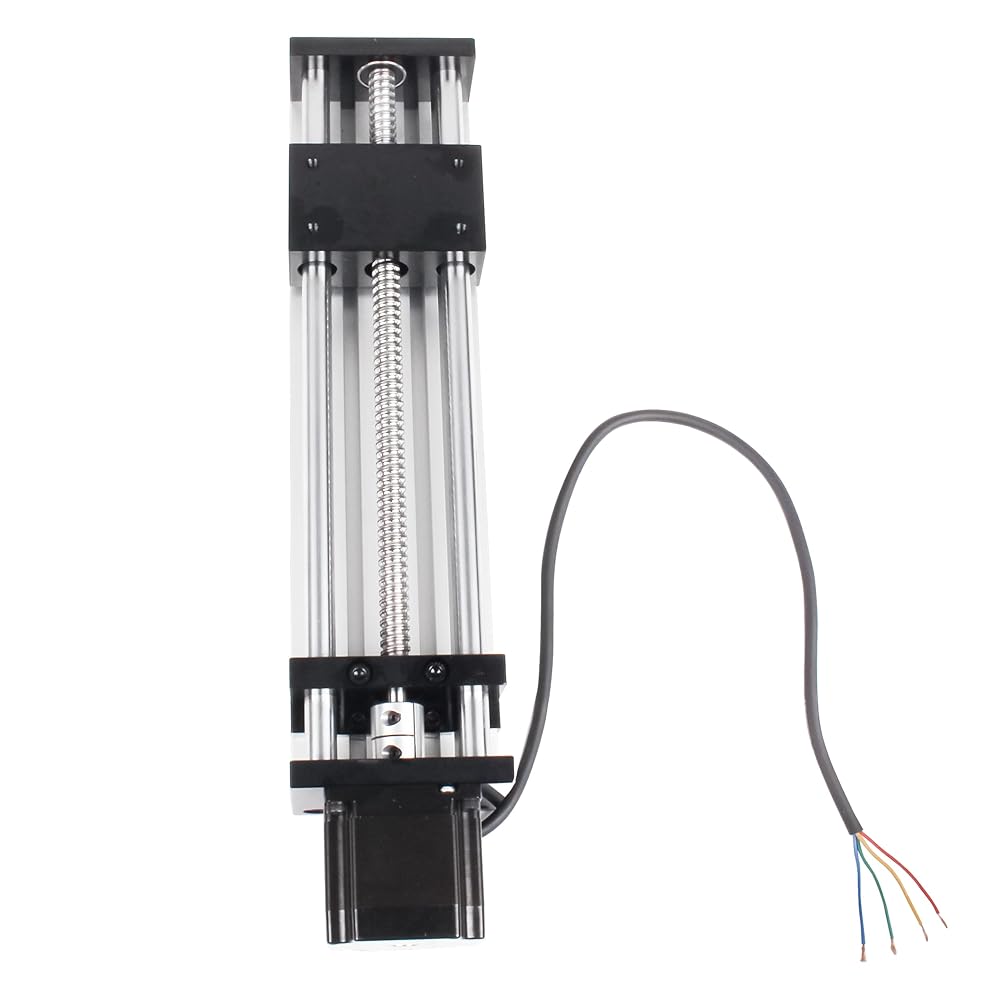

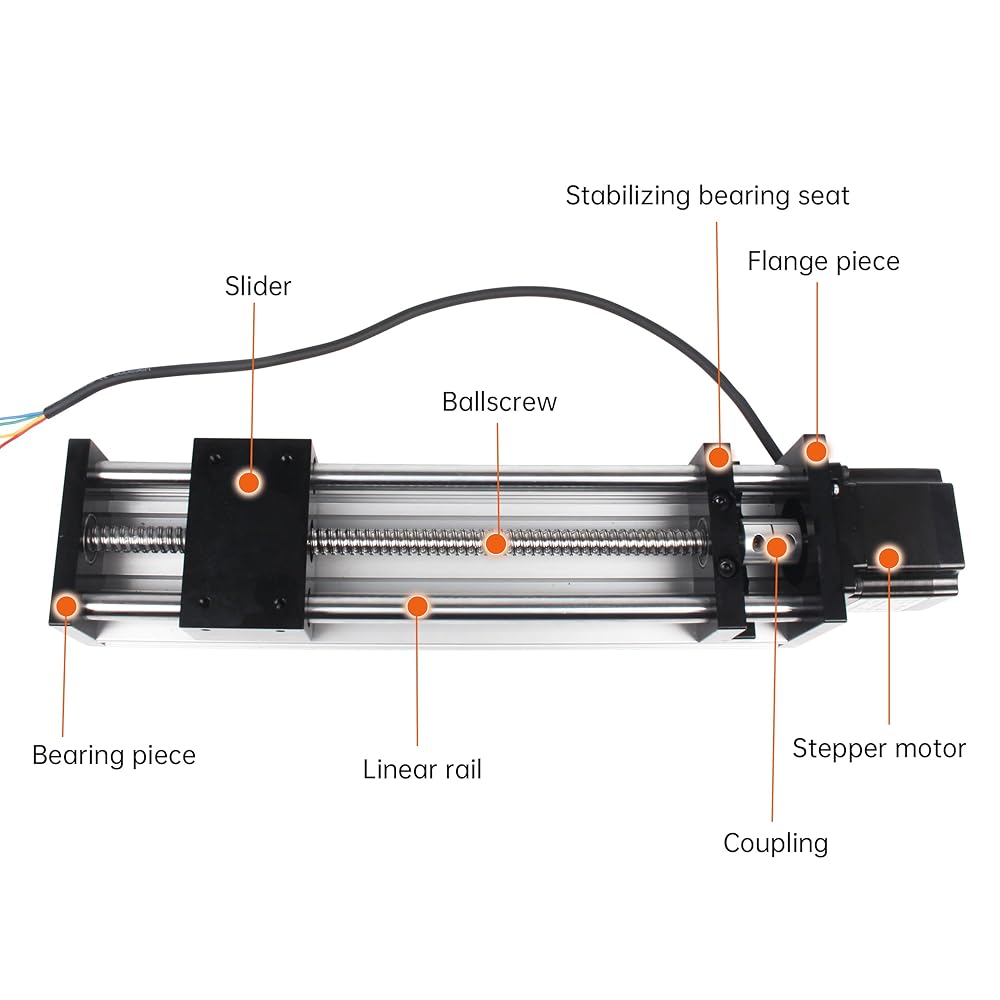

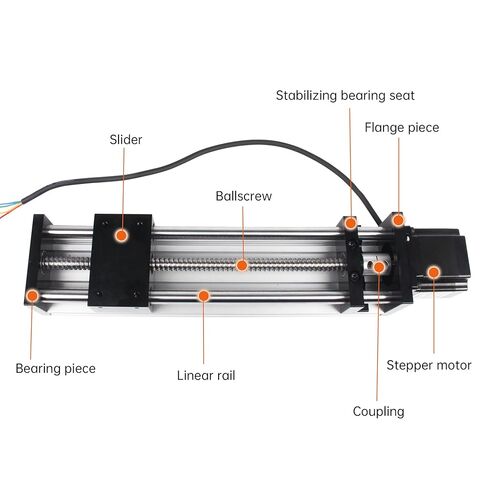

CNC Linear Stage Actuator, Double Optical Axis Linear Slide Rail 1605 Ball Screw CNC Linear Motion Rail Guide with Nema23 Stepper Motor for CNC Router Machine (200mm / 7.87")

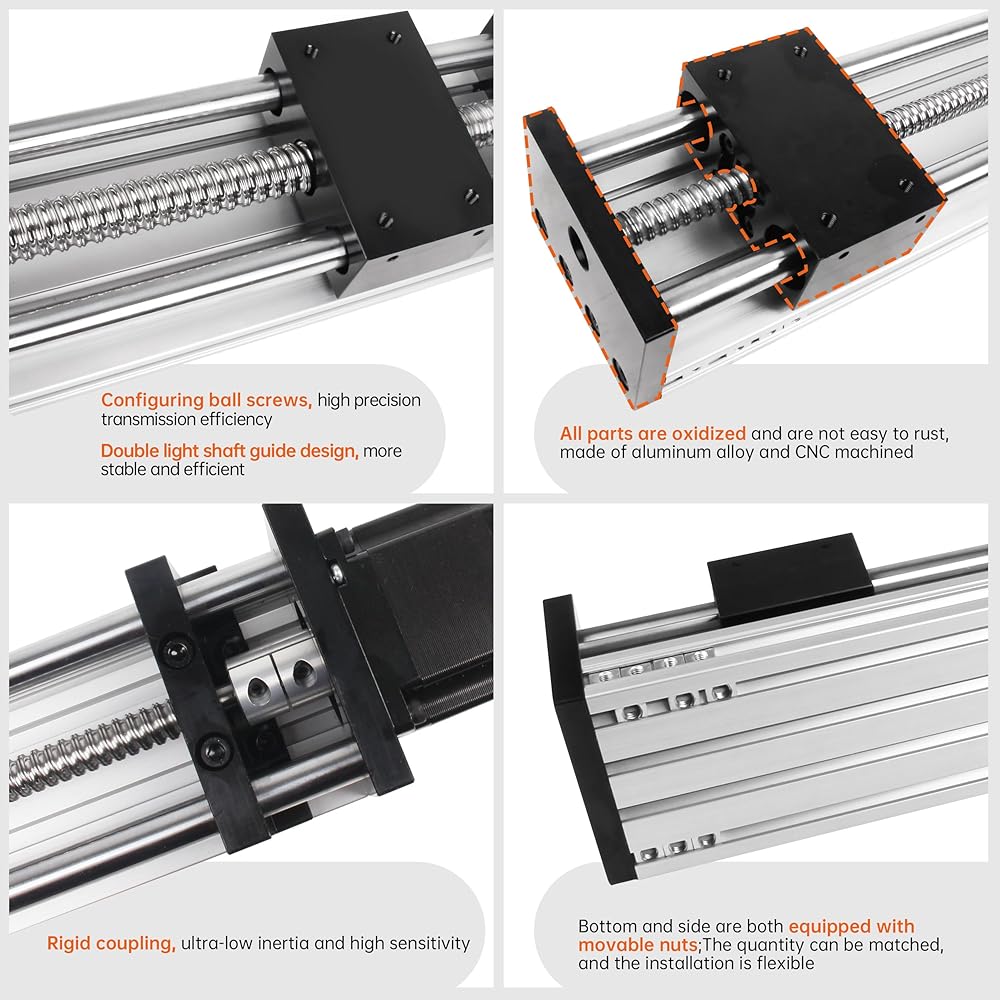

【GGP1605 BALL SCREW】High-precision 1605 type ball screw, with flange screw nut, the accuracy can reach 0.03mm, it can be used under high speed and large load, and the operation is very stable.

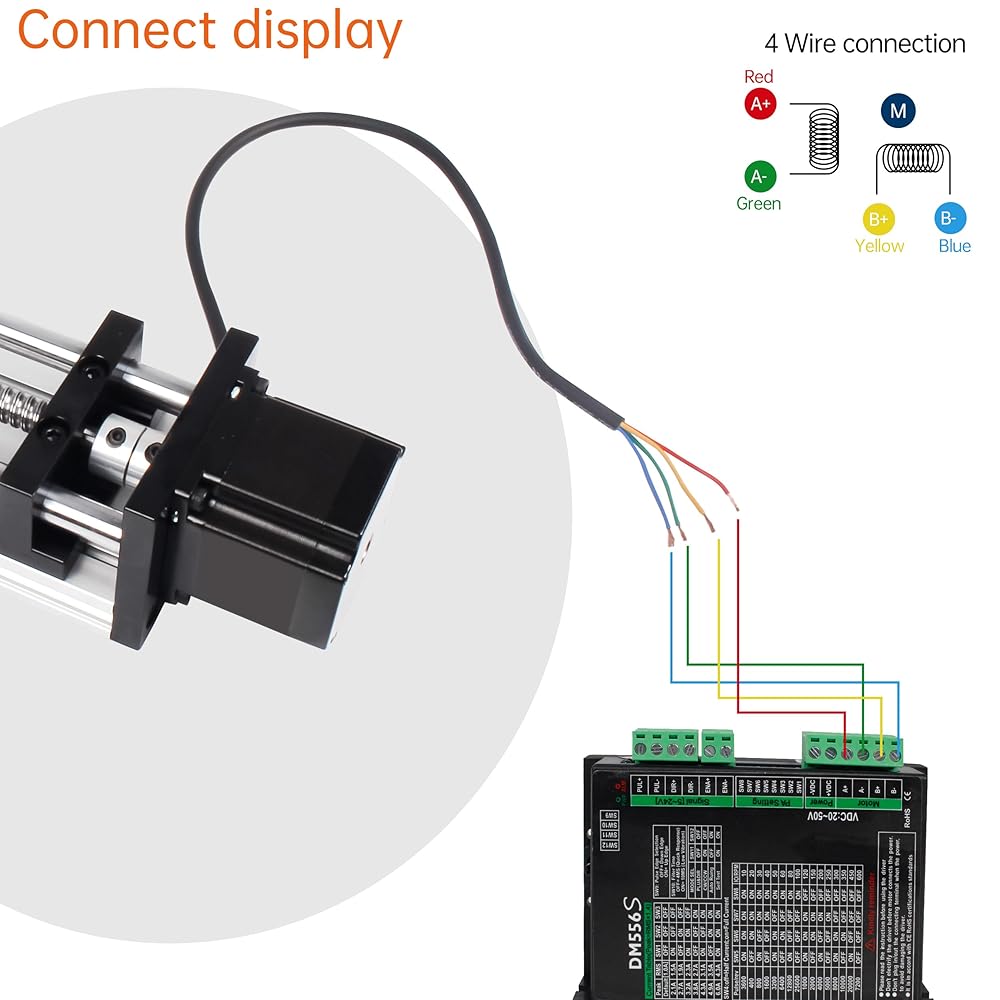

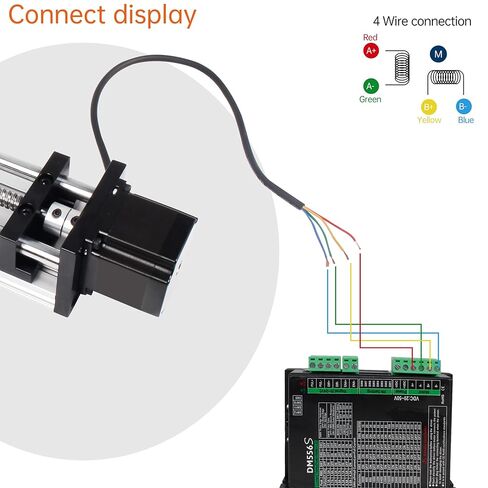

【NEMA23 STEPPER MOTOR】Motor size: 57 * 57 * 56mm; torque: 1.26N.m; current: 3A; shaft: single out shaft; voltage: 12-36V (typical value 24V); control mode: pulse control; output speed: 1000 RPM (within 600 RPM).Wiring: Red(A+), Green(A-), Yellow(B+), Blue(B-).

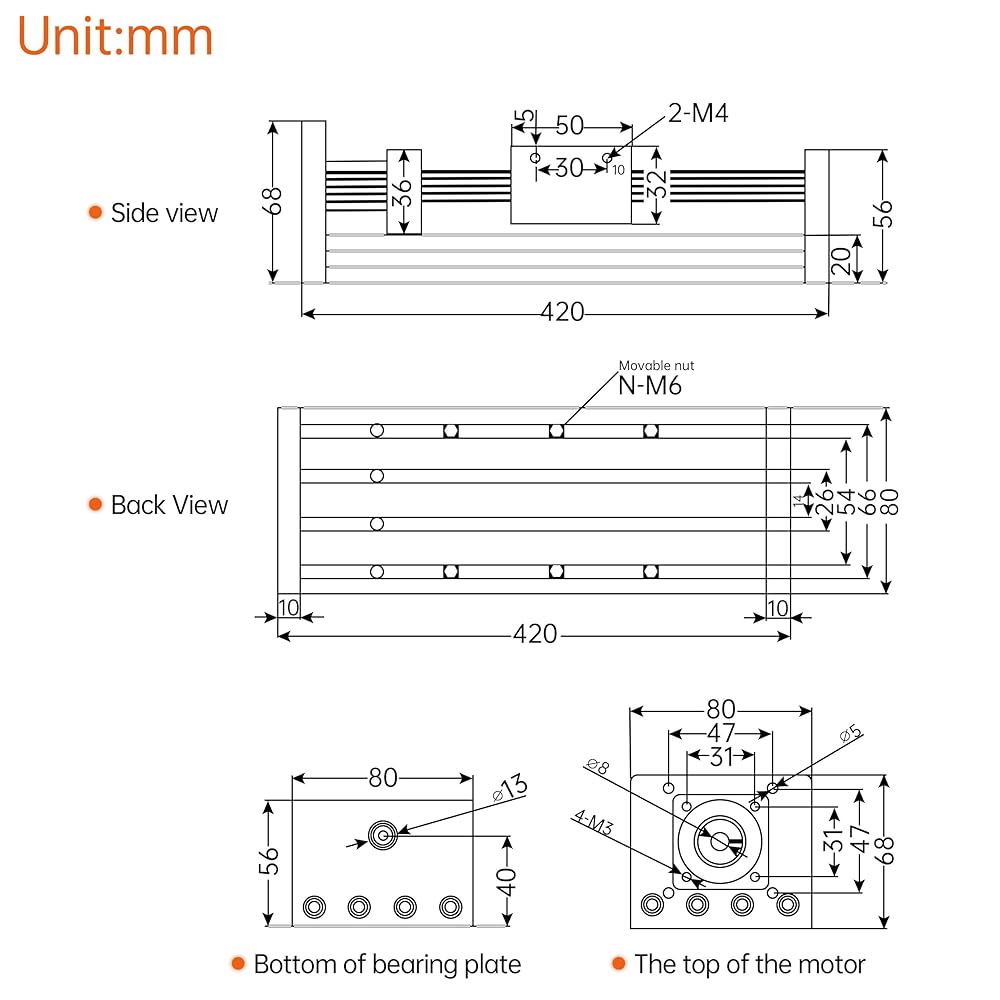

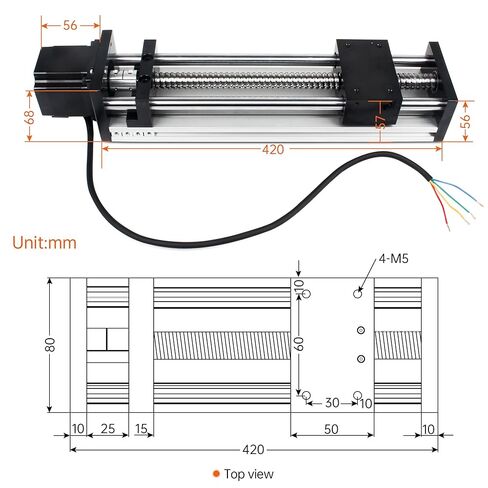

【EEASY INSTALLATION】80mm aluminum profile base, M4 movable nut at the bottom, side mounting groove for easy fixing, M3 nut can be installed with limit, easy to install. This linear stage can be used in combination with multi-axis, horizontal cross, gantry type, three-axis type, four-axis type, etc.
【DUAL AXIS GUIDE RAIL】 More stable and efficient, 12 chrome plated axis, linear bearing
