PRECIHW 320PCS Heat Shrink Spade Connectors kit, Male & Female Spade Terminals, Insulated Waterproof Wire Connectors, Marine Grade Electrical Connectors with Box

Specifications:
Connectors Type: Spade
Color: Red, Blue, Yellow

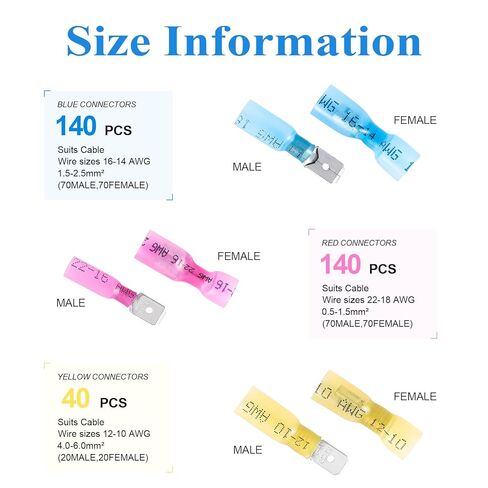

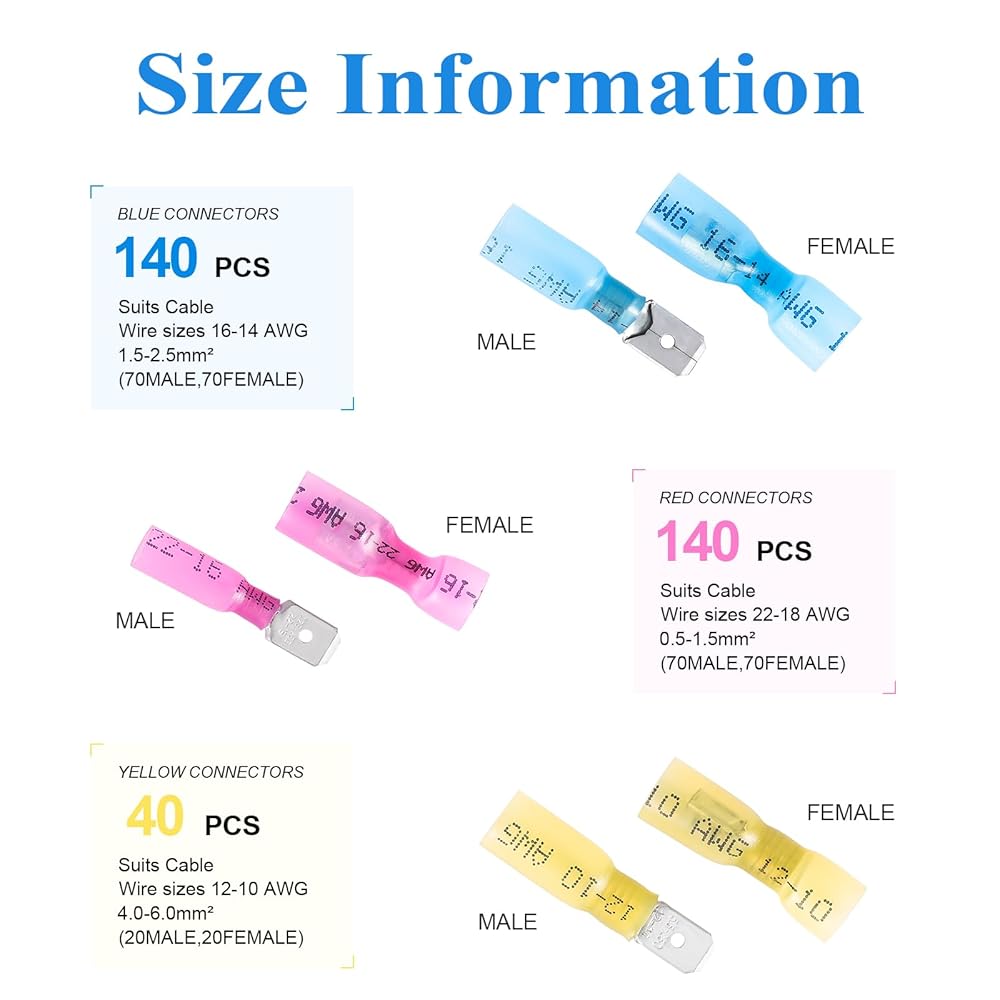

Cable cross-section:
Red: 0.5-1.0 mm² (A.W.G.:22-16)
Blue: 1.5-2.5 mm² (A.W.G.:16-14)
Yellow: 4.0-6.0 mm² (A.W.G.:12-10)
Application: Ideal used for automotive audio & trailer, marine/watercraft, perfect for home or scientific wiring projects.

Features:
● The heat shrink terminal connector features strong sealing, salt-resistance, corrosion resistance, providing reliable performance, its Shrinkage Ratio: 3:1

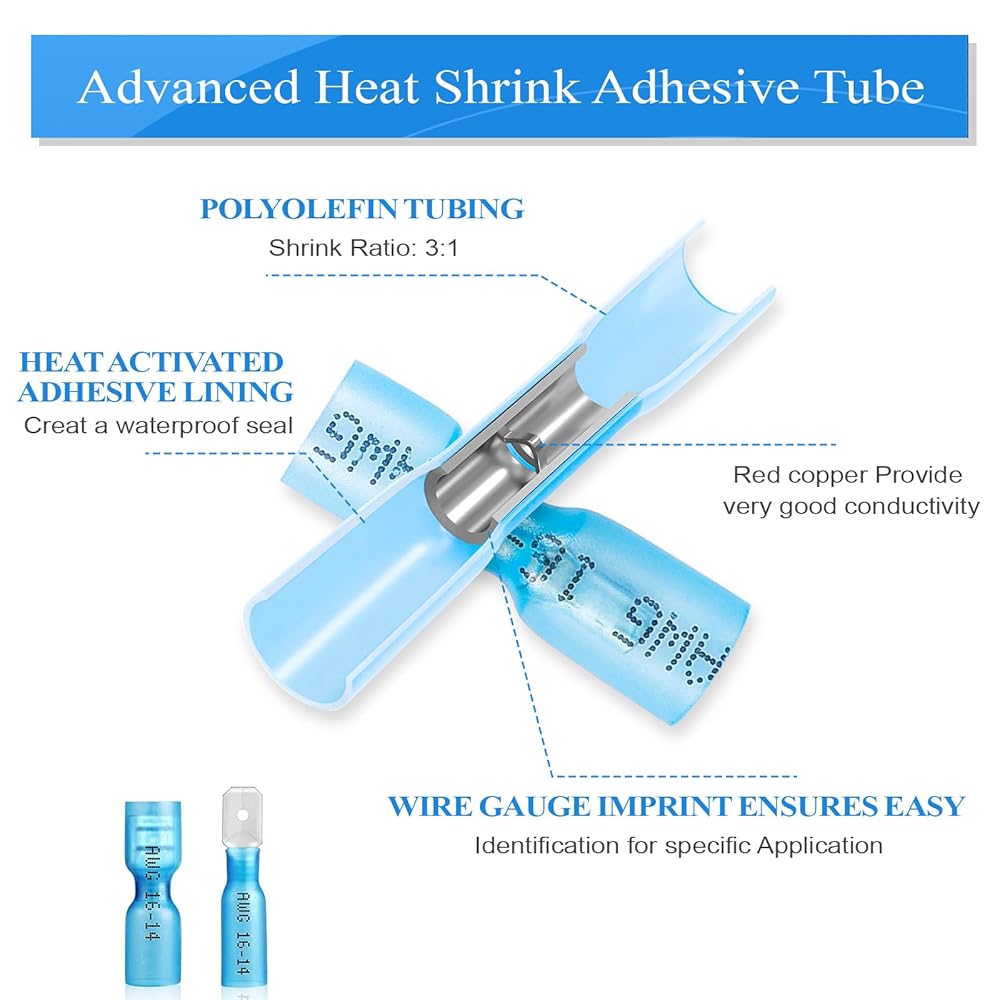

● Dual-walled design tubing: polyolefin tubing on the outside and hot melt adhesive inside.

● Operating temperature: -55 ℃ -125 ℃; Start shrink temperature: 80 ℃; Fully shrink temperature: 130 ℃

● Easy to use and easy to melt, sealed wires well and crimped tight.

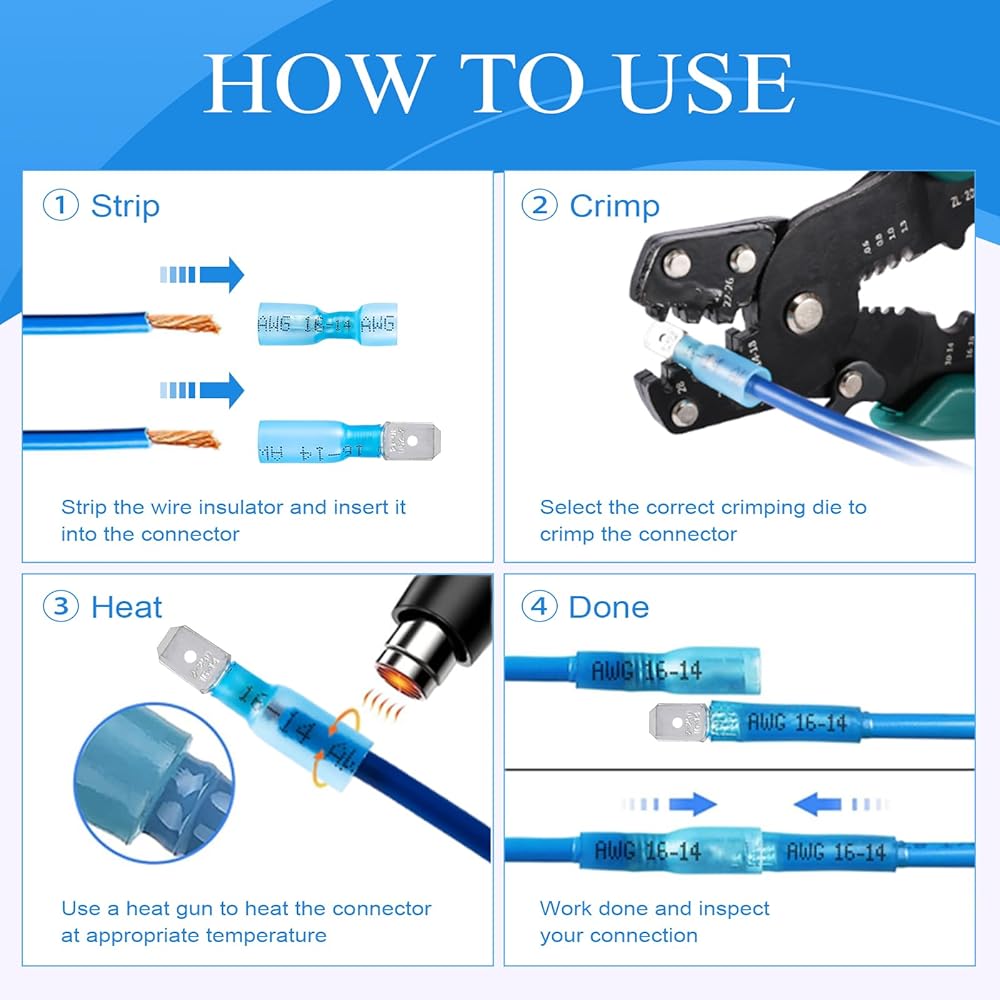

How to use：
1. Prepare the wire and insert it into the splice barrel.
2. Crimp the connector with heat shrink crimping tool.
3. Use a heat gun to heat connectors at appropriate temperatures.
4. Done! Let the connector cool down and finish the connection.

Warm Tips:
❣ Strip wire insulation, crimp terminal barrel with a wire crimper, and apply heat with a heat gun while rotating a connector.
❣ Heat shrink tubing will reduce in size and adhere to the wire. No soldering kit needed. Package Included:

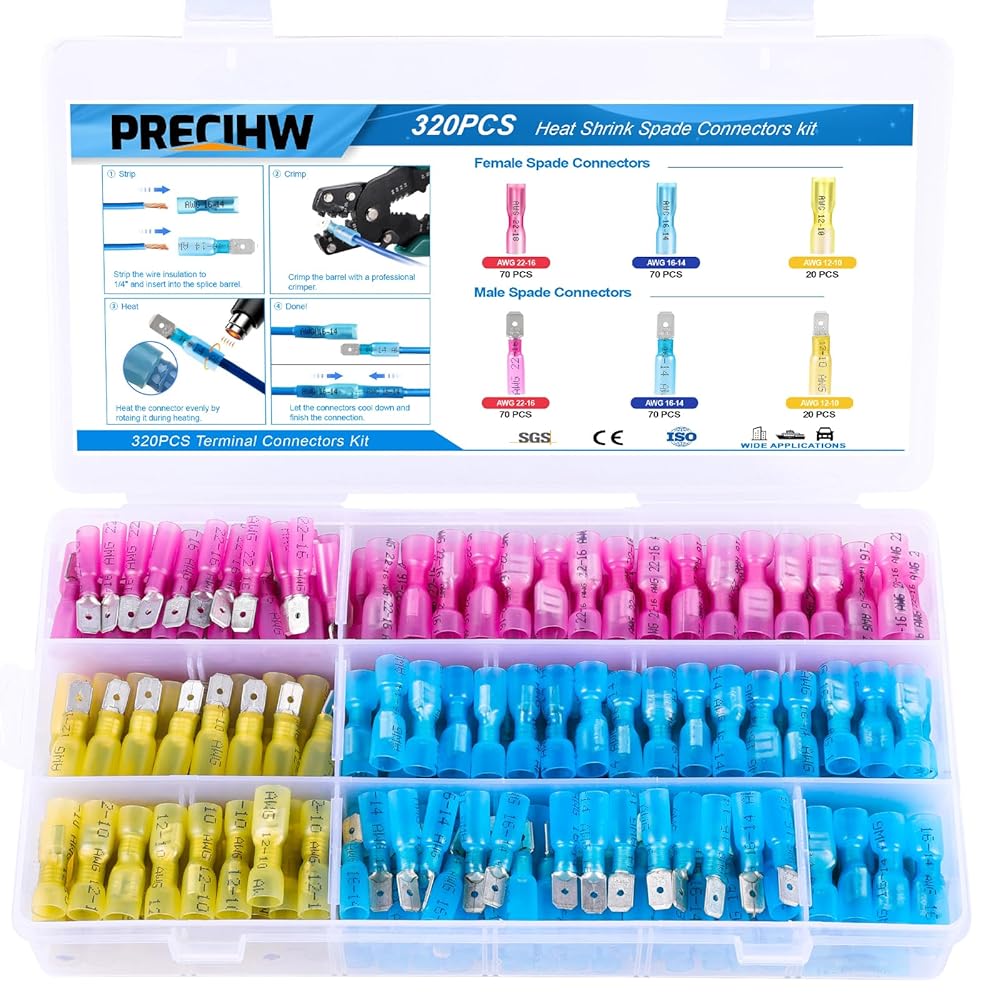

320 Pieces x Heat Shrink SpadeTerminals Kit With Storage Box
