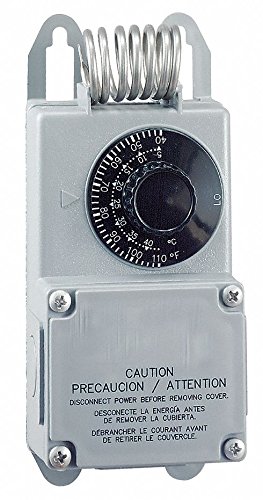

Versatile heating/cooling unit is designed with stainless steel sensing elements that can handle corrosive conditions. Can be easily mounted to a standard 2" x 4" vertical box and include a SPDT switch. Analog display. Also features NEMA 4X enclosure that is suitable for locations that are wet or mildly corrosive, with high humidity or airborne contaminants.

Item: Line Volt Mechanical Tstat
Thermostat Switch Type: SPDT
Thermostat Control Range: 40 Degrees to 110 Degrees F
Thermostat Voltage: 24, 120 to 277VAC
Full Load Amps @ 120VAC: 16A
Full Load Amps @ 240VAC: 12A
Thermostat Programmable: No
Remote Sensing Capability: No
Thermostat Heating/Cooling: Heating/Cooling
Thermostat Item: Line Voltage Mechanical Thermostat
Remote Sensing Bulb Included: No
Switch Action: Open/Close on Rise
Number of Switches: 1
Differential: +/- 3 Degrees F
Height: 7"
Width: 3"
Depth: 2-39/64"
Temp. Sensitivity: +/- 3 Degrees F
Sensor Type: Stainless Steel, Fluid Filled Coil
Sensing Bulb Dia.: 1-1/4"
Color: Gray
Enclosure Type: Rain Tight NEMA 4X
Locked Rotor Amps @ 120V: 80A
Locked Rotor Amps @ 240V: 60A
Contact Rating Resistive @ 120V: 25A
Resistive Amps @ 208VAC: 25A
Contact Rating Resistive @ 240V: 25A
Contact Rating Resistive @ 277V: 20A
Pilot Duty Contacts (VA): 125VA
Mounting Type: Surface
Mounting Location: Indoor/Outdoor
Standards: UL, CSA, NEC 547
