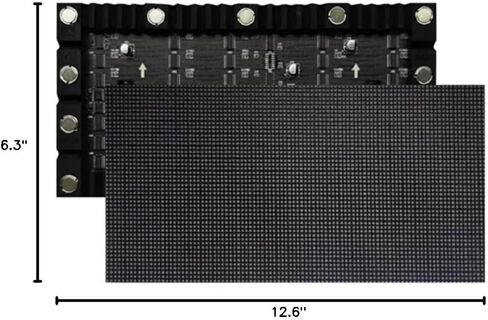

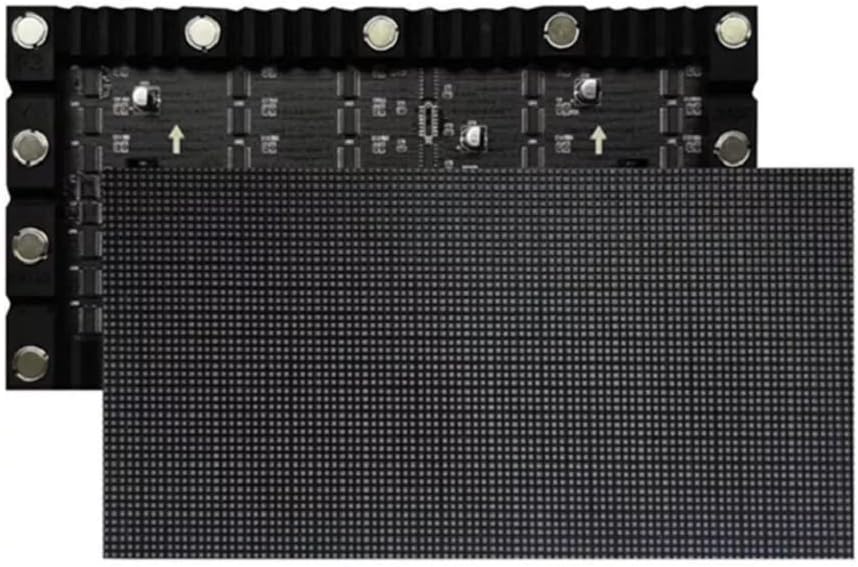

Specification product standard: P5 Flexible Module 320*160mm
Pixel configuration: SMD2121, 3 in 1
LEDs configuration: Red:wave length: 625~630nm;700-800mcd
Green:wave length: 525~530nm;1500-1800mcd
Blue:wave length: 470~475nm;400-500mcd
Pixel pitch (mm): 5
Pixel density(dots/㎡): 40000
Calibrated brightness(cd/sqm,nit): 800 nits(adjustable)
Calibrated brightness proportion ratio: R: G: B = 30%:60%:10%(adjustable)
Color temperature: 3,500° — 9,500° K(adjustable)
Contrast ratio: 4,000:1(adjustable) Brightness adjustment(dimming): 100 grade auto/manual-adjustment
View angle(degree)(50% brightness): Horizontal: 120° (60° off center); Vertical: 70° (+25°/-45° off center)
Readability viewing angle: Horizontal: 150° (75° off center); Vertical: 90° (+35°/-55° off center)
Refresh rate(Hz): >600 Hz(adjustable)
Frame frequency(Hz): >60 Hz
Interface port: HUB75B
Input signal: HUB75B
Protection grade IP31 front side/IP31 backside
LED Drive Constant-current drive Lifetime (hours)(50% brightness) 100,000 hours Signal transmission direction Horizontal Operating
temperature (Celsius degree) -10～+40'
Storage temperature (Celsius degree) -15～+50' Operation humidity (RH) 10-75% Servicing Front and back serving optional Control mode Synchronous & asynchronous available Communication options Wire Ethernet, Fiber Ethernet,RF wireless,GPRS
Maximum power consumption (W/SQM) 880
Average power consumption (W/SQM) 352
Screen operation mode (scan/static) 1 / 16S
