5/8"-18 Rod End Bushings Kit with Polyurethane Bushings,LH & RH 5/8" Thread x 1/2" I.D Bore,Heim Joints Rod End Bushing for Suspension Links, Lift Kits, Sway Bars & Custom Fabrication-2 Pair in Saudi Arabia

5/8"-18 Rod End Bushings Kit with Polyurethane Bushings,LH & RH 5/8" Thread x 1/2" I.D Bore,Heim Joints Rod End Bushing for Suspension Links, Lift Kits, Sway Bars & Custom Fabrication-2 Pair

SAR 277
Size5/8 inch-2 Pair
– 1 +

Special Features

  • Industrial-Strength Chromoly Construction：Durable & Reliable: Manufactured,forged from heat-treated 4130 Chromoly Steel, these rod ends are built to withstand signifcant shock loads, torsional stress, and the harsh conditions of off-road and track use.Superior to Cast: The forging process aligns the grain structure of the metal, resulting in a part that is stronger and more impact-resistant than a cast equivalent.
  • Precision Male Threads for Secure Engagement：Product Bore: 1/2" ;Width: 1.50" ;Ball Width: 2.00" ;Thread Size: 5/8"-18 ;Thread Length: 2.00" ;Center Line Length: 2.95".Lock Nut: Thread: 5/8": Rolled threads ensure a perfect fit with mating components, reducing the risk of cross-threading and ensuring a secure connection.
  • Reinforced Polyurethane Bushings：Includes durable, yellow polyurethane bushings that press into the rod end housing. These bushings protect the joint from contaminants like dirt and grit, significantly extending service life. They also help dampen vibrations and reduce wear, offering an excellent balance between a rigid connection and serviceability.
  • Low-Friction, High-Angle Movement：Smooth Articulation: The hardened steel ball and race allow for smooth, low-friction movement, accommodating misalignment and ensuring your suspension operates without binding.Ideal for 4-Link Setups: Provides the necessary range of motion for parallel 4-link suspensions, triangulated setups, and other complex linkages.
  • Versatile Application Across Multiple Projects：Perfect for a wide range of automotive and fabrication uses:Suspension: 4-Link Systems, Triangulated Links, Panhard/Track Bars, Traction Bars, Sway Bar End Links.Lift Kits: Custom lift kit fabrication and upgrades.Off-Road & Racing: Rock crawlers, prerunners, buggies, and race car suspension components.Industrial: Throttle linkages, actuator ends, and custom machinery.

Description

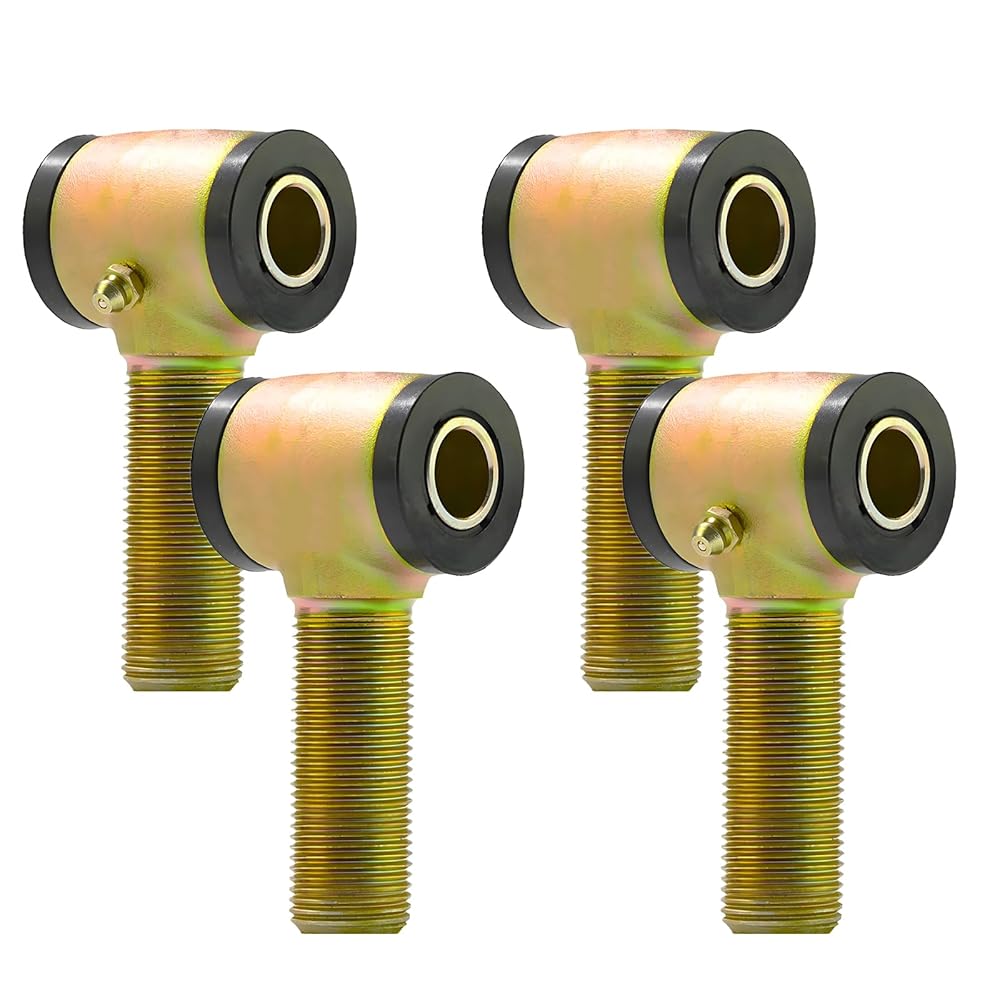

YIFUOK 5/8"-18 Thread Rod End Bushings Kit LH & RH 5/8" Thread x 1/2" I.D Bore,Heim Joints Rod End Bushing

Tackle your suspension upgrade or custom fabrication project with confidence. The YIFUOK Universal 4-Bar Rod End Kit provides everything you need to create robust, adjustable links in one convenient package. Featuring a matched pair of left-hand and right-hand threaded rod ends, this kit is engineered for precise length adjustment and exceptional durability.

Ideal for 4-link suspensions, panhard bars, traction bars, and sway bar links, these forged steel Heim joints deliver the performance and reliability demanded by off-road enthusiasts, racers, and fabricators.

Rod End：

Thread Size:5/8"-18

Ball Bore: 1/2"

Centerline Length: 2.95"

Thread Length: 2.00"

Load rating capacity: 17,955 lbs

⚠️ Professional Installation Tip: Always use high-strength thread-locker or properly torque jam nuts on the rod ends to prevent them from loosening due to vibration. Regularly inspect for wear and play, especially after heavy use.
