[Rail to Rail Output] Featuring a robust rail to rail output this module can directly drive both cmos and ttl logic circuits offering seamless integration and effortless operation for your projects without the need for additional components.
[Professional Design] With its professional design and rational structure this module is not only easy to replace and install but also built to last providing durability and convenience for both hobbyists and professionals alike.
[Versatile Signal Shaping] This module excels in shaping various voltage signal cycles including frequency phase difference and time domain measurements making it an ideal front end adjustment module for a wide range of electronic testing and measurement scenarios.
[Stable Sma Connection] Designed with a sma female interface this module ensures a secure and stable connection with standard workmanship guaranteeing reliable performance even in demanding environments.

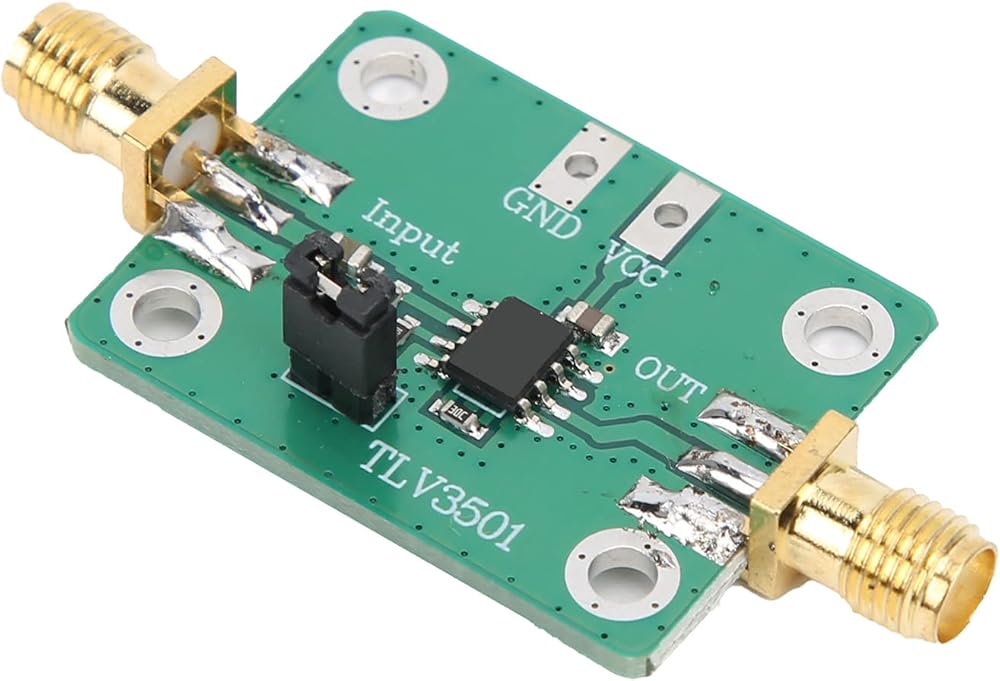

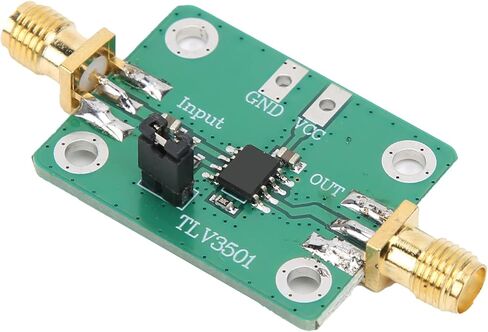

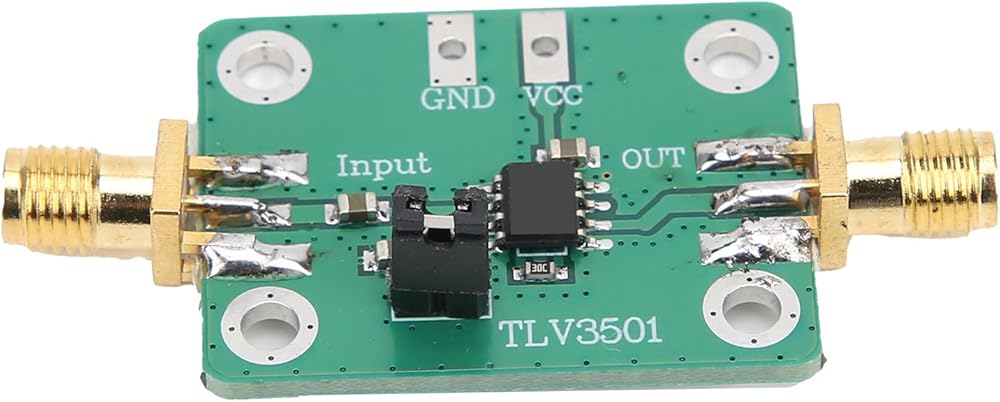

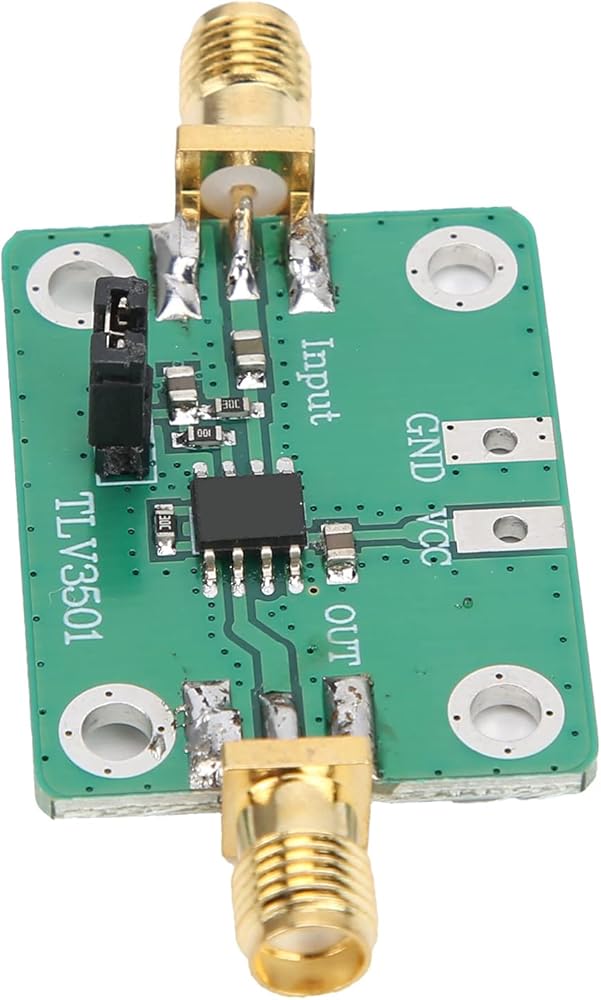

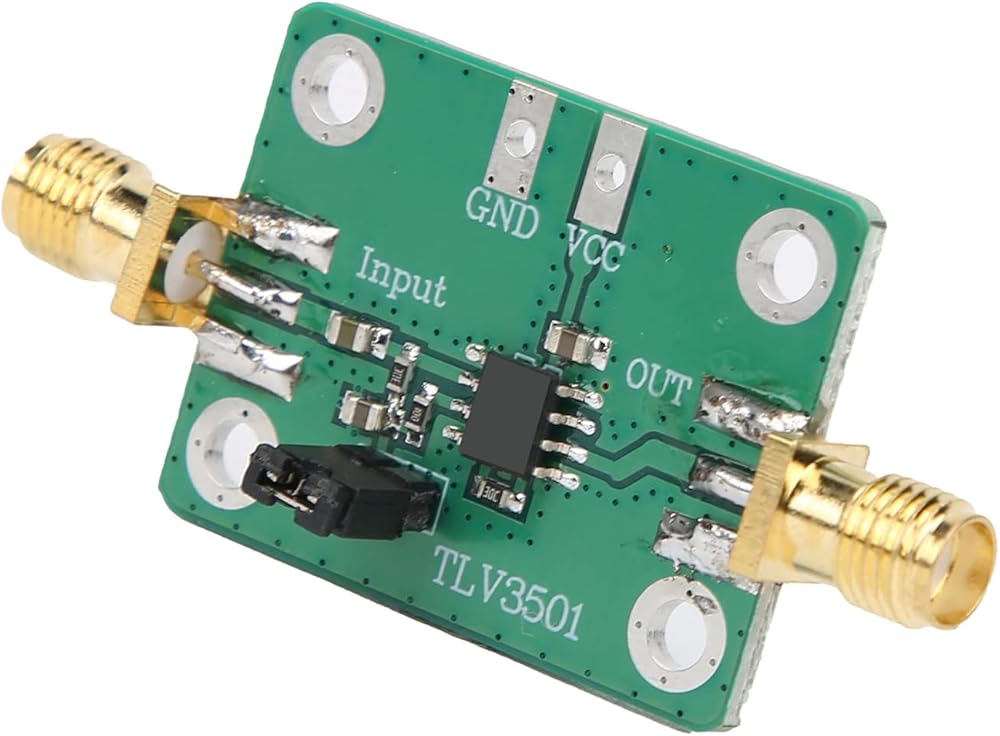

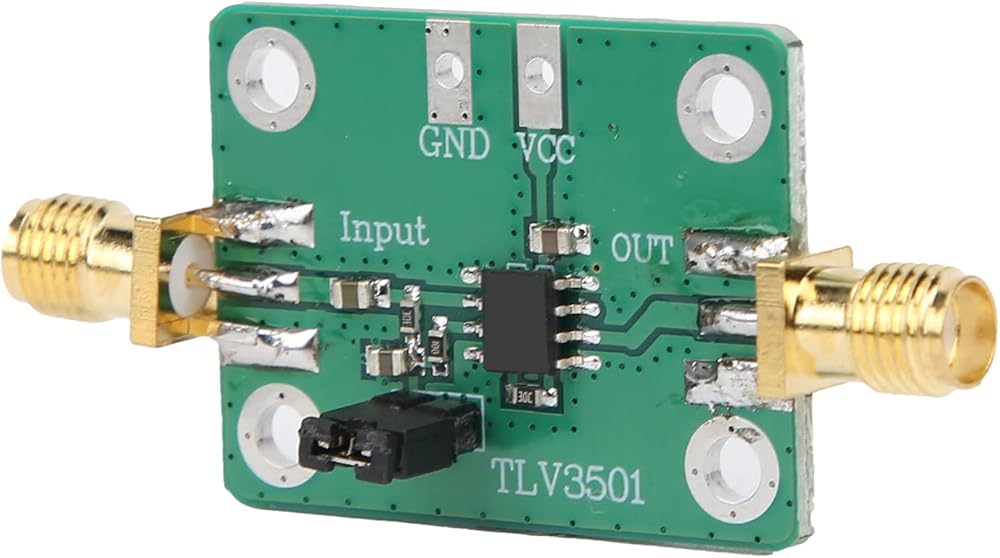

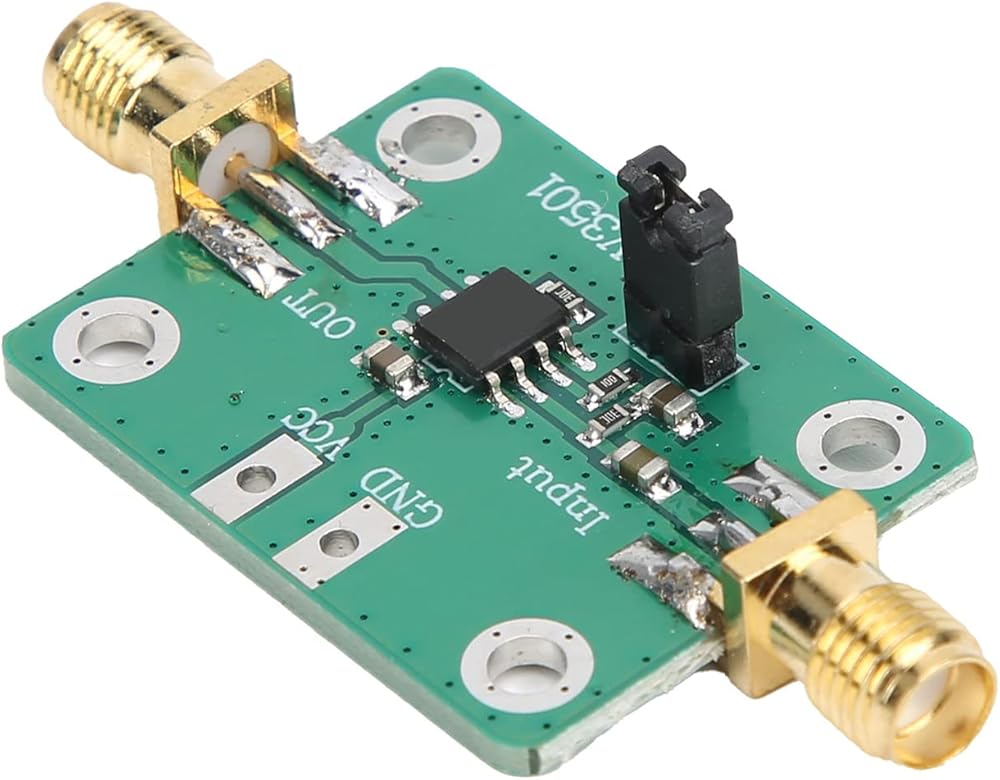

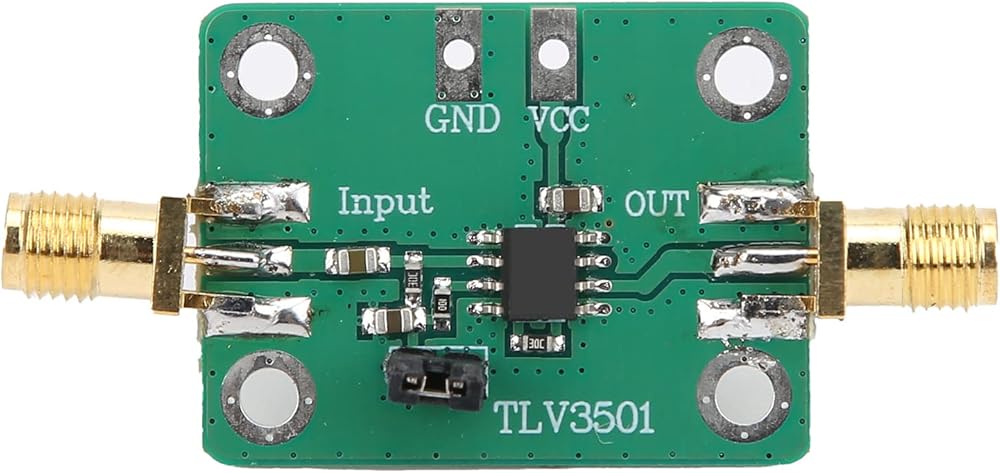

[High Speed Comparator] The ​ is a cutting ​ single channel high speed push pull output comparator with an ultra low delay of just 4.5ns ensuring rapid signal processing and precise waveform shaping for your ​ applications.

Spec:

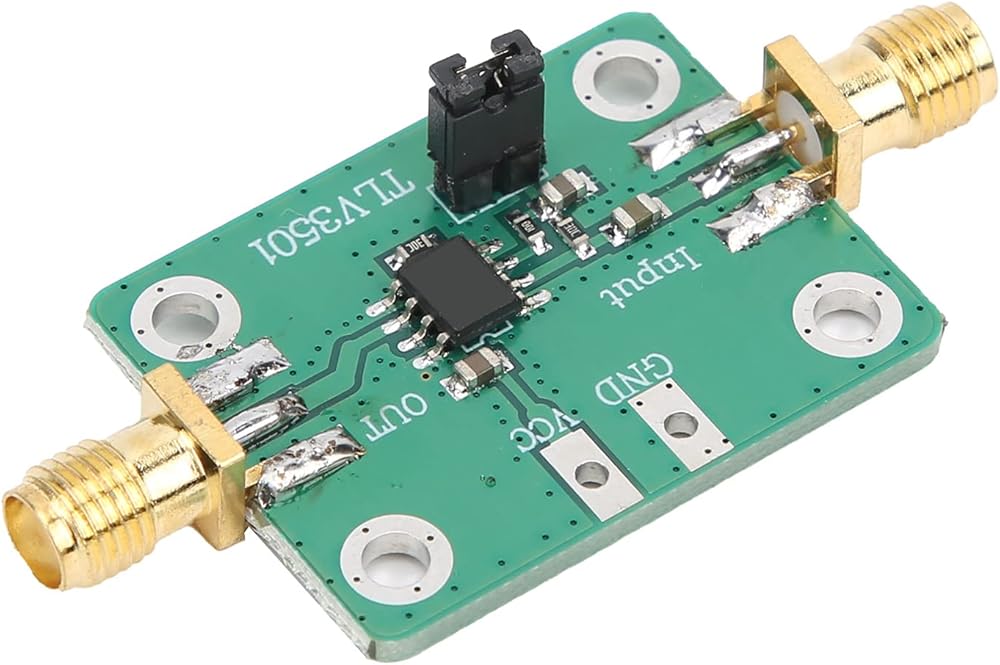

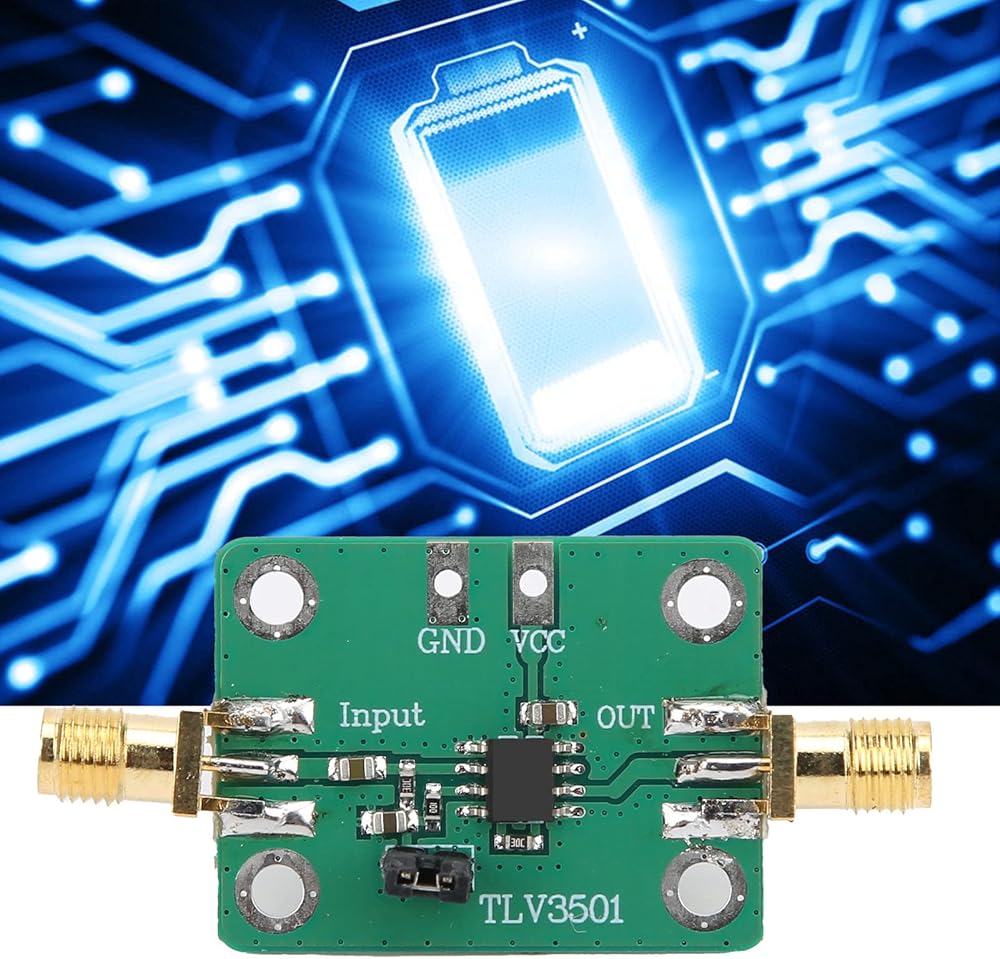

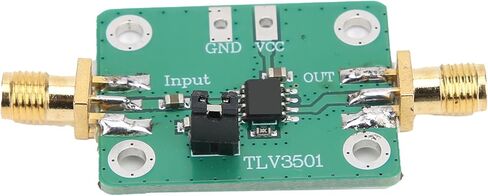

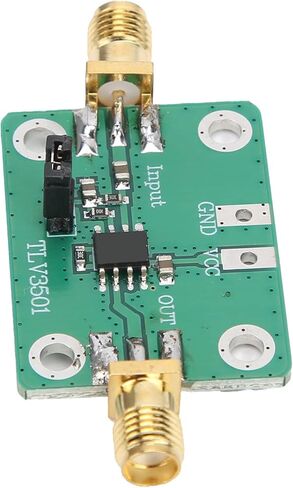

Item Type: Shaping Module
Power Supply Voltage: 2.7-5VDC
Input Voltage: 8-1000mV (effective value)
Output Level: Rail-to-rail output, can directly drive TTL / CMOS level
Input Frequency: 1Hz-120MHz, minimum 1Hz
Interface Form: SMA female(external screw hole)

Package List:
1 x Shaping Module
