1. [MULTIFUNCTIONAL MONITORING] Monitor wind speed, direction, temperature, humidity, and air pressure simultaneously
2. [WIDE ENVIRONMENTAL ADAPTABILITY] Reliable in various conditions with high and low-temperature resistance, waterproofing, and salt spray resistance

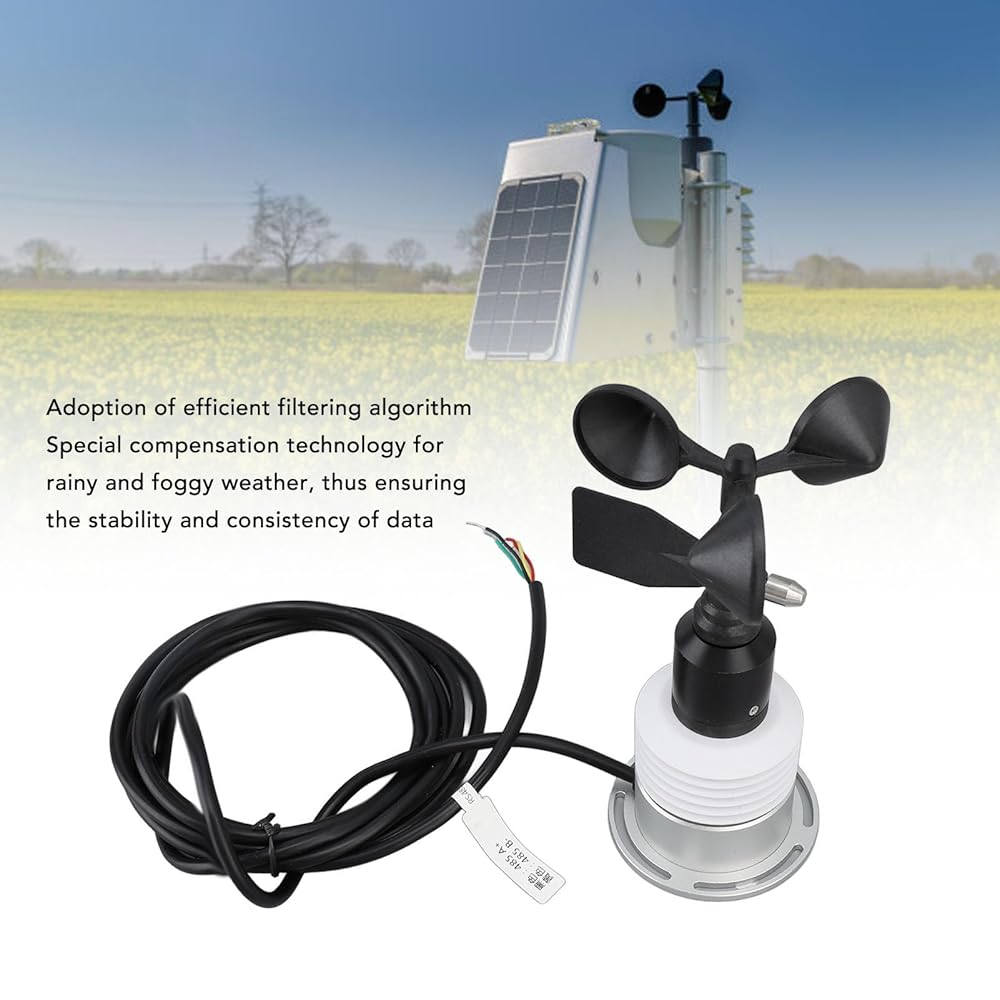

3. [HIGH PERFORMANCE ALGORITHM] Ensures data stability with efficient filtering and compensation for rainy and foggy weather
4. [PORTABLE DESIGN] Lightweight and compact for easy installation and outdoor use without sacrificing functionality

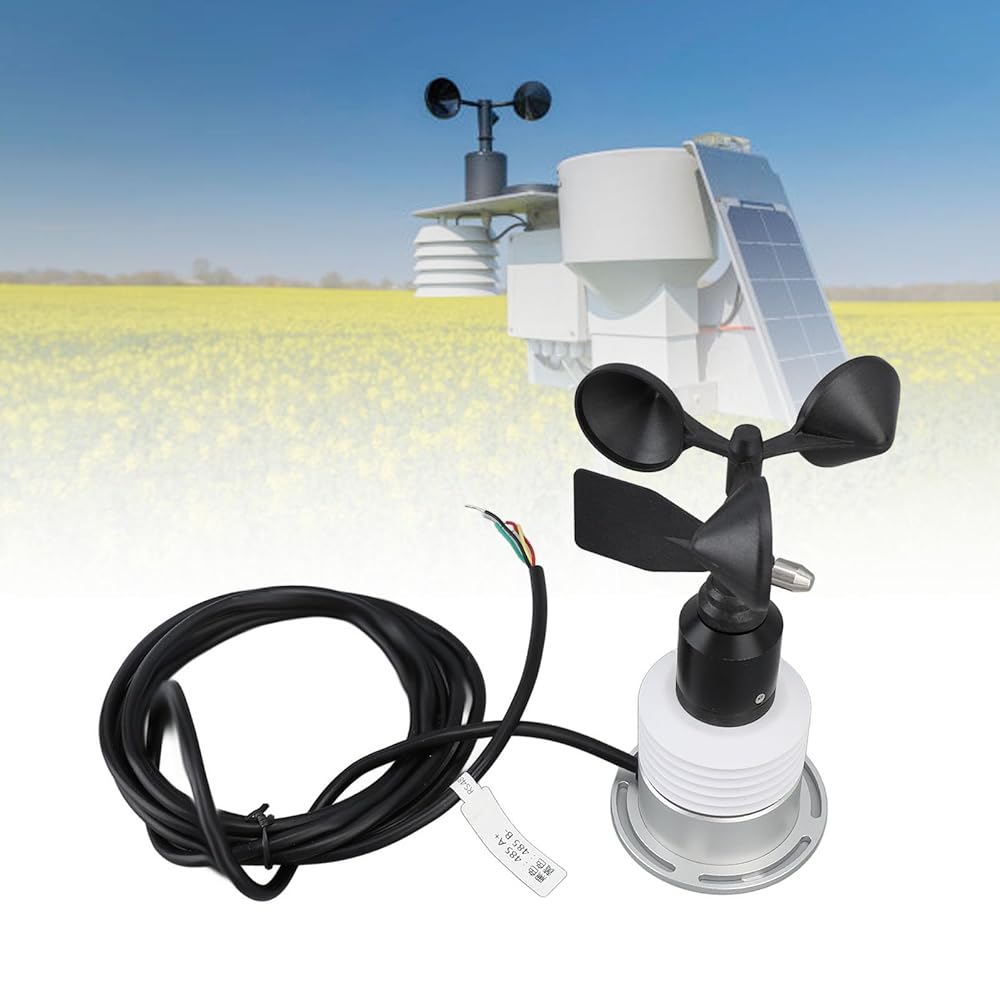

5. [VERSATILE APPLICATIONS] Ideal for , forestry, meteorology, and more, providing crucial wind information for tailored response measures

Spec:

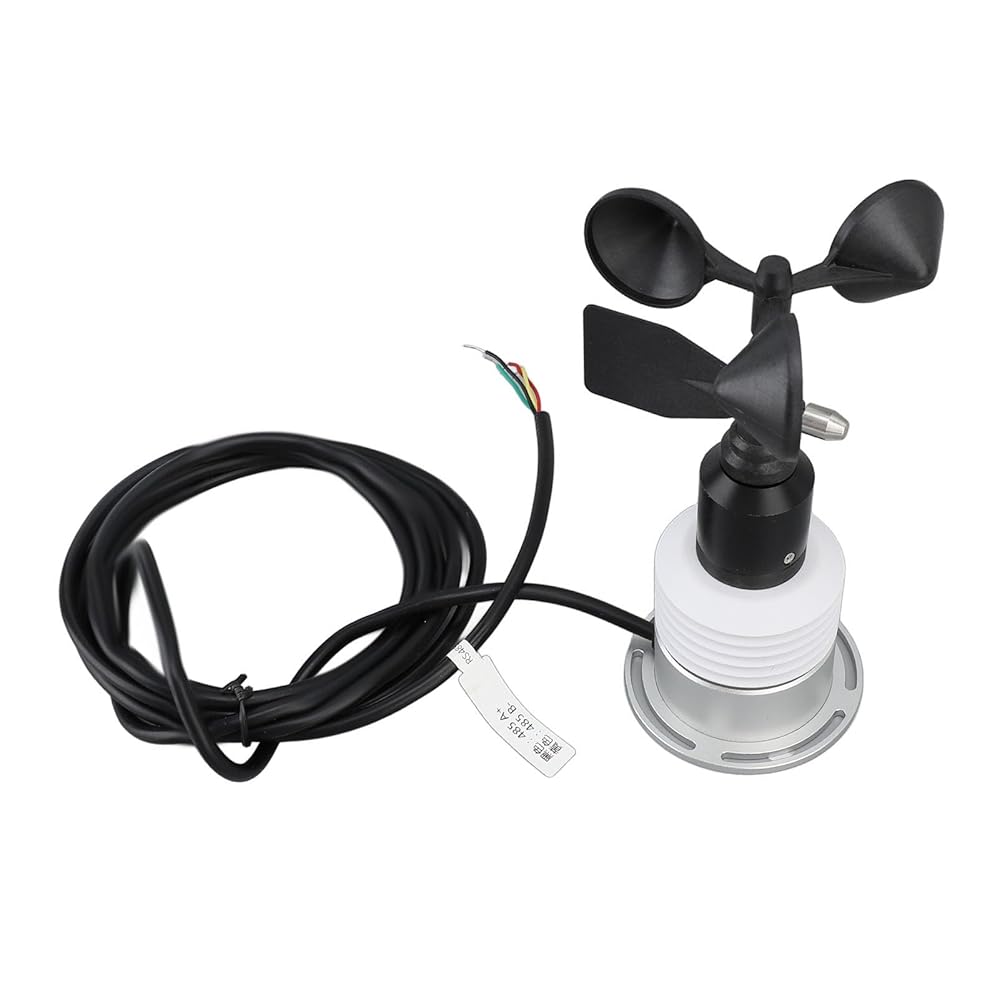

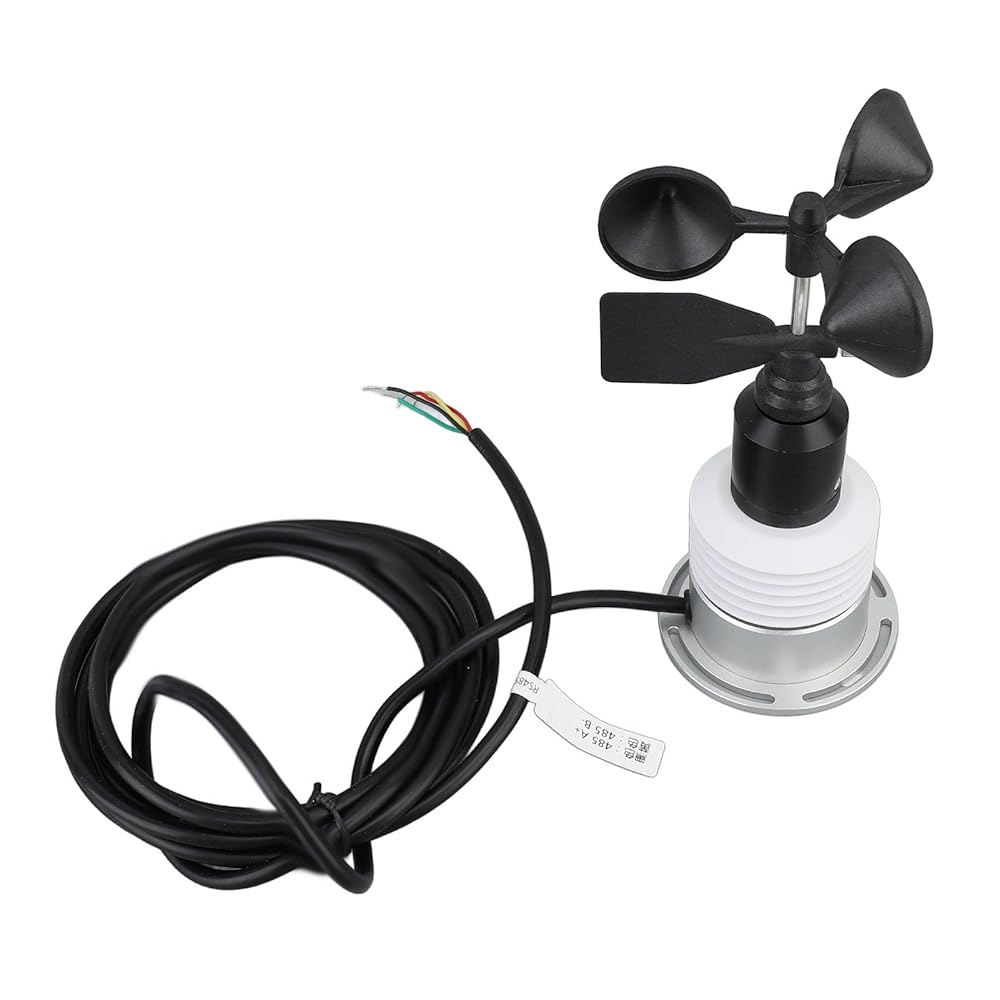

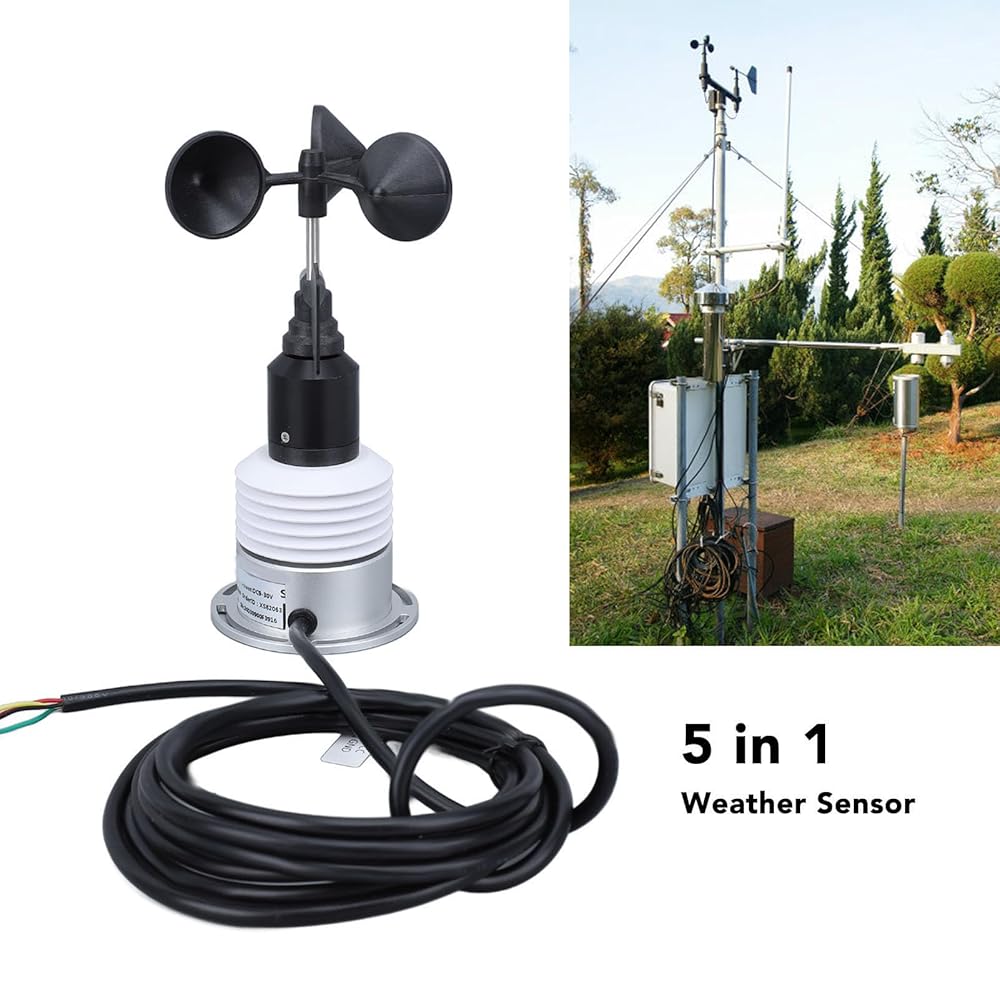

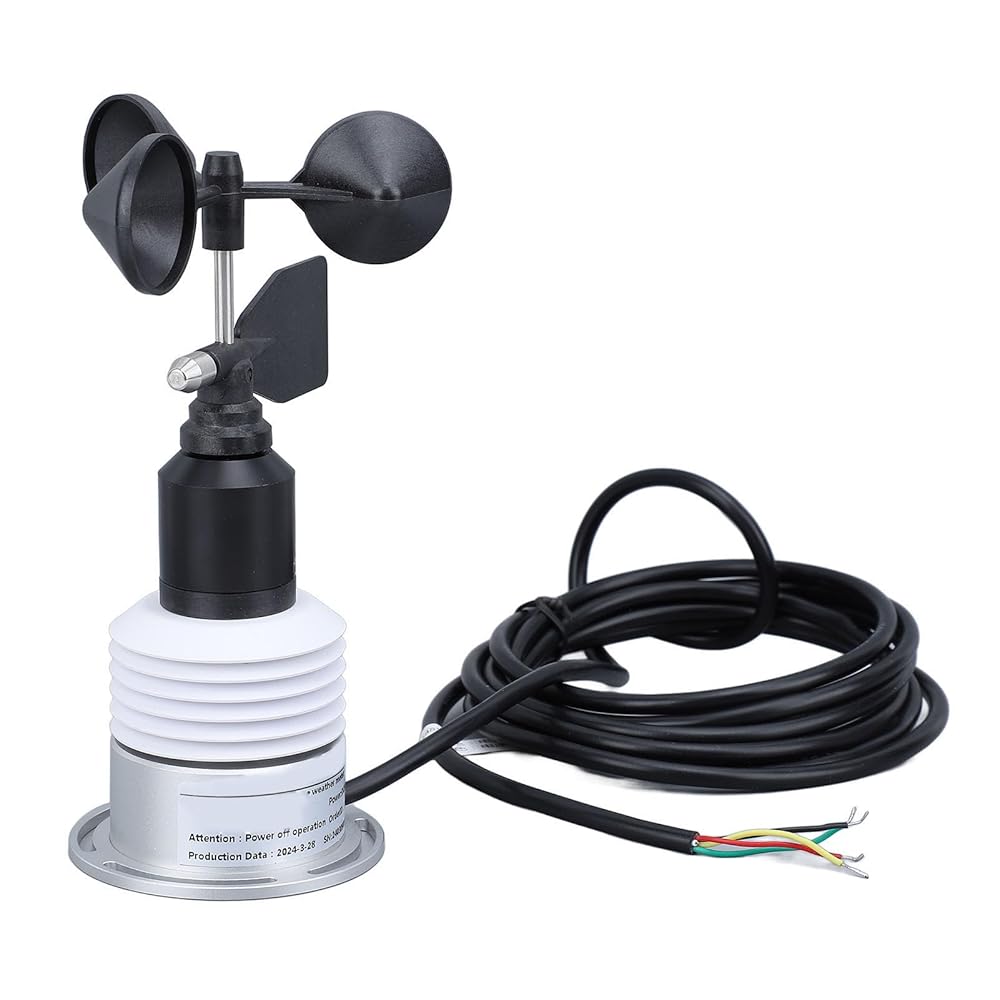

Item Type: 5 in 1 Weather Sensor
Material: ABS, aluminum alloy
Weight: Approx. 457.00g/16.12oz

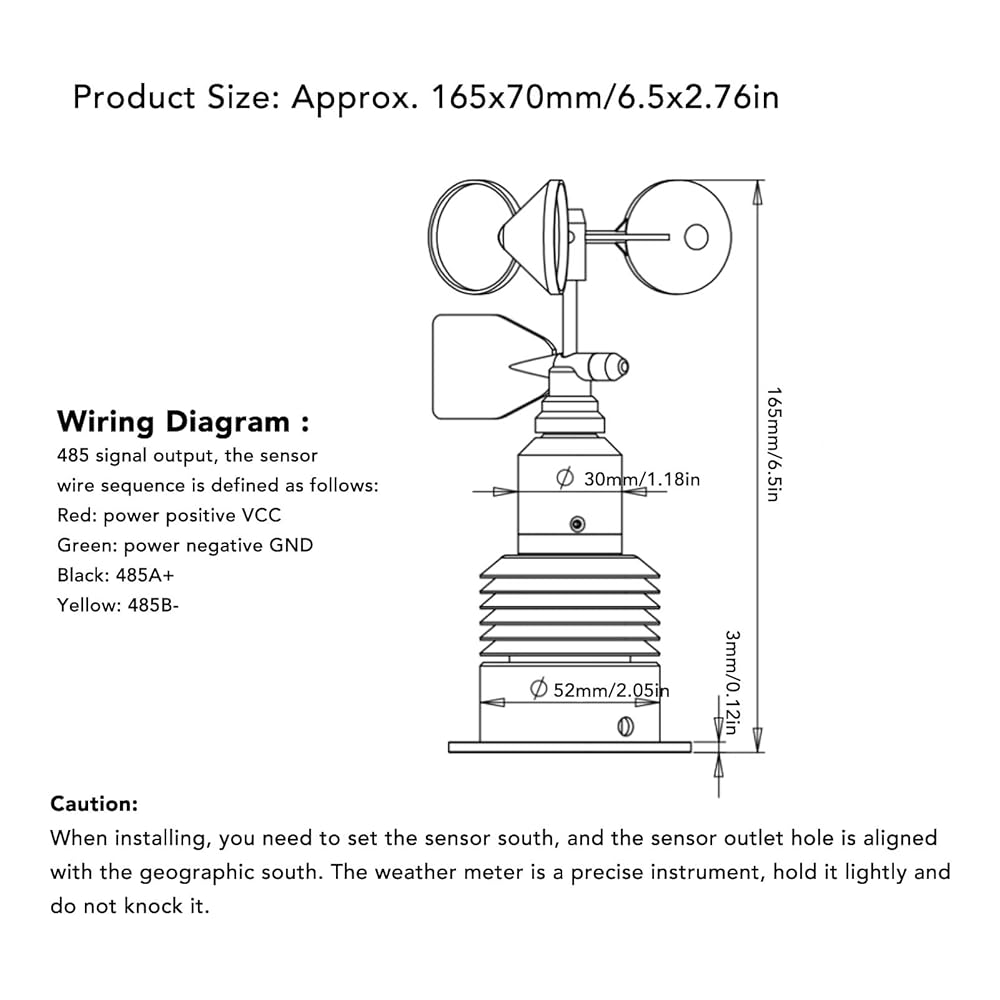

Product Size: Approx. 165x70mm/6.5x2.76in
Power Supply Voltage: DC 9 to 30V
Communicating Type: RS485 (RTU)
Cable Length: Approx. 2m/78.7in
Working Environment: 0 to 100%RH, -40°C to +60°C
Protecting Level: IP64
Built in Sensors: Wind speed, wind direction, temperature, humidity, air pressure
Application: Wind direction measurement in greenhouse, environmental conservation, ships, wharf, breeding, advertising gates, meteorology, ocean, environment, airports, ports, laboratories, industry and , and transportation environments

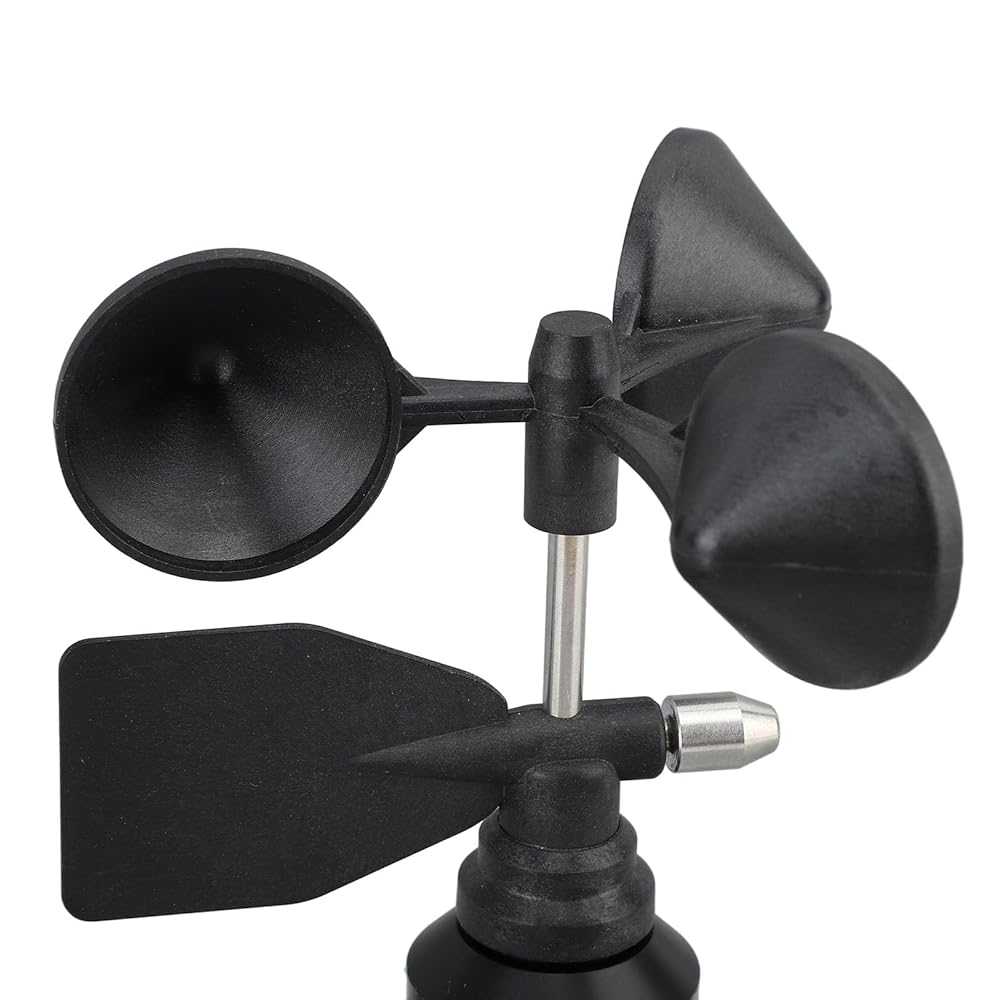

Wind Speed: 0 to 45m/s range, start wind speed ≤0.8m/s, ±(0.5+0.02V)m/s accuracy, 0.1m/s resolution, 40mW power consumption
Wind Direction: 0 to 359° range, ±3° accuracy, 1° resolution, 40mW power consumption
Atmospheric Temperature: -40 to 80°C range, ±0.3°C accuracy, 0.1°C resolution, 1mW power consumption
Atmospheric Humidity: 0 to 100%RH range, ±5%RH accuracy, 0.1%RH resolution, 1mW power consumption
Atmospheric Pressure: 300 to 1100hPa range, ±0.5 hPa (25°C) accuracy, 0.1 hPa resolution, 0.1mW power consumption
Sensor Total Power Consumption: Wiring Diagram :

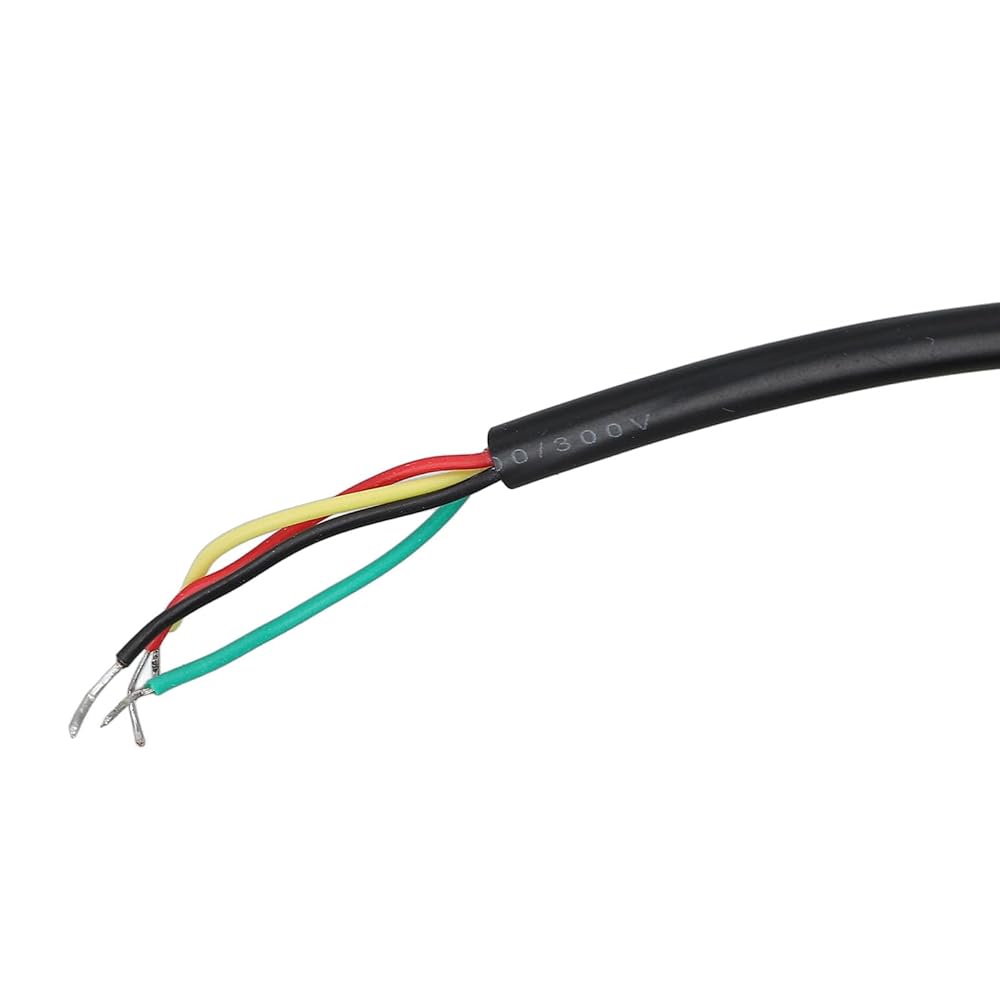

485 signal output, the sensor wire sequence is defined as follows:
Red: power positive VCC
Green: power negative GND
Black: 485A+
Yellow: 485B-
Note: Make sure the wiring is correct before sending power.
Communicating Protocol:
All commands in the manual of weather meter are RTU protocol format commands. All have been configured at the factory, if you need to modify the protocol, refer to the relevant commands or ask for help. Baud rate 9600, 8 data bits, 1 stop bit, no check. 2 frames of data communicating interval of at least 500ms. The default address is 1, and the RTU communicating format is as follows:
Number of address bytes: 1 byte
Number of command bytes: 1 byte
Number of register address bytes: 2 bytes
Number of data bytes: N bytes
Number of CRC check bytes: 2 bytes
I.Register address:
The weather meter can integrate five modes, namely wind speed, wind direction, air temperature, air humidity, and atmospheric pressure. Each sensor has its own register address.
II.Configuration address and baud rate:
The commands to write the device address are the same for the weather meter.
III.CRC verification steps:
1. Preset the 16 bit register to hex , call this register the CRC register
2. Isolate the first 8-bit data with the lower bit of the CRC register, and put the result in the CRC register
3. Check the lowest bit by shifting the contents of the register one bit to the right (toward the lower bit) and filling the highest bit with a 0
4. If the lowest bit is 0: repeat step 3 (shift again) if the lowest bit is 1: the CRC register is iso orthogonal to the polynomial A001 (1010 0000 0000 0001)
5. Repeat steps 3 and 4 until it is shifted right 8 times so that the entire 8 bit data is all processed
6. Repeating steps 2 through 5 for the other 8 bit data
7. The final CRC register obtained is the CRC code (the CRC code obtained is low before high).
Troubleshooting:
The meter displays an incorrect value when RS485 is output. The meter may not be able to acquire data correctly due to wiring problems or communicating serial port failure. Please check whether the wiring is correct and firm, whether the serial port is occupied, and whether the serial port setting is correct.

How to Use:
Pairing with appropriate communicating type RS485 (RTU) for use

Package List:

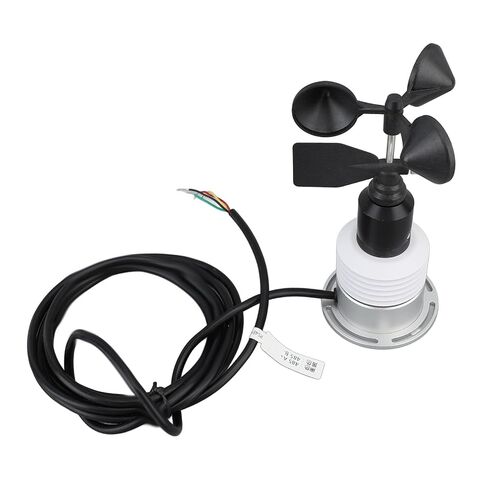

1 x 5 in 1 Weather Sensor with Cable

Notice:
1. Please check if the packaging is intact and verify if the product model matches the selection
2. Do not wire with power, only power on after checking the wiring is correct
3. The sensor is a precise device, users should not disassemble, contact the sensor surface with cutting objects or corrosive liquids when using, to avoid damaging the product
4. Ensure that the installation environment does not interfere with the sensor by other running devices, which may not fully with universal standards, such as radioor transmitters, ship engines, engines,
