TLV3501 High Speed Comparator Module Precision Signal Shaping Circuit for Frequency Measurement and Waveform Conversion in Electronics Engineering in Saudi Arabia TLV3501 High Speed Comparator Module Precision Signal Shaping Circuit for Frequency Measurement and Waveform Conversion in Electronics Engineering in Saudi Arabia TLV3501 High Speed Comparator Module Precision Signal Shaping Circuit for Frequency Measurement and Waveform Conversion in Electronics Engineering in Saudi Arabia TLV3501 High Speed Comparator Module Precision Signal Shaping Circuit for Frequency Measurement and Waveform Conversion in Electronics Engineering in Saudi Arabia TLV3501 High Speed Comparator Module Precision Signal Shaping Circuit for Frequency Measurement and Waveform Conversion in Electronics Engineering in Saudi Arabia TLV3501 High Speed Comparator Module Precision Signal Shaping Circuit for Frequency Measurement and Waveform Conversion in Electronics Engineering in Saudi Arabia TLV3501 High Speed Comparator Module Precision Signal Shaping Circuit for Frequency Measurement and Waveform Conversion in Electronics Engineering in Saudi Arabia TLV3501 High Speed Comparator Module Precision Signal Shaping Circuit for Frequency Measurement and Waveform Conversion in Electronics Engineering in Saudi Arabia TLV3501 High Speed Comparator Module Precision Signal Shaping Circuit for Frequency Measurement and Waveform Conversion in Electronics Engineering in Saudi Arabia

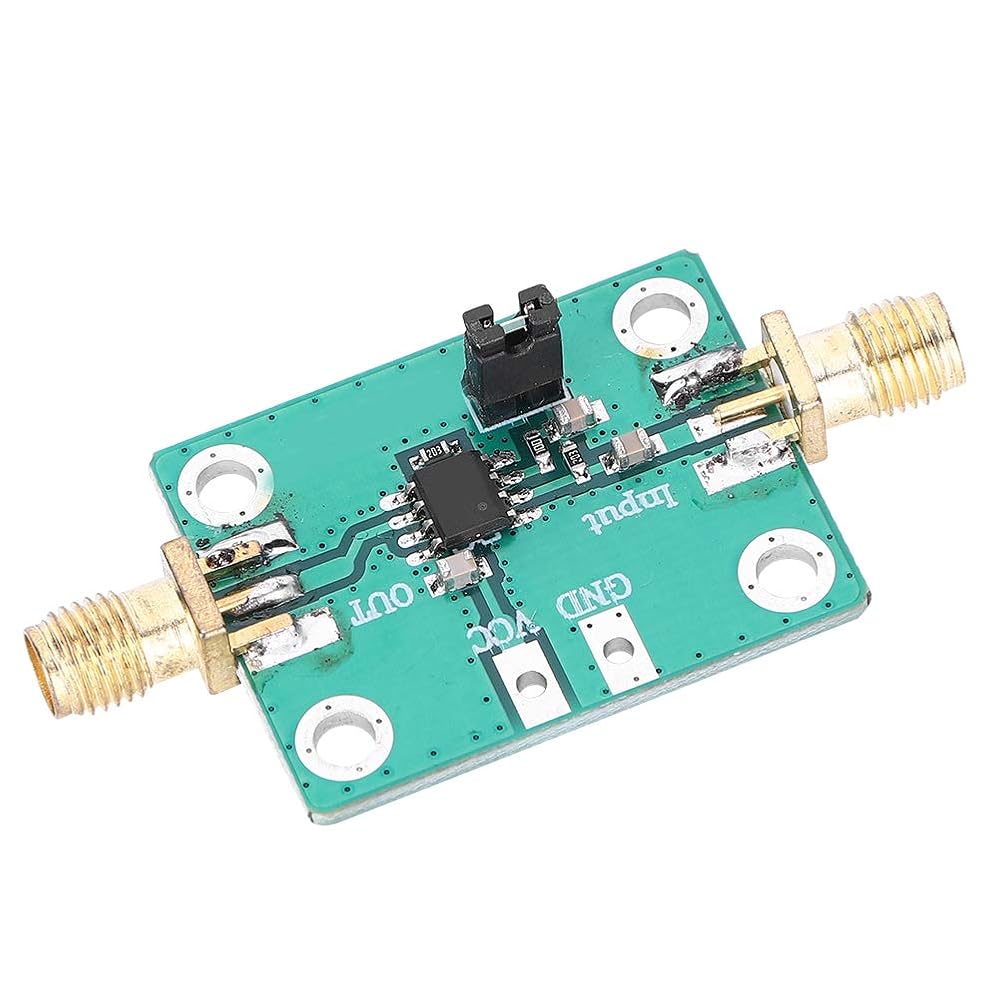

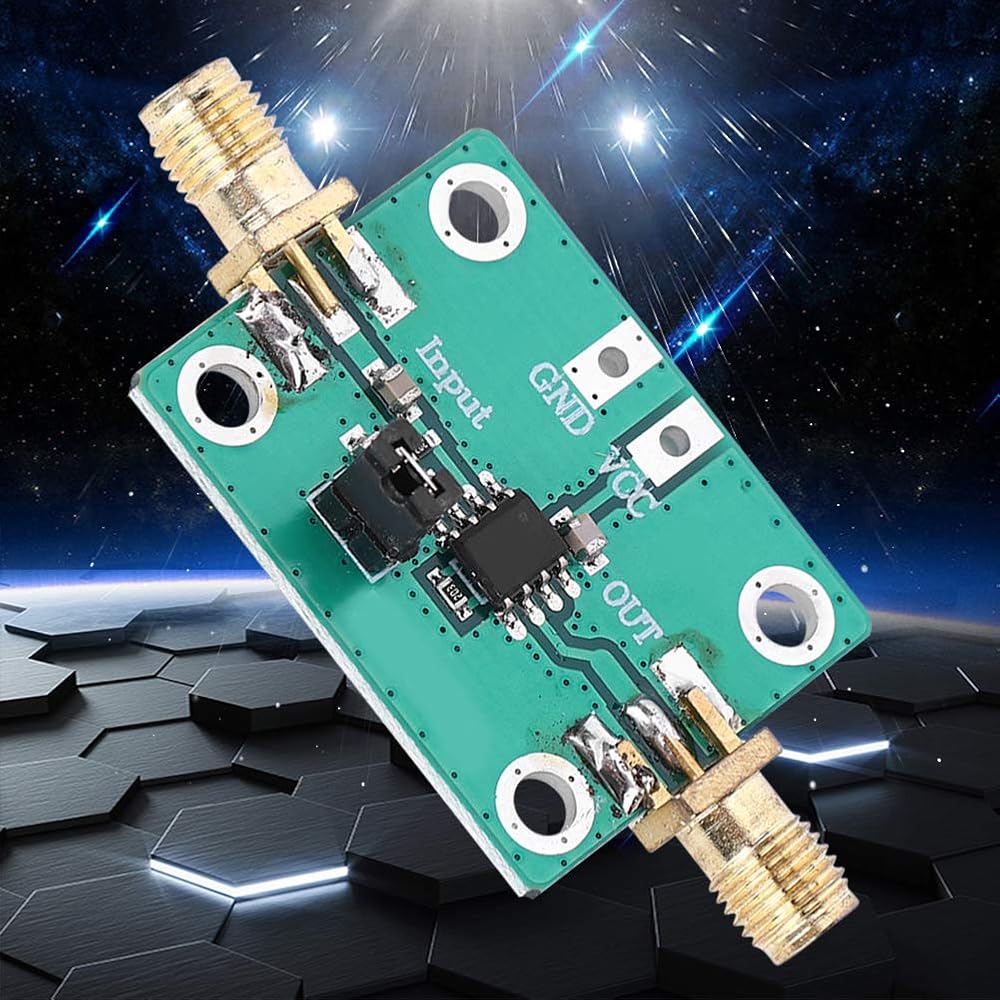

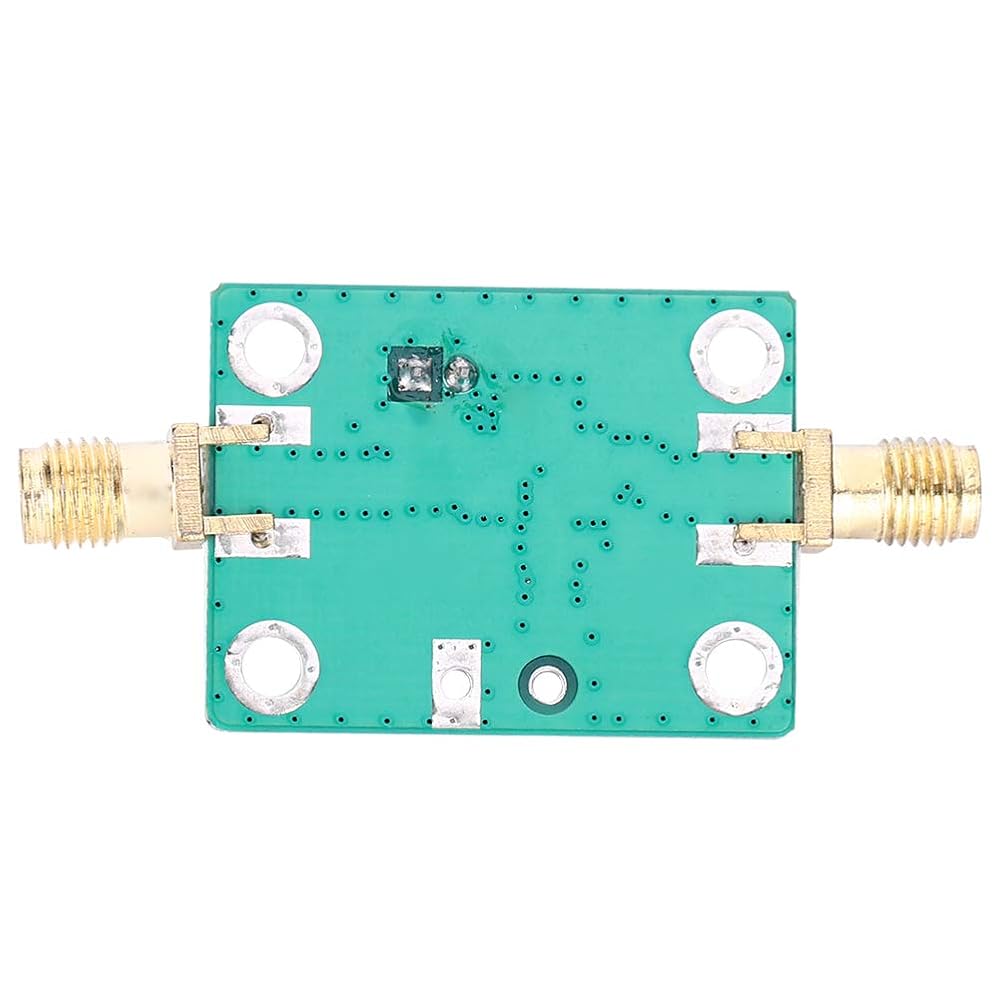

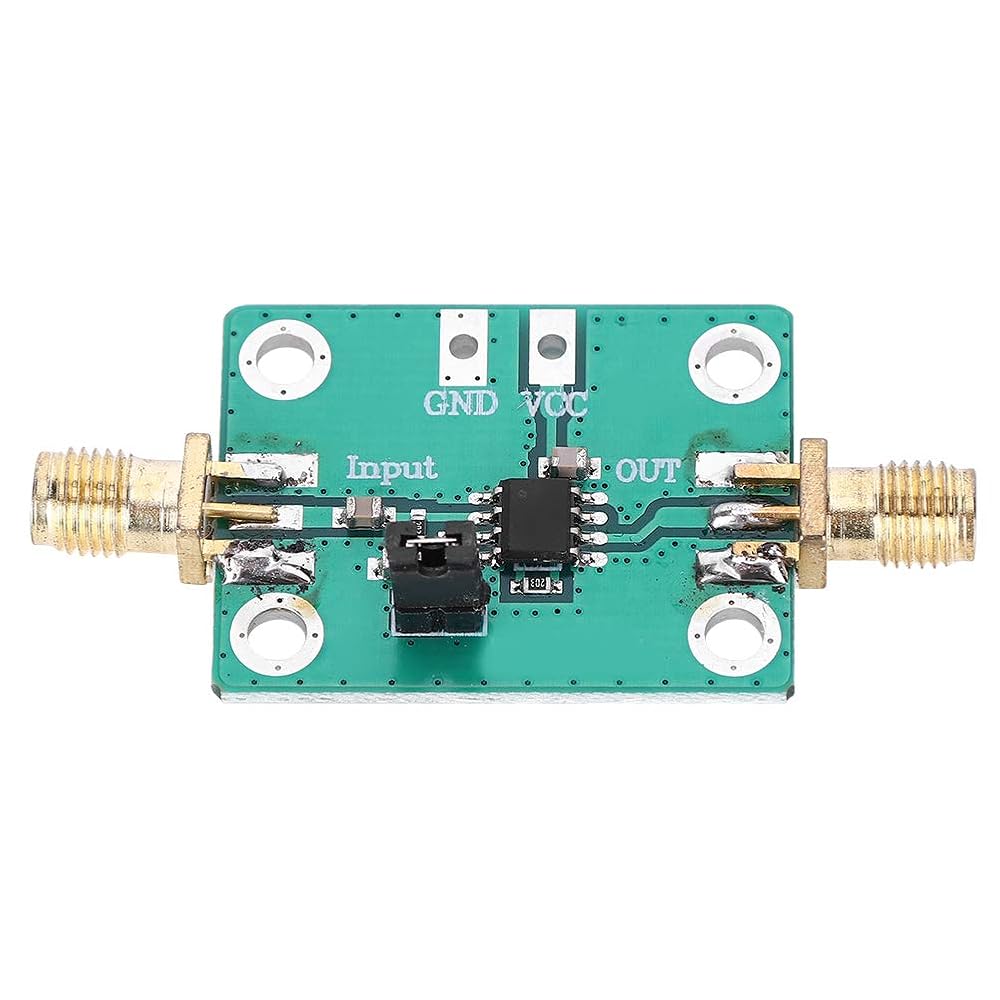

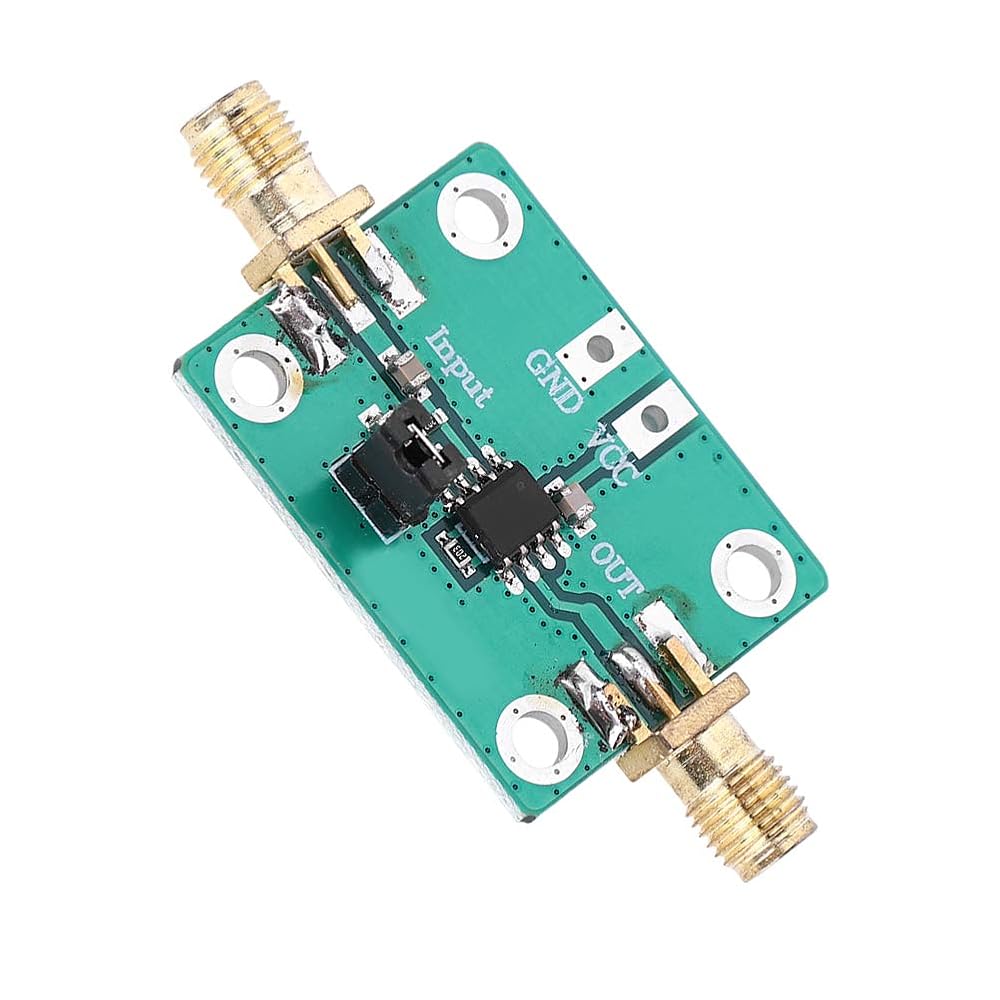

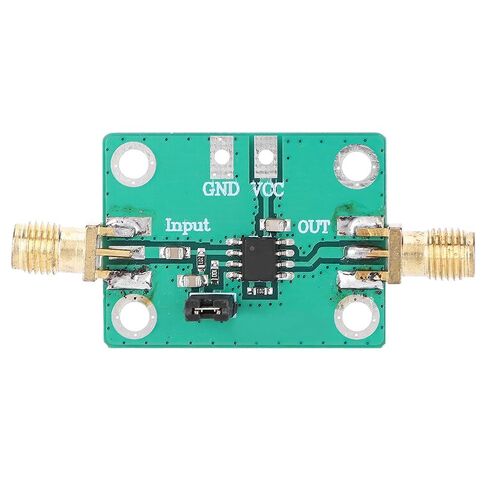

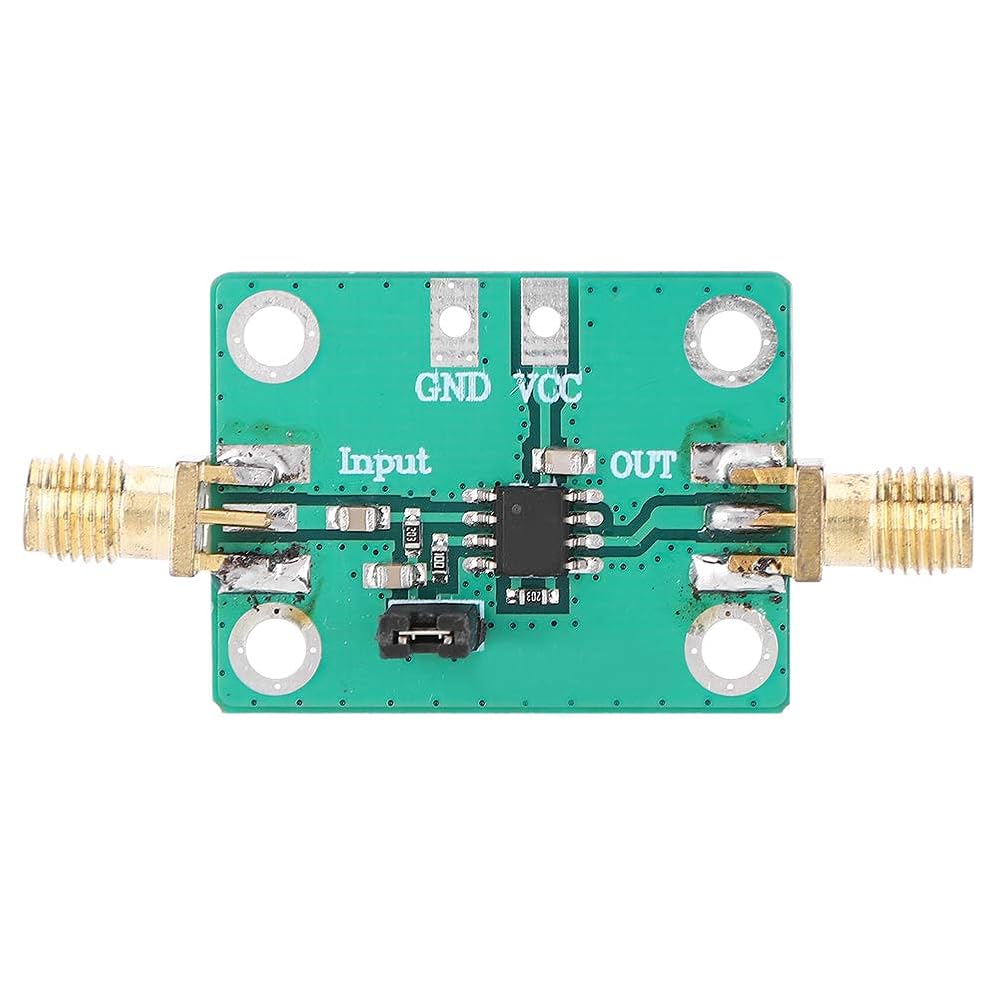

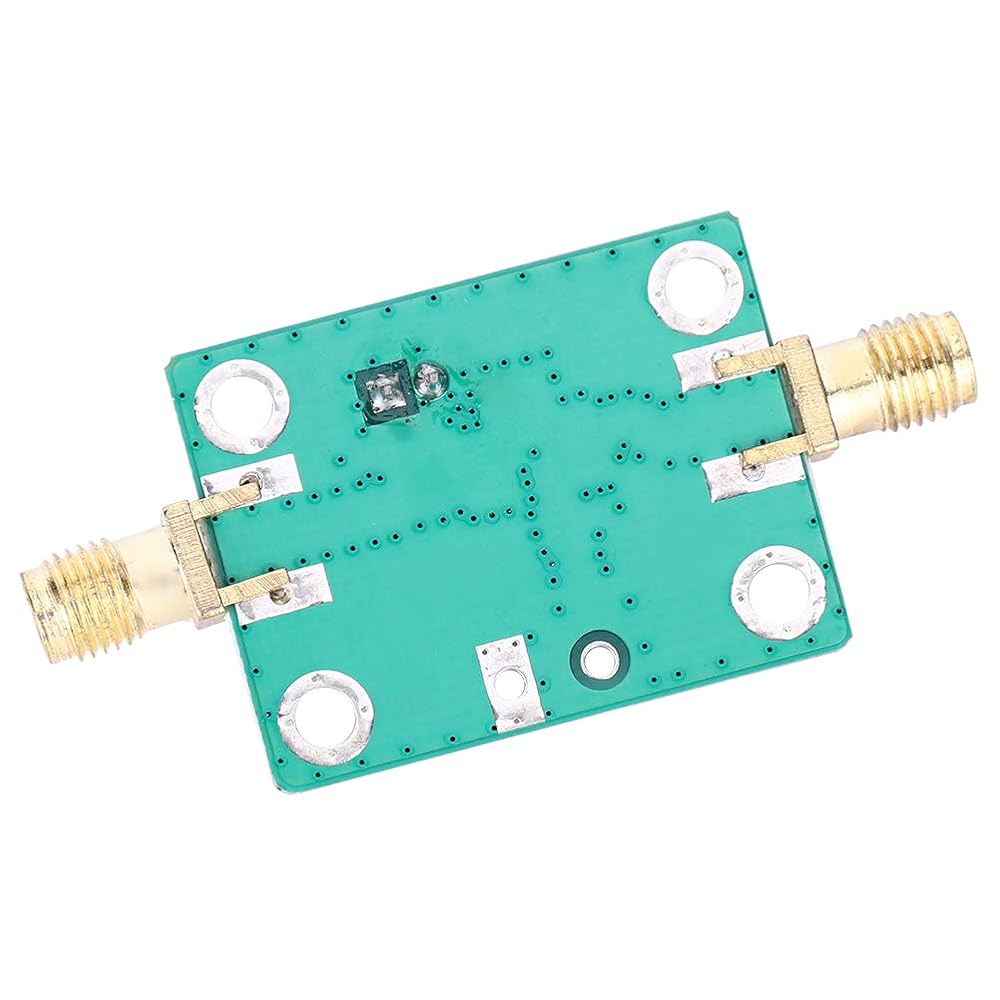

TLV3501 High Speed Comparator Module Precision Signal Shaping Circuit for Frequency Measurement and Waveform Conversion in Electronics Engineering

SAR 71
– 1 +

Special Features

  • [ULTRA-FAST RESPONSE] Experience-fast signal processing with the TLV3501's remarkable 4.5ns delay time, for high-frequency applications. Operating efficiently within a 2.7V to 5V power range, this push-pull output comparator delivers exceptional speed and accuracy even in demanding low-voltage scenarios.
  • [UNIVERSAL WAVEFORM CONVERSION] Master any waveform challenge with this versatile module that effortlessly transforms sine, square, and triangular waves into clean square waves-no threshold adjustment needed. Handles an impressive frequency range from 1Hz to 120MHz with input voltages spanning 8mV to 1000mV for comprehensive signal processing capabilities.

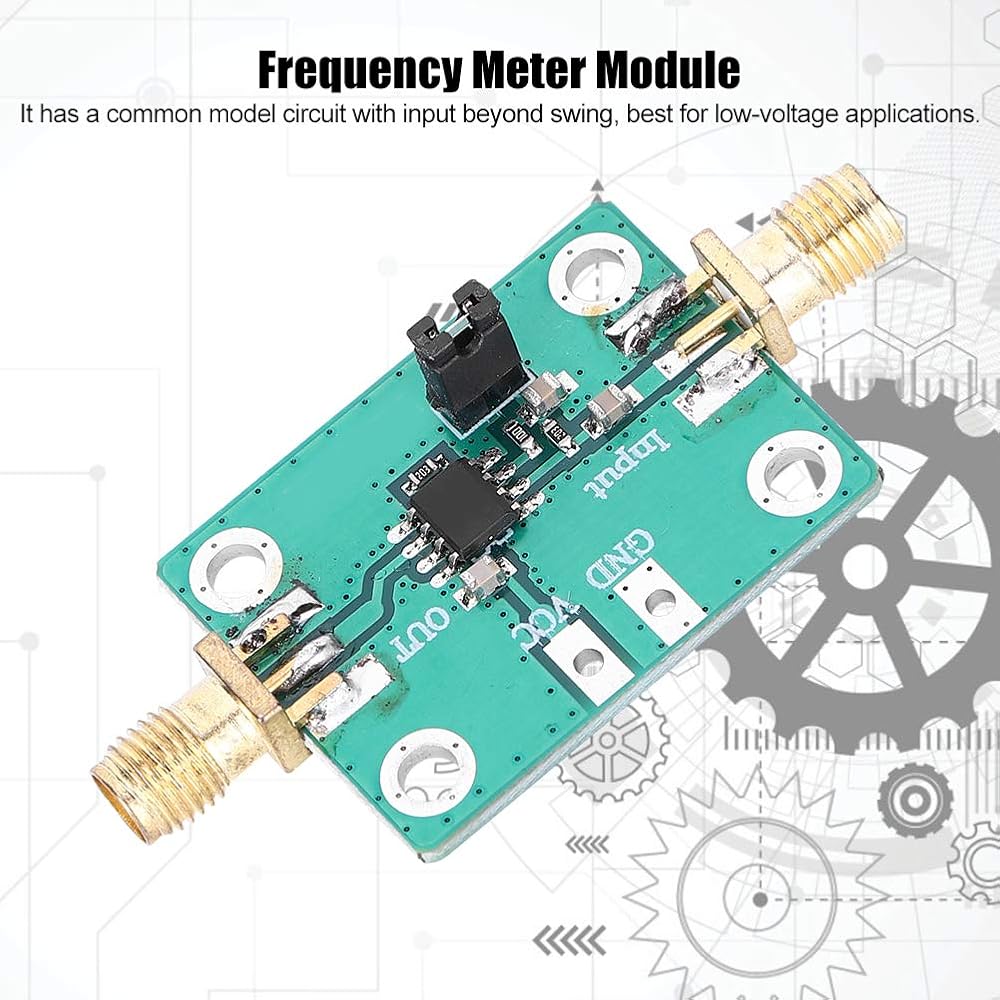

  • [PLUG-AND-PLAY PERFORMANCE] Enjoy hassle-free operation with this ready-to-use module featuring a common model circuit with input beyond swing. The rail-to-rail output seamlessly drives CMOS or TTL logic, while the robust design eliminates the need for time-consuming debugging or complicated setup procedures.
  • [INDUSTRY-GRADE DURABILITY] Built with premium metal components and featuring a reliable SMA female head interface with male screw inner hole, this module withstands rigorous use in both laboratory and field applications. The sturdy construction ensures consistent performance through extended operation periods.
  • [MULTI-PURPOSE SOLUTION] Whether you're working on frequency measurement, zero-crossing detection, or general signal comparison tasks, this module delivers professional-grade results. Ideal for electronics engineers, researchers, and hobbyists working on prototyping, testing, or signal analysis projects requiring precision waveform shaping.

Description

Item Type: Frequency Meter Front End Shaping Module
Material: Metal
Delay Time: 4.5ns
Power Supply Voltage: 2.7-5VDC
Input Voltage: 8-1000mV (Effective Value)

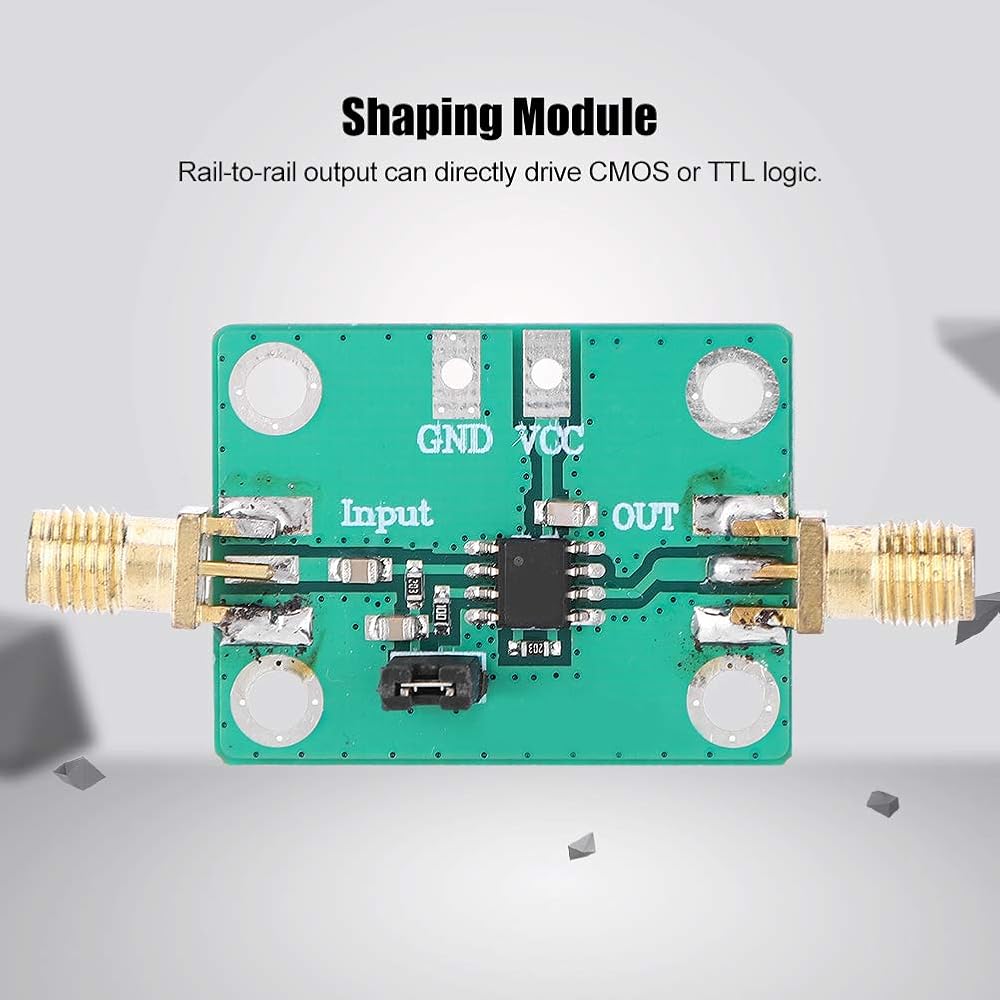

Output Level: Rail-to-rail output, can directly drive TTL / CMOS level
Input Frequency: 1Hz--120MHz, the minimum can up to 1Hz
Interface Form: SMA Female Head (Male Screw Inner Hole)
Input Impedance: 20K Ohm
Product Use:
1. Sine-Waves to Square-Waves
2. -Crossing Comparator
3. Universal Comparator

Package List：
1 x Frequency Meter Front End Shaping Module
