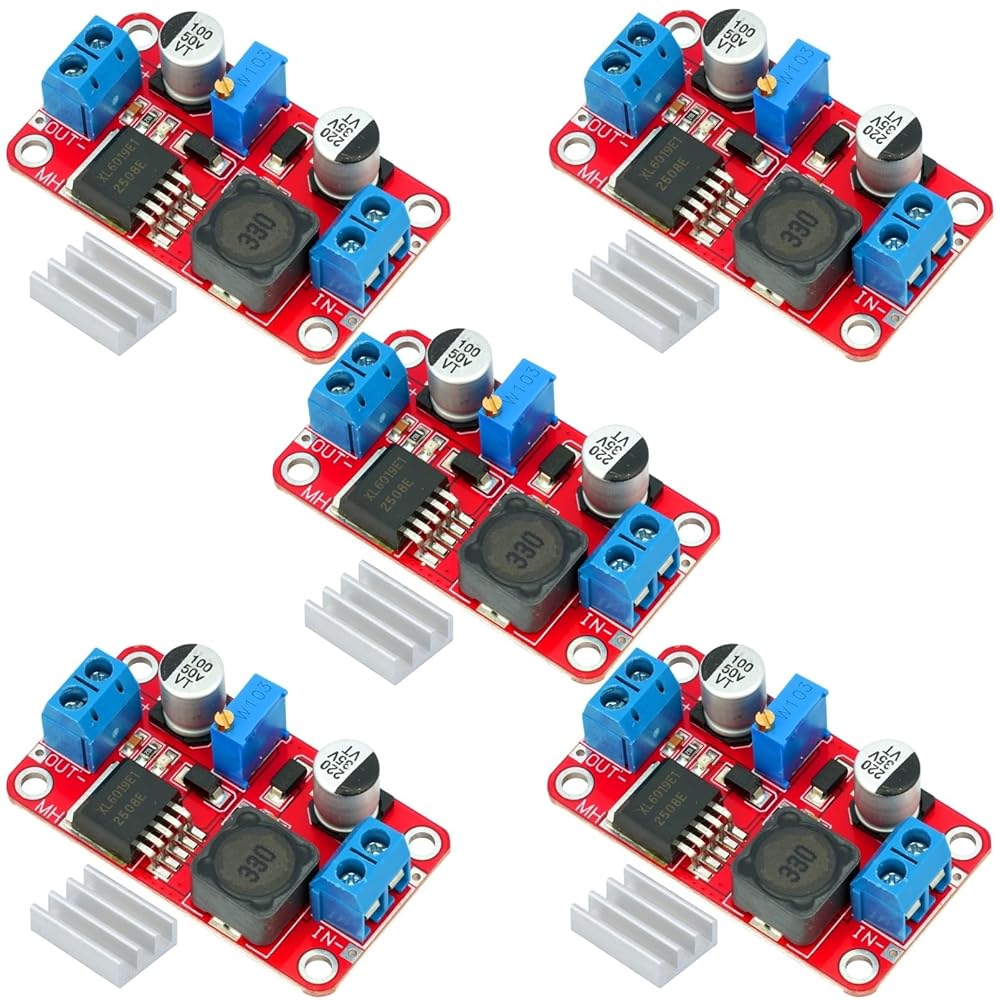

MTDELE 5Pcs Boost Converter XL6019 5A High Power DC-DC Adjustable Module 5V 6V 12V 24V 3-35V to 5-40V Adjustable Voltage

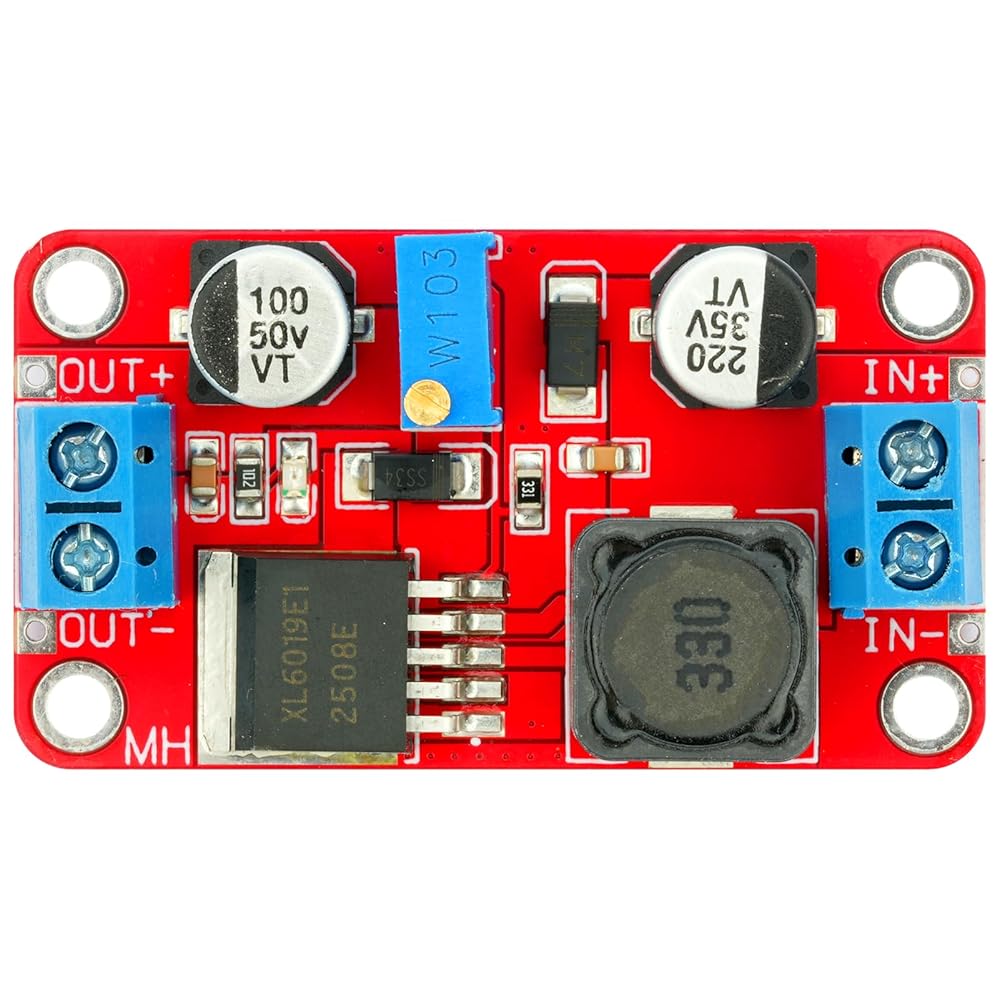

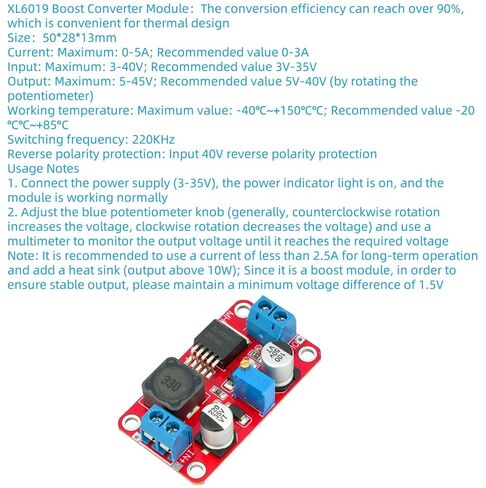

XL6019 Boost Converter Module：The conversion efficiency can reach over 90%, which is convenient for thermal design

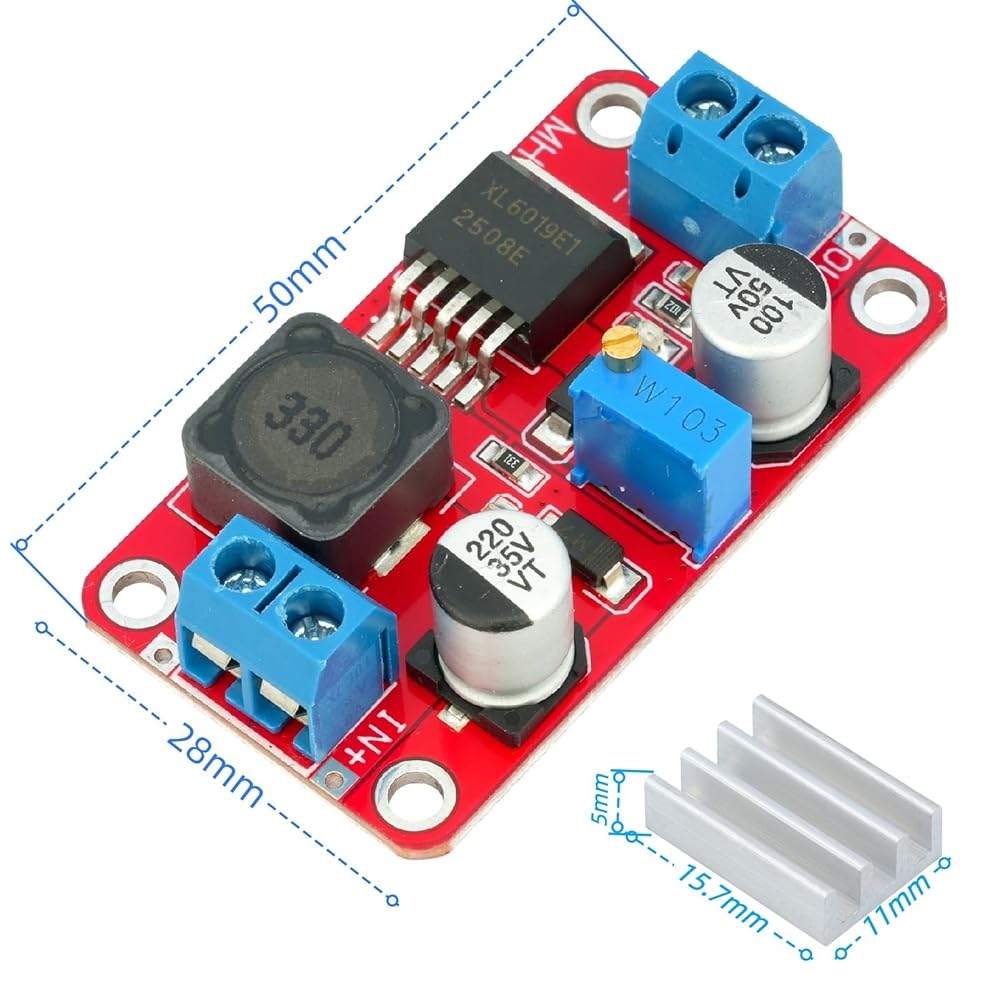

Size：50*28*13mm
Current: Maximum: 0-5A; Recommended value 0-3A
Input: Maximum: 3-40V; Recommended value 3V-35V
Output: Maximum: 5-45V; Recommended value 5V-40V (by rotating the potentiometer)
Working temperature: Maximum value: -40℃~+150℃℃; Recommended value -20℃℃~+85°C
Switching frequency: 220KHz
Reverse polarity protection: Input 40V reverse polarity protection
Usage Notes
1. Connect the power supply (3-35V), the power indicator light is on, and the module is working normally

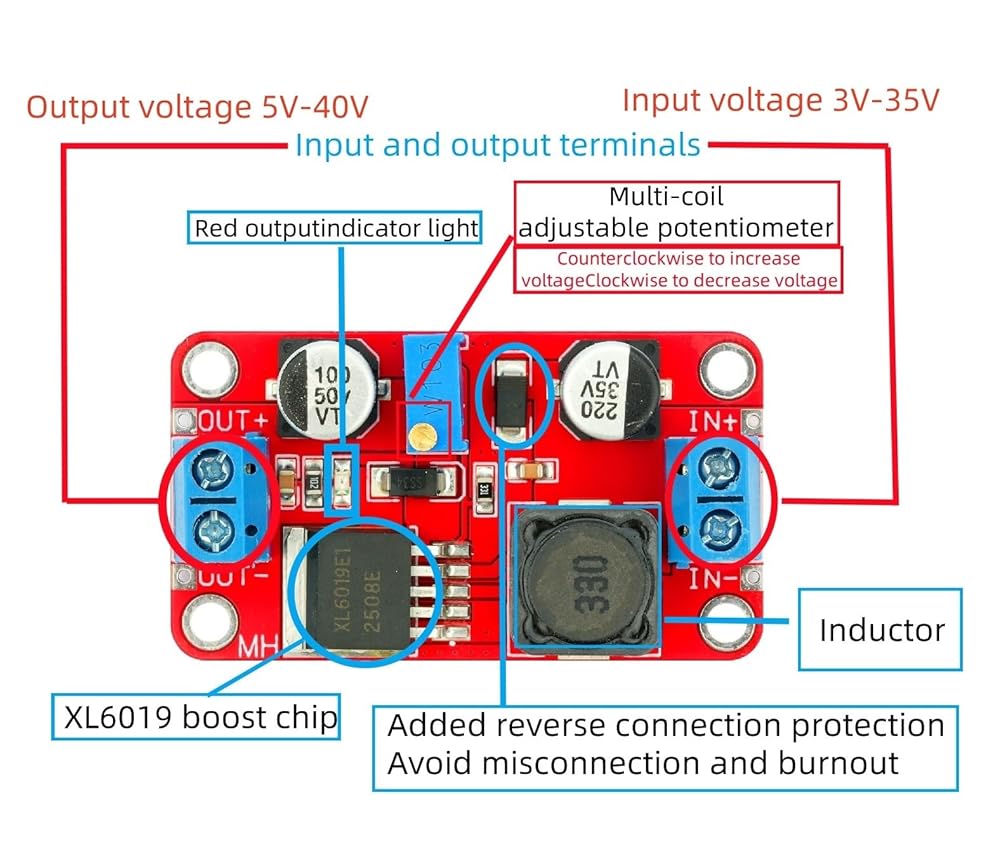

2. Adjust the blue potentiometer knob (generally, counterclockwise rotation increases the voltage, clockwise rotation decreases the voltage) and use a multimeter to monitor the output voltage until it reaches the required voltage
Note: It is recommended to use a current of less than 2.5A for long-term operation, and add a heat sink (output above 10W); Since it is a boost module, in order to ensure stable output, please maintain a minimum voltage difference of 1.5V
