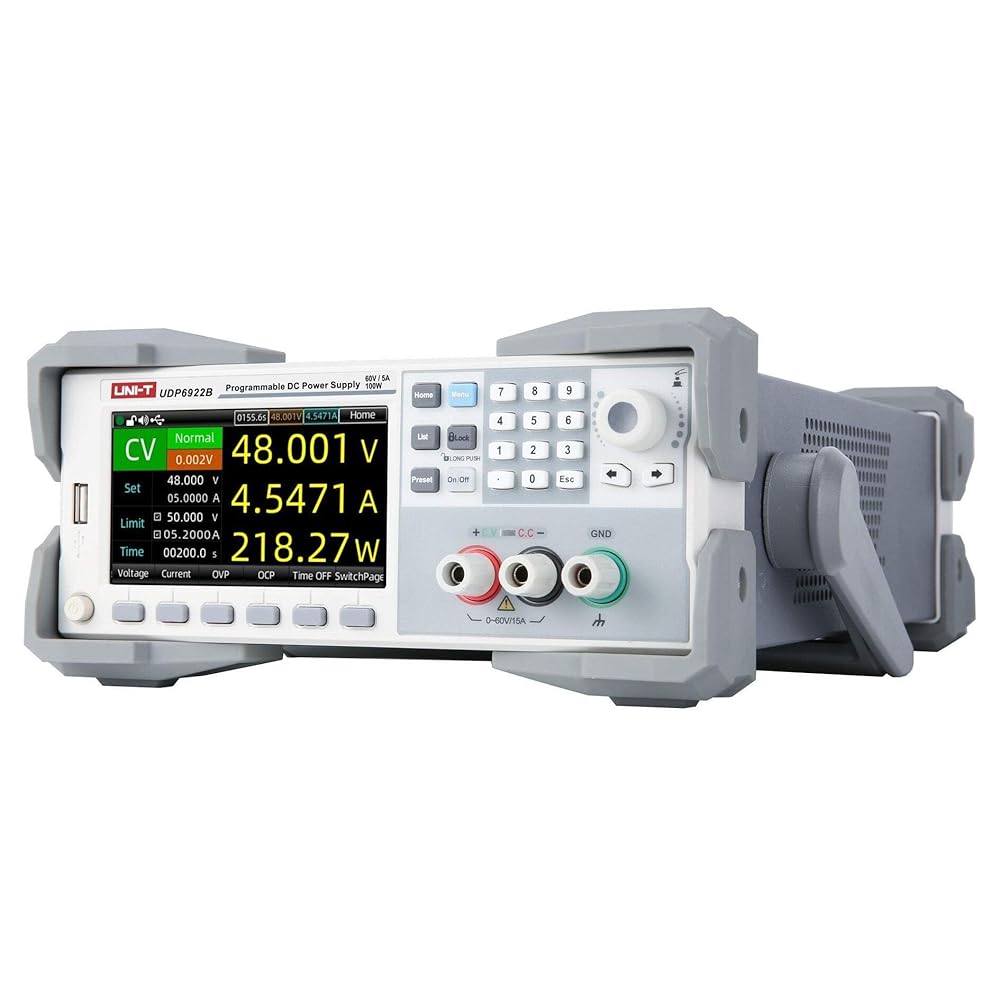

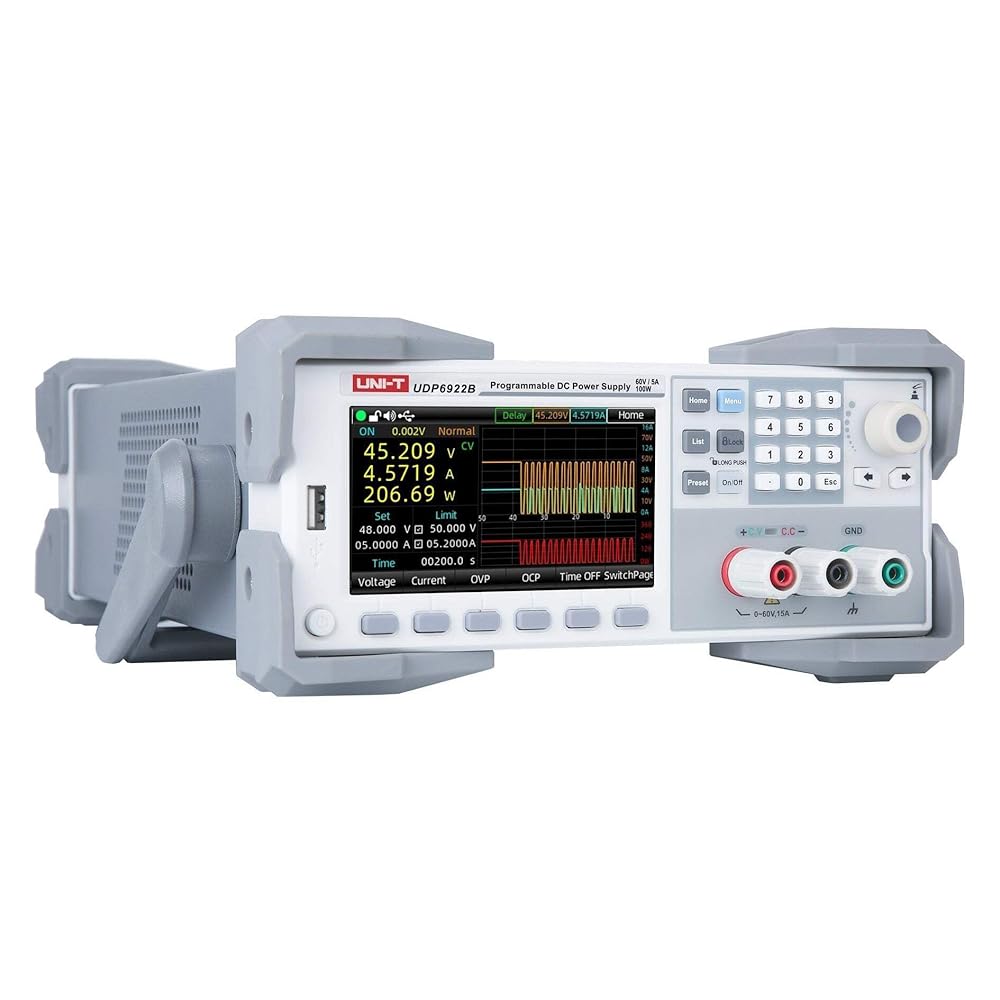

UNI-T UDP6922B DC Switching Power Supply

The UNI-T UDP6900 series is a single-output programmable DC switching power supply designed to provide flexible voltage and current outputs within its rated power. This versatility allows it to handle both high-voltage/low-current and high-current/low-voltage tests with a single unit, significantly reducing costs and saving space. For example, the UDP6942B model (60V/15A/360W) can be configured for various combinations, such as 60V/6A/360W, 40V/9A/360W, or 24V/15A/360W, making it adaptable to a wide range of testing needs.

Equipped with RS232, RS485, USB, and analog interfaces, the UNI-T UDP6900 series supports SCPI protocol for remote control and PLC integration, enabling the creation of intelligent test platforms. It is ideal for applications in DC-DC power module testing, battery charging, sensor evaluation, and other related fields, offering a powerful and flexible solution for engineers.

Key Features
DC Voltage: 0–60V
DC Current: 0–5A
DC Power: 100W
Type: Switching
Resolution: 1mV/0.1mA
Channels: One
Class leading performance: High accuracy and resolution with low ripple and noise
Multiple protection: OVP (Over Voltage Protection) and OCP (Over Current Protection)

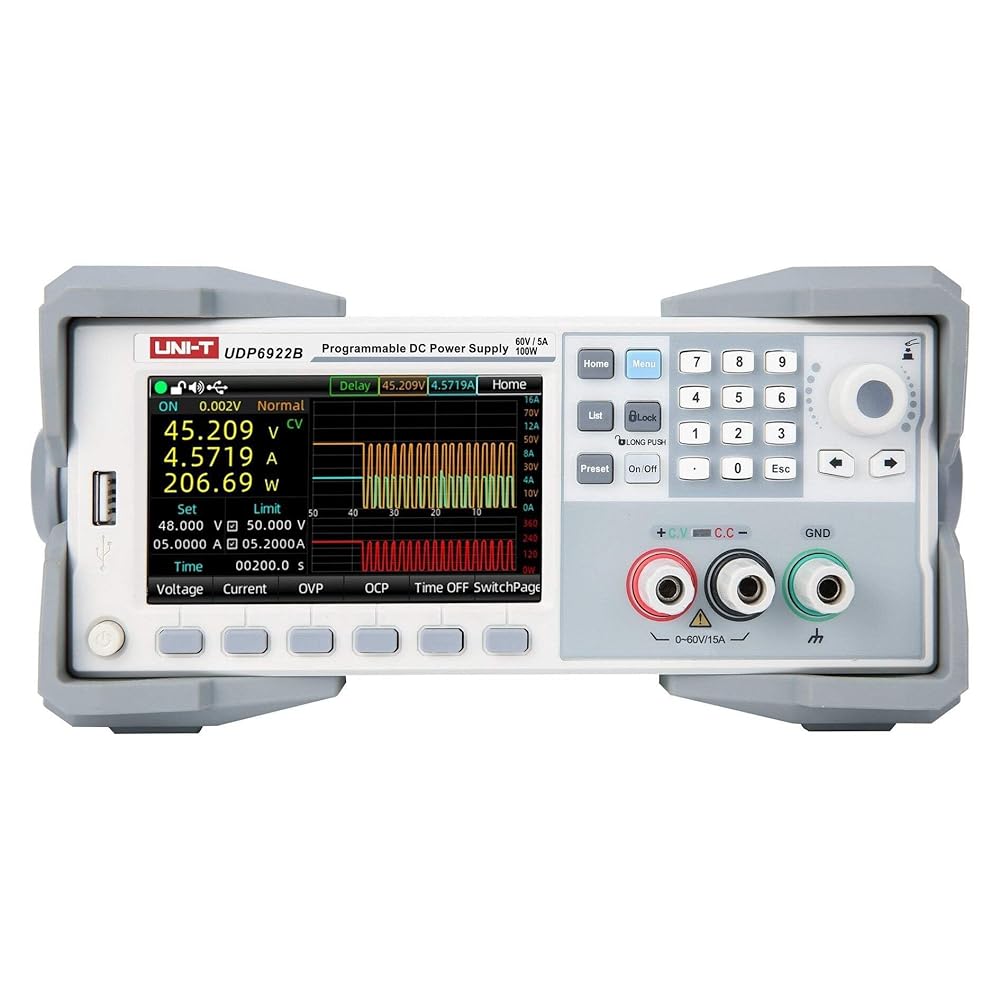

Easy to use: Voltage and current can be adjusted by the numeric keyboard and the encoder knob
Programmable: Control the output of the voltage and current. Directly set your test scenario or use SCPI, Multi-SCPI, or Modbus RTU protocols

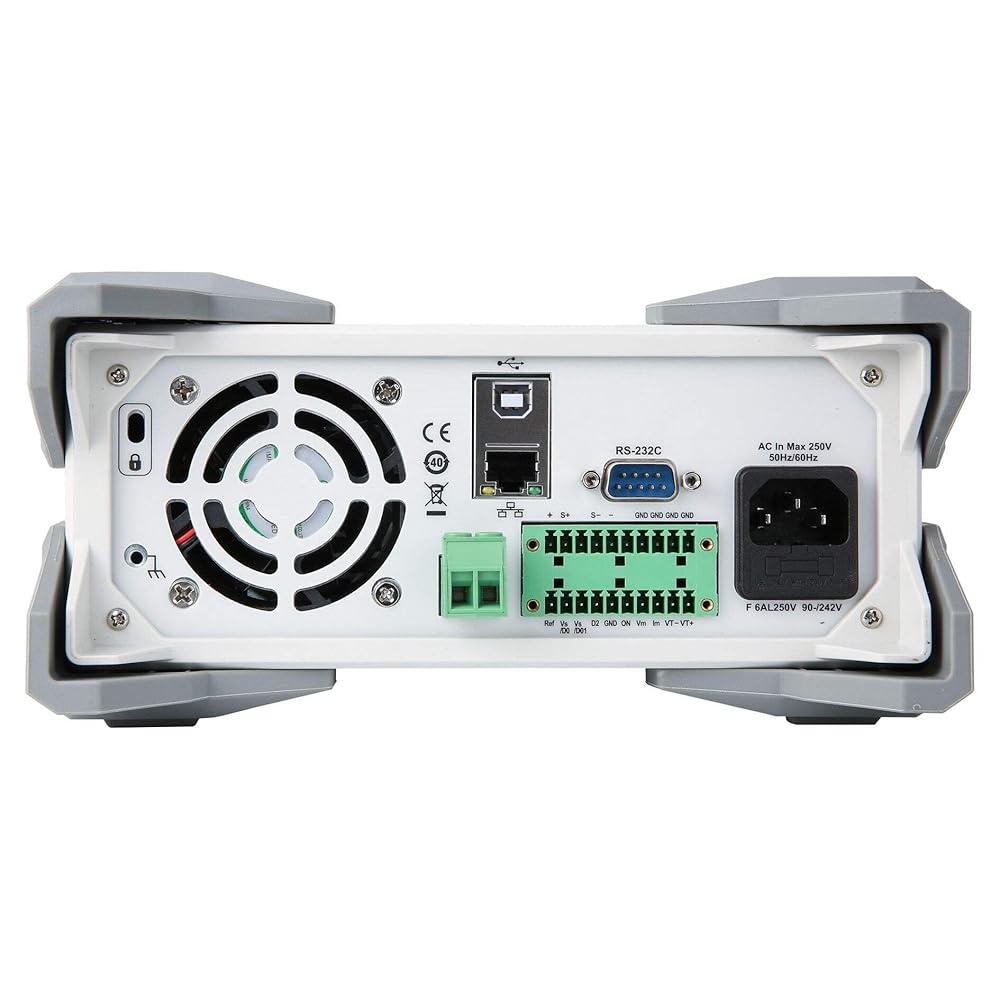

Interfaces: RS232 & RS485 communication interfaces. LAN port supports Web remote control and VXI bus. USB Host and Device
Rack mountable: Includes both front and rear panel connections
