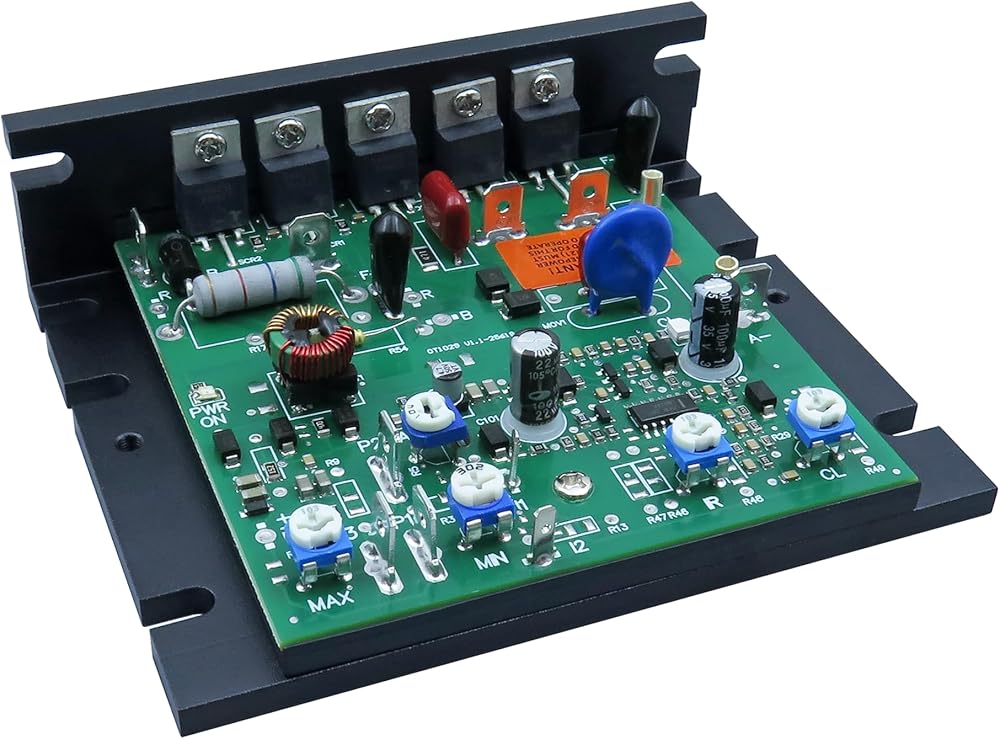

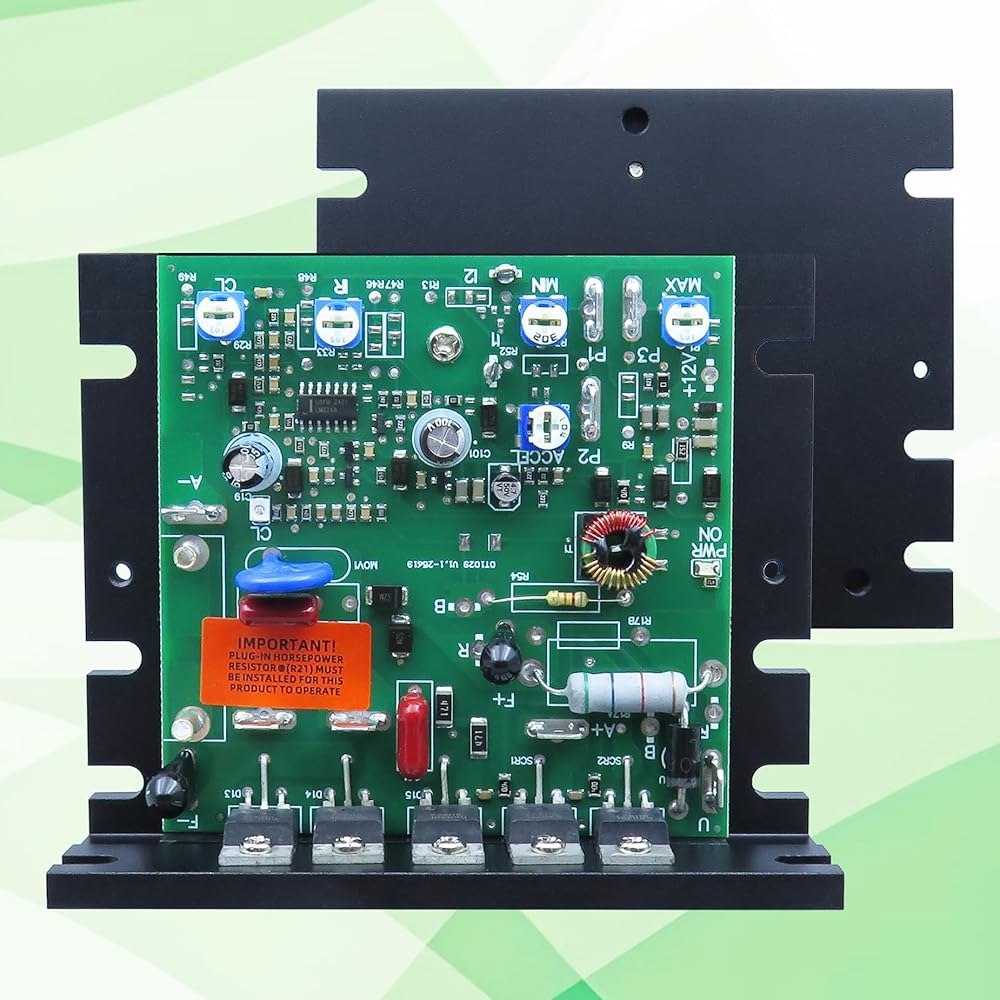

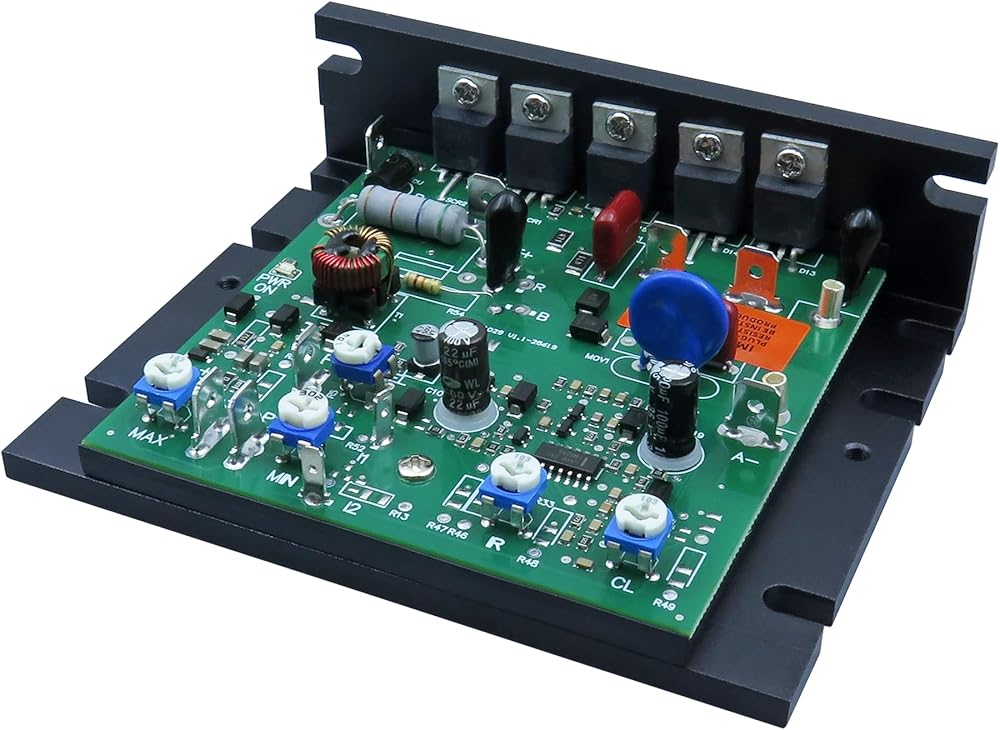

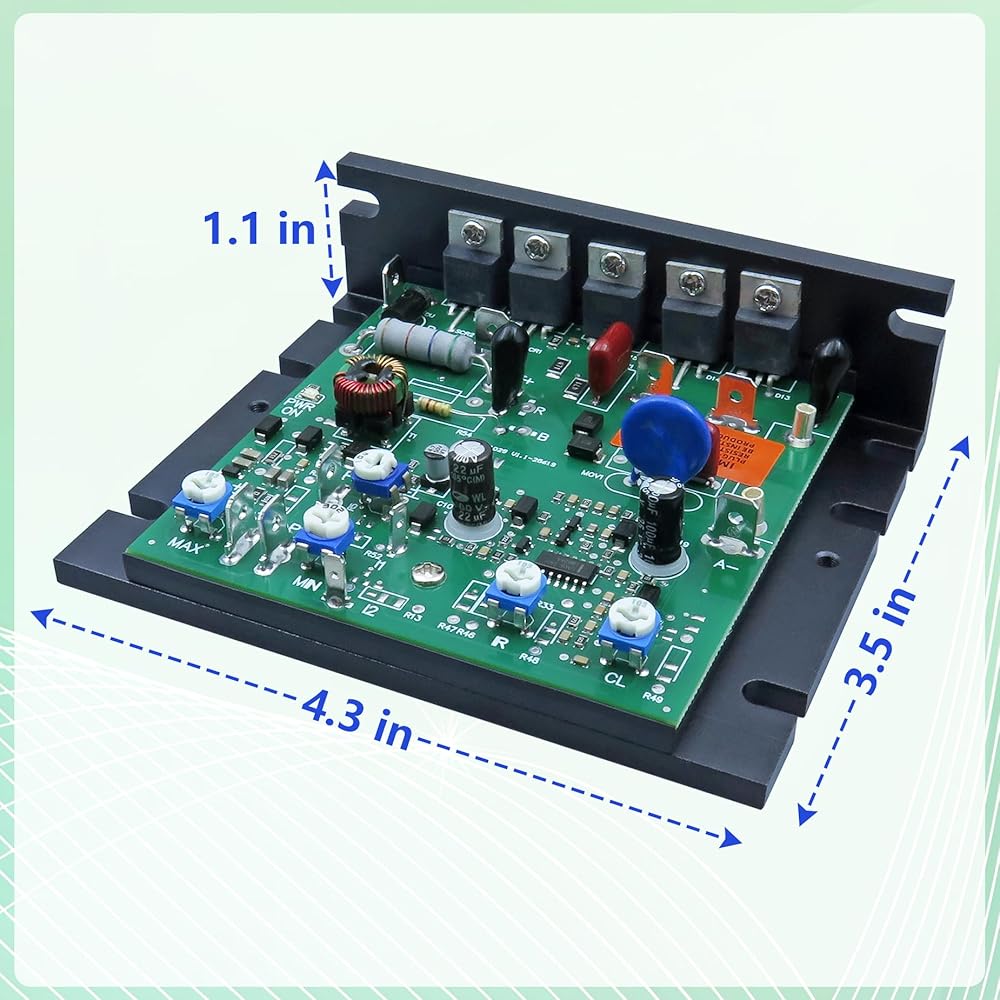

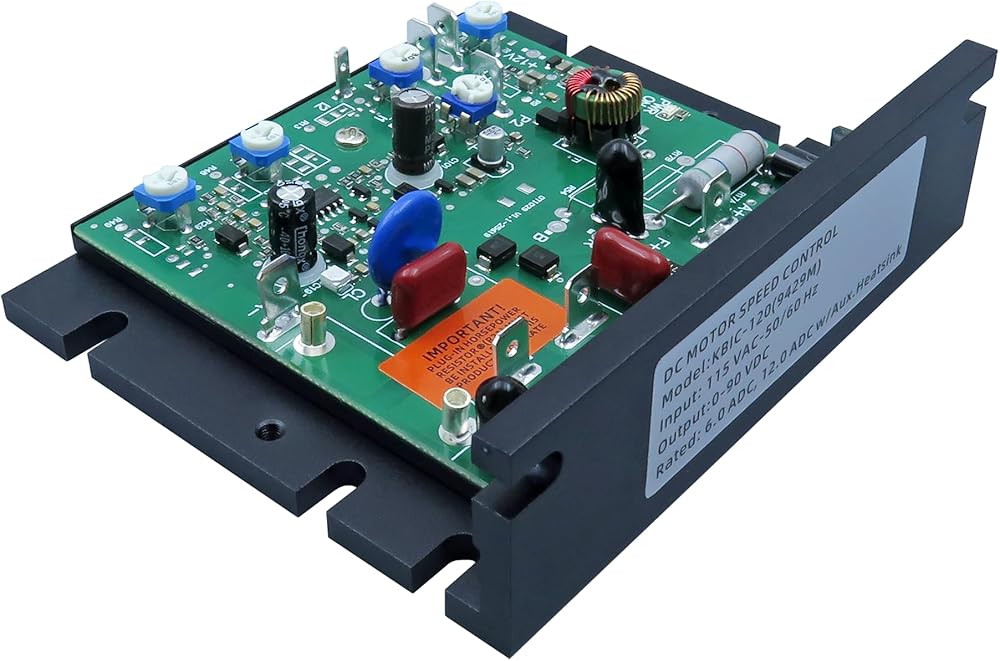

KBIC-120 (9429) SCR DC Motor Control - Fully Compatible Replacement Drive ChassisExperience seamless performance and reliable operation with our KBIC-120 (9429) DC Drive Chassis. Engineered as a fully compatible replacement for the KB Electronics KBIC-120, this industrial-grade speed control delivers robust and precise command over 90VDC motors. Ideal for manufacturing equipment, conveyors, machinery, and DIY applications, it combines essential features with straightforward installation.
Broad Motor Compatibility

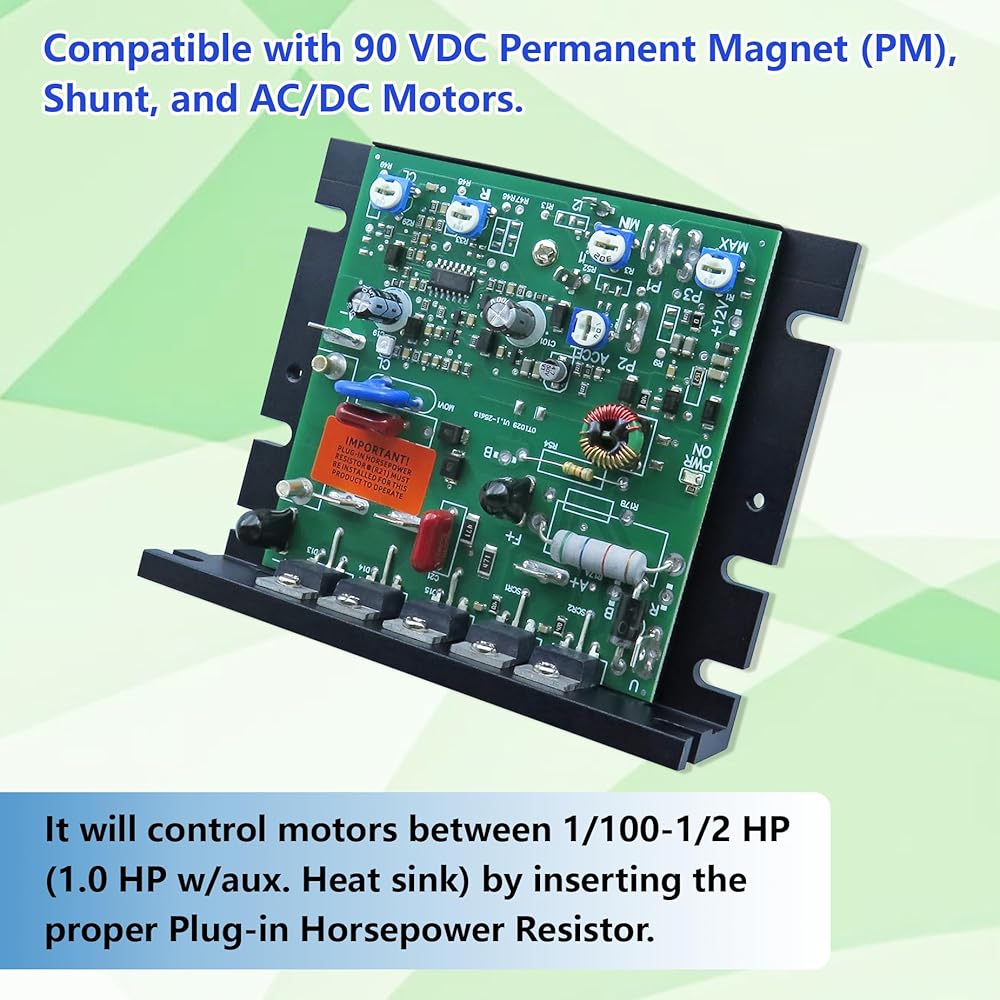

- Designed for 90VDC permanent magnet (PM), shunt-wound, and universal AC/DC motors.
- Supports motors from 1/100 HP up to 1/2 HP (6A). Expandable to 1.0 HP (12A) with an optional auxiliary heat sink.
Precision Adjustment & Control

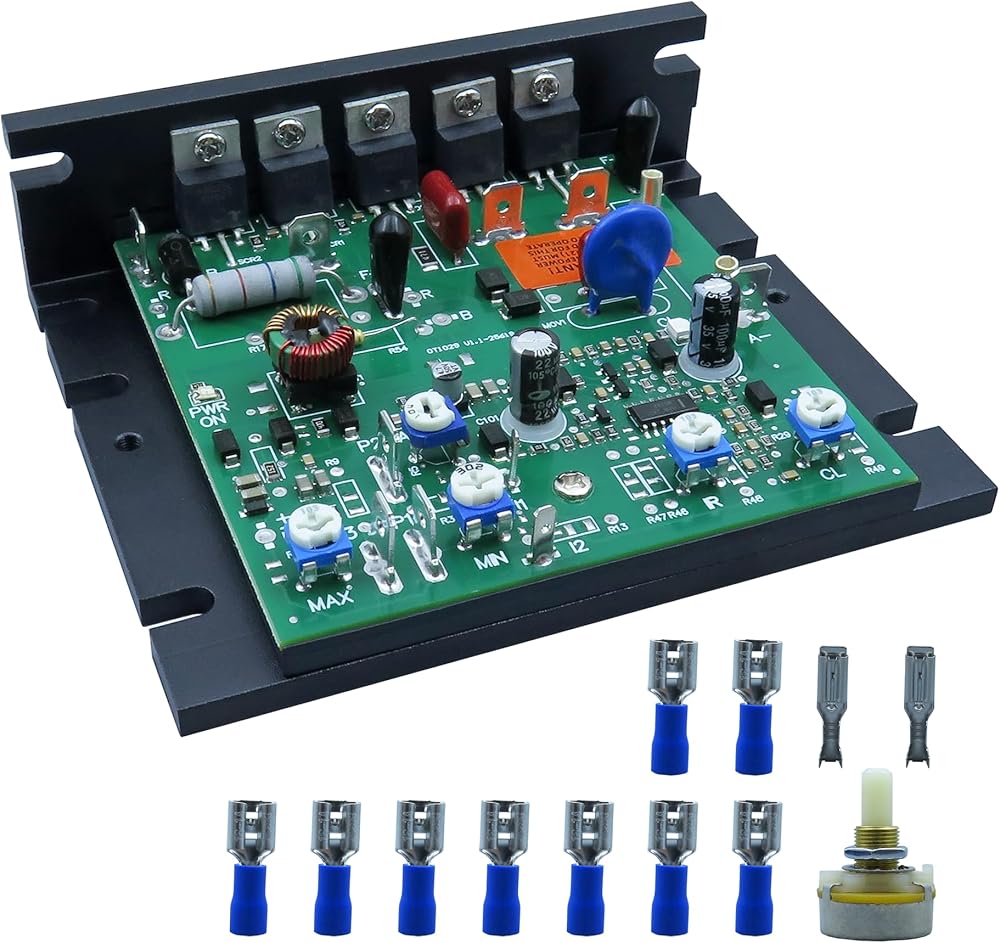

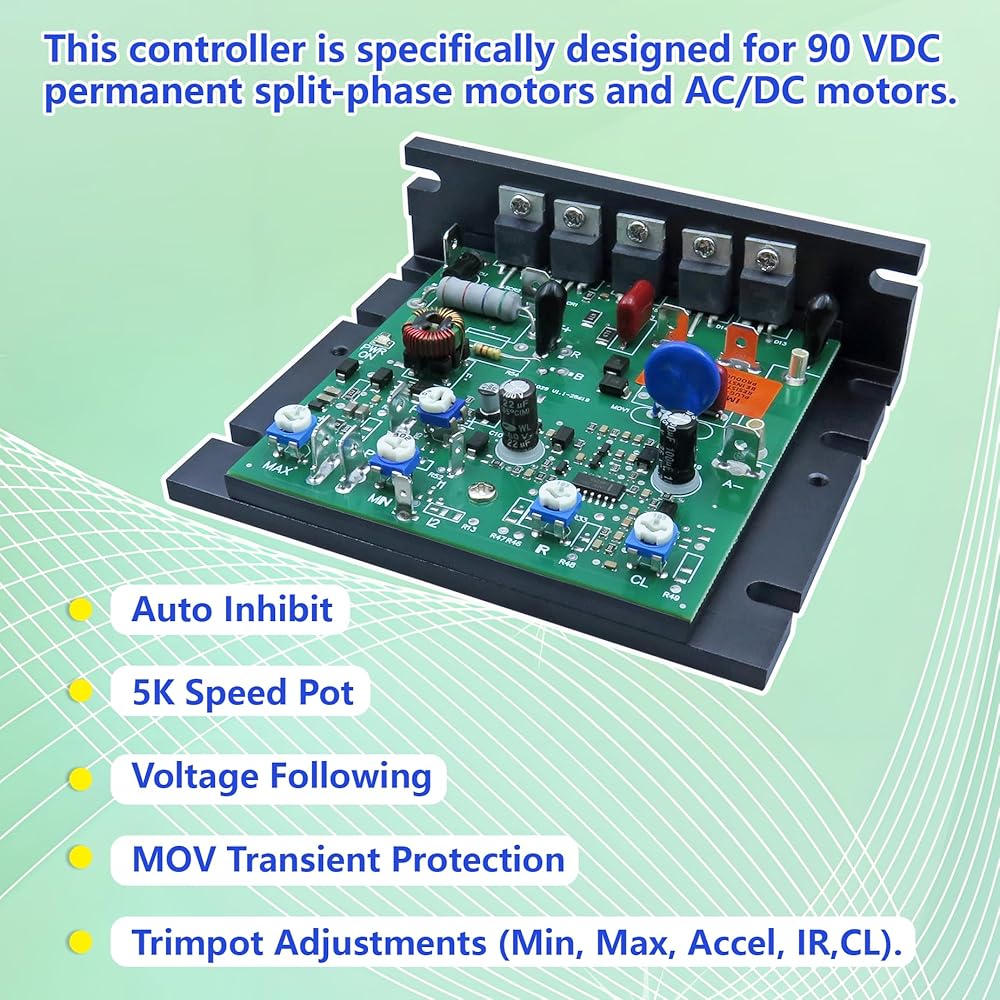

- Equipped with a 5K speed potentiometer and field-adjustable trimpots for:
Min/Max Speed Setting
Acceleration Ramp Control
IR Compensation
Current Limit Protection
- Additional features include Auto Inhibit, Voltage Following, and MOV Transient Suppression.
Industrial-Grade Performance

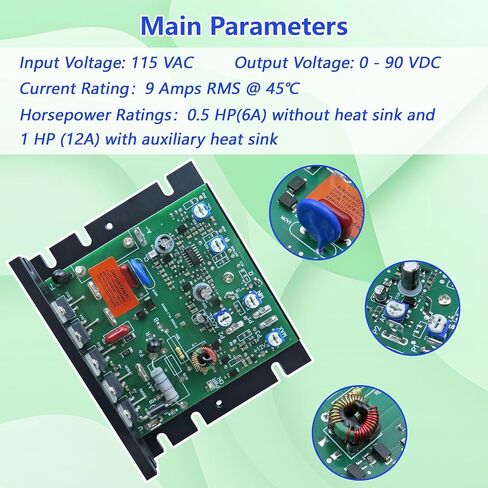

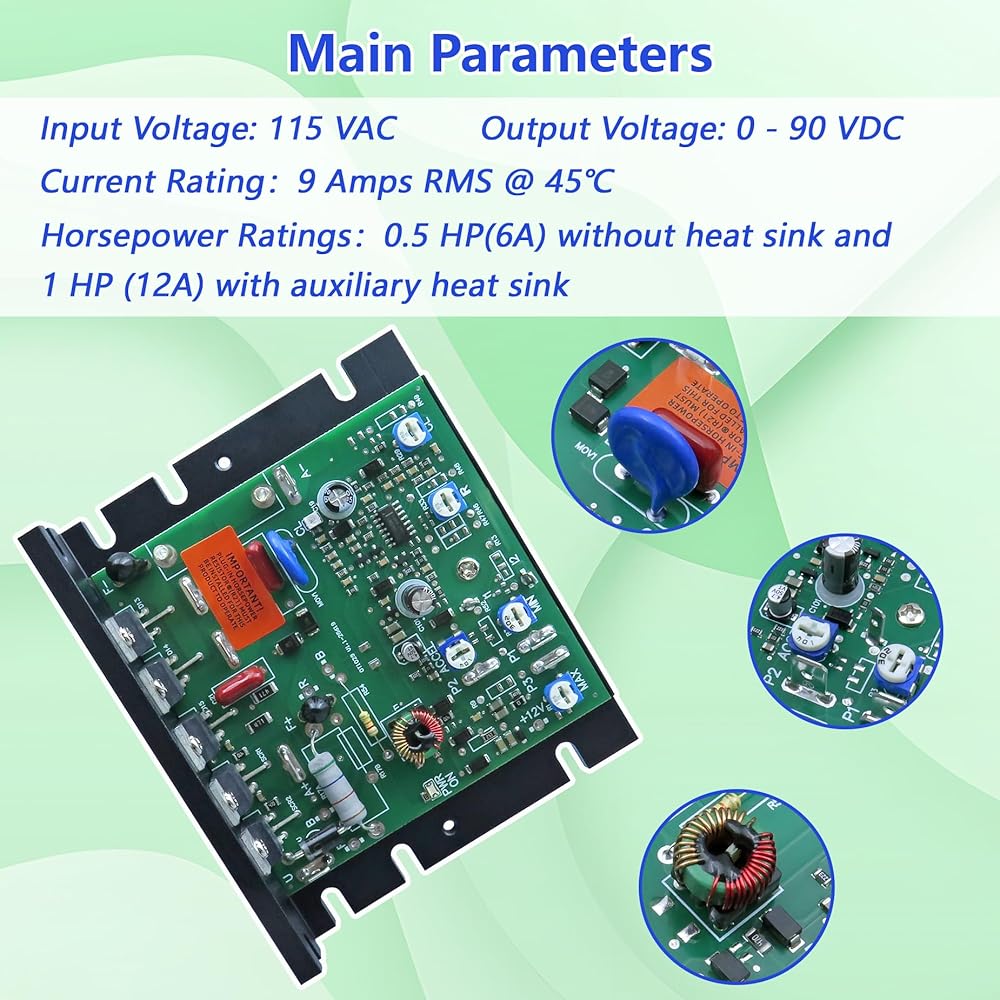

- Input: 115 VAC
- Output: 0-90 VDC
- Rated Current: 9 Amps RMS @ 45°C
- Robust chassis design ensures durability in demanding environments.
Safety & Protection
- Built-in MOV protects against voltage spikes.
- Requires external fusing (line fuse and armature fuse) for overload and short-circuit protection.
Warranty & Support
- Backed by a full warranty and professional technical support. Our U.S.-based team is available to assist with installation, tuning, and troubleshooting.
Industrial Machinery
Conveyor Systems
CNC Equipment
Fan and Pump Controls
DIY and Hobbyist Projects
Order Now and Power Your Projects with Confidence!
