مميزات خاصة

High torque ,Long life, Low noise
The gear ratio is 10:1 and the Max. backlash is 30 arc minutes.
It's an excellent choice for applications that require good accuracy but low cost.
As MG series gearbox built-in shaft coupling, so you can change the motor or gearbox easily.

وصف

Electrical Specification

*Part Number: 23HS30-2904S-MG10
*Motor Type: Bipolar Stepper
*Holding Torque without Gearbox: 1.89Nm(267.65oz.in)
*Rated Current/phase: 2.9A
*Phase Resistance: 1.13ohms
*Inductance: 4.8mH±20%(1KHz)
*Insulation Class: B 130°C[266°F]

Gearbox Specifications

*Gearbox Type: Spur Planetary
*Gear Material: Powder Metallurgy
*Gear Ratio: 10:1
*Efficiency: 90%
*Backlash at No-load:≤30deg
*Max.Permissible Torque: 15Nm(132.76lb-in))
*Noise: ≤60dB
*Waterproof Rating: IP54
*Lifetime: 20000hours

Physical Specification

*Frame Size: 57 x 57mm
*Motor Length: 76.5mm
*Gearbox Length: 55.5mm
*Output Shaft Type: Key way
*Output Shaft Diameter: Φ14mm
*Output Shaft Length: 34mm
Connection

A+: Black, A-: Green, B+: Red, B-: Blue

منتجات شبيهه

{"error":"\u062e\u0637\u0623","cart_limit":"\u0644\u062f\u064a\u0643 \u0627\u0644\u0643\u062b\u064a\u0631 \u0645\u0646 \u0627\u0644\u0645\u0646\u062a\u062c\u0627\u062a \u0641\u064a \u0633\u0644\u0629 \u0627\u0644\u062a\u0633\u0648\u0642 \u0627\u0644\u062e\u0627\u0635\u0629 \u0628\u0643.","prod_limit":"\u0644\u0627 \u064a\u0645\u0643\u0646\u0643 \u0625\u0636\u0627\u0641\u0629 \u0627\u0644\u0645\u0632\u064a\u062f \u0645\u0646 \u0647\u0630\u0627 \u0627\u0644\u0645\u0646\u062a\u062c"}

مرحبًا،

بحث

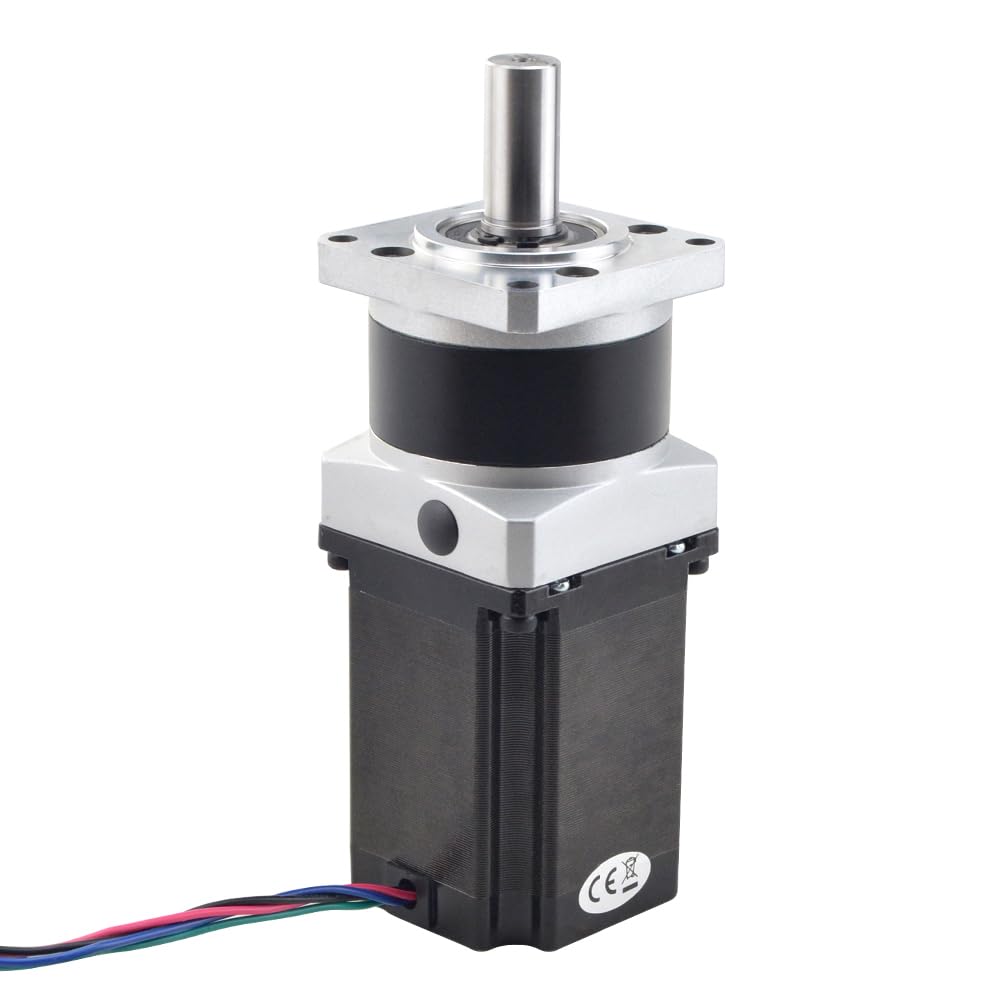

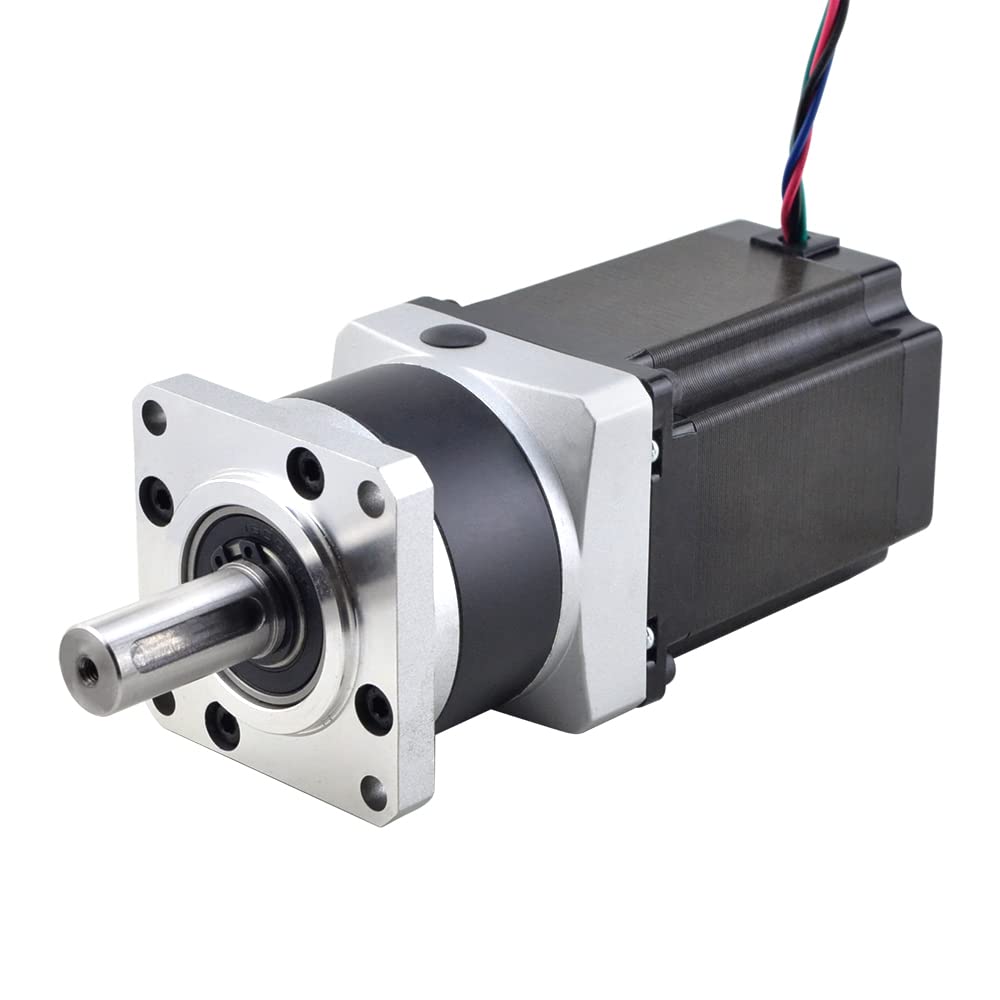

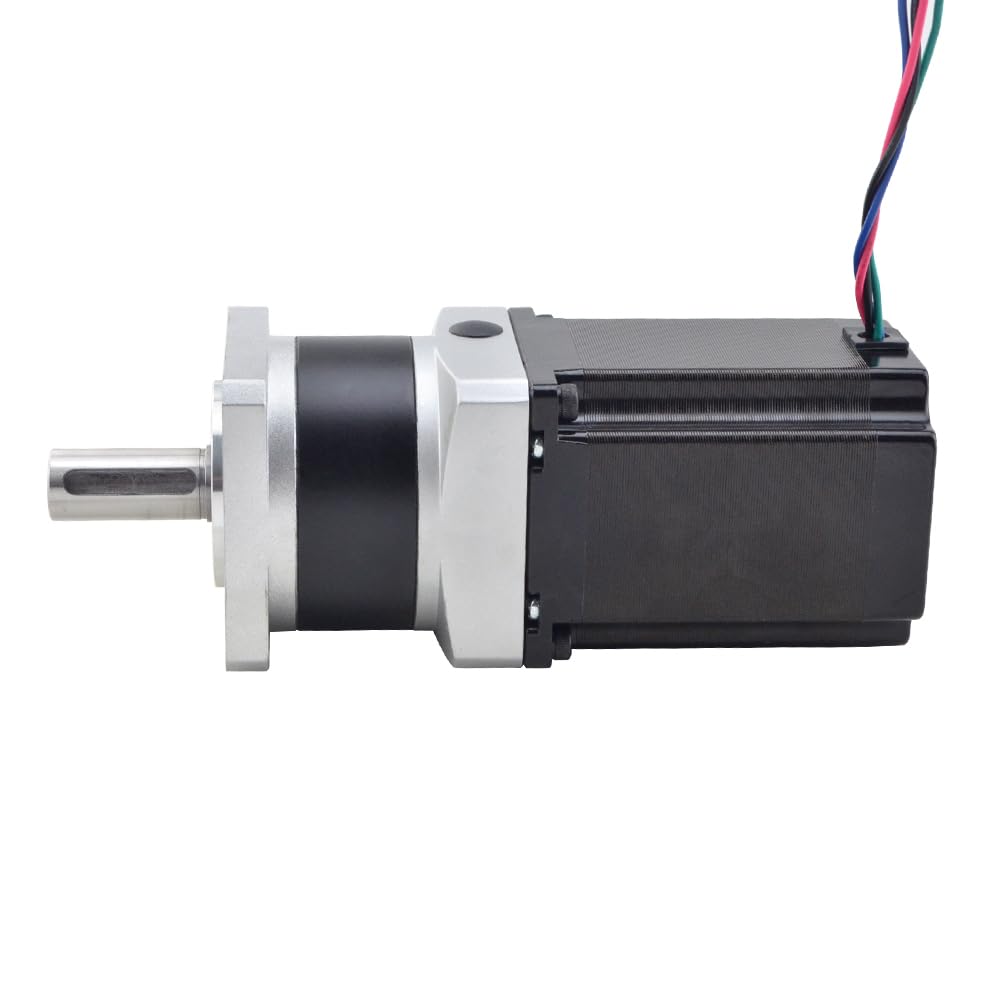

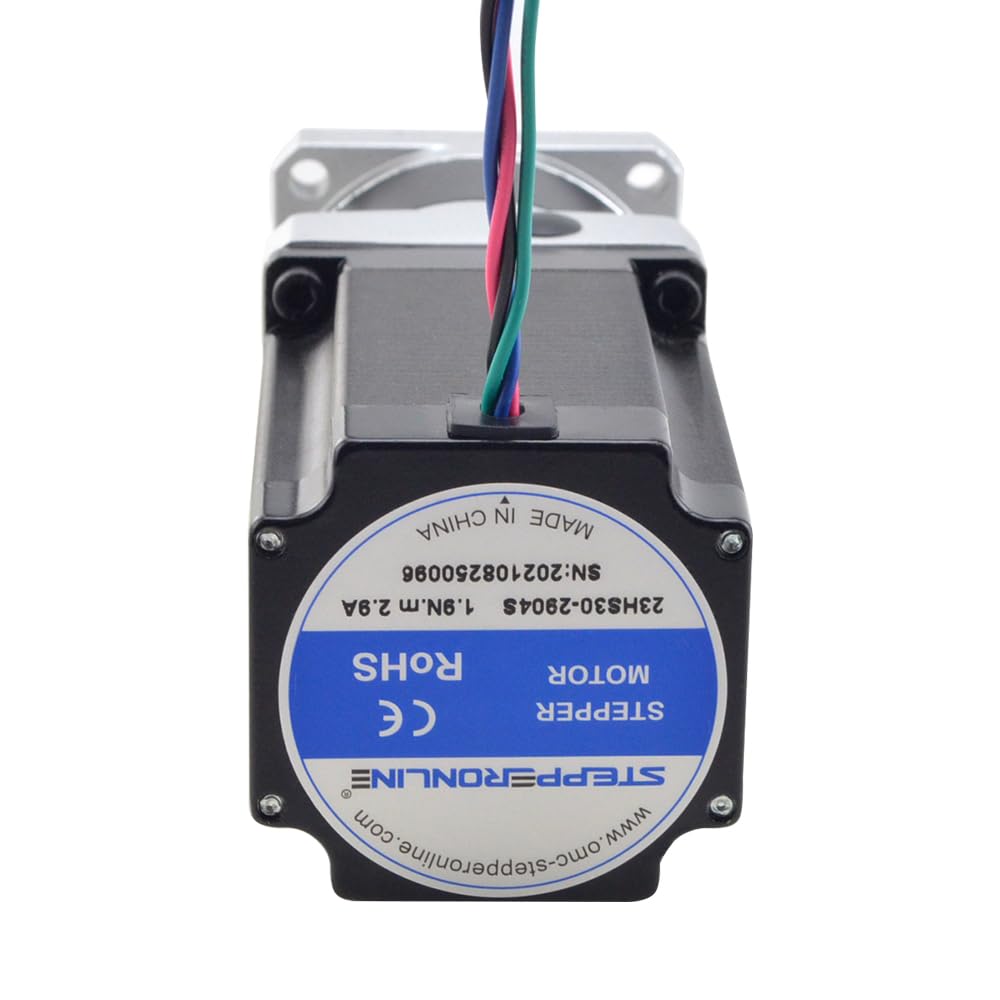

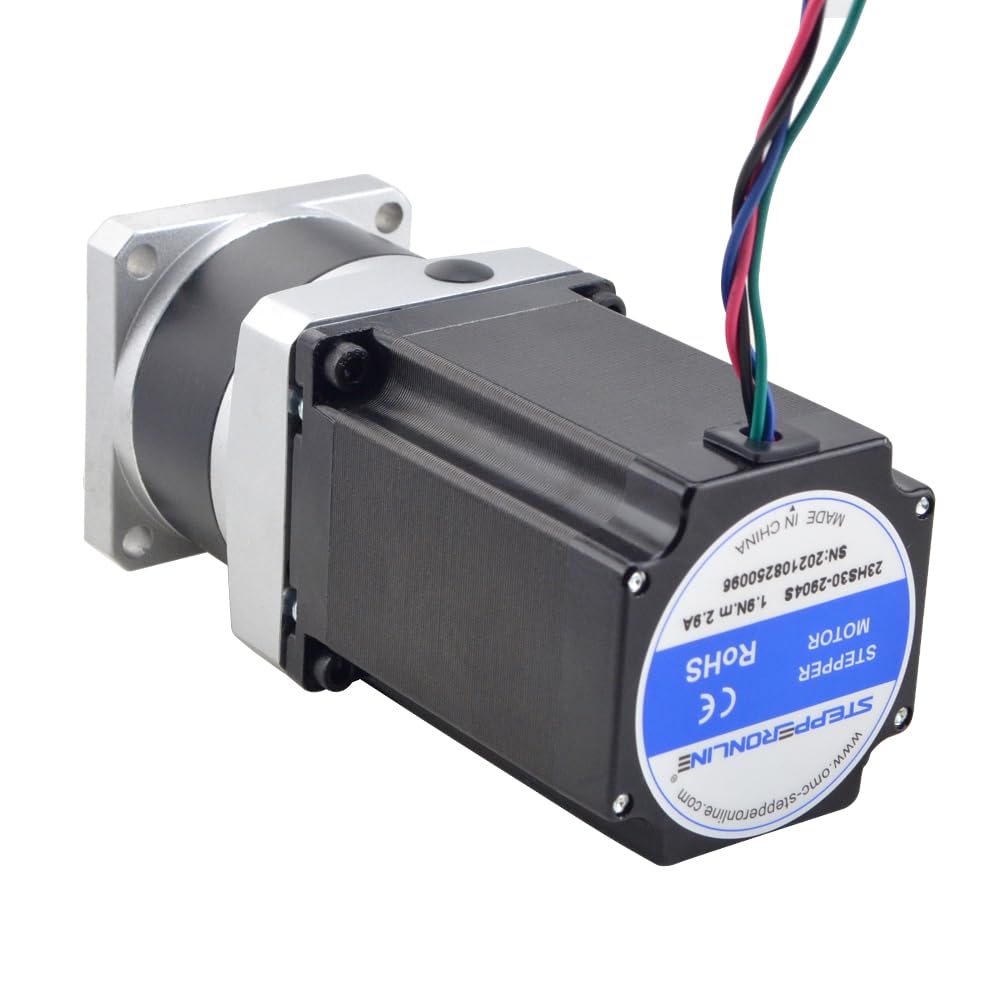

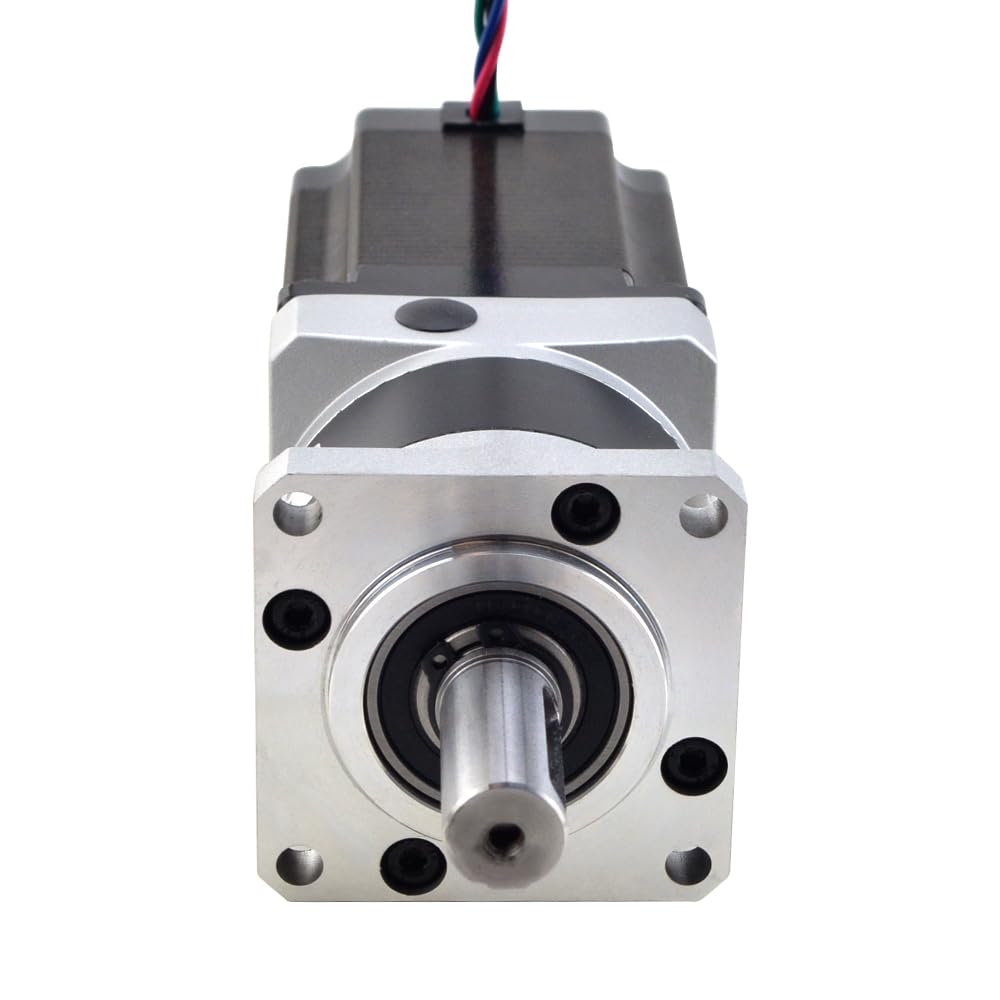

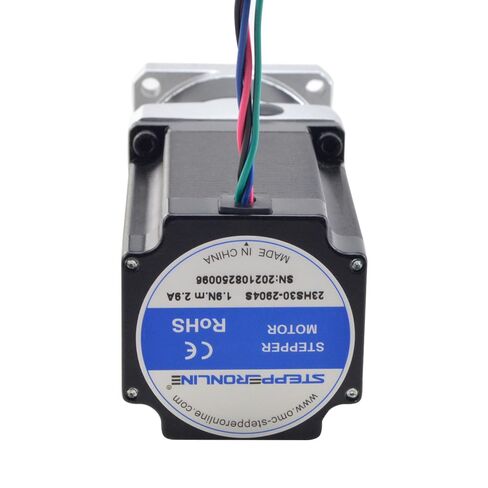

STEPPERONLINE Nema 23 محرك متدرج L = 76.5 مللي متر نسبة التروس 10: 1 30arcmin MG سلسلة علبة التروس الكوكبية
