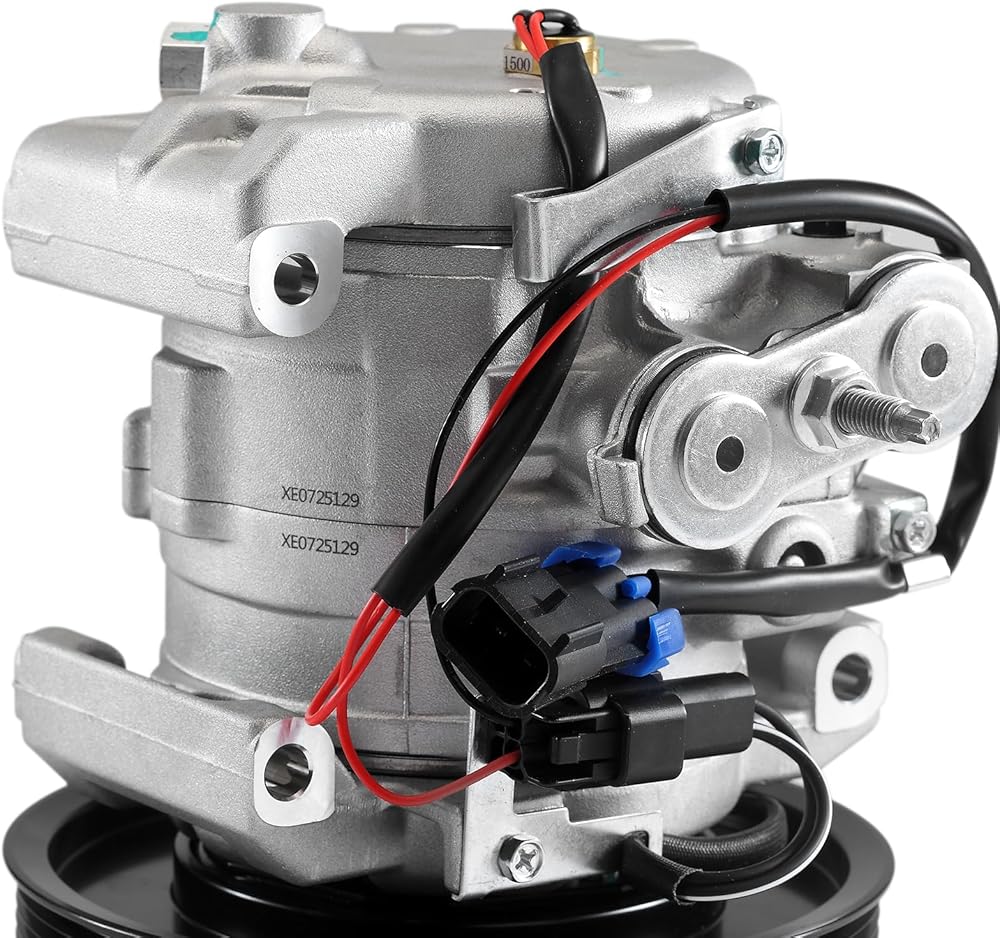

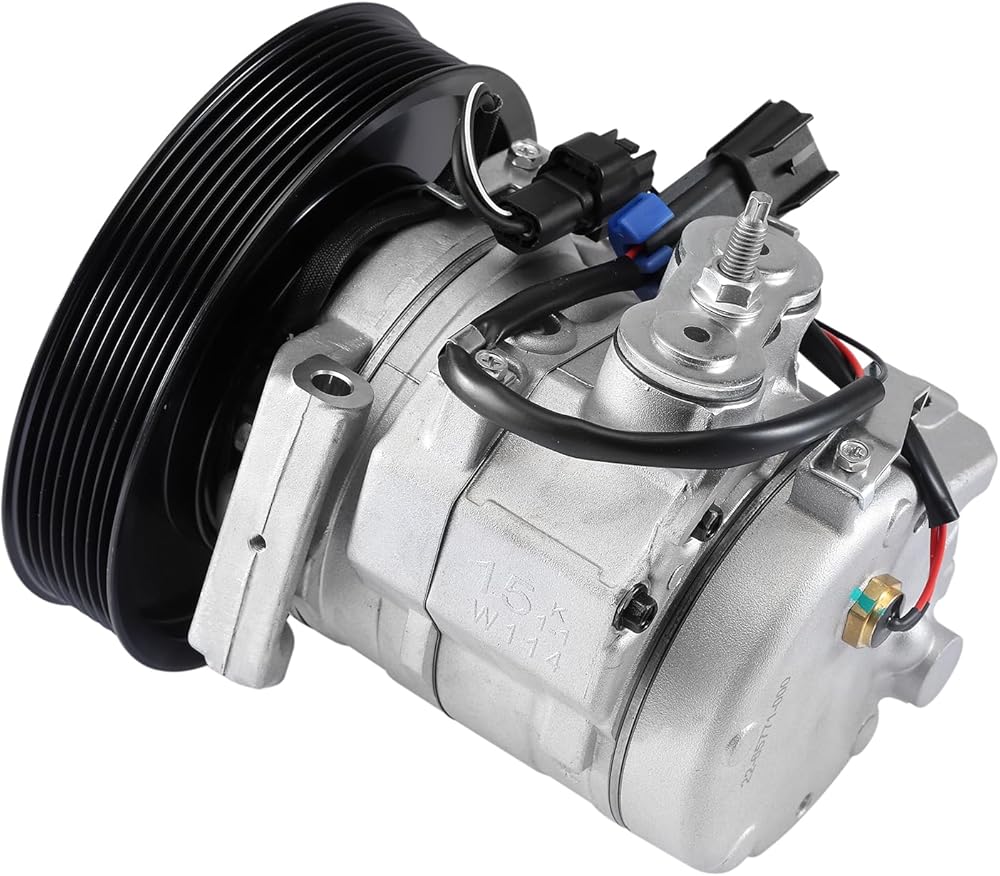

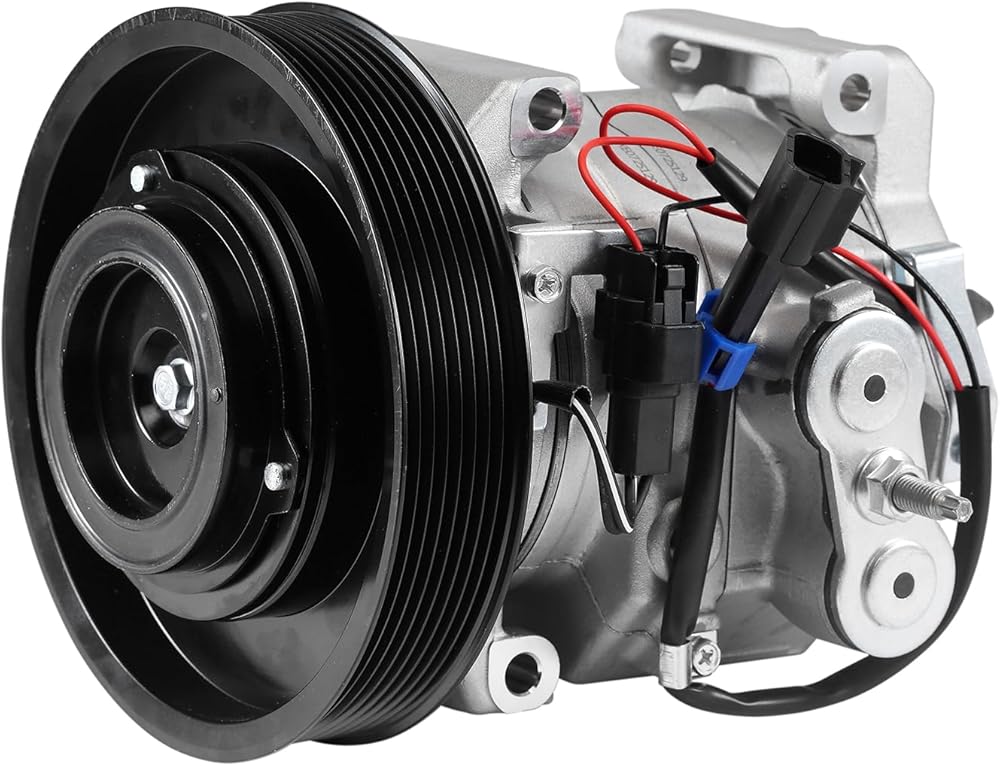

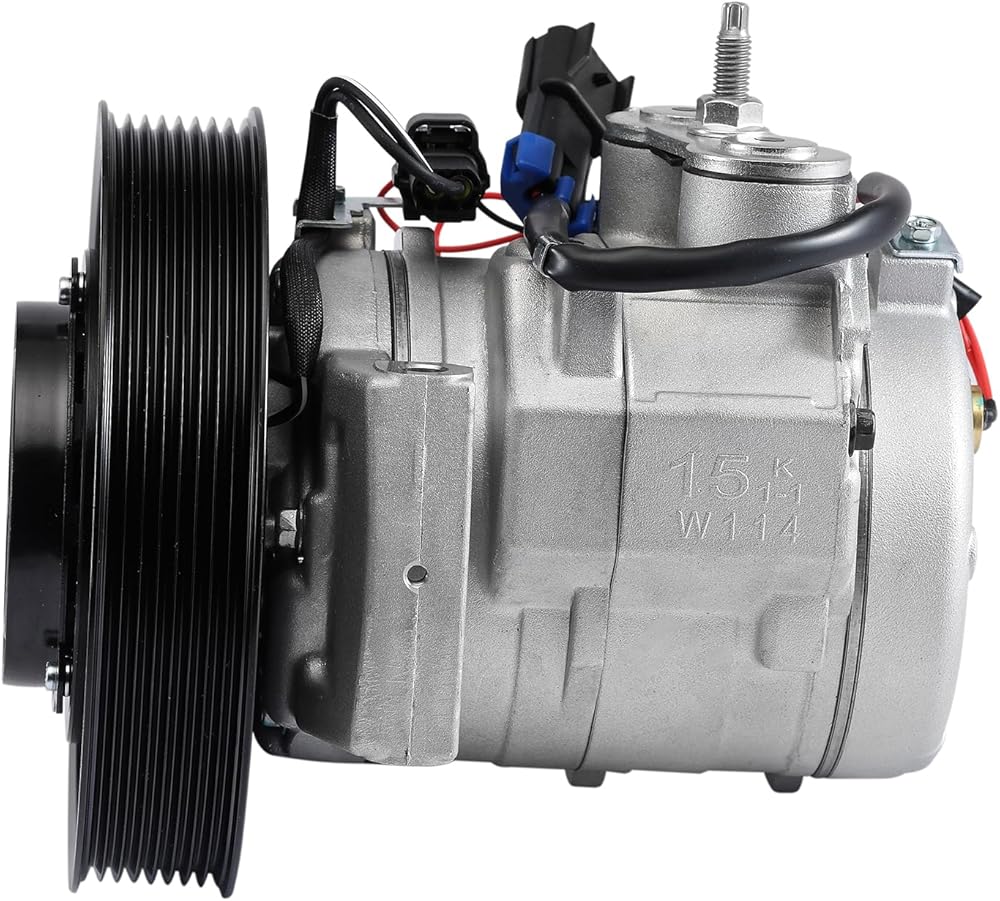

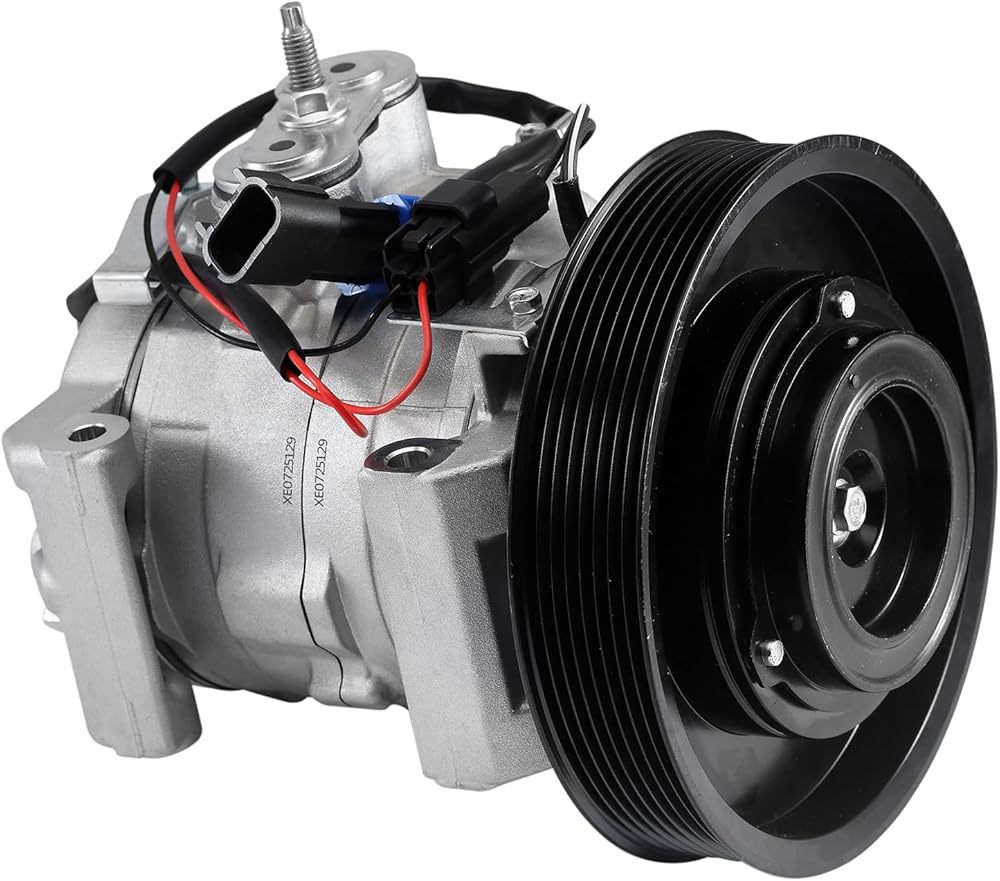

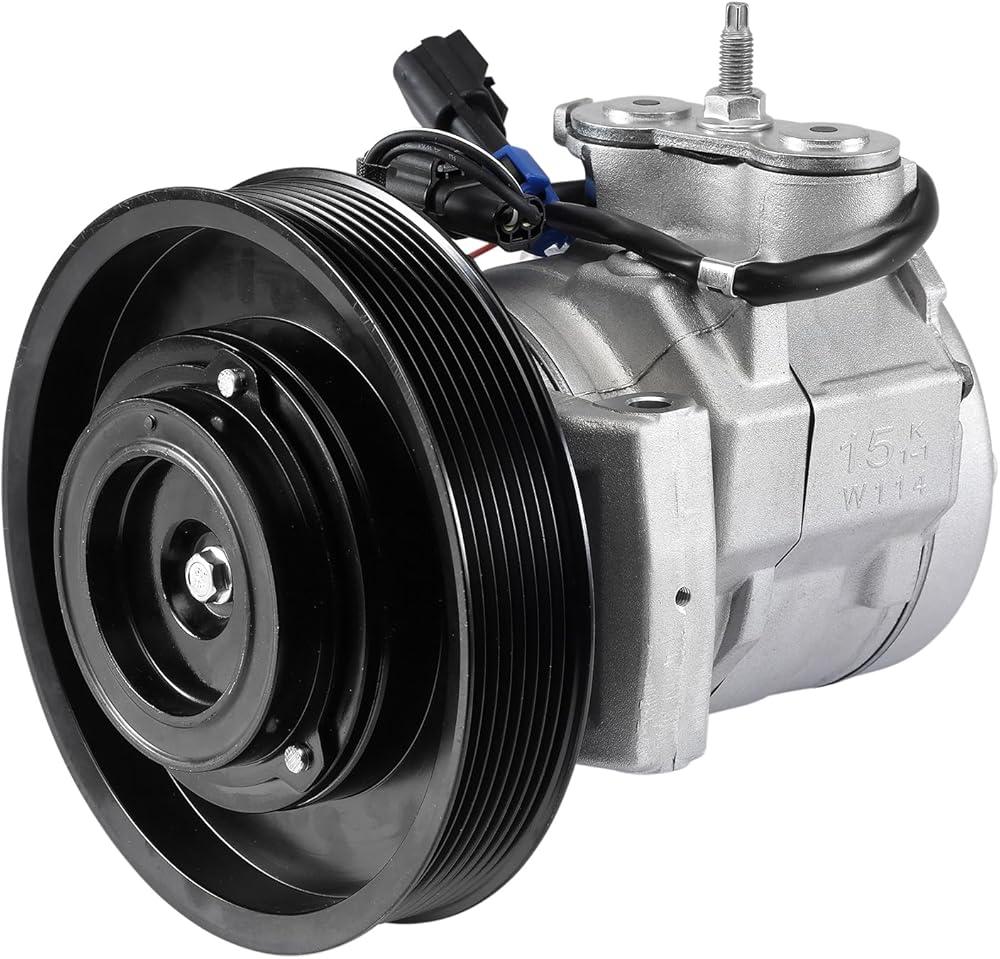

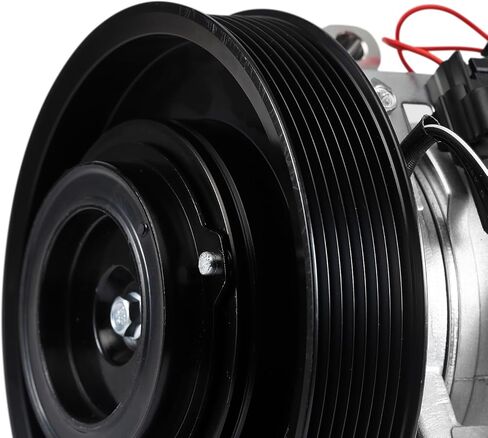

Name: ضاغط مكيف الهواء للخدمة الشاقة لـ Freightliner Cascadia DD13 DD15 (2008-2024)، 10S15C، PV8، قابض 157 مم، 12 فولت، 2 دبوس، خط قياس 61.55 مم
Brand: CASA TRUCK
Availability: InStock

مميزات خاصة

1. Vehicle Application Heavy duty A/C compressor designed for Freightliner Cascadia (2008–2018) and New Cascadia (2018–2024) equipped with DD13 / DD15 engines. OE-geometry replacement. Not a universal compressor.
2. OE / Aftermarket Cross Reference Direct aftermarket replacement for the following OEM and aftermarket part numbers: 53-8150, S-23228, Freightliner 22-65771-000, Freightliner 22-65771-001, Sunair CO-1062CA, Automann 830.31302BE, and OE references 5405, 75R9082, 2265771000, 2265771001, 2275520000, ACP650000S / ACP 650 000S, RD5146450P, 22-75520-000.

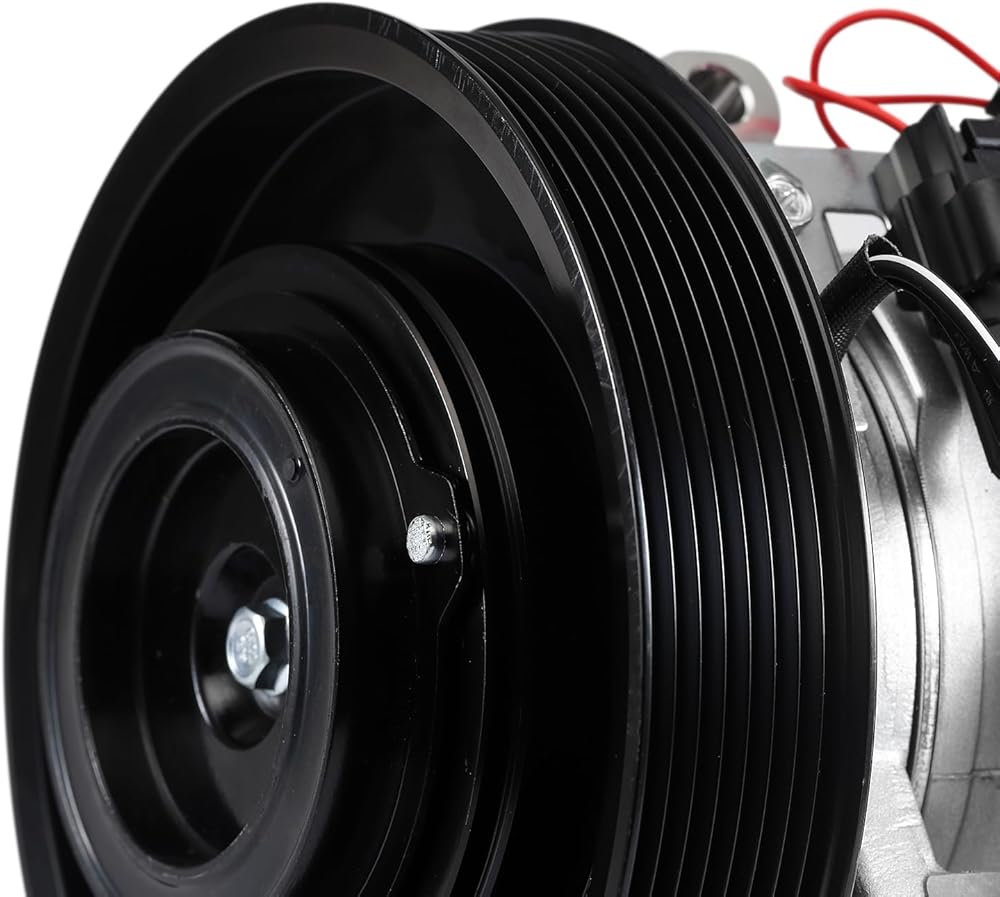

3. Compressor & Clutch Specification 10S15C swash plate compressor with PV8 (8-groove) clutch pulley. Nominal clutch working diameter 157 mm, Pulley effective diameter: Ø163 ± 0.3 mm，Pulley max outer diameter (tooth tip): Ø168 ± 0.3 mm matched to OE belt drive configuration.

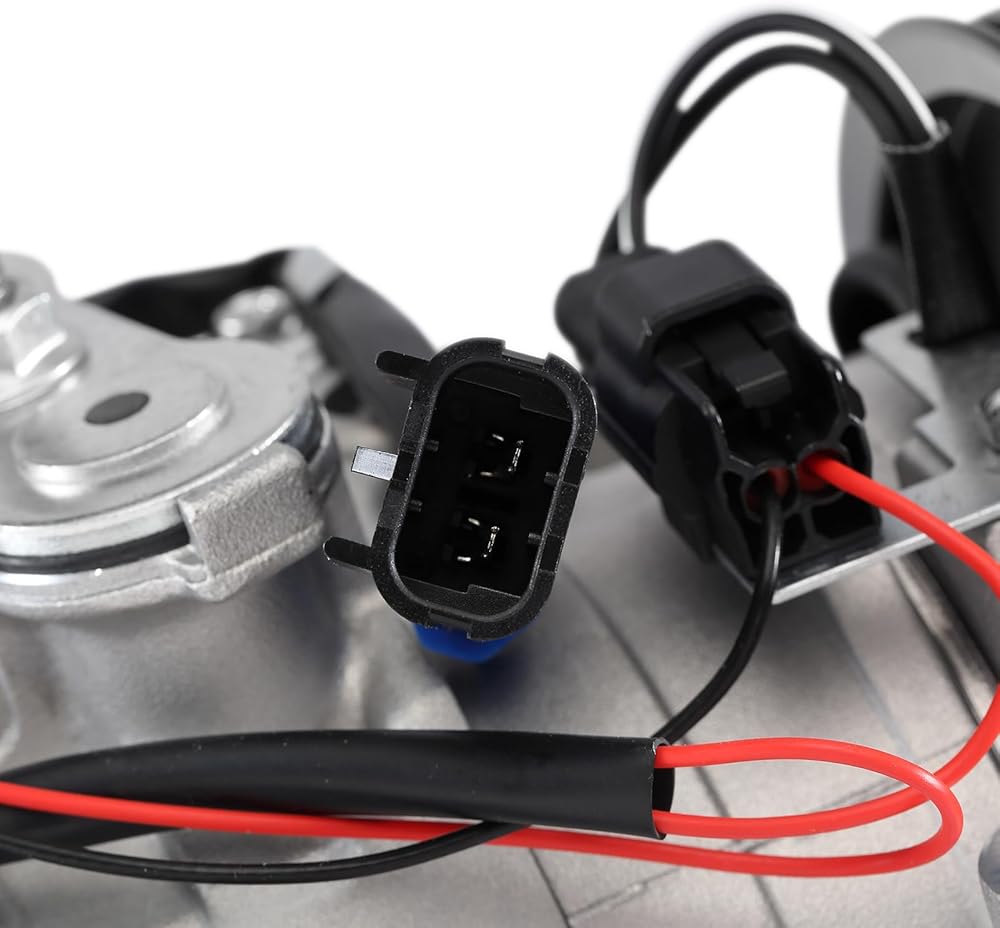

4. Electrical & Belt Alignment Accuracy 12V electromagnetic clutch, 2-pin electrical connection. Gauge Line: 61.55 mm (measured from mounting face to pulley centerline) ensures proper belt alignment on DD13/DD15 accessory drive systems.
5. Installation Notes OE-style direct-fit installation using factory mounting points and hose connections. Sold individually (1 compressor per package). Confirm part number, gauge line, and connector type prior to installation.

وصف

This CASA TRUCK heavy-duty A/C compressor is engineered based on OE geometry for Freightliner Cascadia platforms with DD13 and DD15 engines.The compressor features a 10S15C swash-plate design, PV8 clutch system, 12V 2-pin connector, and a precisely matched 61.55 mm gauge line, ensuring correct belt alignment and compatibility with factory accessory drive systems.Designed as a direct aftermarket replacement for OE and major aftermarket references, including Freightliner, Sunair, and Automann part numbers
Technical Specifications
Brand: CASA TRUCK
Product Type: Heavy Duty A/C Compressor
Compressor Type: 10S15C
Clutch Type: Poly-V
Grooves: PV8 (8-Groove)
Clutch Diameter (Nominal): 157 mm
Pulley Effective Diameter: Ø163 ± 0.3 mm
Pulley Max Outer Diameter (Tooth Tip): Ø168 ± 0.3 mm
Voltage: 12V
Connector: 2-Pin
Oil Type: PAG Oil (per vehicle A/C system specification)
Gauge Line: 61.55 mm
Quantity: 1 Compressor (Sold Individually)
·
