Customizable Wire Length:Available in 1M to 5M lengths to fit various application needs.
High Temperature Range:Measuring up to 800°C, this sensor is ideal for extreme environments.
Material:Crafted from 304 stainless steel, the probe is waterproof and antirust.
Versatile Thread Options:Comes with NPT 1/4" thread for easy installation and compatibility.
Wide Measuring Range:K Type offers 32~1472°F, while PT100 Type spans -328~842°F.
وصف
Temp Control Sensor

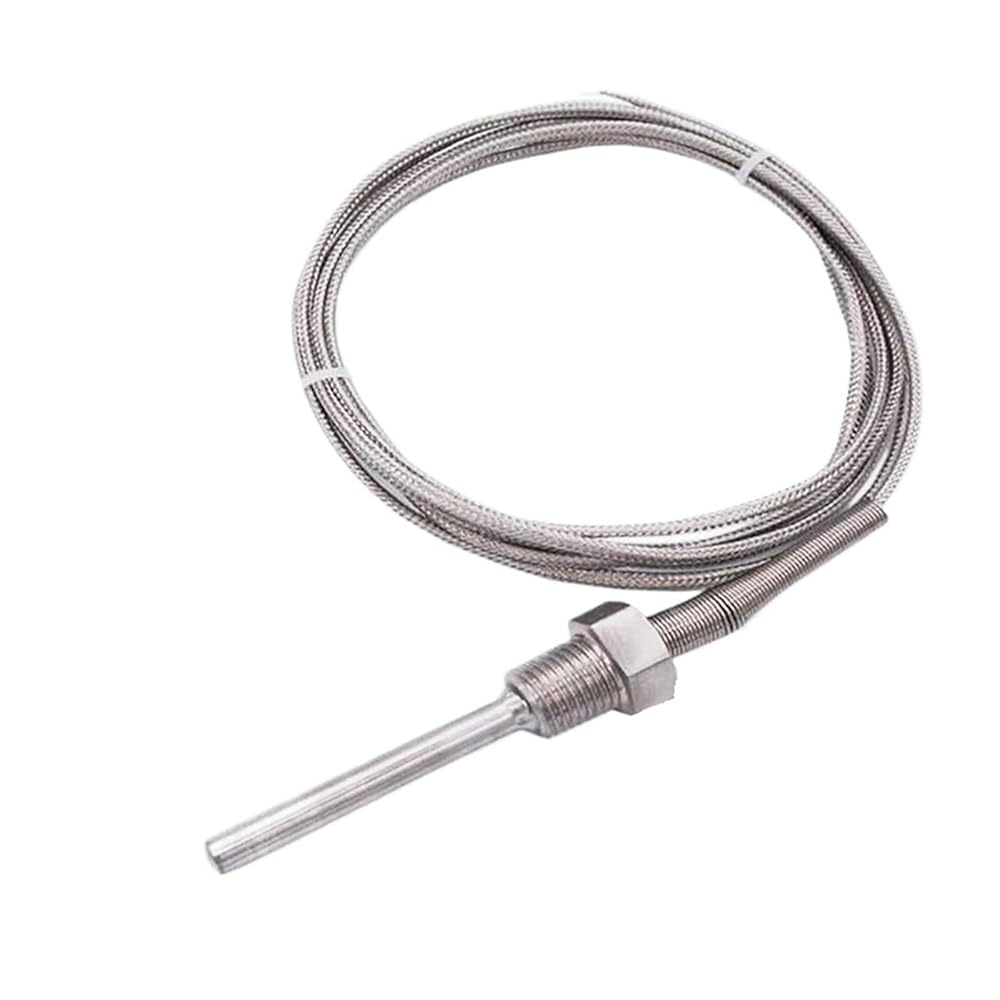

800°C Degree High Temperature Sensor Thread NPT 1/4 Stainless Steel Probe K Type PT100 Thermocouple Tube Temperature Controller
K Type:Measuring Range 32~1472°F (0~800°C)
PT100 Type : Measuring Range -328~842°F (-200~450°C)
Probe Material:304 Stainless steel; Terminal: 2 Insulated forks(K Type);3Insulated forks(PT100 );Wire length: 1M,2M,3M,4M,5M
Probe size:6mmx50mm/,6mmx100mm,6mmx150mm,6mmx200mm
Thread :NPT 1/4"inch
How to use :Connect the red fork to the" + "positive pole , and the blue ones are for "-" negative pole
Package Include:1 x Temperature Sensor Probe
This product is made of waterproof and antirust 304 stainless steel, 100% and . This product is only a substitute for your equipment. Connect the red fork to the "+"positive pole and the blue to the "-"negative pole.
==========
Battery Included : No
Hign-concerned Chemical : None
Measure Type : K
Screw : 1/4'
Cable Length : 5m
Type : K
Theory : Temperature Sensor
Certification : None
Origin : Mainland
Max Measuring Temperature : 120°C & Above
Style : Embedded
Type : K Type;PT100 Type
Probe Material : 304 Stainless steel; Terminal: 2 Insulated forks; Thread: 2-3 Meters
Package Include : 1 x Temperature Sensor Probe
