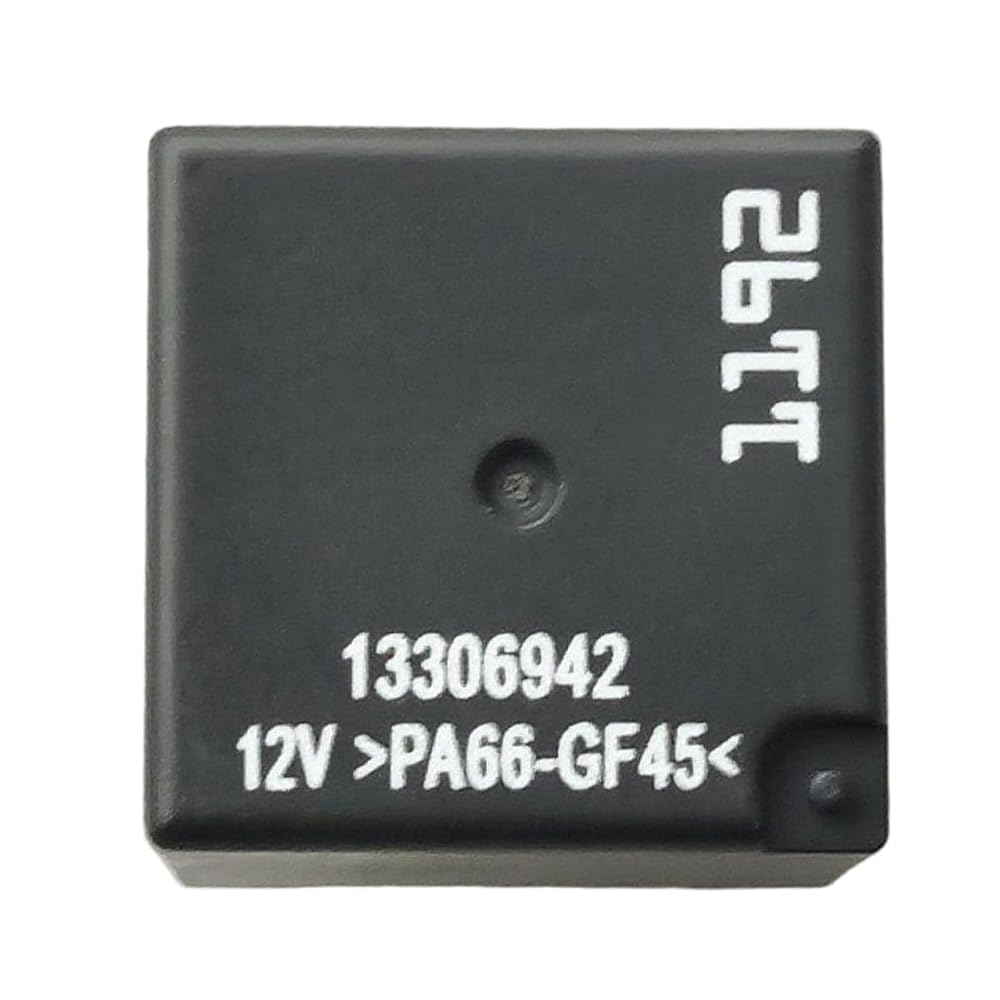

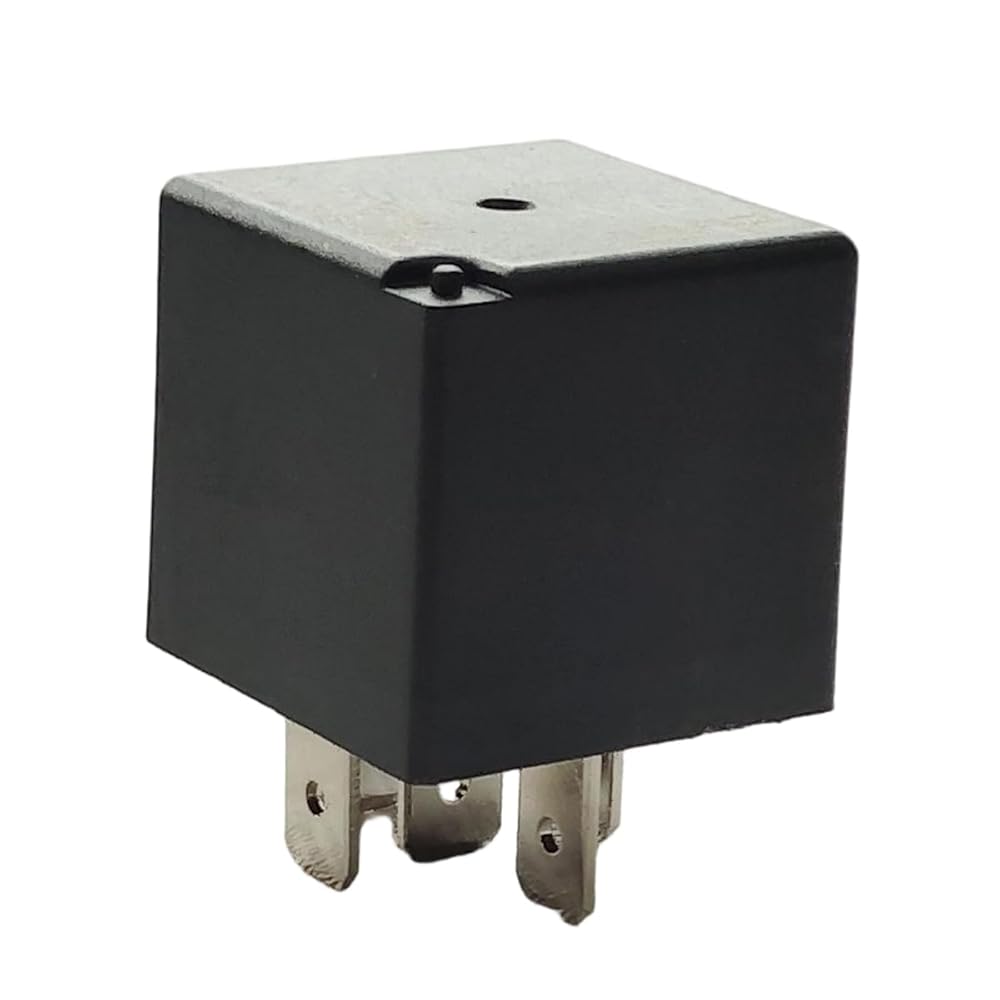

Specs & OE: 12V plug-in micro ISO relay, 5-pin SPDT (“1192” footprint), blade terminals. Function: ECM/ECU/PCM power control in the engine bay fuse block. Replaces OE# 13306942 (superseded by 13468935); also cross-refs 56-2728, 1R3310, 16152. Size and pin-out match the original; no programming. Match your old relay's 5-blade layout before purchase.
Install & Location: Mounts in the engine-compartment fuse/relay center; pull the old 5-pin relay straight out and push the new one fully home. Disconnect the negative battery terminal first and follow your owner's/service manual for slot orientation. A failing ECM/PCM relay may cause hard/no-start, intermittent stalling, loss of ECM power, or related U0100/U0101-type communication DTCs.
Fitment — Chevrolet (1/3): Compatible with Chevrolet Camaro 2010, 2011, 2012, 2013, 2014, 2015 Engine Compartment Fuse Block ECM/PCM Relay; Compatible with Chevrolet Cruze 2011, 2012, 2013, 2014, 2015 Engine Compartment Fuse Block ECM/PCM Relay.
Fitment — Chevrolet (2/3): Compatible with Chevrolet Impala 2015, 2016, 2017, 2018 Engine Compartment Fuse Block ECM/PCM Relay; Compatible with Chevrolet Malibu 2016, 2017, 2018 Engine Compartment Fuse Block ECM/PCM Relay.
Fitment — Chevrolet (3/3): Compatible with Chevrolet Orlando 2012, 2013, 2014 Engine Compartment Fuse Block ECM/PCM Relay; Compatible with Chevrolet Volt 2012, 2013, 2014, 2015 Engine Compartment Fuse Block ECM/PCM Relay.
Supersession & Interchange: 13306942 is superseded by 13468935 per GM parts databases; using 13468935 for lookup yields the same micro-relay used on the above platforms. When replacing, match the 5-blade “1192” micro ISO footprint.
Complementary Items (sold separately): For a complete under-hood refresh, pair with Compatible with GM 13500126 black multi-purpose relay (commonly used for wiper and auxiliary circuits) and Compatible with GM 15328864 A/C compressor relay (4-pin). Replacing these related relays together can help eliminate intermittent issues with ECM, A/C, and wiper loads in one service.
Description
This plug-in micro relay restores reliable power delivery to the engine control module on many GM platforms.
Key SpecificationsVoltage: 12V DC

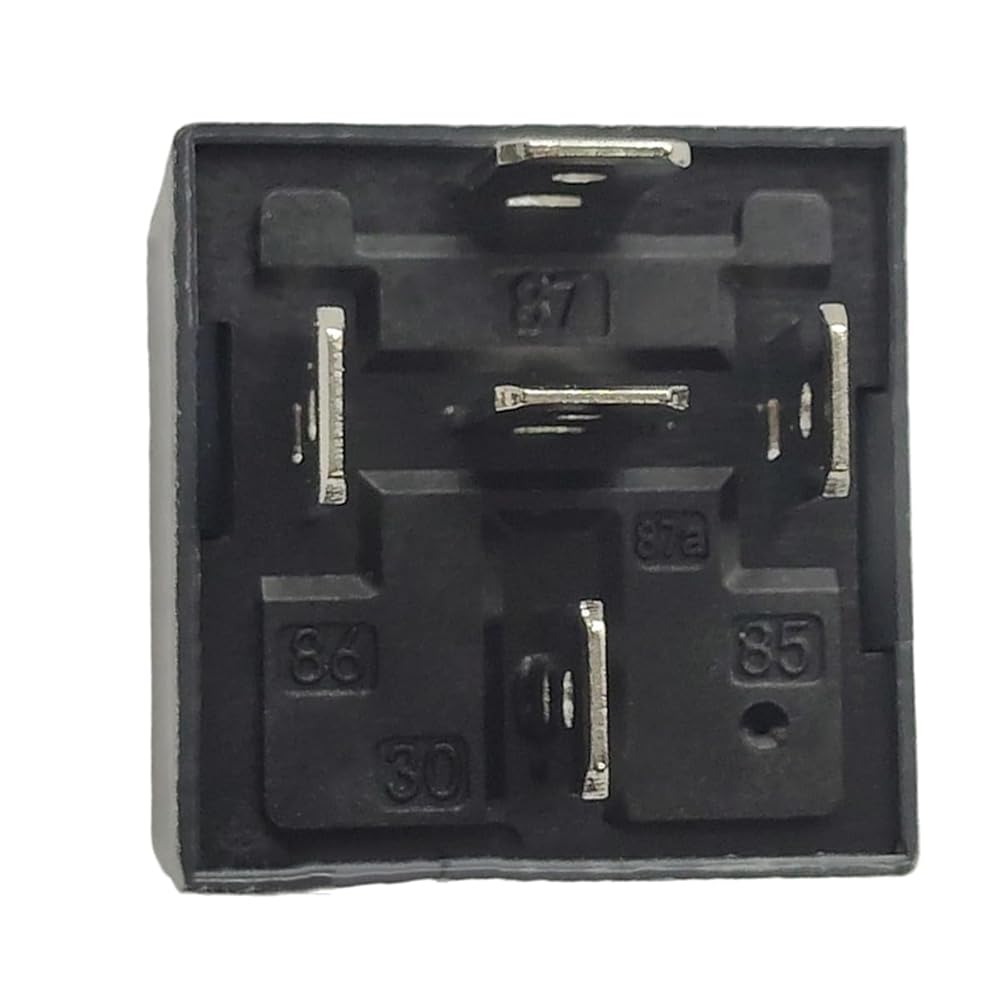

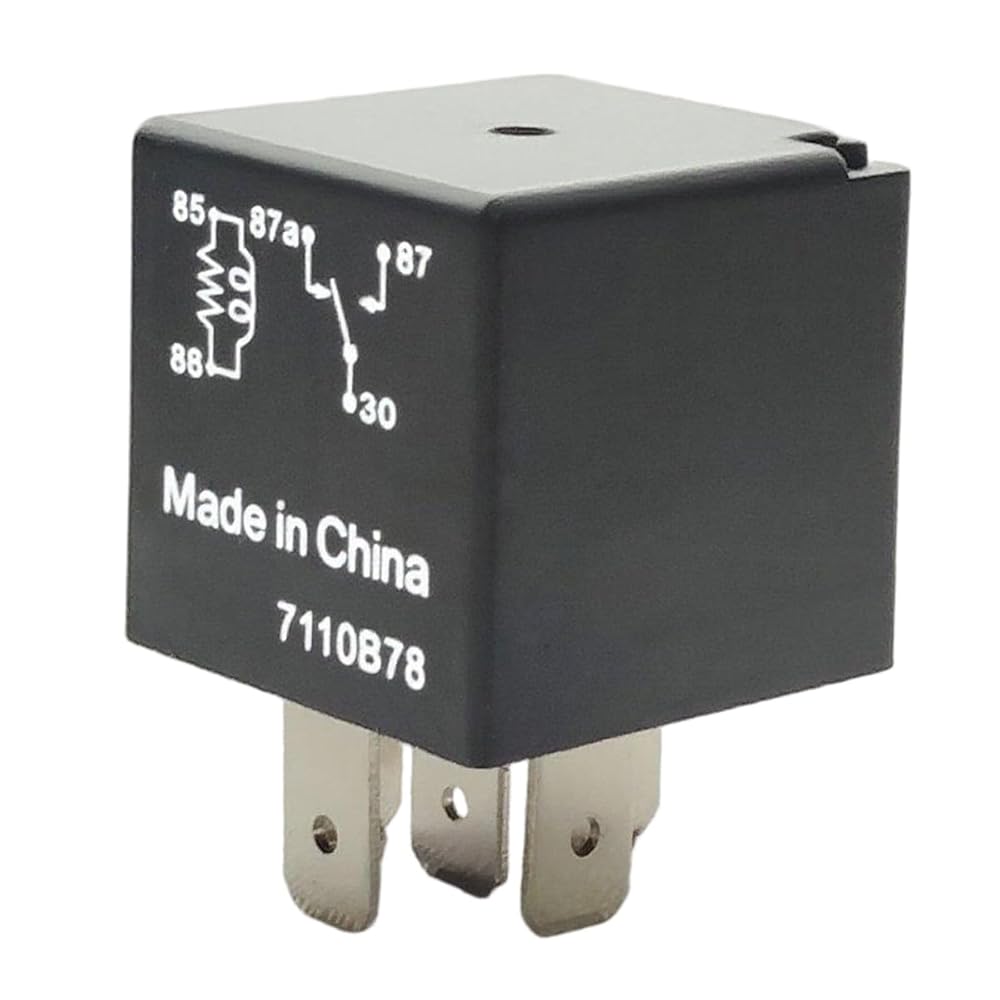

Type: Micro ISO, 5-pin SPDT (“1192” footprint), blade terminals
Function: ECM/ECU/PCM power control relay (underhood fuse/relay center)
Package: 1 × relay (no bracket required)
OE & InterchangeReplaces OE: 13306942 (superseded by 13468935)
Cross-references: 56-2728, 1R3310, 16152
Install NotesDisconnect the negative battery terminal.
Pull the old relay straight up from the engine-bay fuse block and seat the new relay firmly in the same slot.
Verify the pin layout and slot orientation in the owner's/service manual.
Typical Symptoms of a Failed ECM/PCM RelayNo-start or intermittent stalling
Loss of ECM power or communication DTCs (e.g., U0100)
Intermittent power to fuel/ignition controls traced to relay
Suggested Complementary Service Items (sold separately)Compatible with GM 13500126 multi-purpose relay (micro ISO; often used for wiper/aux loads)
Compatible with GM 15328864 A/C compressor relay (4-pin)
Always confirm by part number and pin layout. Vehicle fitment should match 13306942/13468935 applications.
