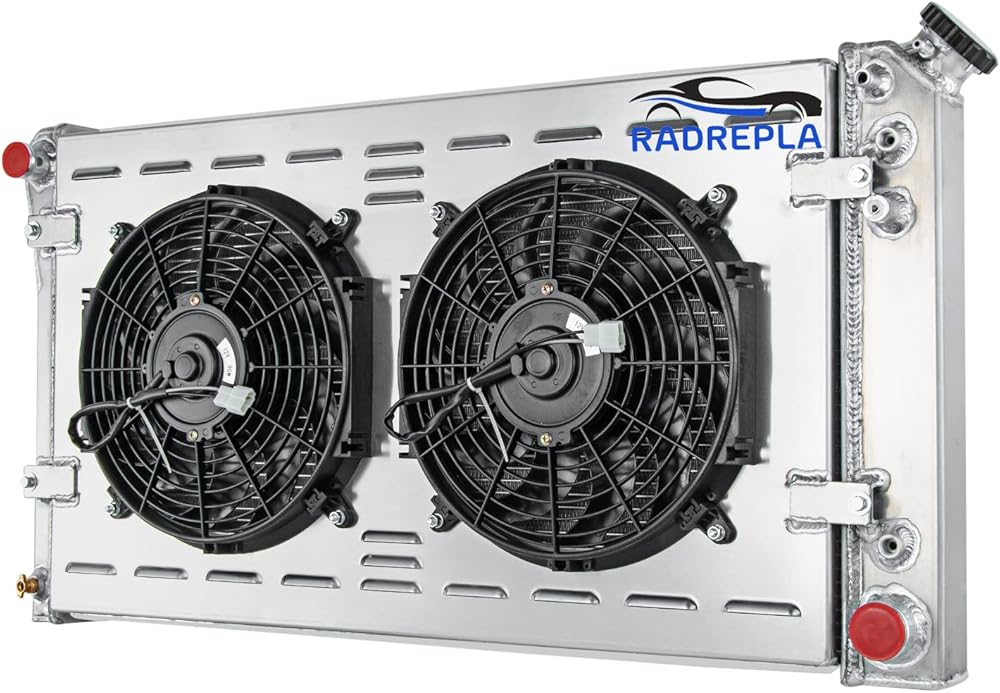

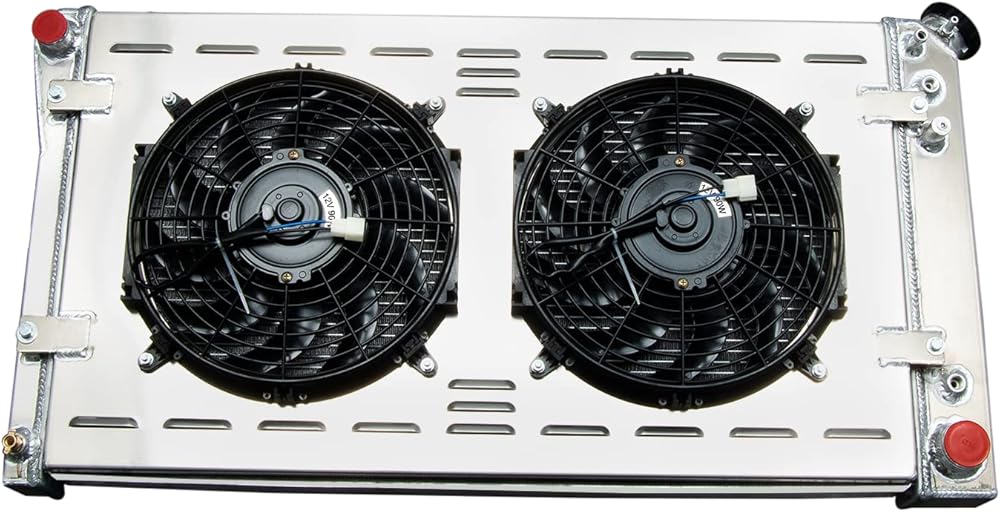

Package Include
1 x 3-Row AA5052 Aluminum Radiator
1 x CNC Machined Radiator Cap
1 x AA5052 Aluminum Shroud
2 x 12" Fans (Includes mounting kits)
1 x Thermostat Relay Kit

Fitment
The Radiator Compatible with:
For Chevy Caprice 5.0L or 5.7L V8 Engine Without Eoc (Engine Oil Cooler); Without Lci; 1991-1991
For Chevy Caprice 4.3L V6 / 5.0L or 5.7L V8 Engine Without Eoc ; Without Lci; 1992-1993
For Oldsmobile Custom Cruiser 5.0L V8 Engine Without Eoc 1991-1991
For Oldsmobile Custom Cruiser 5.0L or 5.7L V8 Engine Without Eoc 1992-1992
For Buick Roadmaster 5.7L V8 Engine Without Eoc;1992-1993
Without Eoc With Toc: 11-1/2"

Manufacturer Part Number: DPI1210, CC1210, CU1210, KKS1210, SBR1210
Interchange Part Number: 52476719, 8011211, RA1143, 1605-370070, 3431, 1212
Superseded Part Number: 52480055, GM3010136

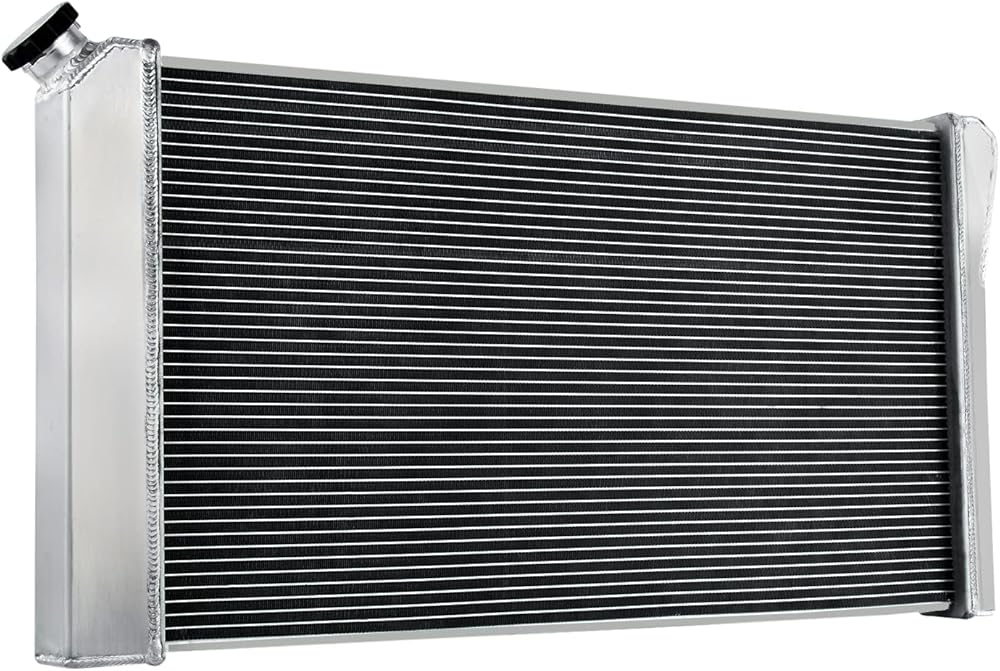

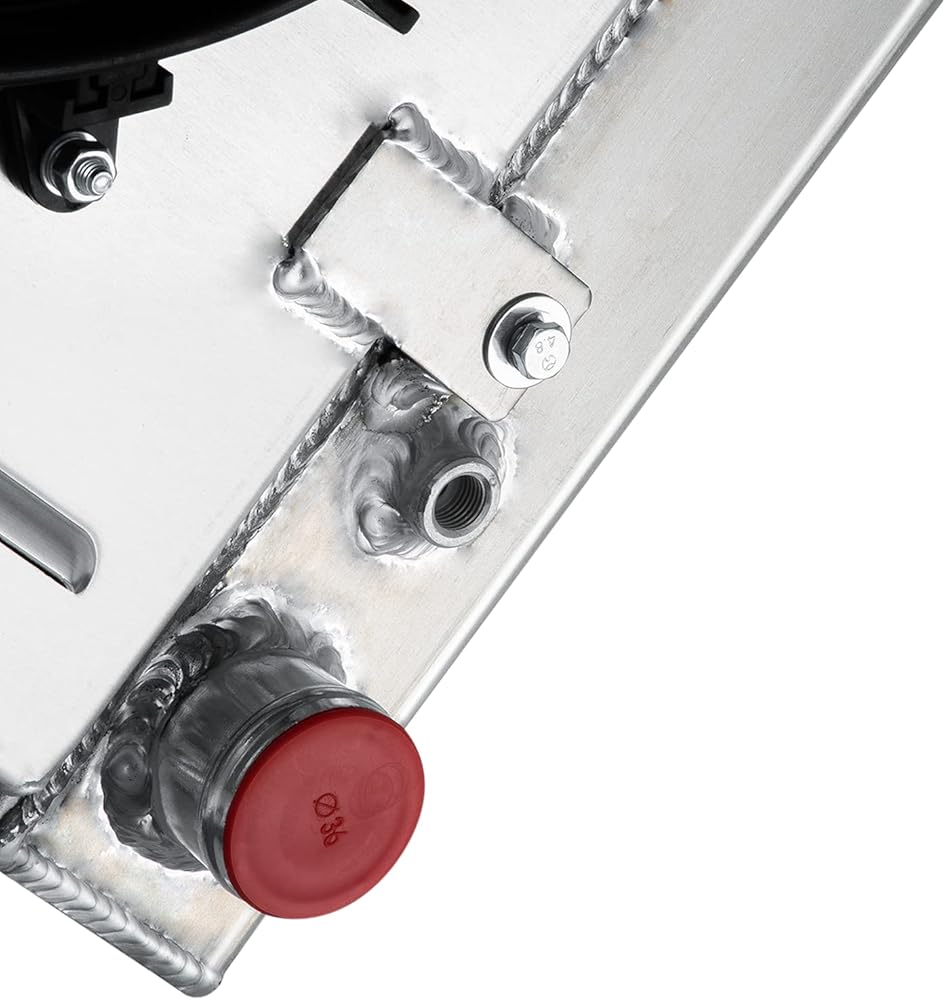

Radiator Details
Row Count: 3 Row
Core Size: 34.06"H x 17.24"W x 1.73"T
Overall Size: 36.61"L x 19.29"W

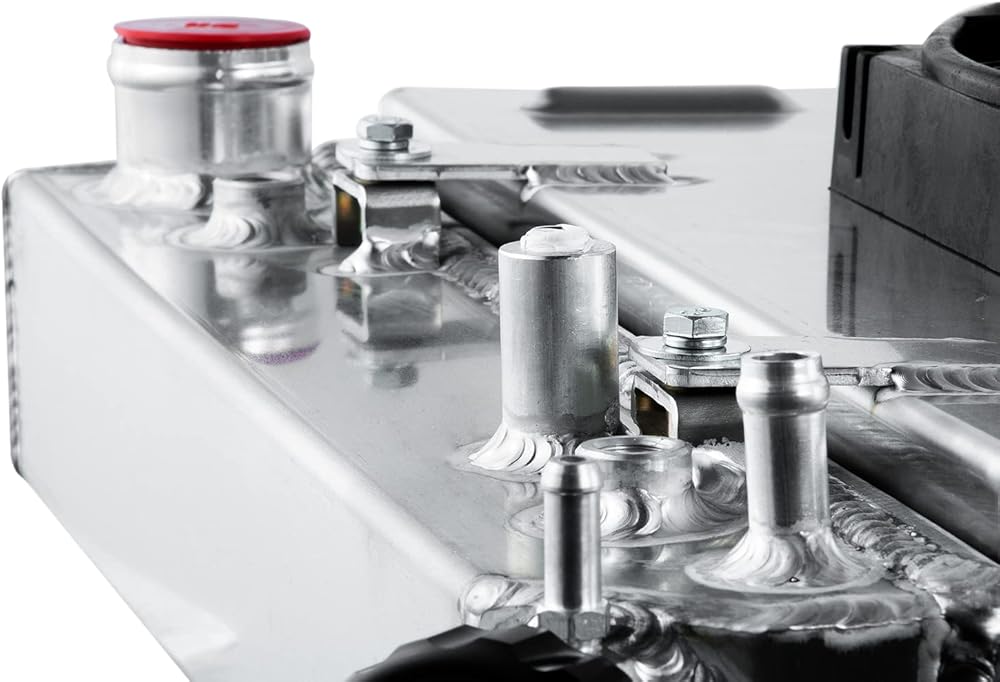

Inlet/Outlet: 1.57"/1.26"
Transmission oilcooler: Yes
Placement on Vehicle: Engine Compartment
Mounting Style: Bolt-On

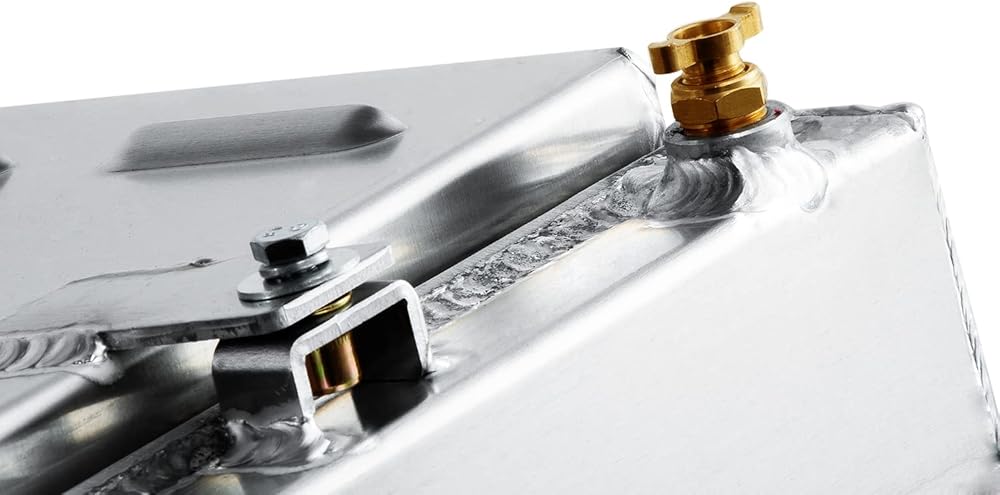

Petcoke Drain: OEM Style Brass Petcoke Drain

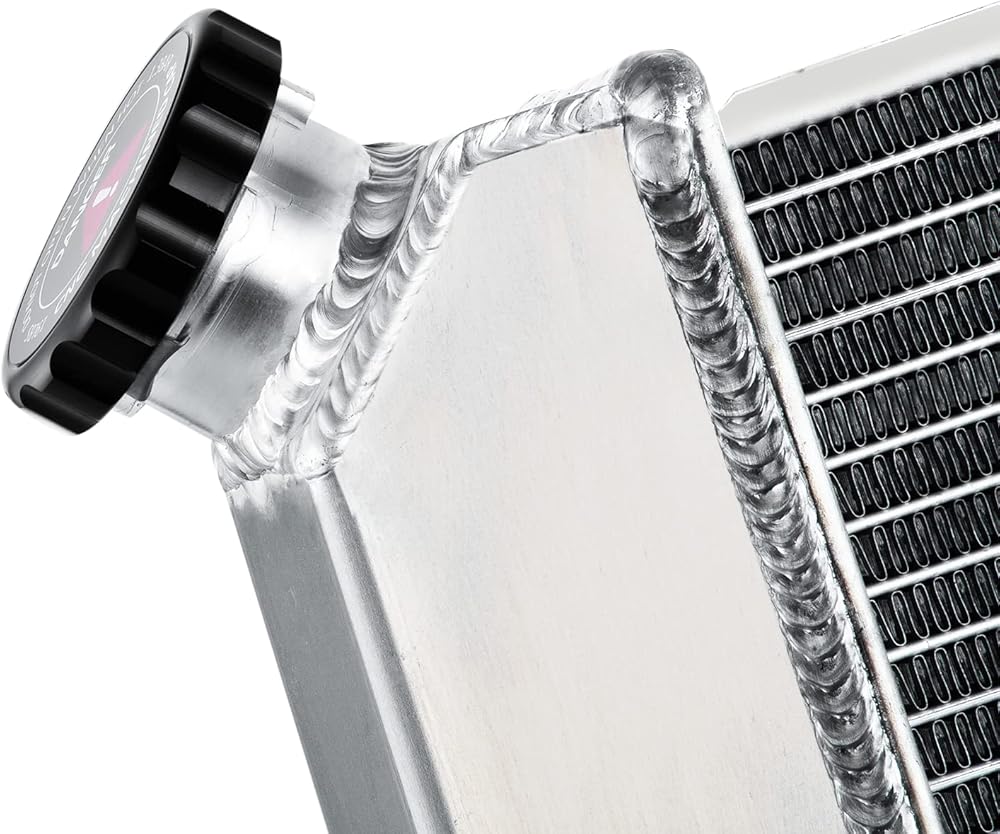

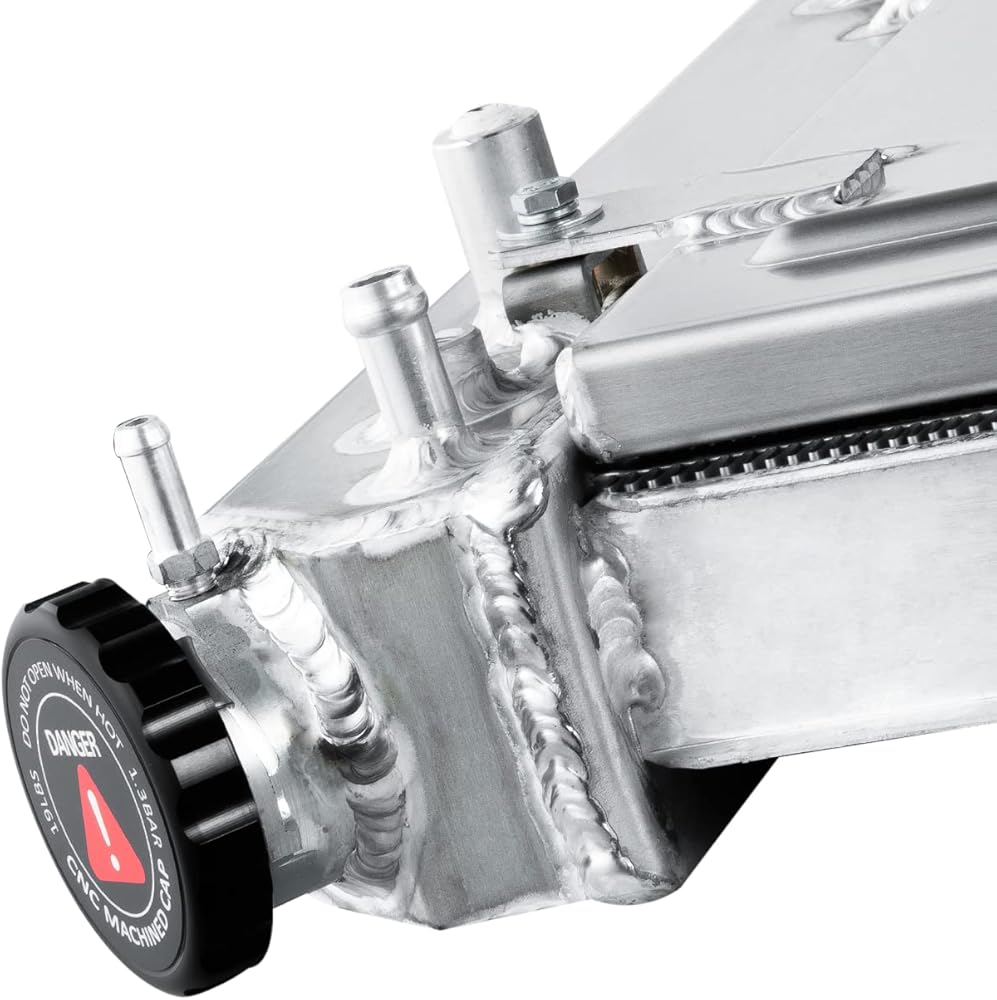

Radiator Cap: CNC Machined Filler Neck And Cap

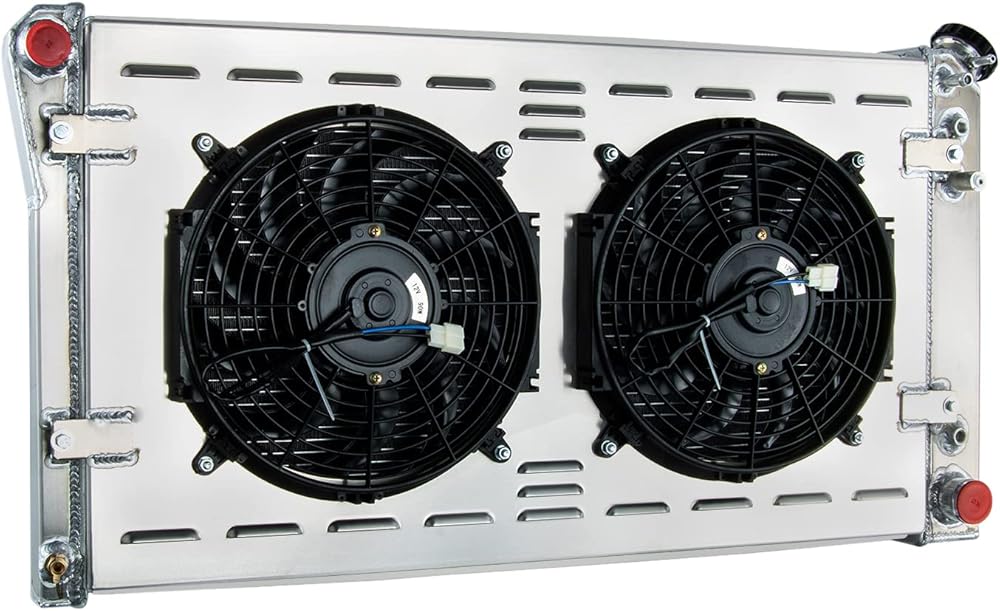

Fan Details
Maximum Fan CFM: 2300±200
Fan Diameter x Height x Thickness:12.05" x 12.05" x 2.5"
Number of Blades: 10 blades (Plastic)
Amp Draw: 12.70 amps
Maximum Fan RPM: 2,250 rpm

Relay Kit Instructions
RED + connect directly to battery.
WHITE wire to ignition switch power source.
BLACK goes to thermos switch.
BLUE wire goes to the Fans.

Thermostat Relay Kit
Universal fit for any automotive vehicle and electric fan.
Activates by grounding electric fans at preset temperature.
180'F turn-on temperature, 165'F turn-off temperature.
3/8" NPT thread-in brass probe w/ 1/2" NPT adapter included.
Probe typically threads into radiator, water outlet or manifold.
