Application:

For GS300/TOYOTA ARISTO JZS147 2JZ-GE 3.0 MT 91-97

Radiator Specs:

High Performance Racing Spec.

3-Row of tubes Core Racing Design

Core Size : 15 2/3" × 29"

Overall Size：21" × 30 1/9"

Upper Inlet：1 3/8"

Lower Outlet：1 1/2"

OEM Style Brass Petcock Drain.

CNC Machined Billet and High Pressure Radiator Cap 1.3 Bar

Transmission Oil Cooler: Not Included

Fans Specs:

Volt :12v

Maximum Fan CFM: 1730 cfm

Fan Diameter (in): 12.050”

Number of Blades: 10 S-Type blade

Maximum Fan RPM: 2,250 rpm

Blade Material: Plastic

Amp Draw: 12.70 amps

Includes the Mounting Tabs for an Easy Zip Tie Installation

Thermostat Kit Installation:

Universal fit for any automotive vehicle and electric fan.

Activates by grounding electric fans at preset temperature.

180'F turn-on temperature, 165'F turn-off temperature.

Probe typically threads into radiator, water outlet or manifold.

Package Include:

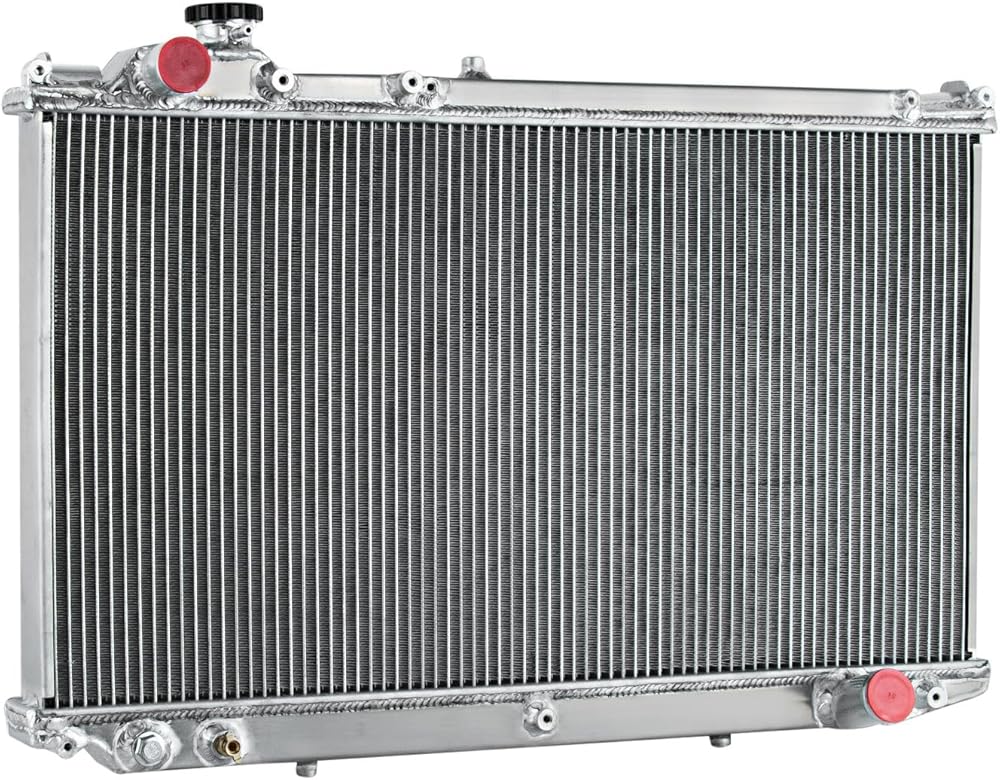

1 X 3-Row AA5052 Aluminum Radiator

1 X CNC Machined Radiator Cap

1 X AA5052 Aluminum Shroud

2 X 12" Fans (Includes mounting kits)

1 X Thermostat Relay Kit

Features:

- Made from Aircraft AA5052 grade aluminum for prolonged lifespanand with raw aluminum finish

- Brazed core technology to guarantee optimum performance and dependability

- All AA5052 Aluminum 2mm thick tanks and fittings, ensure it's hard and durable

- Billet Aluminum CNC machined fill neck rugged and durable

- Ergonomic design CNC machined cap with engraved craftsmanship, anodized treatment

- OEM style brass petcock drain much better than other plastic one
