Resistors

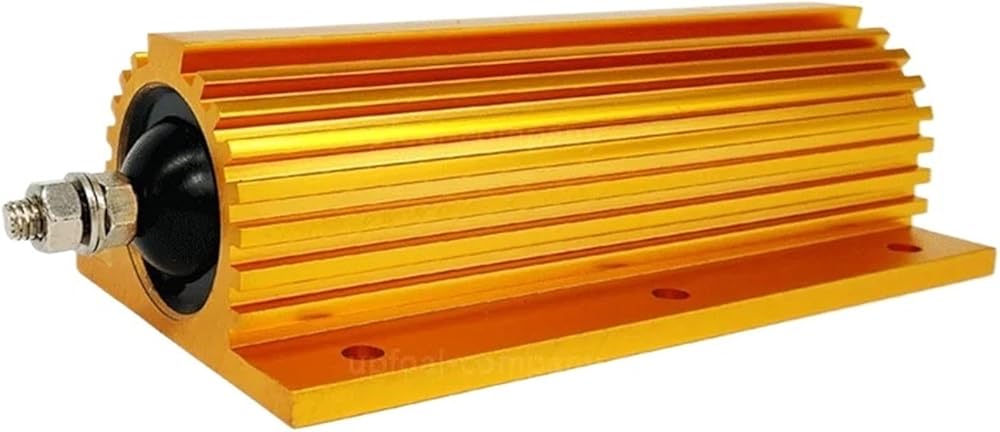

RXG24 Aluminum housed resistor,golden aluminum shell resistor.100w 150w 200w 250w 300w 500w,Discharge resistor,Decoding resistor
Technical Parameters:
Rated power
Resistance range ()
Resistance accuracy(%)
Temperature Coefficient(x10-6/)
Insulation voltage(V)
Maximum voltage(V)
5w
0.01-1k
F(±1%)
J(±5%)
±100
±50
1000
1500
10w
0.01-1.5k
25w
0.01-7.5k
30w
0.01-10k
50w
0.01-15k
75w
0.01-20k
2000
3000
100w
0.01-24k
150w
0.01-30k
200w
0.01-36k
250w
0.01-39k
300w
0.01-47k
500w
0.01-51k
800w
0.01-1k
1000w
0.01-1k
Drawing:
Power
A±0.2
B±0.2
C±0.2
D±0.2
K±0.2
H±0.2
M±0.2
G±0.2
±0.2
J±0.2
75W
66
48
26
26.8
3.5
11.5
35
37
5 M4
100W
98
48
26
26.8
3.5
11.5
35
37
5 M4
150W
136
48
26
26.8
3.5
11.5
56
37
5 M4
200W
92
73
44
45
4 21
35
58
6 M6
250W
112
73
44
45
4 21
45
58
6 M6
300W
128
73
44
45
4 21
52
58
6 M6
500W
200
73
44
45
4 21
86
58
6 M6
