Check Valves

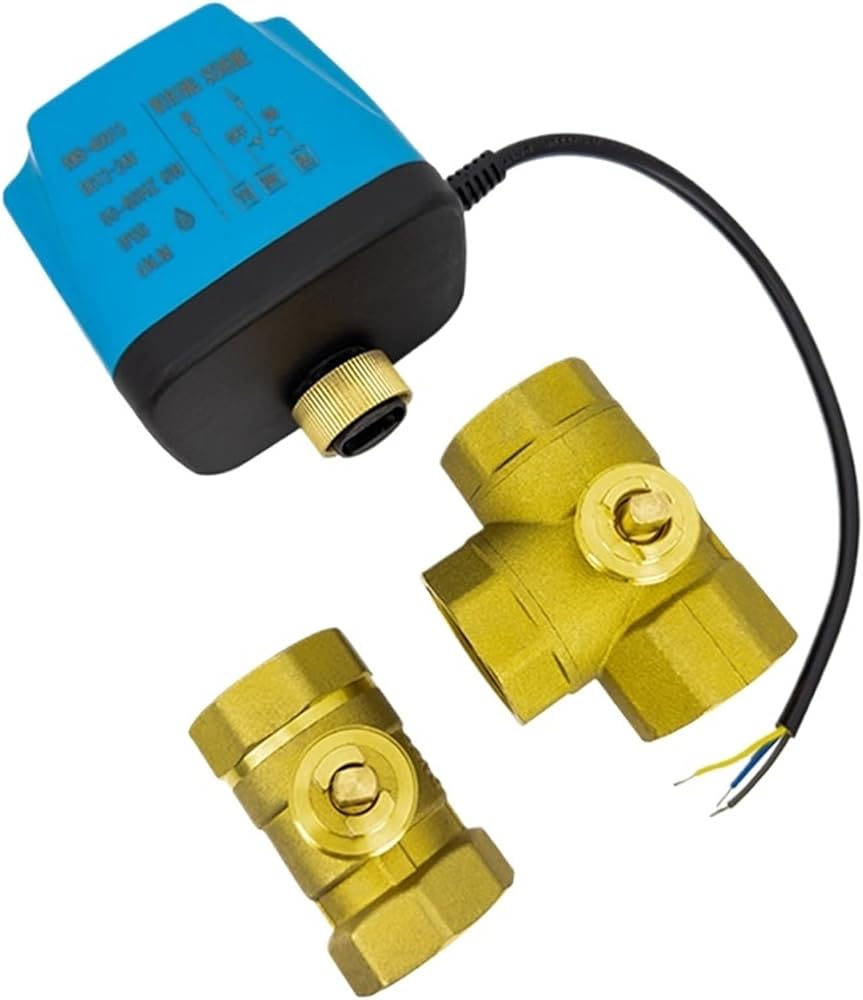

Feature:
3-Wire Two Control
Way:2Ways /3Ways (3Ways is T type)
Open/Close Time: 10S
Maxmum Working Pressure: 1.6 MPa / 232psi;
Voltage:DC12-24V 50/60 Hz AvailableAC220V 50/60 Hz Available
Power: Max is 6W
Torsion:6N
Operation: Motor and hand(with manual switch function)
Life Time: 100000 times;
Material: Brass,ABS plastic
Seal material: EPDM & PTFE;
Enviroment Temperature: 0~ 65 in Celsius;
Medium Temperature: -10~ 120 in Celsiu
Protect Class: IP 54
High-concerned chemical : None
Structure : Ball
Port Size : DN 15/20/25
Media : Water
Material : Brass
Temperature of Media : High Temperature
Standard or Nonstandard : Standard
Pressure : High Pressure
Model Number : -
Power Source : AC

Voltage : AC 220V,DC 12-24V
Brass ball valve dimensions : DC 15/20/25
Applicable temperature : -10T120
Torsion : 6NM
Working pressure : PN16
