Product Description

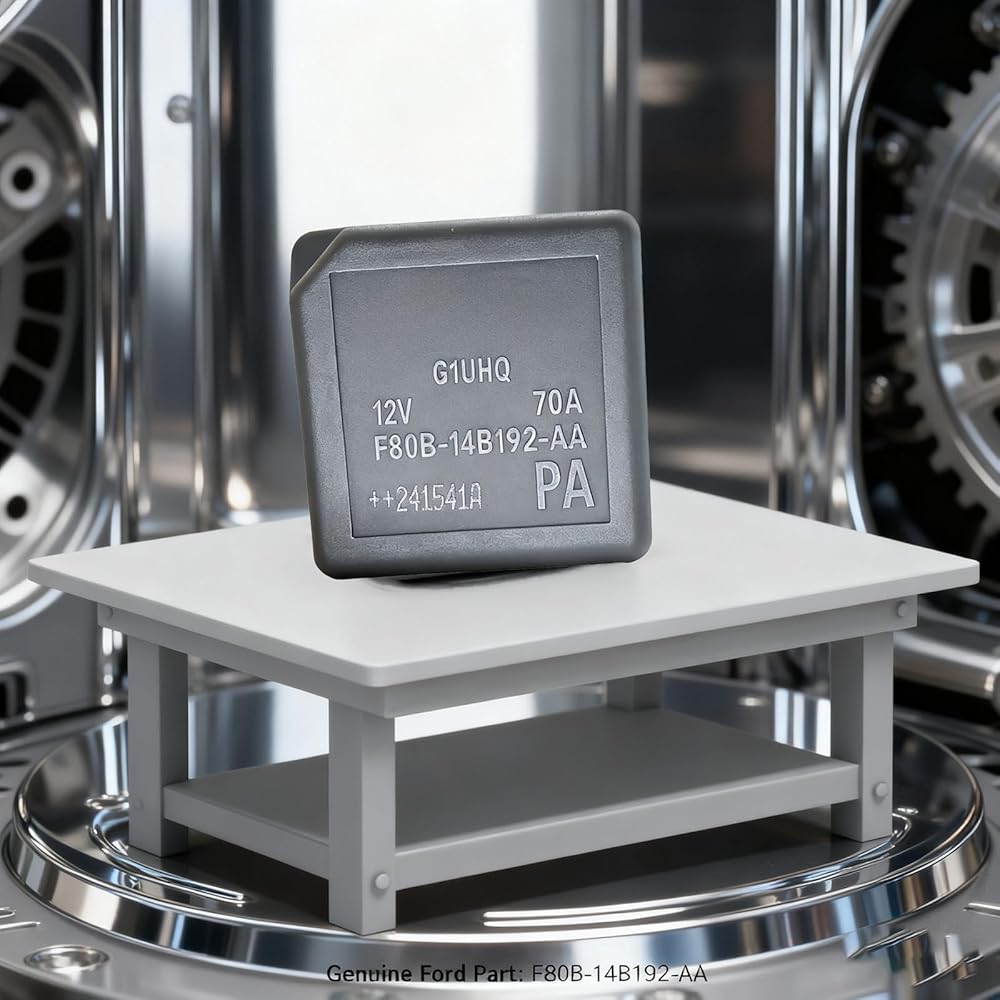

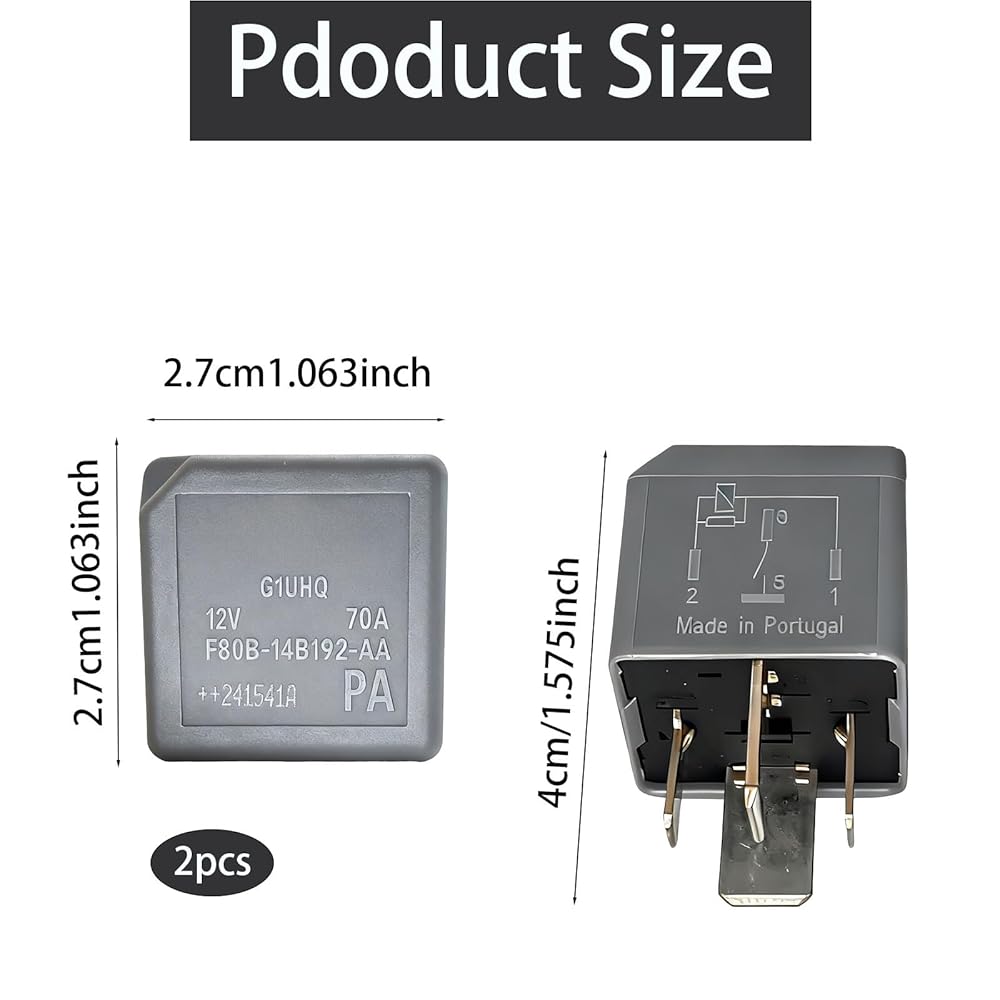

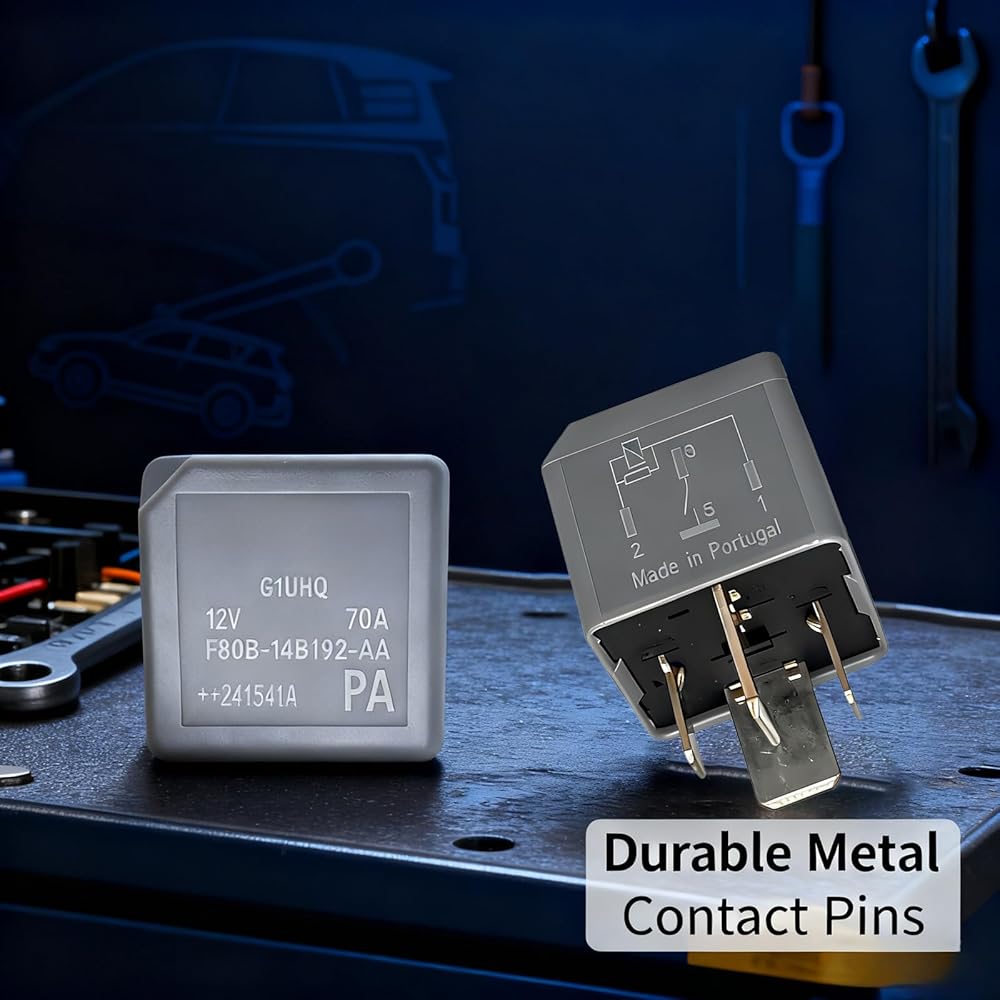

The 5M5T-14B192-EA V23136-J4-X62 Automotive Relay is a heavy-duty 12VDC component engineered for high-current circuits in vehicles and industrial systems. With a 70A load capacity and 4-pin SPST configuration, it reliably controls cooling fans, fuel pumps, and other critical electrical components. Its compact, resin-sealed design ensures durability under extreme temperatures (-40°F to 221°F) and vibrations.
Key Specifications

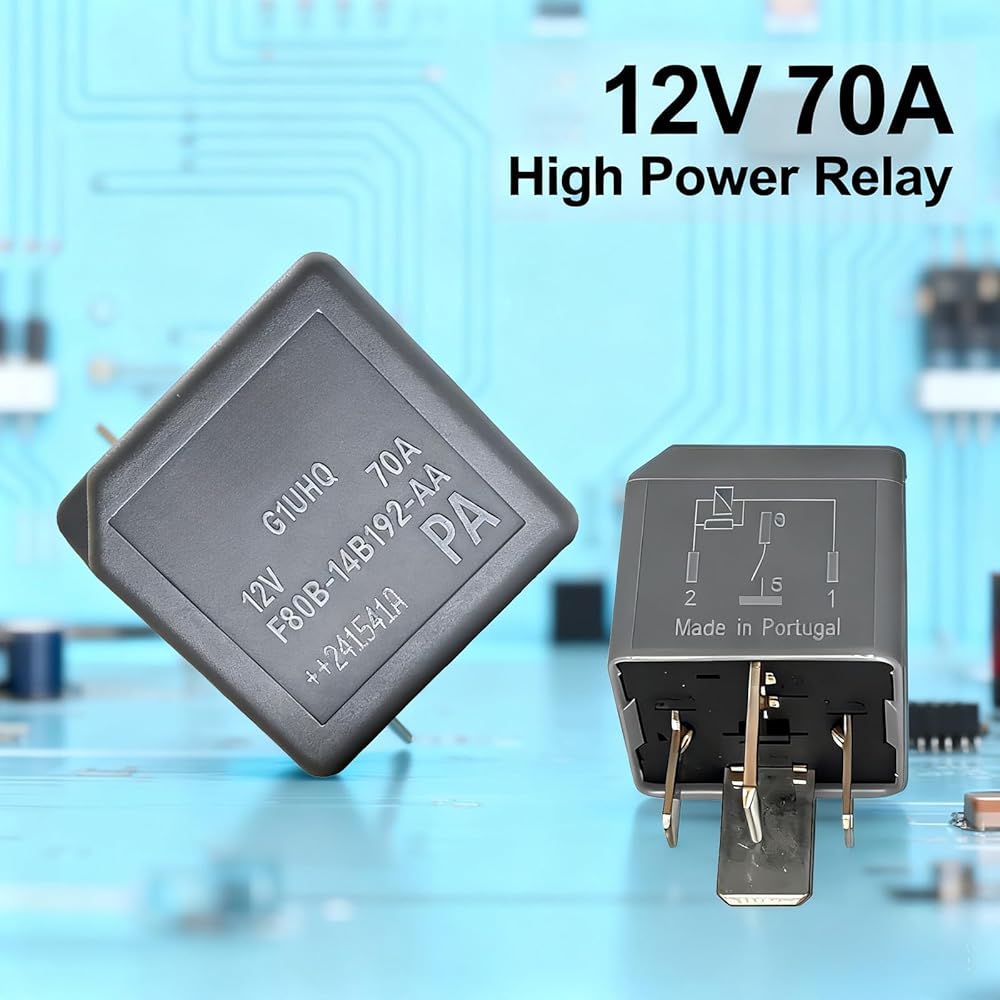

Electrical Ratings: 12V DC operating voltage, 70A continuous current, SPST (Single Pole Single Throw) contacts.
Durability: Silver alloy contacts rated for 100,000+ cycles. Meets EN60335-1 safety standards for automotive applications.
Compatibility: Direct replacement for OEM relays in Ford Escape (2013-2019) and other Ford models. Also compatible with industrial machinery and HVAC systems.
Applications

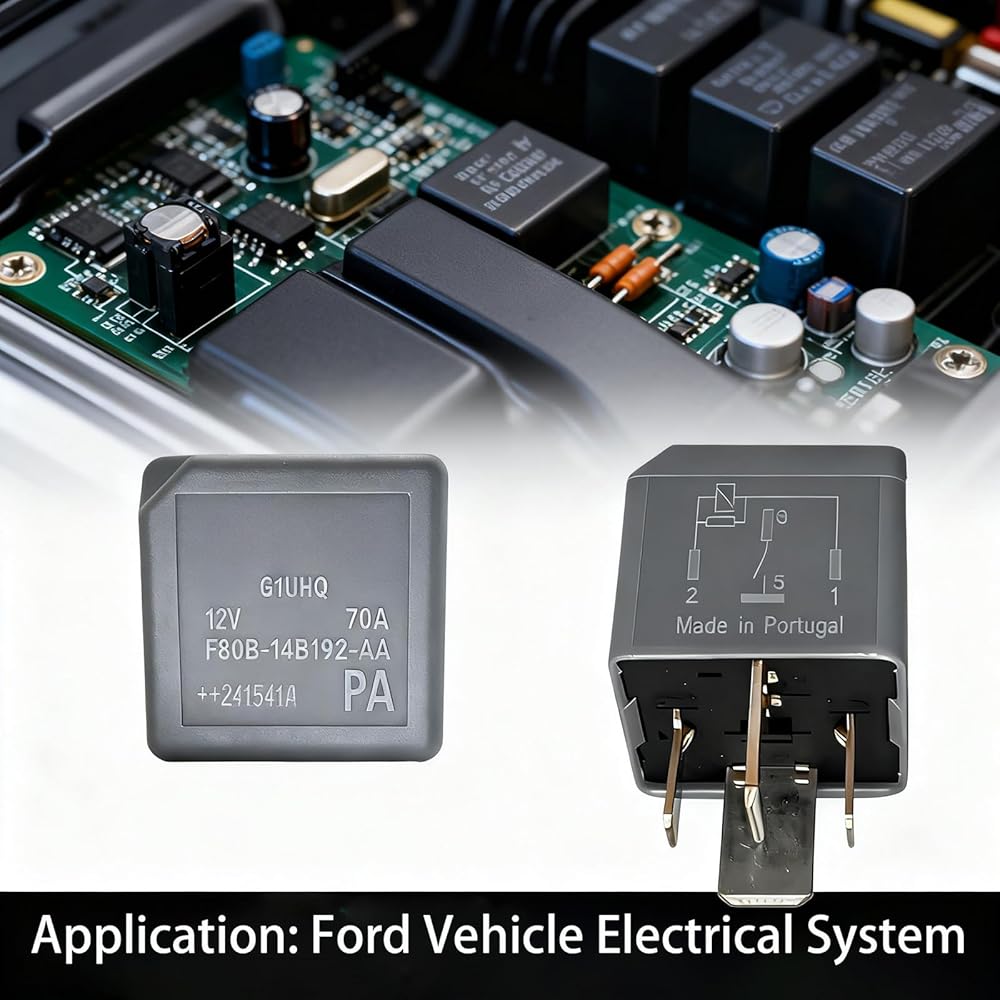

Automotive Repair: Fixes cooling fan failures, electrical system malfunctions, or intermittent power issues caused by worn relays.
Industrial Use: Controls motors, pumps, and high-power equipment in automation setups.
Home & Marine: Suitable for RV, boat, or appliance circuit upgrades requiring high-current switching.
Installation Guide:
Locate the relay panel (typically under the hood or dashboard).

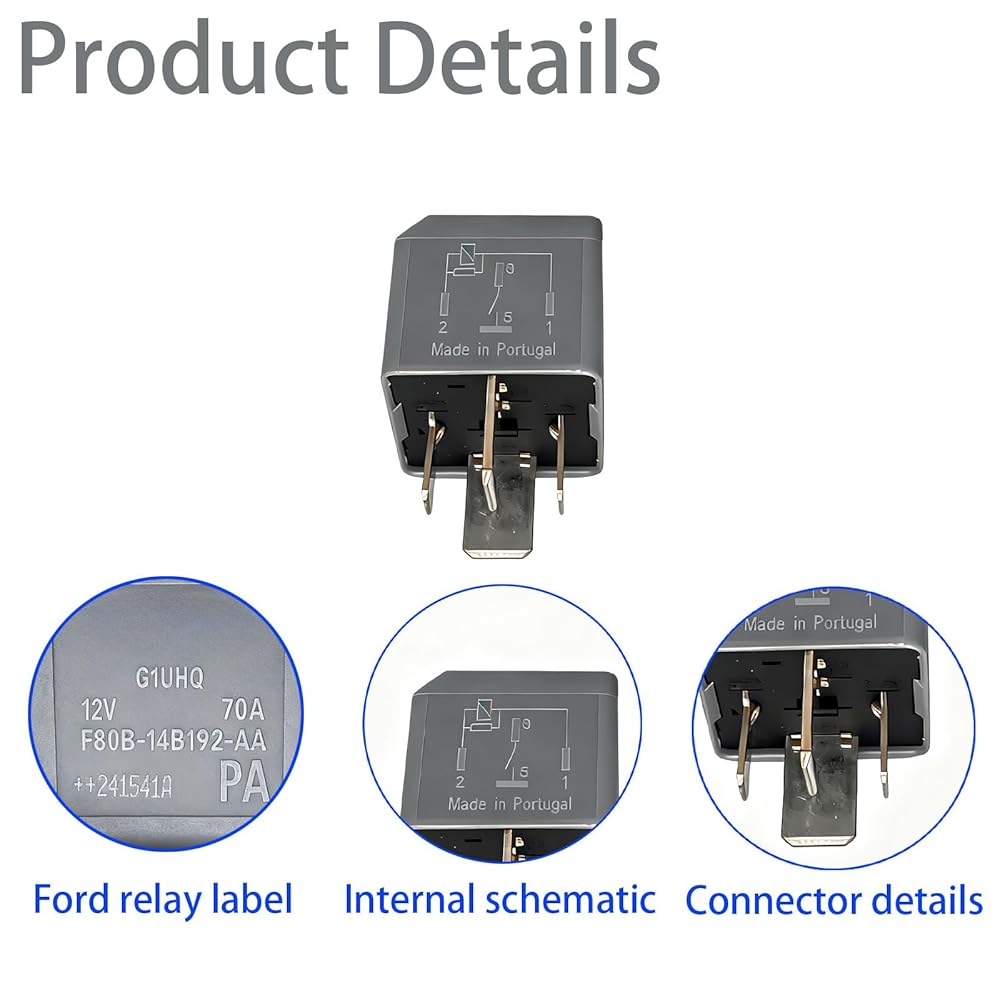

Align the 4-pin layout with the factory socket (terminals 30/87 for power circuits).
Secure with an audible "click" to confirm proper seating .
