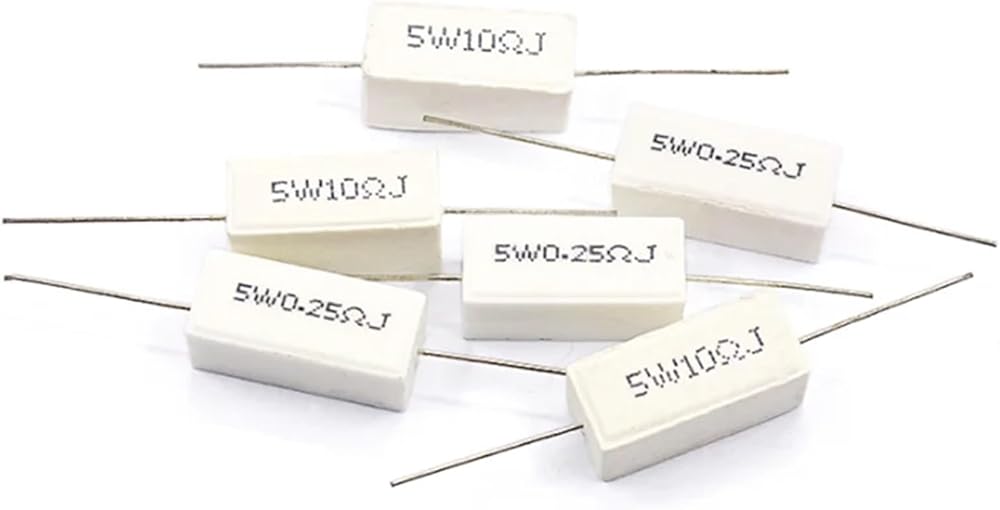

10PCS/Lot 5W Cement Ceramic Resistance 0.01R~100K 0.1 0.27 10 0.33 0.5 1 2 3.9 4.7 5 8.2 10 20 27 30 33 100 300R 1K 10K 47Kohm
Basic information:
Type: Ceramic winding resistance
Material: ceramic, cement, metal
Color: White
Dimensions: 22 X 9 X 9 mm/ 0.87 X 0.35 X 0.35 inch
Lead length (per side): 15 mm / 0.59 inches
Rated power :5Walt
Maximum voltage :350 VOLTS
Resistance tolerance :5%
Technology: wire-winding
Temperature factor: 250 PPM/celsius
Operating temperature range :-55 to 155 degrees Celsius
Vertical cement resistance size:
5W :Long 10*wide 13*high 25MM
7W: Long 13*wide 10*high 39MM
10W : Long 12*wide 16*high 35MM
15W : Long 12*wide 16*high 35MM
20W : Long 12*wide 16*high 35MM
25W : Long 12*wide 16*high 35MM
Horizontal cement resistance dimensions:
5W: Long 22*wide 9*high 9MM
7W :Long 35*wide 10*high 10MM
10W : Long 48*wide 10*high 10MM
15W: Long 48*wide 10*high 10MM
20W: Long 62*wide 12*high 12MM
25W: Long 62*wide 12*high 12MM
30W: Long 62*wide 12*high 12MM
30W: Long 75*wide 19*high 19MM
40W: Long 85*wide 19*high 19MM
50W: Long 85*wide 19*high 19MM
100W: Long 135*wide 25*high 22MM
Resistance Size of Aluminum Shell:
5W :Long 19*wide 11*high 10MM
10W: Long 19*wide 21*high 10MM
25W: Long 27*wide 27*high 16MM
50W: Long 50*wide 27*high 16MM
100W: Long 60*wide 22*high 16MM
200W: Long 100*wide 52*high 29MM
300W: Long 195*wide 52*high 29MM
