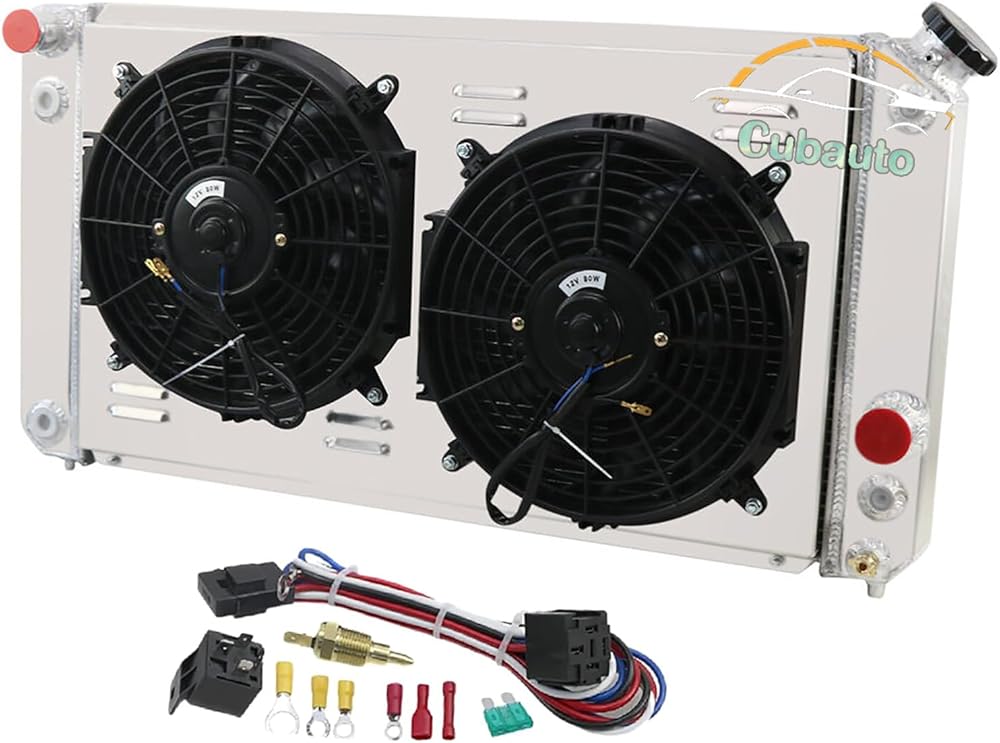

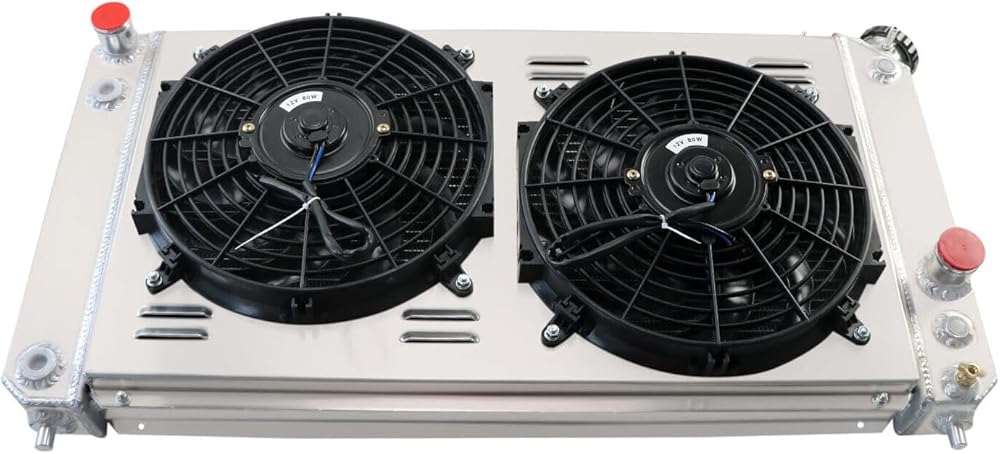

THIS LISTING INCLUDING THE RADIATOR AND SHROUD AND 2X12" FANS + THERMOSTAT KITS!!!

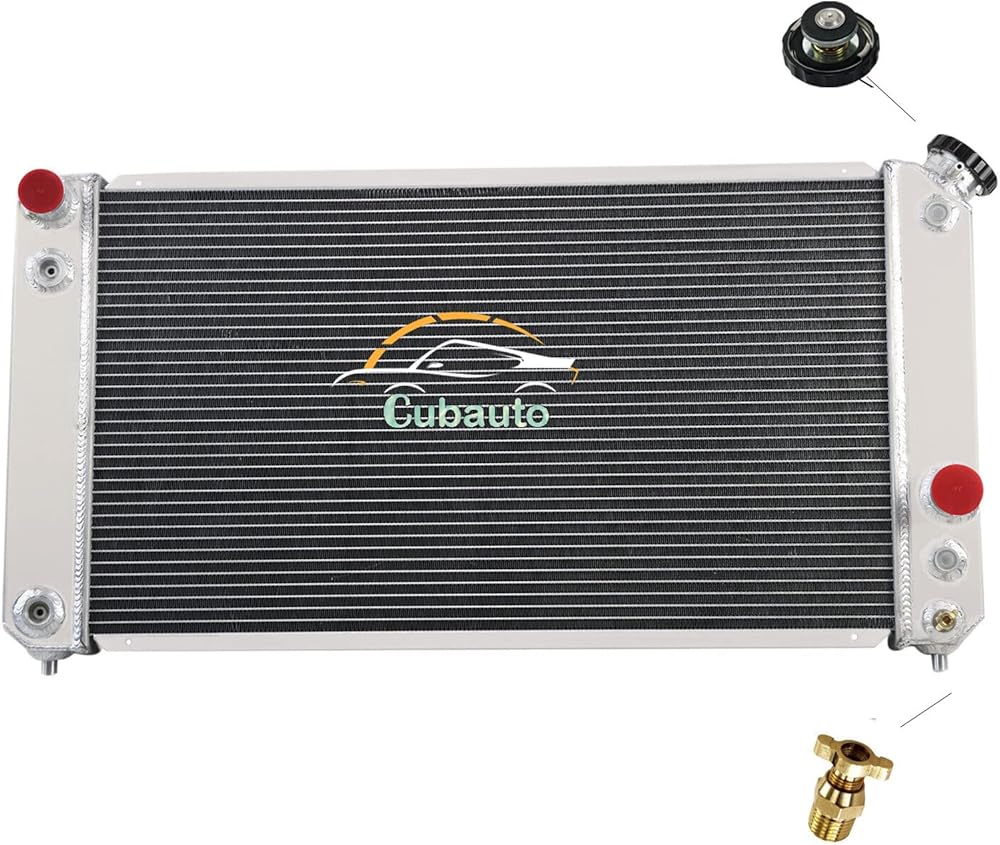

Radiator Size:
Row: 3 Row Core
Material: Full Aluminium
Radiator Cap: included
Core and Tank: All Aluminum
Core Size : 26.3" H x 14.88" W x 1.73" T ;
Overall Size: 32.48"L x16.93"W x5.51"H
Upper Inlet: 1-3/8"" located on the Driver side
Lower Outlet: 1-1/2"" located on the Passenger side
Trans Cooler Included: 1/2"" 20 STRAIGHT THREAD G1/4
Mount Type: Pin
Transmission: Automatic and Manual.

Please Check the Size Before You Buy!

Vehicle Fitment:
Compatible For 1996 1997 1998 1999 2000 2001 2002 2003 2004 2005 Chevrolet Blazer S10 Truck Pickup Blazer 4.3L V6
Compatible For 1996 1997 1998 1999 2000 2001 Oldsmobile Bravada
Compatible For 1996 1997 1998 1999 2000 2001 2002 2003 2004 2005 GMC Jimmy
Compatible For Chevrolet Blazer GMC S/T Series Pickups
Compatible For 2000 2001 2002 2003 2004 GMC Sonoma
★Note: This radiator is not suitable for the GMC envoy model

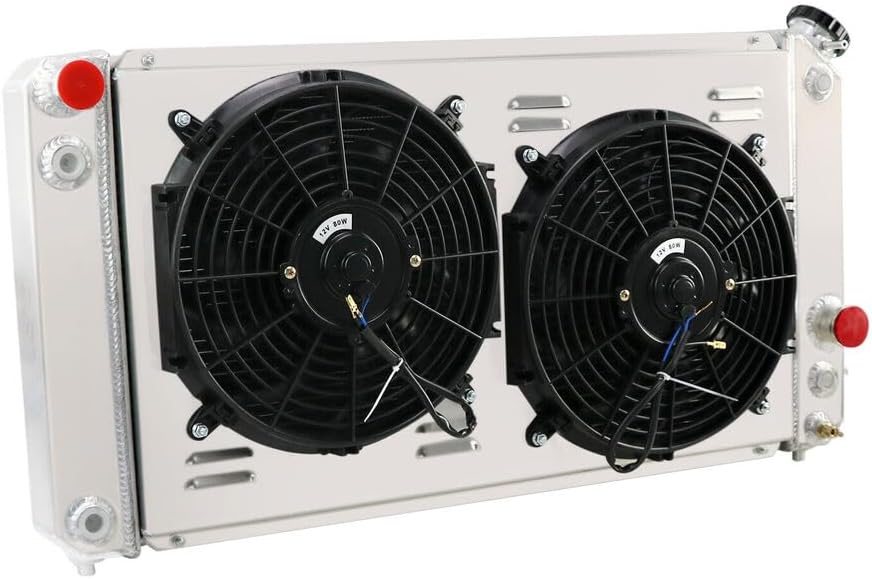

FANS:
Maximum Fan CFM:2300±200 cfm
Fan Diameter (in): 12.050"
Thickness (in): 2.500"
Number of Blades: 10 blades
Maximum Fan RPM: 2,250 rpm
Blade Material: Plastic
Amp Draw: 12.70 amps
Includes the Mounting Tabs for an Easy Zip Tie Installation

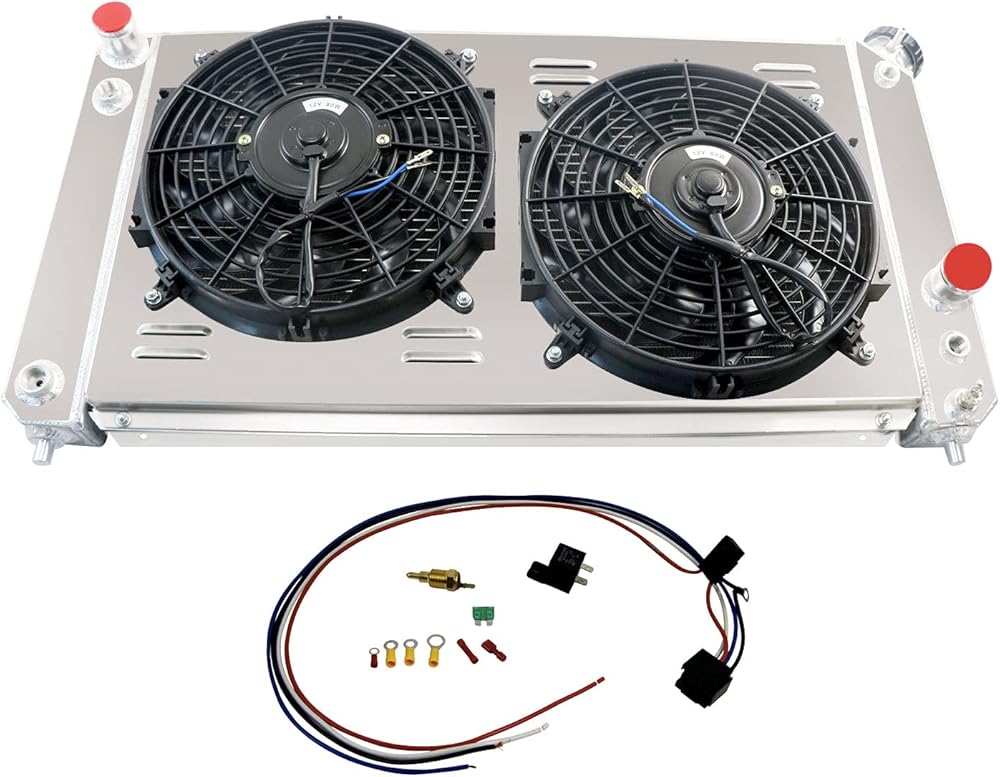

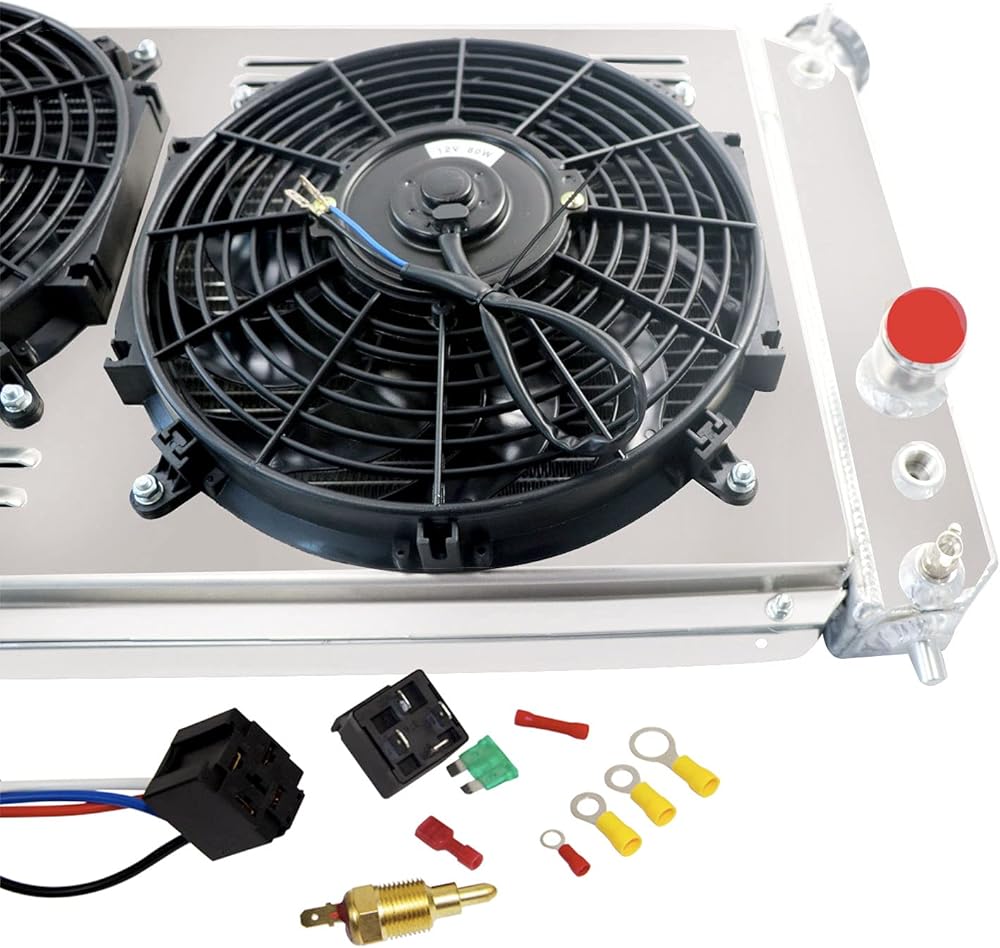

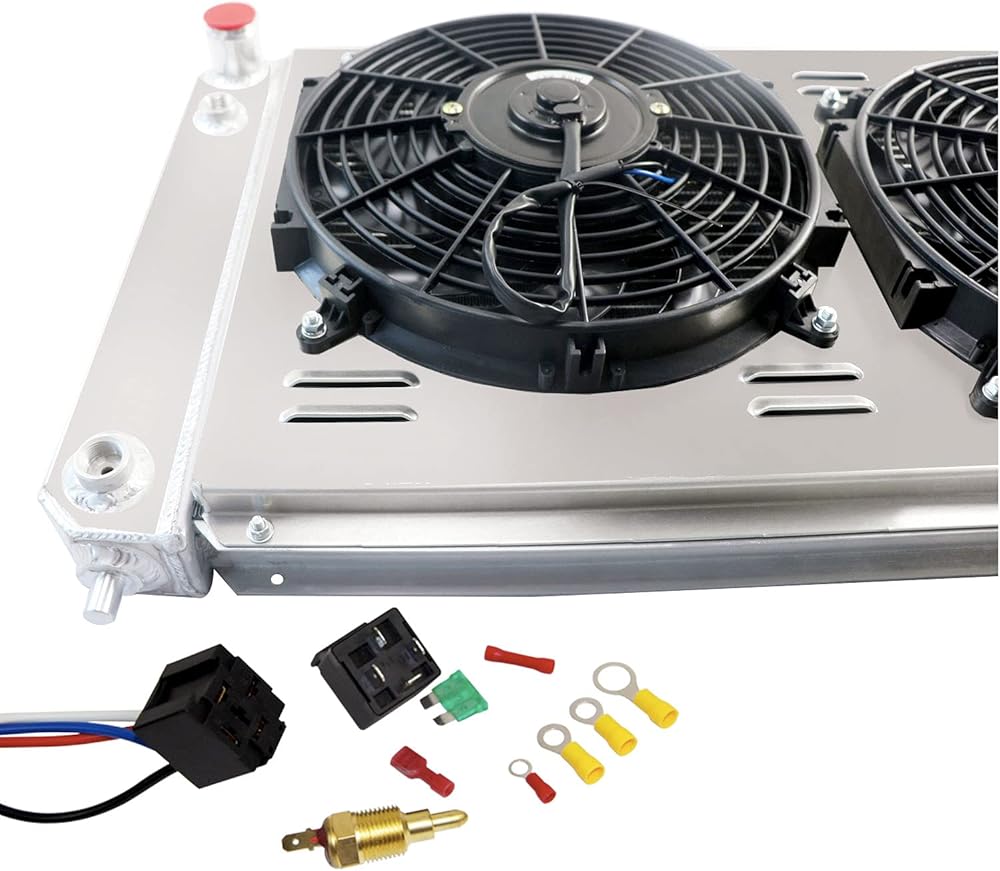

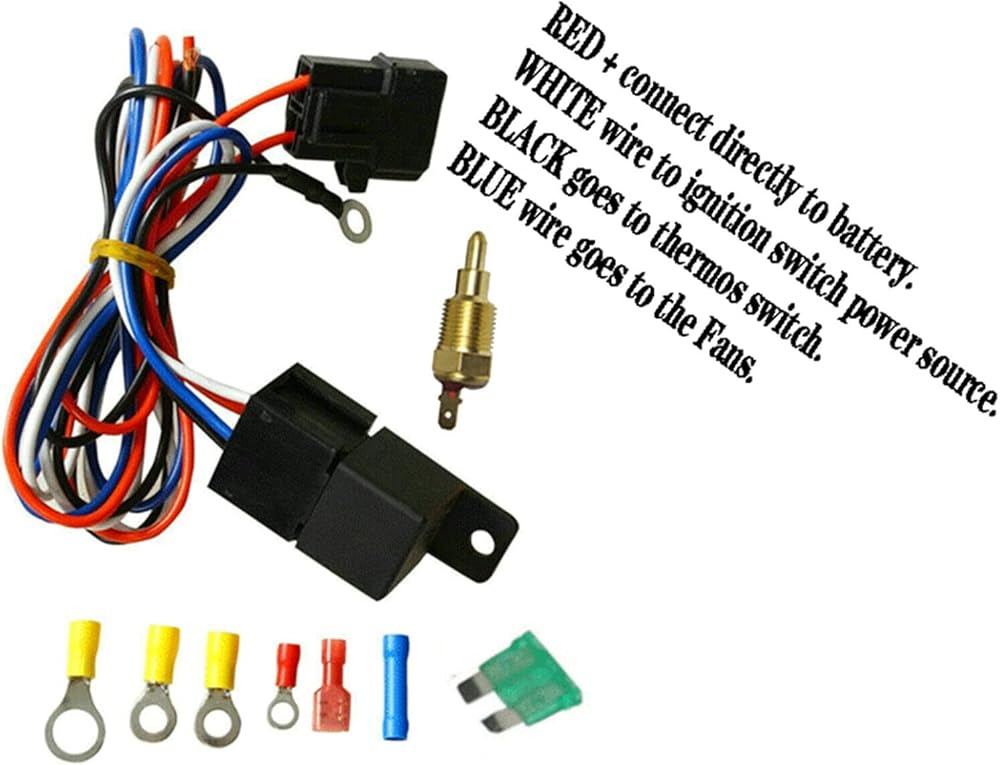

Thermostat Kit:
Universal fit for any automotive vehicle and electric fan.
Activates by grounding electric fans at preset temperature.
180'F turn-on temperature, 165'F turn-off temperature.
3/8" NPT thread-in brass probe w/ 1/2" NPT adapter included.
Probe typically threads into radiator, water outlet or manifold.

Why Choose Cubauto Radiator?

1. Maximum cooling efficiency
2. High security and performance
3. Excellent aluminum material
4. Stability and durability
5. Drop-in installation
6. High temperature resistance
7. Enhanced protection package
