Fog lights & Low Beam & High Beam On Simultaneously for 2023-2025 Chevy Colorado & GMC Canyon Elevation AT4 Denali AT4x

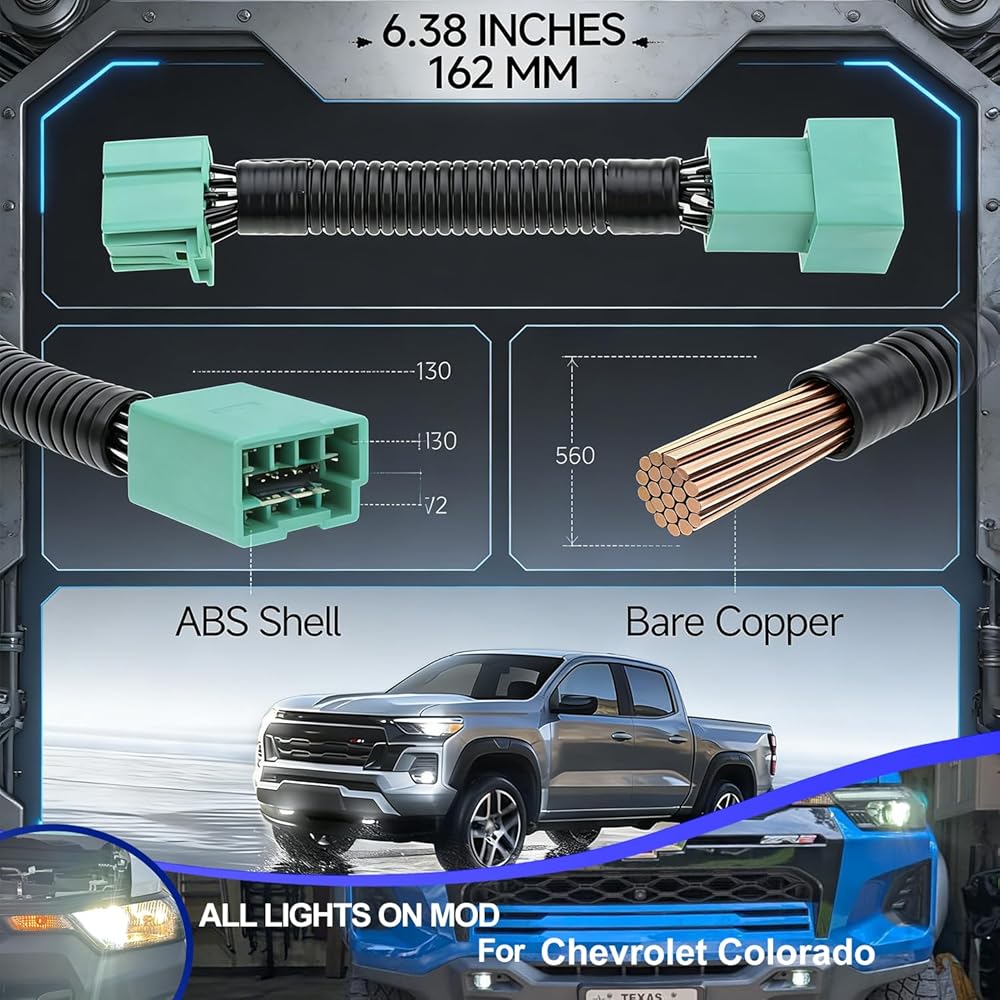

Specification:
Wire gauge: 16AWG
Wire core material: bare copper
Wire cover material: corrugated tube
Wire Length: 8.9inches (22.8cm)
Rated current & voltage: 3A 12V
Color: Black and Green

Fitment:
2023 2024 2025 Chevy Colorado LT WT Z71 Trail Boss Base
2023 2024 2025 GMC Canyon Elevation AT4 Denali AT4x

Feature:
-- Once Installed with this 6 high Mod, when manually turn high beams on, fog lights and low beams will light up at the same time.
-- When switching to high beams, the low beam + high beam + fog light icons on the instrument panel light up simultaneously, no error codes.
-- When switching to high beams, the fog lights cannot be turned off individually and fog indicators will not light up.
-- The High Low Beam Fog 6 Lights Mod Kit and IntelliBeam cannot be activated simultaneously.
-- When high beams are off, low beams and fog lights operate exactly like factory, no glitches or error codes.
-- OEM-Grade Compatibility, works seamlessly with stock headlights/fog lamps—no extra modifications needed.
-- Made of corrugated pipe and bare cooper, high quality flame retardant materials w/ high temperature resistance.
-- No more annoying GMC/Chevy truck automatically shutting off fog lights when you flip on high beams.
-- Boosts light coverage and visibility on dark country roads, rainy, foggy, or snowy days. Better reaction time and less stress behind the wheel.

After installation your lights will function as below pattern:
low beams only - only low beams will be on
fog lights only - only fog lights will be on
low beams & fogs - only low beams & fogs will be on
high beams - low beams fog lights & high beams will all be on

Installation Guide:
Step1: Remove the driver side kick panel.
Step2: Remove the green BCM connector by pushing the tab inwards and pulling down.

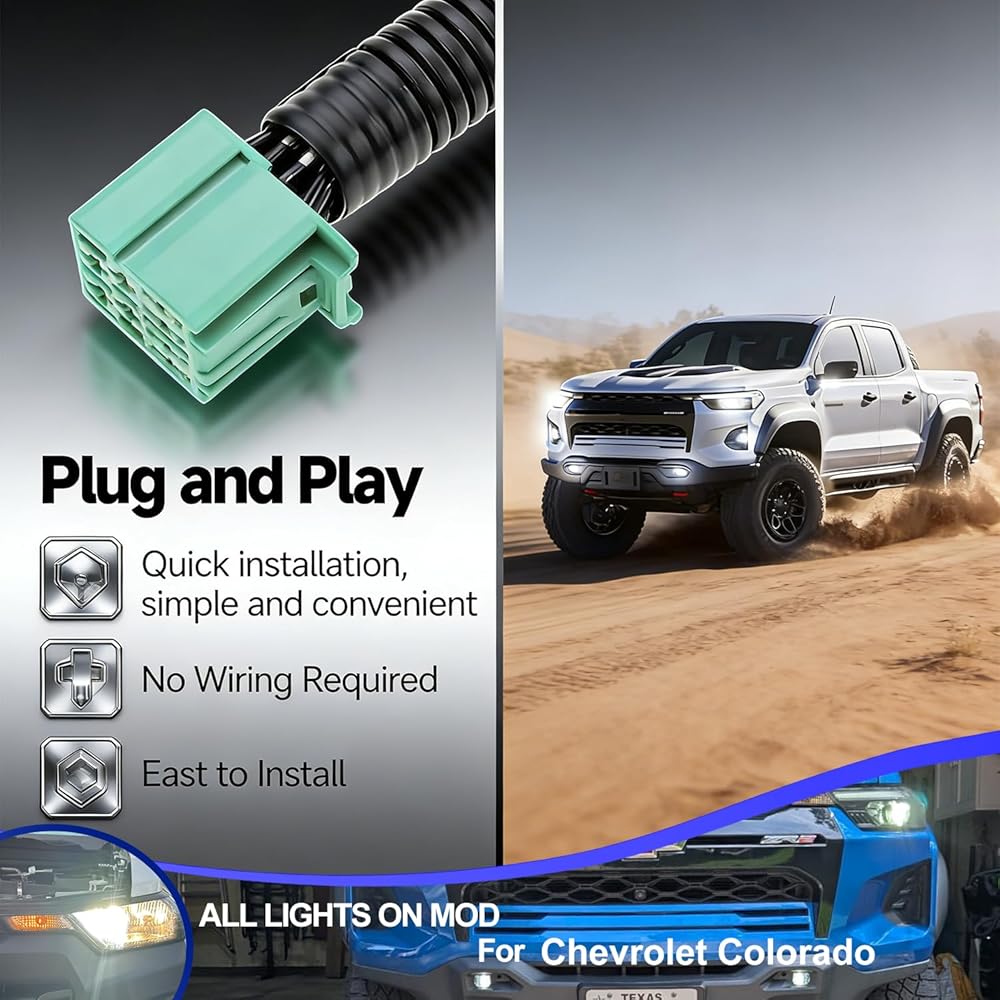

Step3: Insert the Plug & Play ALL LIGHTS harness between the factory connector and the BCM socket.
Step4: Finish the installation, test it and enjoy it.

Package Includes:

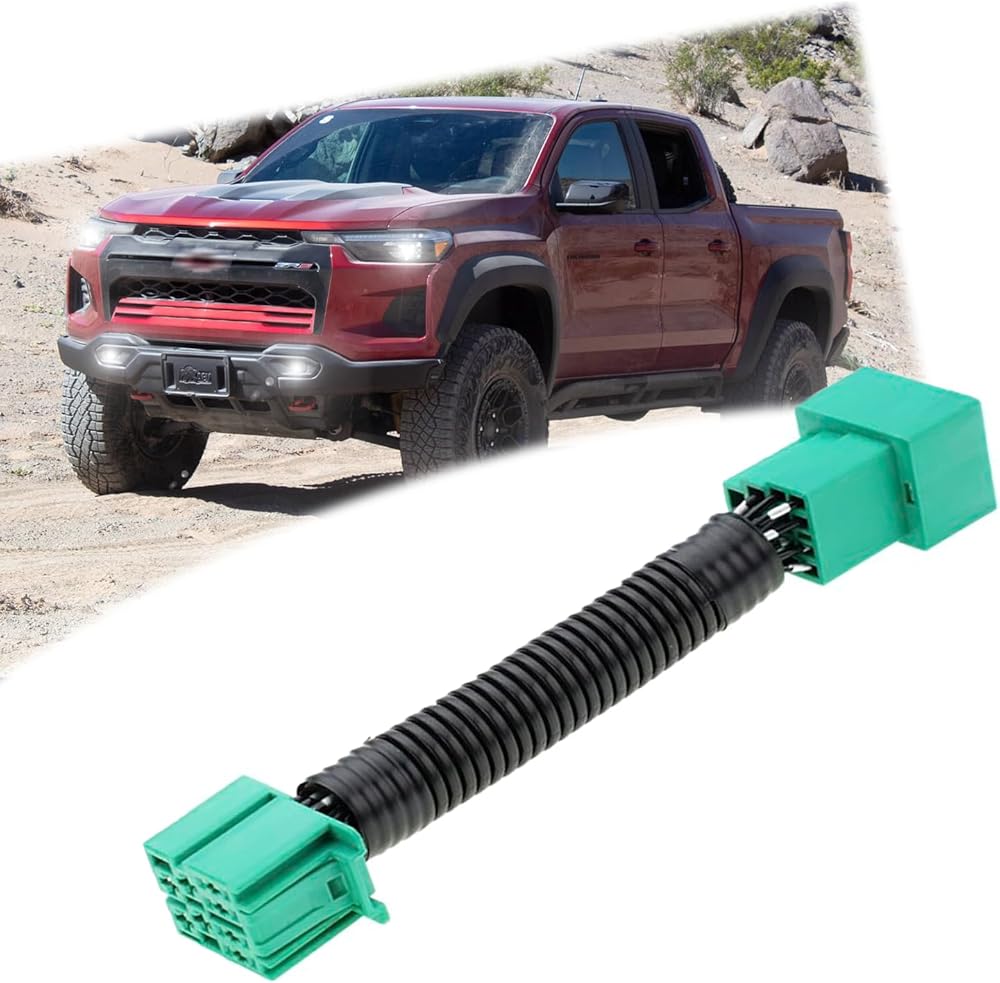

1X fog lights always on adapter harness for 2023+ Chevy Colorado
