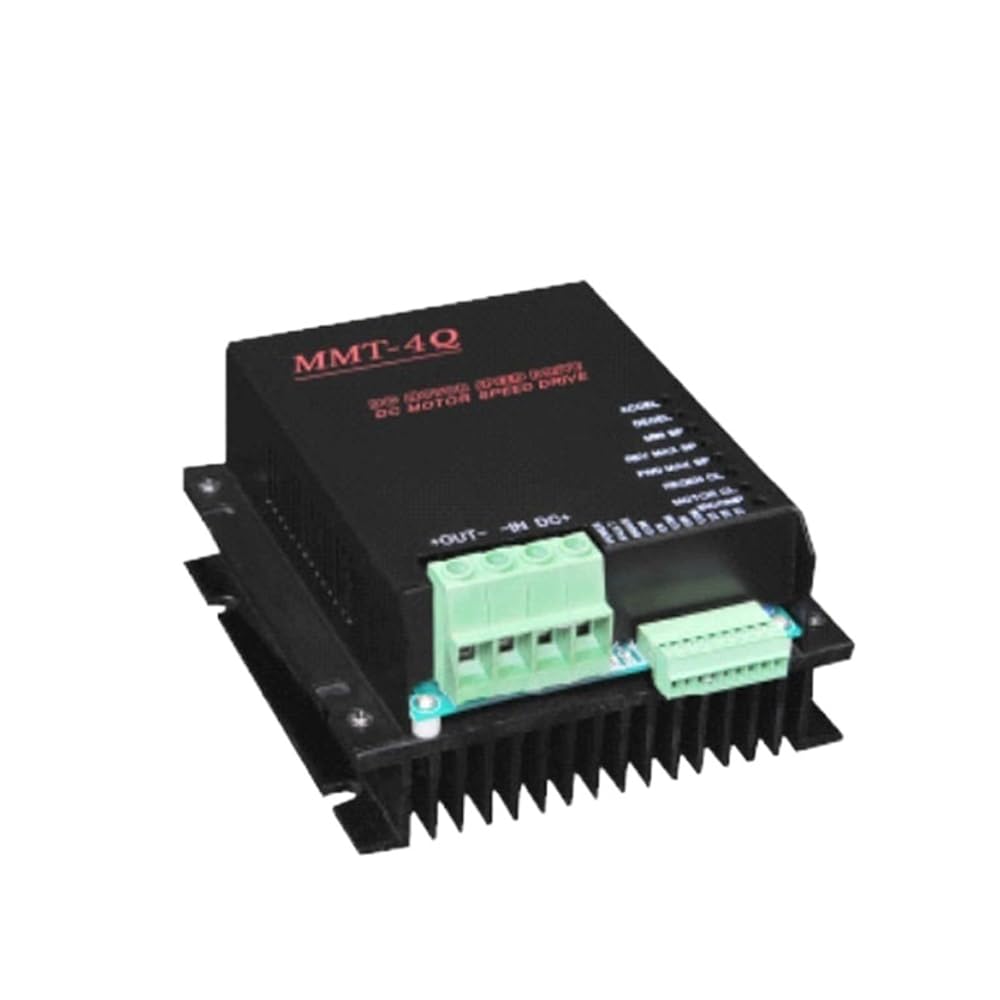

4Q motor Controller(MMT-DC12RT50BL)
12V 4Q-PWM Brush motor Controller,DC- Braking-Reversible, Pulse Width Modulation, Compensation
FEATURES:
DC-4Q Braking-Reversible, PWM series Drive, has quickly dynamic response, smooth operating, works well and perfect functions.
PULSE WIDTH MODULATION
Motor runs quieter, with greater efficiency and less maintenance, longer life.
FOUR QUADRANT REGENERATIVE OPERATION
REGENERATIVE BRAKI
No contactors required. No electromechanical components to overheat or wear out.
ENABLE / BRAKE / DIRECTION TERMINALS
Choose a function by simply opening or closing a dry contact or through an open collector transistor.
STATUS LEDs
Power and Fault LEDs provide a visual status of the drive.
Forward and reverse can be set separately
Output current can be set
Braking current can be set
compensation function
Standard analog control mode:
Analog:0-5V or potentiometer
OVER TEMPERATURE PROTECTION
Drive will fold the output power back to prevent from overheating. Drive will fault if it still remains too .
Technical parameters:
Input voltage rang
Analog control signal: 0-5V (wired to earth ground)
Signal input impedance 200K
Speed accuracy: 1%
Speed adjustable range : 100:1
Speed Ratio: 1:80
Ambient temperature: 0 degree- 50degree
Relative Humidity: Below dew point
Weight:1.2kg
Dimension:150*115*45 (mm)
Soft stop time: 0.2-20S
Soft start time: 0.2-2
DC48RT50BL 48V (Working Voltage 20V-62V)
DC36RT50BL 36V (Working Voltage 20V-62V)
DC24RT50BL 24V (Working Voltage 20V-62V)
DC12RT50BL 12V (Working Voltage 9V-18V)
==========
Model Number : MMT-DC12RT50BL
Motor Type : Motor
VOLT : 12V
CURRENT : 50A
