#Specification:
Manufacturer: Cutmodel
Item Condition: New, Painted And Assembled
Material: Metal, Plastic (Most Of The Parts Are Made Of Metal, With The Exception Of The Cabin Glass And Some Decorative Parts Made Of Plastic)
Scale: 1/14
Size: 547.9*162.9*234.6
Net Weight: About 9.2Kg
Hydraulic Valve: 8-Ways
Id: Cut-Lr914Promax-Trackedexcavator-8Ch-Rtr-Yw

#The Package Includes:

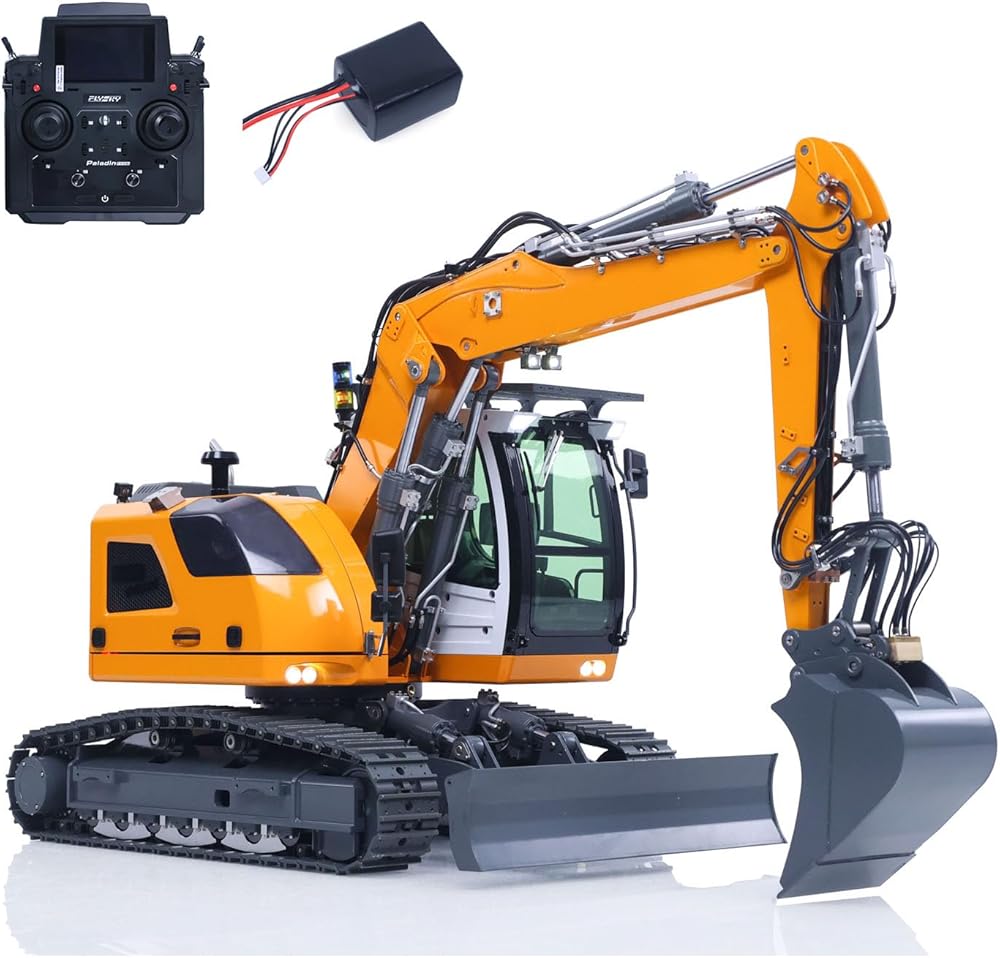

1/14 Rc Hydraulic Excavator Model Lr914 Pro Max
Esc
Motor
Servo
Light System
Sound System
Hydraulic System With 8-Ways Reversing Valve
Integrated Pump And Oil Tank
Hydraulic Quick Release Coupler
Rotating Warning Lights
Spotlights
Cabin Roof Guard Rail
Cabin Rear Roof Guard
Flysky Pl18Ev Lite Remote Controller And Receiver
3S Battery

#The Package Does Not Include:
Charger
Hydraulic Oil

#Static Parameters
- Body Width (Mm): 194
- Ground Clearance At Upper Edge Of Tracks (Mm): 69.3
- Ground Clearance At Top Of Body (Excluding Exhaust Pipe) (Mm): 184.6
- Ground Clearance At Top Of Cab (Excluding Protective Net) (Mm): 221.3
- Ground Clearance Of Counterweight (Mm): 80.9
- Wheelbase (Mm): 239.1
- Standard Track Width (Mm): 35
- Distance Between Tracks (Mm): 163
- Width Of The Bulldozer Blade (Mm): 198
- Maximum Width Of The Chassis (Mm): 203.2

#Dynamic Parameters
- Maximum Ground Clearance With The Bulldozer Blade Down (Mm): 15.2
- Maximum Ground Clearance With The Bulldozer Blade Up (Mm): 52.6
- Rotation Angle (°): 360 (Infinite Rotation)
- Torque Of Worktable Rotation Motor (Kg): 25
- Rotation Speed Of The Worktable (R/Min): 9.5
- Single Cylinder Thrust (Kg): 15
- Maximum Speed Of Drive Wheels (R/Min): 30
- Drive Wheel Reduction Ratio: 1/256
- Maximum Pressure Of Hydraulic System (Mpa): 4
- Rated Pressure Of Hydraulic System (Mpa): 2.5
