مميزات خاصة

【Efficient Automatic Screw Feeding】Choose between two models of our automatic screw feeder for your specific needs. The PS-900 model handles M2.0 screws with an output speed of 0.7-1.3 pieces per second. The PS-901 model is designed for M3.0 screws with a speed of 0.8-1.2 pieces per second. It can handle screws up to 15 mm in length
【Stable Rotary Disc Screw Arranging System】Our screw arranging machine utilizes a precise rotary cross disc mechanism that ensures accurate screw positioning and stable picking. This automatic screw machine delivers single-screw output that prevents slipping, jamming, and adhesion issues. for round head, flat head, countersunk, and self-tapping screws
【Broad Automation Equipment Compatibility】This electric screw supplier offers universal compatibility with various automation systems. It seamlessly integrates with XY-axis machines, 3-axis/4-axis robots, and screw locking robots. Featuring NPN signal output for PLC control, both models easily connect to automated platforms and work with electric screwdriver robotic arms
【All-Metal Construction & Performance】Built with full metal construction and anti-vibration pads, this automatic screw dispenser ensures long-lasting operation. The high-quality motor provides stable performance with low power consumption. The enhanced circuit board offers superior heat dissipation, high temperature resistance, and reduced static electricity
【Smart Features & Model Specifications】The PS-901 model includes a digital display for single-piece counting, cycle counting, and adjustable feeding speed. The PS-900 operates without digital display. Both rotary screw machines feature a 500cc all-metal hopper, compact dimensions, and lightweight 3kg design for easy integration into your workspace

وصف

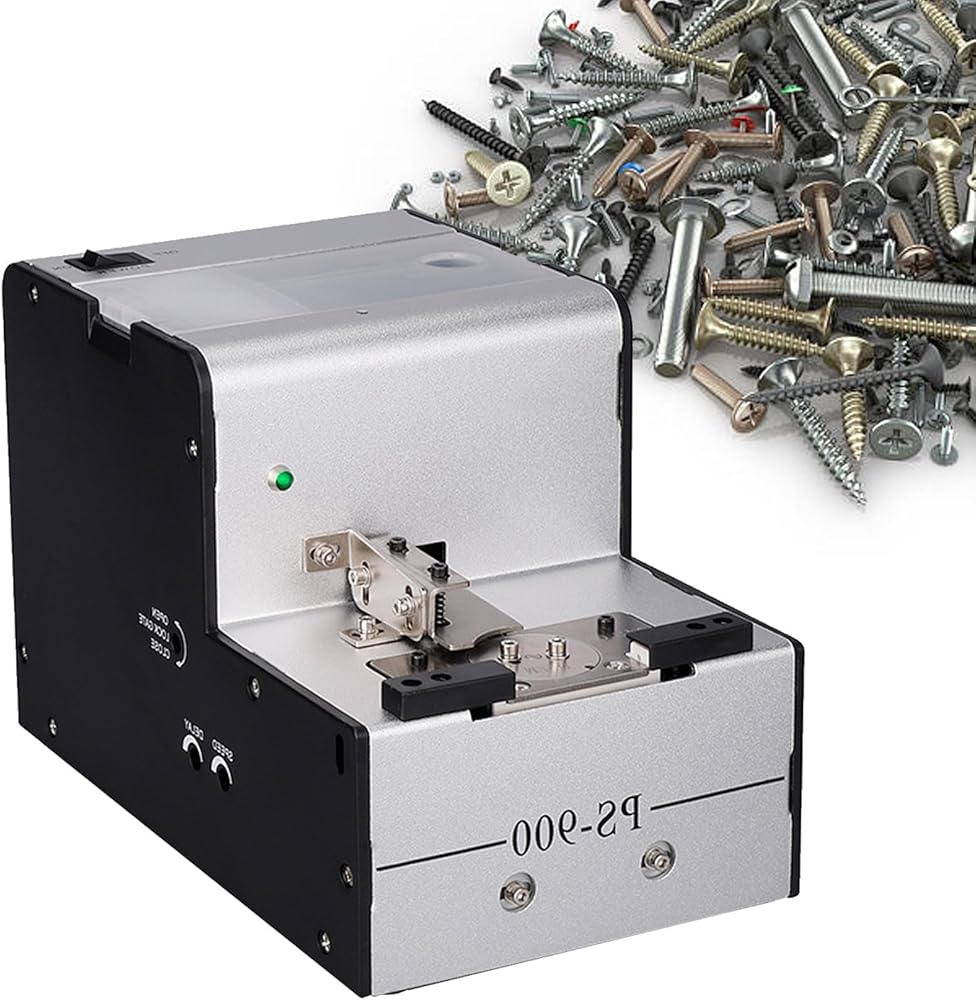

Elevate your assembly line efficiency with our advanced Automatic Screw Feeder. This professional-grade rotary screw machine is engineered to streamline your production process, delivering precise screw arrangement and consistent feeding performance. It handles a wide range of screw types, including round head screws, flat head screws, countersunk screws and self-tapping screws.

Product Features:
- Efficiency Work: Achieve output speeds of 0.7-1.3 pieces per second (PS-900) or 0.8-1.2 pieces per second (PS-901), processing up to 4500 screws hourly with automatic sensing and replenishment
- Precision Screw Arranging: Advanced cross-rotary disc mechanism ensures accurate screw positioning and stable feeding, eliminating jamming and slipping issues
- Broad Compatibility: Works with multiple screw types and integrates seamlessly with automation equipment through NPN signal output for PLC control

Product Parameters:
Screw Length: Within 15mm
Hopper Capacity: 500cc
Power Supply: 100-240V
Weight: Approximately 3kg
PS-900:
Suitable Screw Type: M2.0
Output Speed: 0.7-1.3 pieces per second
Dimensions: 202×122×140mm
Display: without digital display
PS-901:
Suitable Screw Type: M3.0
Output Speed: 0.8-1.2 pieces per second
Dimensions: 202×127×140mm
Display: with digital display

Packing List:
1 X Automatic screw feeder
1 X Tweezers
1 X Adjustment screwdriver
1 X Magnetizer
1 X Power cord
1 X Screw storage box
1 X Fine-tuning screwdriver
1 X Guide rail widening shims
1 X Screw compartment cover
1 X Instruction manual
