Total magnification: 40X-64X-100X-160X-400X-640X-1000X-1600X; Eyepieces: widefield WF10X/18 and P16X; Objectives: PLAN 4X, 10X, 40X (spring), 100X (spring,oil); Viewing head: binocular Siedentopf 30 degrees inclined 360 degreesrotatable; Interpupillary: adjustment 2-3/16inch ~ 2-15/16inch ( 55mm ~ 75mm); Diopter: adjustable on left ocular-tube
Total magnification: 40X-64X-100X-160X-400X-640X-1000X-1600X; Eyepieces: widefield WF10X/18 and P16X; Objectives: PLAN 4X, 10X, 40X (spring), 100X (spring,oil); Viewing head: binocular Siedentopf 30 degrees inclined 360 degreesrotatable; Interpupillary: adjustment 2-3/16inch ~ 2-15/16inch ( 55mm ~ 75mm); Diopter: adjustable on left ocular-tube
Total magnification: 40X-64X-100X-160X-400X-640X-1000X-1600X; Eyepieces: widefield WF10X/18 and P16X; Objectives: PLAN 4X, 10X, 40X (spring), 100X (spring,oil); Viewing head: binocular Siedentopf 30 degrees inclined 360 degreesrotatable; Interpupillary: adjustment 2-3/16inch ~ 2-15/16inch ( 55mm ~ 75mm); Diopter: adjustable on left ocular-tube

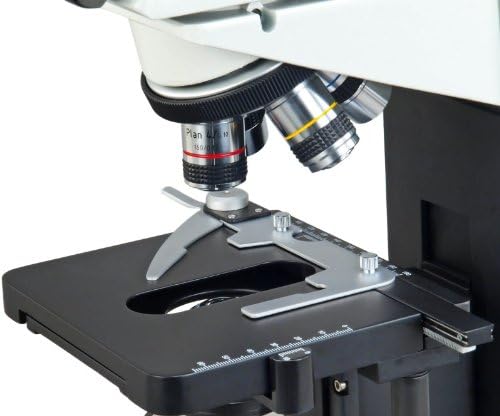

iece; Stage: double layer X-Y mechanical stage with scales, size 5-1/2inch x 4-1/4inch (140mm x 110mm) translation range 3inch x 2inch (78mm x 52mm); A specially designed back slot on the microscope stand for easy hand holding and carrying
Nosepiece: reversed revolving quadruple nosep; Illumination: transmitted, 6V/20W halogen lamp, variable intensity; Focus: coaxial coarse and fine focus knobs on both side with tension control; Stage upward stopper protects objective and slides
rightfield condenser: Abbe condenser NA1.25 with iris diaphragm and filter holder, rack and pinion adjustment; Dry darkfield condenser: NA 0.7-0.9; All metal mechanical components
5-year warranty against manufacturing defects
وصف

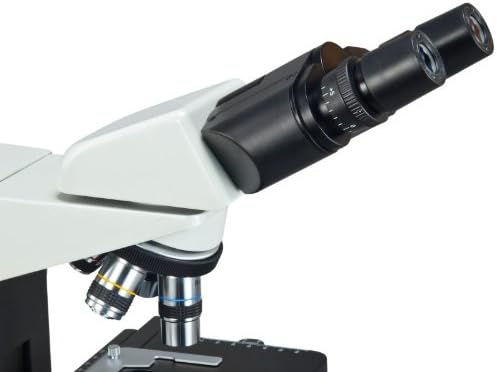

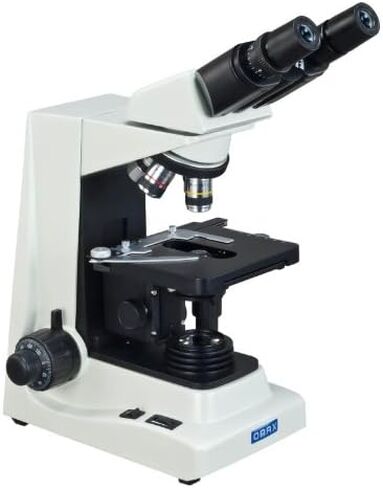

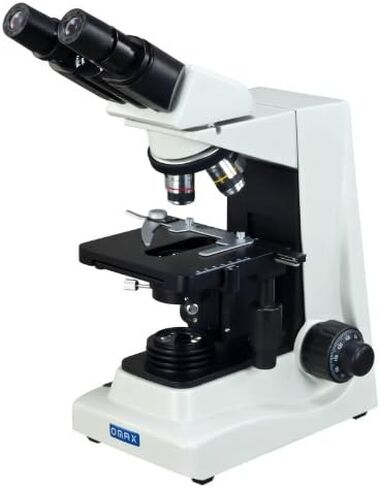

This is a biological Siedentopf PALN binocular microscope provides both darkfield and brightfield systems. The microscopy is used by life laboratories, institutes and universities. It comes with a 30° inclined 360° swiveling compensation free binocular viewing head, quintuple reversed nosepiece, four PLAN objectives, large 3-D double layer mechanical stage with scales, variable intensity halogen transmitted illumination system, darkfiled & brightfield condensers and eight level magnification from 40X to 1600X. There is a wide range of accessories available including phase contrast condensers, USB cameras and carrying case.
