Vision Scientific VS-1FZ-IFR07-RET11.6 Simul-Focal Trinocular Zoom Stereo, 10x WF Eyepiece, 0.7X-4.5X Zoom, 3.5x-90x Magnification, Pillar Stand, 144-LED Ring Light, 11.6" Retina Screen w/5MP Camera in Saudi Arabia Vision Scientific VS-1FZ-IFR07-RET11.6 Simul-Focal Trinocular Zoom Stereo, 10x WF Eyepiece, 0.7X-4.5X Zoom, 3.5x-90x Magnification, Pillar Stand, 144-LED Ring Light, 11.6" Retina Screen w/5MP Camera in Saudi Arabia Vision Scientific VS-1FZ-IFR07-RET11.6 Simul-Focal Trinocular Zoom Stereo, 10x WF Eyepiece, 0.7X-4.5X Zoom, 3.5x-90x Magnification, Pillar Stand, 144-LED Ring Light, 11.6" Retina Screen w/5MP Camera in Saudi Arabia Vision Scientific VS-1FZ-IFR07-RET11.6 Simul-Focal Trinocular Zoom Stereo, 10x WF Eyepiece, 0.7X-4.5X Zoom, 3.5x-90x Magnification, Pillar Stand, 144-LED Ring Light, 11.6" Retina Screen w/5MP Camera in Saudi Arabia

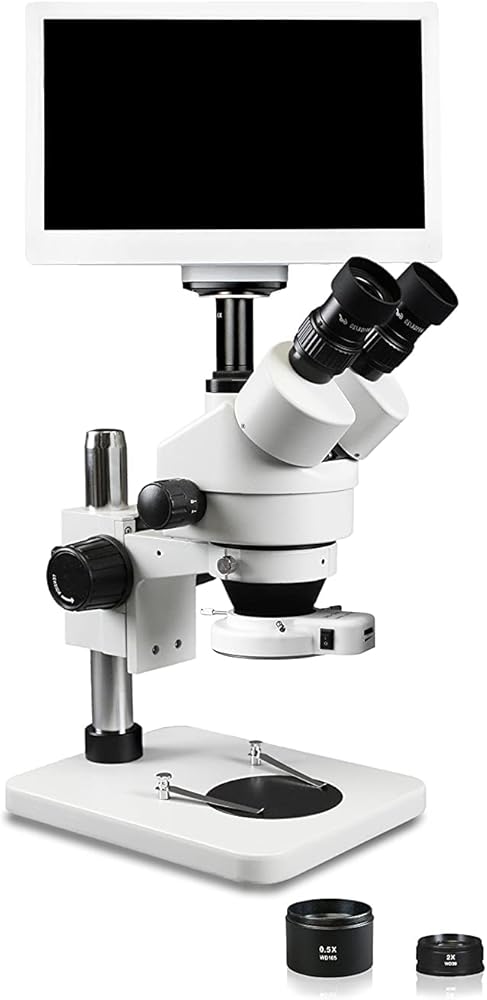

VS-1FZ-IFR07-RET11.6 Simul-Focal Trinocular Zoom Stereo, 10x WF Eyepiece, 0.7X-4.5X Zoom, 3.5x-90x Magnification, Pillar Stand, 144-LED Ring Light, 11.6" Retina Screen w/5MP Camera

SAR 4,383
Category
Microscopes
Weight
5.4 kg
– 1 +

Special Features

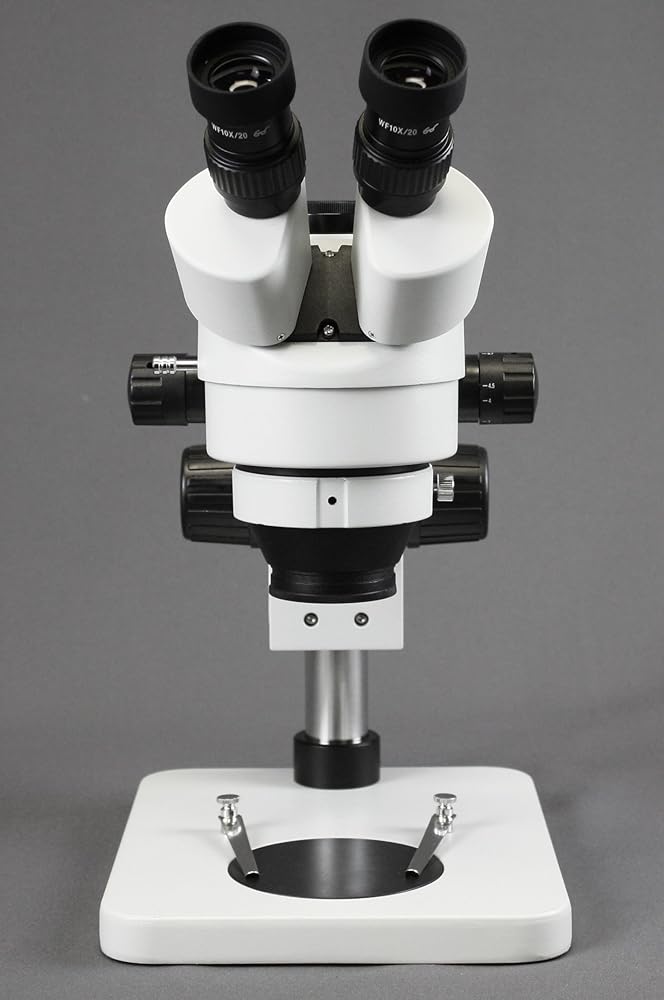

  • 45° inclined trinocular head that rotates 360°. The trinocular port allows you to connect a digital camera or an HD touch screen. It features a 54-76mm interpupillary adjustment, while both ocular tubes are equipped with a (+/-6) diopter adjustable, to compensate for eye-strength difference when needed
  • 7x—45x standard magnification range, that when used with the included 0.5x & 2x auxiliary lens, expands to a 3.5x—90x magnification range.
  • Pillar stand offers a long and flexible working distance. The black and white reversible stage plate provides a contrasting background for the specimen, while the stage clips secure it in place

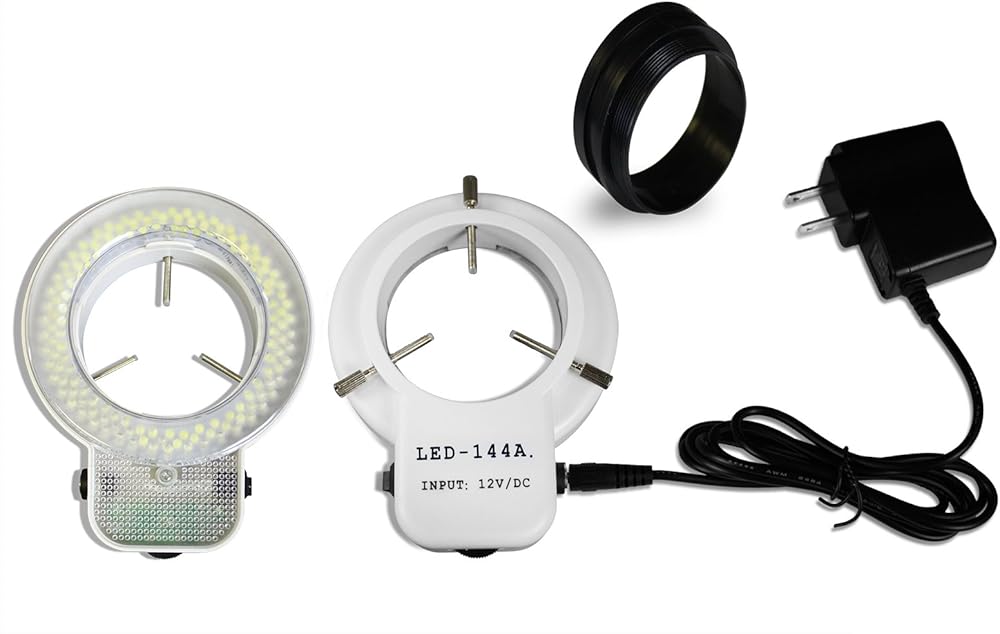

  • 144-LED ring light with intensity control, guarantees a clear-and-crisp, cool-to-touch white light that lasts up to 60x longer than traditional tungsten bulbs

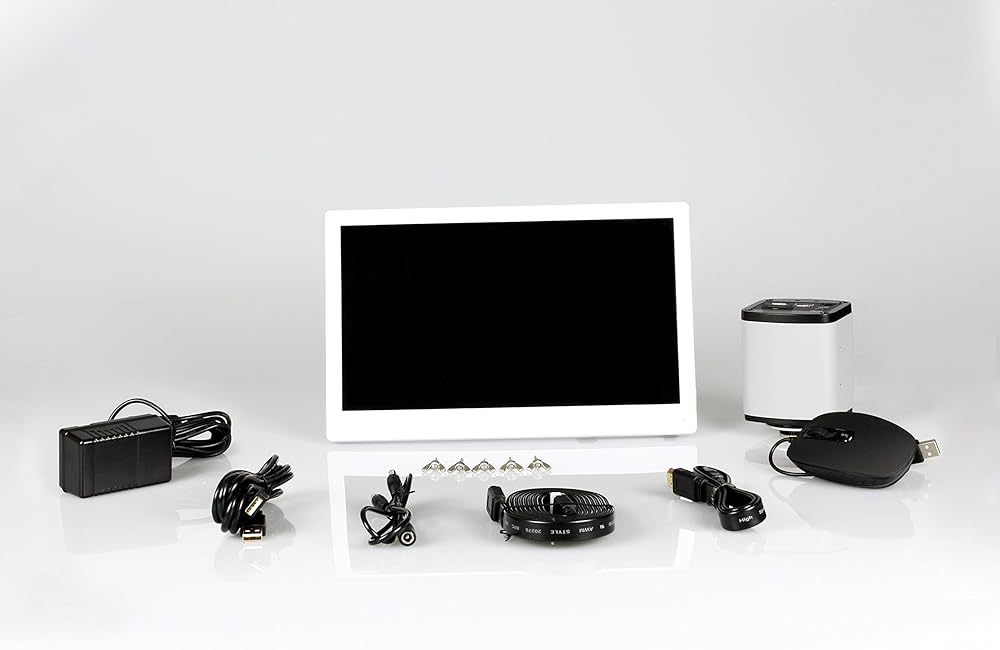

  • 11.6 inch retina HD display with a 5 megapixel camera, offers HDMI and USB 2.0 plug-and-play computability, to broadcast images of the specimen being observed. It is C-mount ready and comes with a built-in SD card, a measurement software, and HDMI and USB 2.0 cables

Description

This Vision Scientific trinocular zoom stereo microscope is ideal for laboratory, industrial or medical applications. Using its high resolution, great depth, and a large field of view, it is the perfect instrument for viewing any three-dimensional or temperature-sensitive specimen or object.
Rugged cast aluminum with gray enamel finish. Packed in a fitted Styrofoam box, and includes a dust cover and an instruction manual.
Specifications
Head: Trinocular, 45° inclined, rotates 360°
Eyepiece: 10x WF / 20mm high eye point
Zoom Range: 7x—4.5x, 1:6.4 zoom ratio
Magnification Range: 7x—45x, 5x—90x with the 0.5x & 2x auxiliary Lens
Working Distance: 100 mm standard, optical working distance can be increase or decrease 30-165 mm with auxiliary lens
Stage: Black & white reversible stage plate with a pair of stage clips
Stand: Pillar stand
Light Source: 144-LED ring light with intensity control
Overall Dimensions: 15” x 14” x 10” / Weight: 10 lbs
Display and Camera Specifications
1920 x 1080 full HD resolution (60 frames per second real-time); 190 pixels per inch
High resolution 5MP images
Built-in SD card for image & video capture; supports HDMI and USB 2.0 outputs
Packing List
Trinocular zoom stereo microscope head
Pair of 10x WF eyepieces
Pillar stand
Focusing arm
Pair of eye guards
One dust cover
User manual
0.5x and 2x auxiliary lens
144-LED ring light with intensity control
Power adaptor
11.6” retina HD display with 5MP HD camera
HDMI & USB 2.0 cables
Measurement software CD
Power adaptor
