Vision Scientific VS-1AEZ-IHL20-MS Binocular Zoom Stereo Microscope, 10x WF Eyepiece, 0.7X—4.5X Zoom, 3.5X—90x Magnification, 0.5X & 2X Aux Lens, Pillar Stand with Large Base,Mechanical Stage

SAR 2,680
Category
Microscopes
Weight
4.5 kg
– 1 +

Special Features

  • 45° inclined binocular head that rotates 360°. It features a 54-76mm interpupillary adjustment, while both ocular tubes are equipped with a (+/-6) diopter adjustable, to compensate for eye-strength difference when needed
  • 7x—45x standard magnification range, that when used with the included 0.5x & 2x auxiliary lens, expands to a 3.5x—90x magnification range. It has a field of view of 2 ½” (65mm), while the parfocaled optical design ensures that images remain sharp, crisp, and focused, throughout the entire magnification range
  • Pillar stand offers a long and flexible working distance, while the large table-top base provides a solid foundation to fit your observational needs. The black and white reversible stage plate provides a contrasting background for the specimen, while the stage clips secure it in place

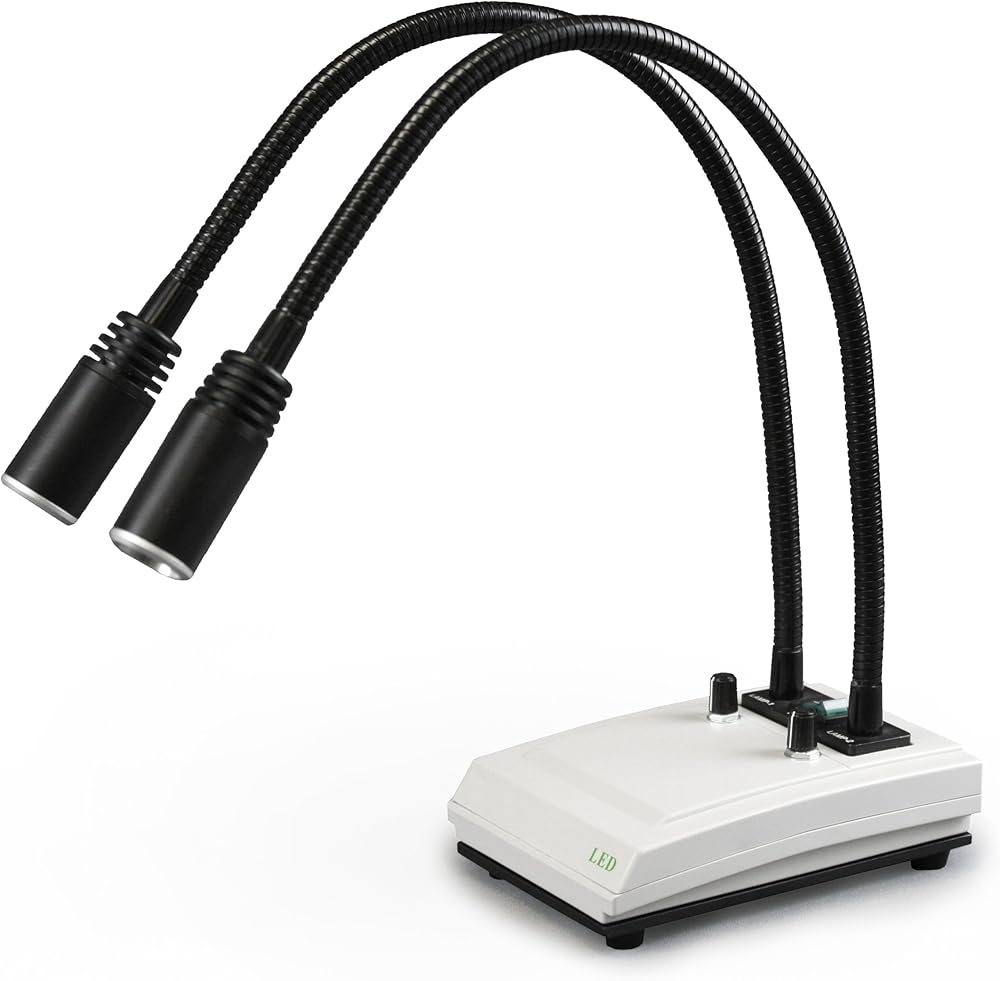

  • LED gooseneck dual light with intensity control, guarantees a clear-and-crisp, cool-to-touch white light that lasts up to 60x longer than traditional tungsten bulbs. The flexible gooseneck feature allows you to manoeuvre the two lights around according to your lighting needs

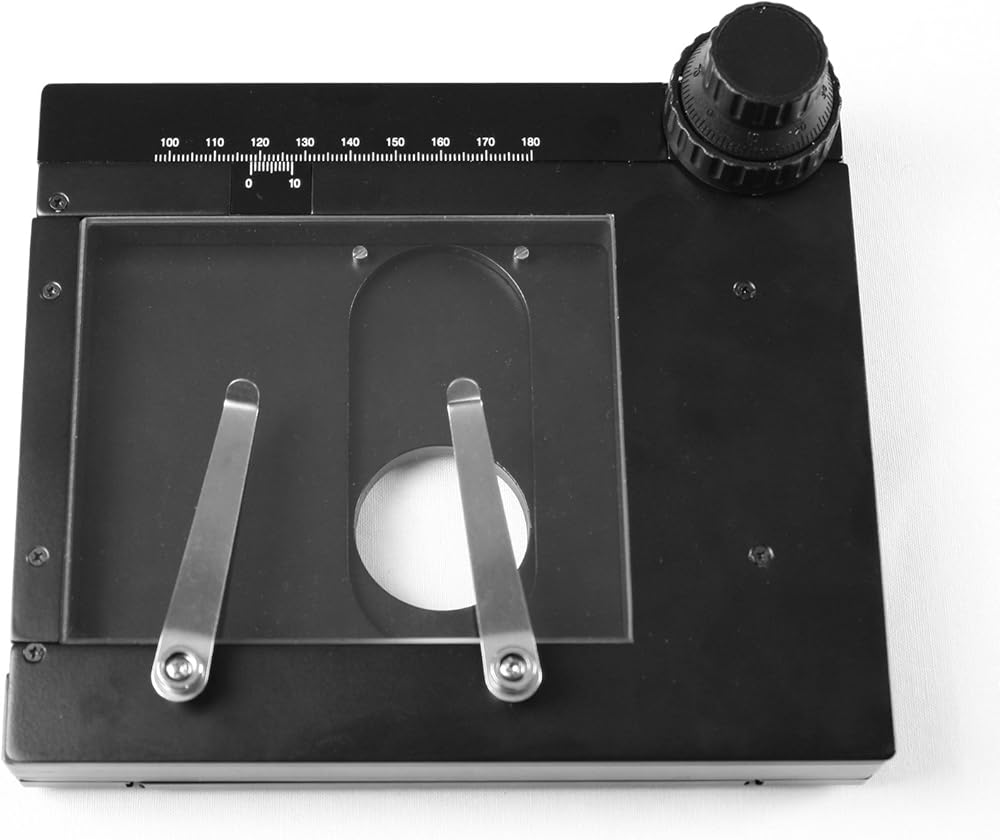

  • 2D Travelling mechanical stage with glass stage plate, features coaxial control which allows for precise stage movement, while the stage clips ensure definite control of the specimen under observation. Glass surface allows the specimen to be illuminated from below, making the specimen appear bright, but darker than the background

Description

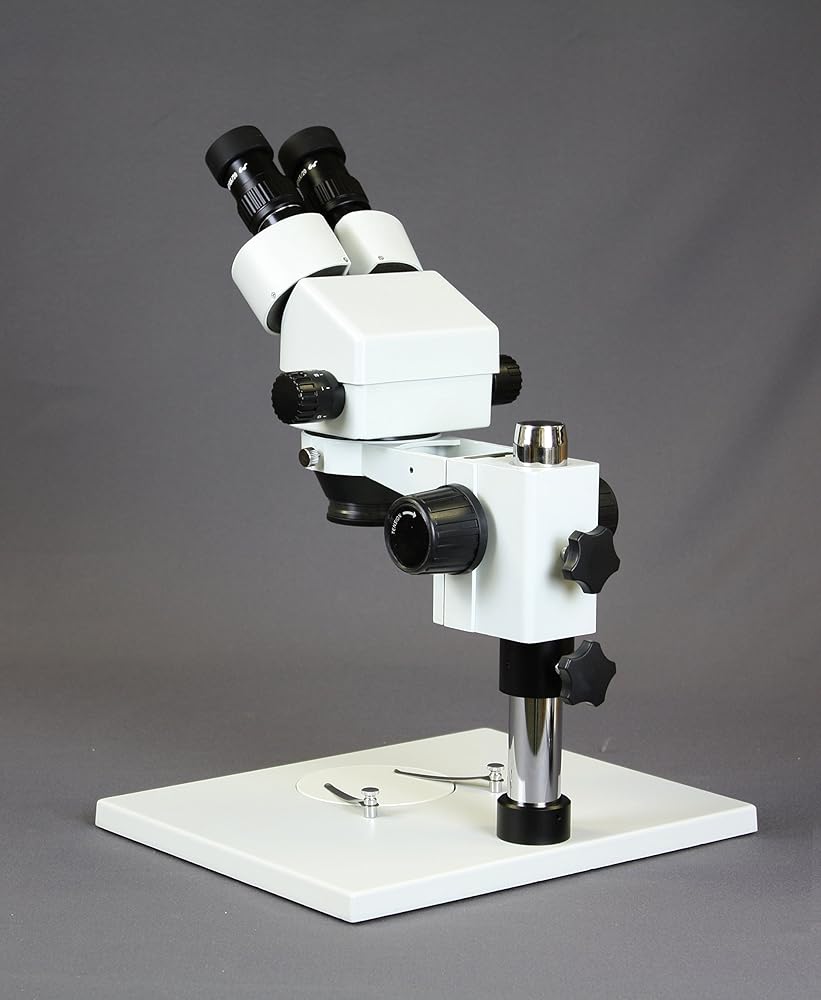

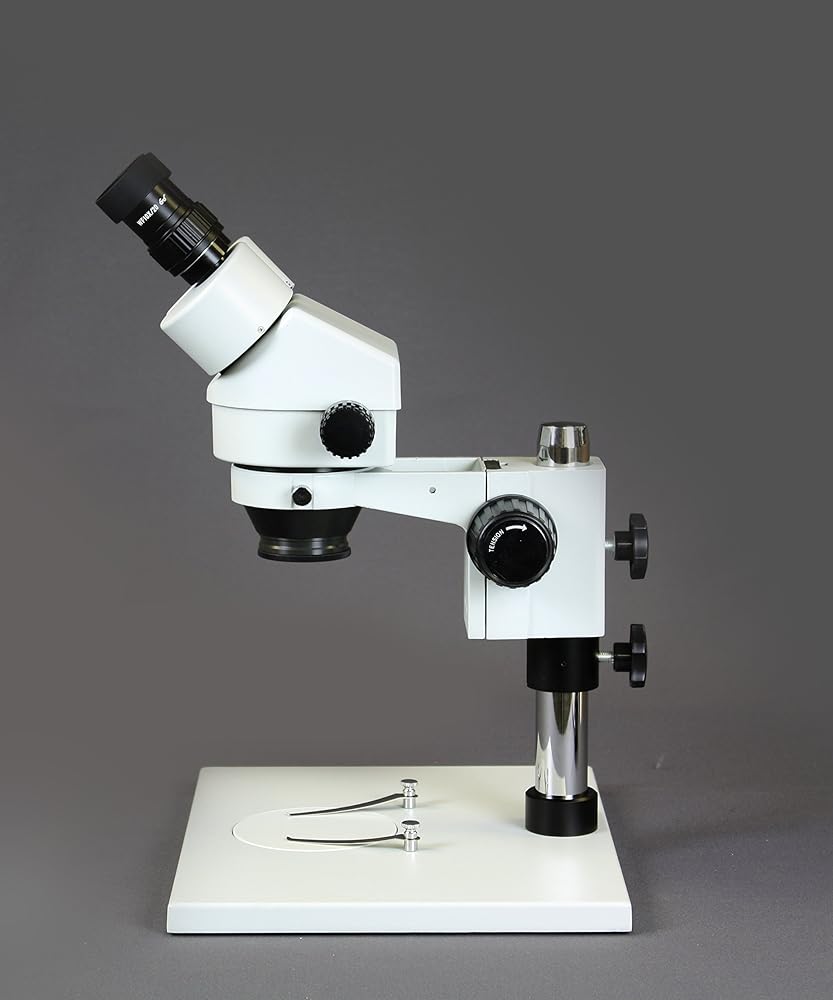

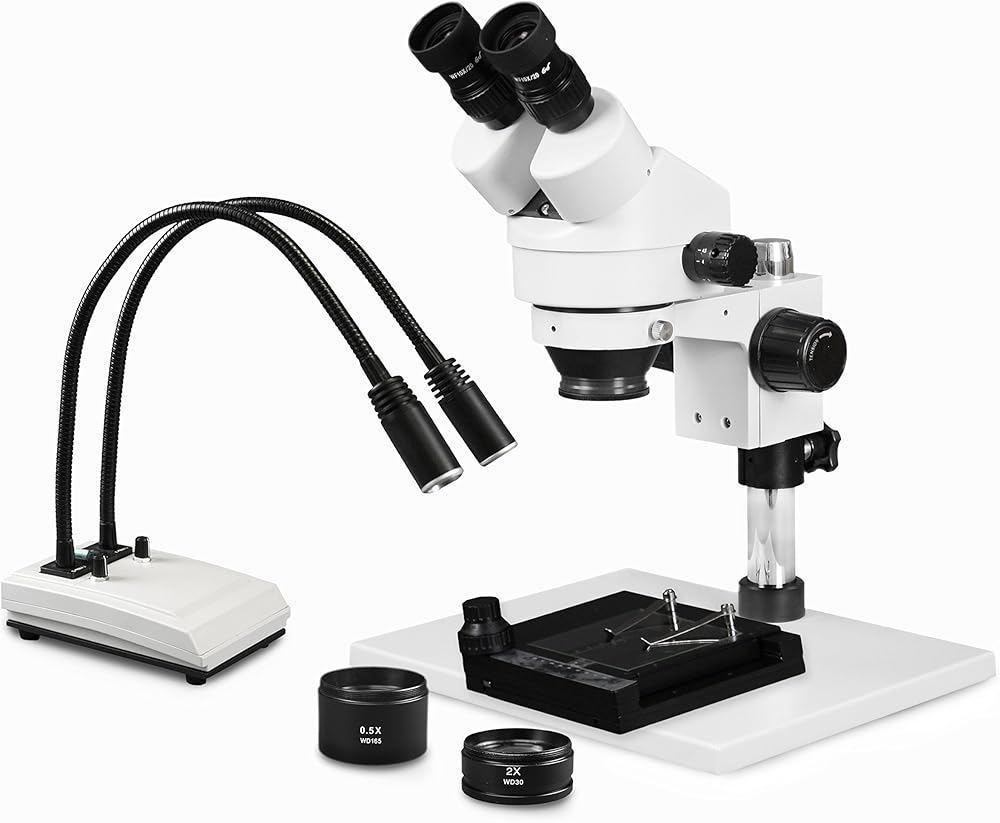

This Vision Scientific binocular zoom stereo microscope is ideal for laboratory, industrial or medical applications. Using its high resolution, great depth, and a large field of view, it is the perfect instrument for viewing any three-dimensional or temperature-sensitive specimen or object.
The compact, thin design of the large base provides added comfort for the user and allows sample positions to remain low, which provides easy accessibility to variable light controls. The pillar stand provides a long working distance, to offer flexibility when working with small or large samples.
Rugged cast aluminum with gray enamel finish. Packed in a fitted Styrofoam box, and includes a dust cover and an instruction manual.
Specifications
Head: Binocular, 45° inclined, rotates 360°
Eyepiece: 10x WF / 20mm high eye point
Zoom Range: 0.7x—4.5x, 1:6.4 zoom ratio
Magnification Range: 7x—45x, 3.5x—90x with the 0.5x & 2x auxiliary Lens
Working Distance: 100 mm standard, optical working distance can be increase or decrease 30-165 mm with auxiliary lens
Stage: Mechanical stage with glass stage plate / Black & white reversible stage plate
Stand: Pillar stand with large base
Light Source: LED gooseneck dual light with intensity control
Overall Dimensions: 15” x 14” x 10” / Weight: 10 lbs
Packing List
Binocular zoom stereo microscope head
Pair of 10x WF eyepieces
Pillar stand with large base
Focusing arm
Pair of eye guards
One dust cover
User manual

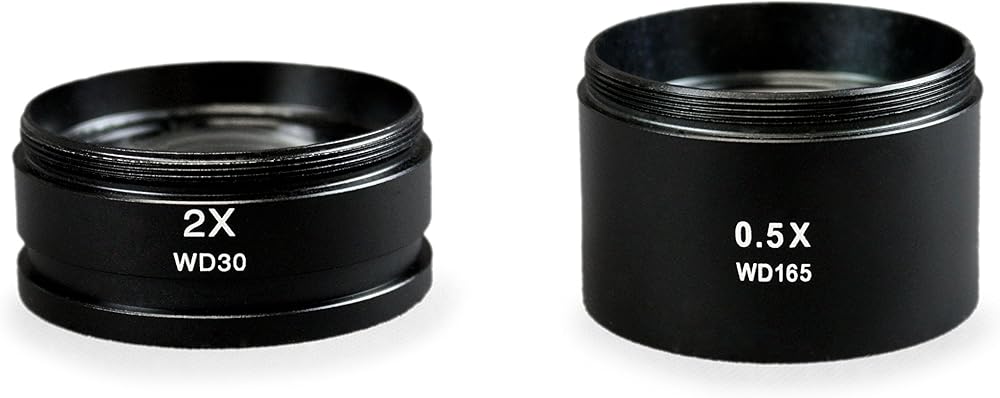

0.5x and 2x auxiliary lens
LED gooseneck dual light with intensity control
Power adaptor
Mechanical stage with glass stage plate
