Name: Vision Scientific VS-1AFZ مجهر ستيريو تكبير ثلاثي العينيات البؤري، عدسة WF 10x، تكبير 0.7X-4.5X، تكبير 3.5x-90x، عدسة مساعدة 0.5X و2X، حامل عمود مع قاعدة كبيرة
Brand: Vision Scientific
Availability: InStock

مميزات خاصة

45° inclined trinocular head that rotates 360°. The Simul-Focal trinocular port allows you to connect a digital camera or an HD touch screen. It features a 54-76mm interpupillary adjustment, while both ocular tubes are equipped with a (+/-6) diopter adjustable, to compensate for eye-strength difference when needed
7x—45x standard magnification range, that when used with the included 0.5x & 2x auxiliary lens, expands to a 3.5x—90x magnification range. It has a field of view of 2 ½” (65mm), while the parfocaled optical design ensures that images remain sharp, crisp, and focused, throughout the entire magnification range
Pillar stand offers a long and flexible working distance, while the large table-top base provides a solid foundation to fit your observational needs. The black and white reversible stage plate provides a contrasting background for the specimen, while the stage clips secure it in place
Heavy and stable support arm with a lock-screw to position the 360° rotatable optical body, which also adjusts up-and-down on the vertical post stand. Precise, heavy-duty rack and pinion focusing mechanism, with large knobs and adjustable tension control
Vision Scientific 100% open box policy backs up our warranty, by allowing our in-house technicians to check the smooth mechanical movement, optical alignment, and the electrical safety of every microscope that is shipped out to our customers. Only from Vision Scientific!

وصف

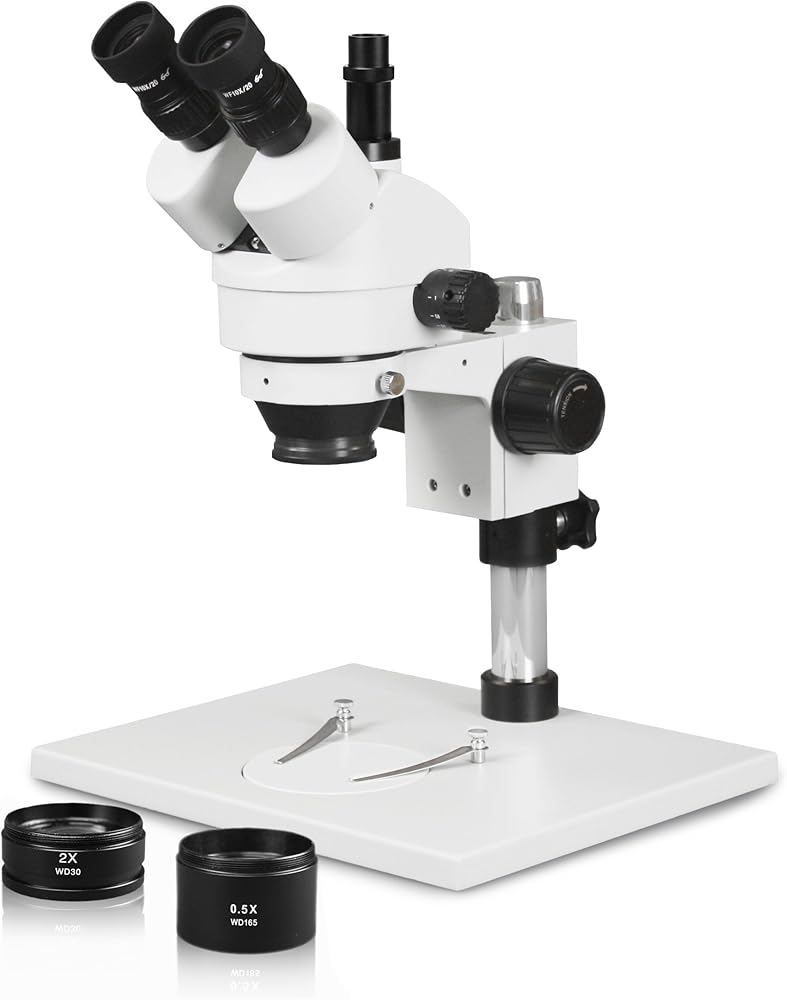

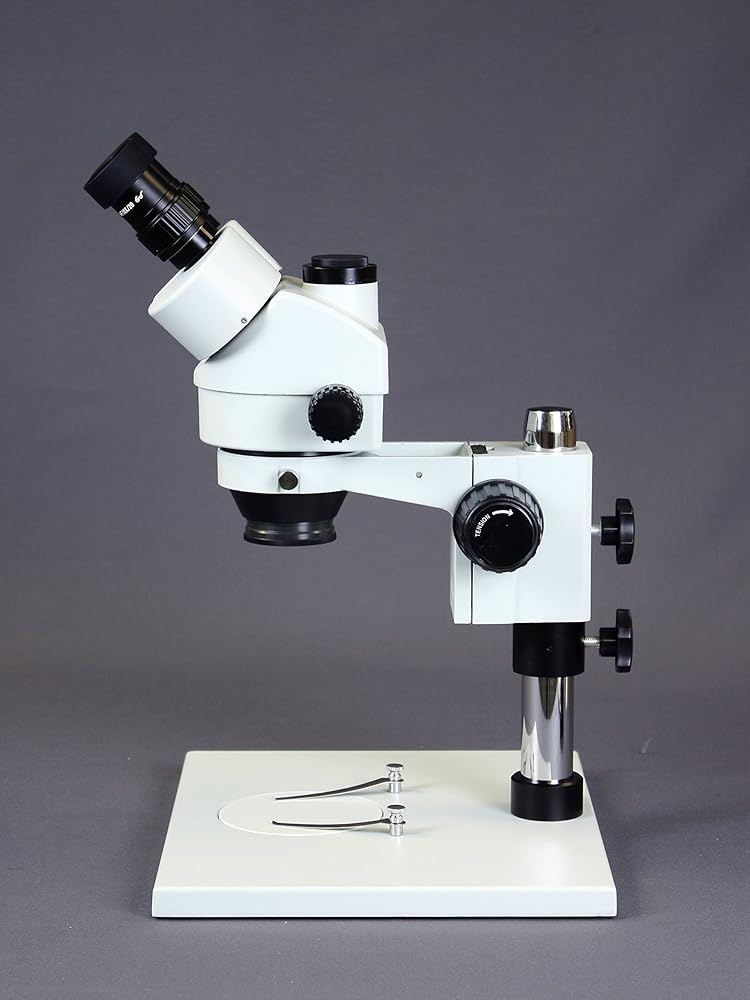

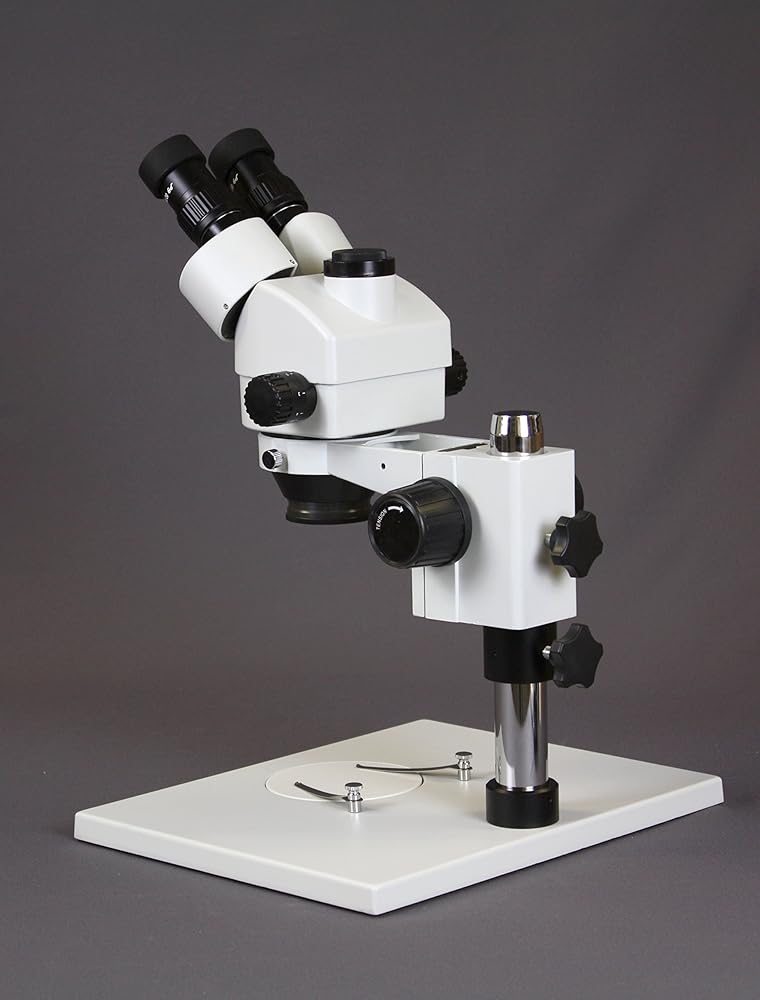

This Vision Scientific trinocular zoom stereo microscope is ideal for laboratory, industrial or medical applications. Using its high resolution, great depth, and a large field of view, it is the perfect instrument for viewing any three-dimensional or temperature-sensitive specimen or object.
The compact, thin design of the large base provides added comfort for the user and allows sample positions to remain low, which provides easy accessibility to variable light controls. The pillar stand provides a long working distance, to offer flexibility when working with small or large samples.
Rugged cast aluminum with gray enamel finish. Packed in a fitted Styrofoam box, and includes a dust cover and an instruction manual.
Specifications
Head: Trinocular, 45° inclined, rotates 360°
Eyepiece: 10x WF / 20mm high eye point
Zoom Range: 0.7x—4.5x, 1:6.4 zoom ratio
Magnification Range: 7x—45x, 3.5x—90x with the 0.5x & 2x auxiliary Lens
Working Distance: 100 mm standard, optical working distance can be increase or decrease 30-165 mm with auxiliary lens
Stage: Black & white reversible stage plate with a pair of stage clips
Stand: Pillar stand with large base
Overall Dimensions: 15” x 14” x 10” / Weight: 10 lbs
Packing List
Trinocular zoom stereo microscope head
Pair of 10x WF eyepieces
Pillar stand with large base
Focusing arm
Pair of eye guards
One dust cover
User manual

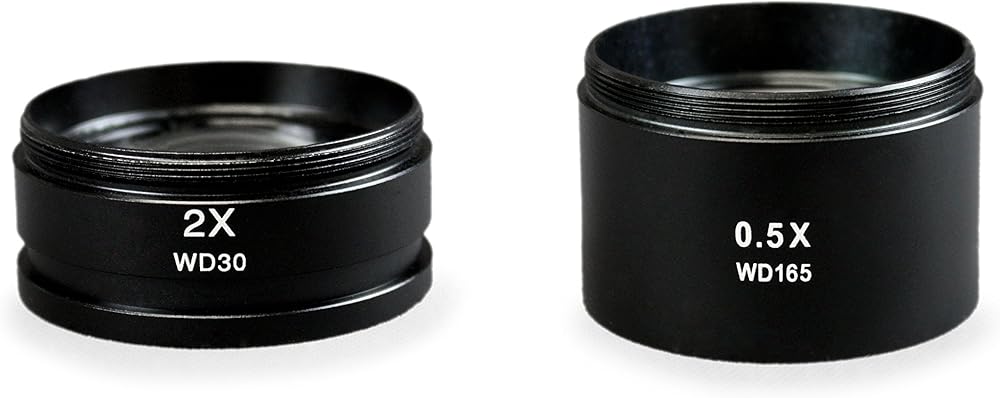

0.5x and 2x auxiliary lens
