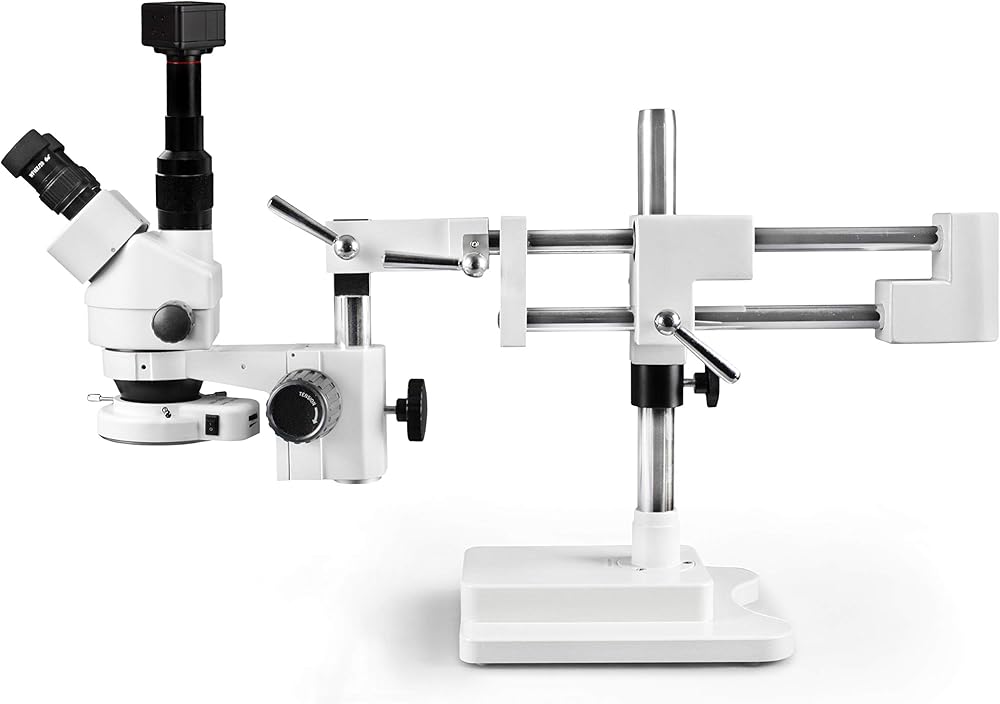

This Vision Scientific trinocular zoom stereo microscope is ideal for laboratory and industrial applications. Using its high resolution, great depth, and a large field of view, it is the perfect instrument for viewing any three-dimensional specimen or large objects.

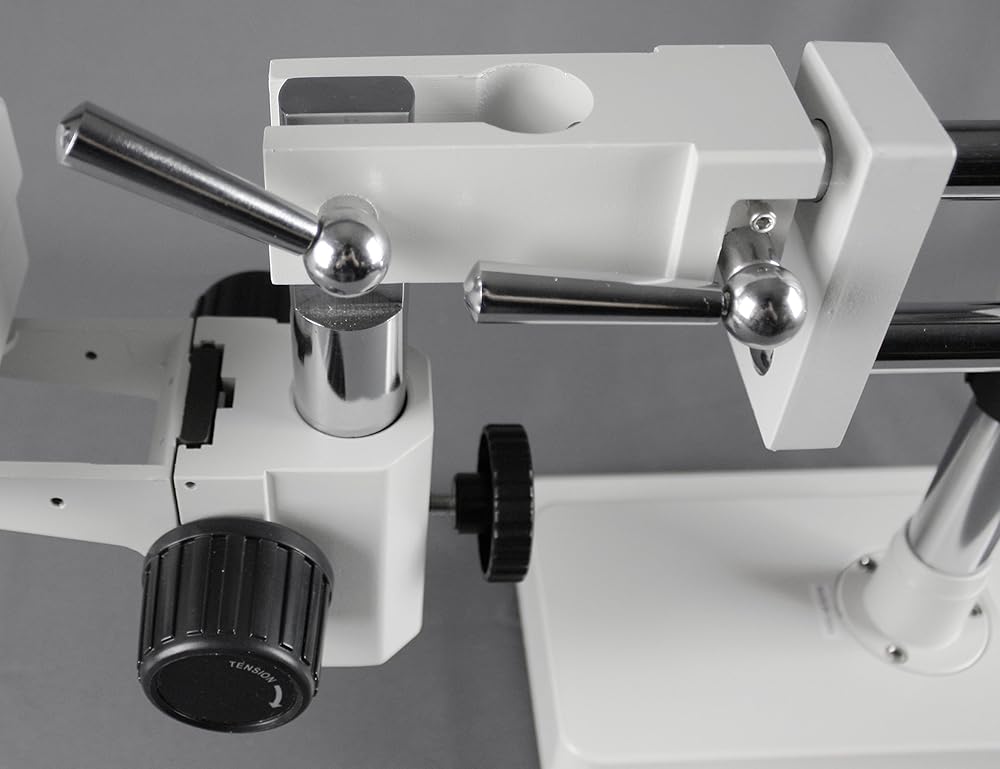

The solid cross block and brass inserts improve movement, while the friction collar secures the peg and allows the microscope to rotate around a vertical axis. Its rotating, swivelling, and tilting functionalities allow for it to cover wide, horizontal and vertical viewing areas; making it sure to meet your flexibility requirements.
Specifications

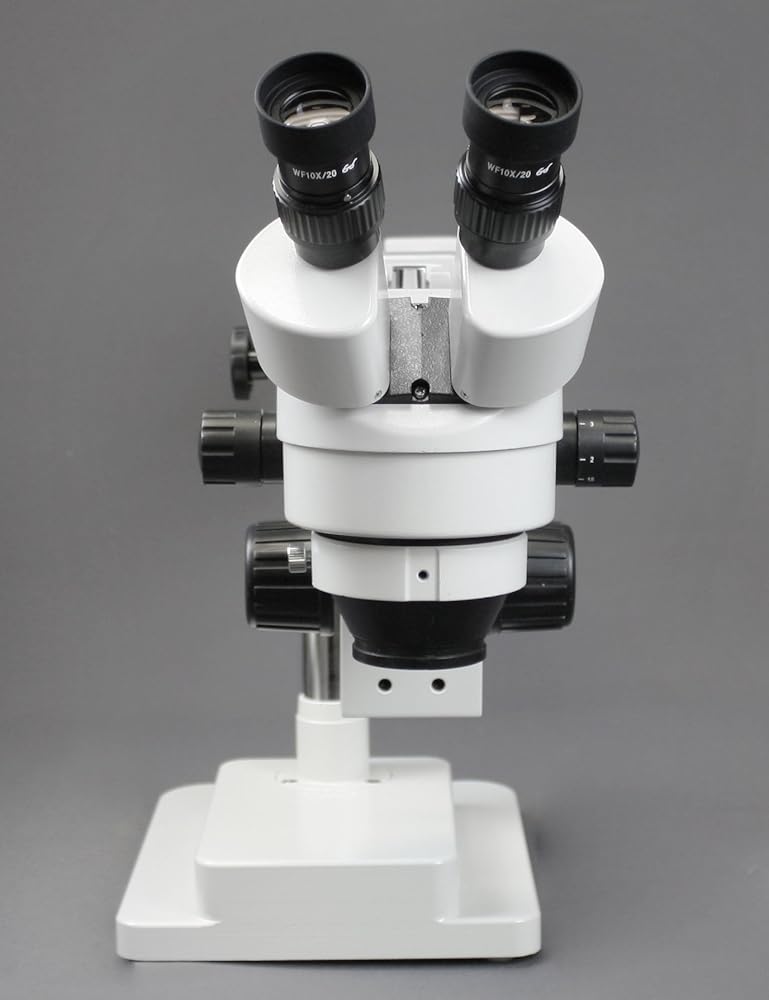

Head: Trinocular, 45° inclined, rotates 360°
Eyepiece: 10x WF / 20mm high eye point
Zoom Range: 0.7x—4.5x, 1:6.4 zoom ratio
Magnification Range: 7x—45x
Working Distance: 100 mm standard
Focusing: Heavy duty rack and pinion focusing arm with tension adjustment
Stand: Double arm ball-bearing boom stand
Light Source: 144-LED ring light with intensity control
Overall Dimensions: 24” x 20” x 12” / Weight: 48 lbs

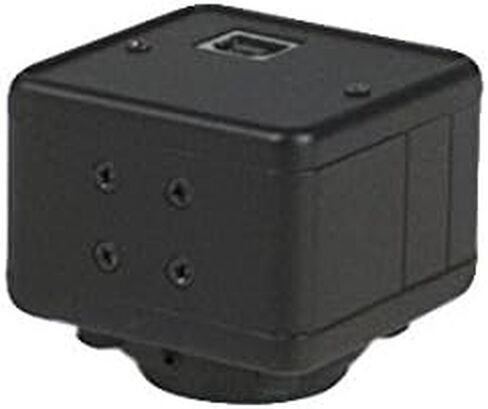

Camera Specifications
5.0 megapixel (2592 x 1944 max resolution)
Frame Rate: 38 fps (640 x 480) / 25 fps (1024 x 768) / 21 fps (1280 x 960) / 5 fps (2592 x 1944)
JPEG, BMP image format; Windows 7, 8, 10 compatible; USB 2.0 interface
Packing List
Trinocular zoom stereo microscope head
Pair of 10x WF eyepieces
Double arm boom stand
Focusing arm
Pair of eye guards
One dust cover
User manual

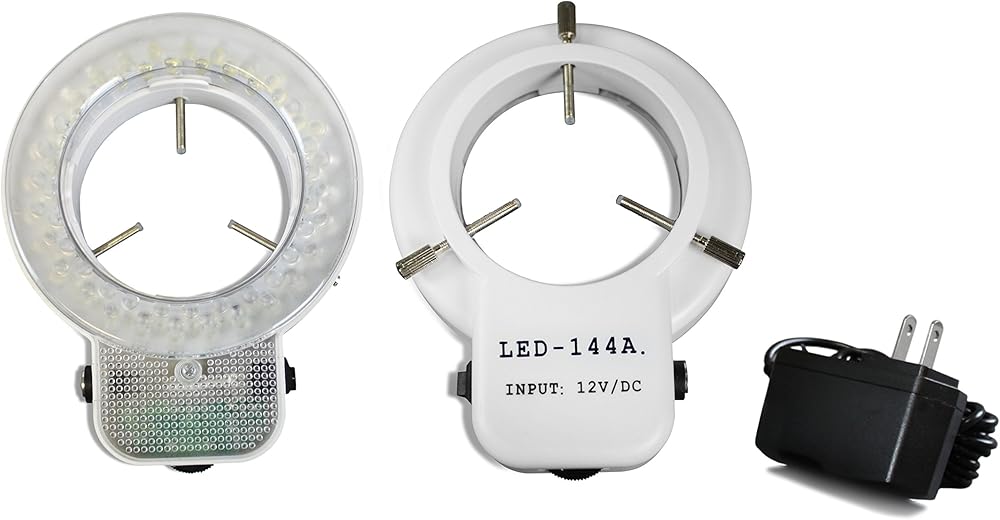

144-LED ring light with intensity control
Power adaptor
5.0 MP digital eyepiece camera
USB 2.0 cable
Imaging software CD
